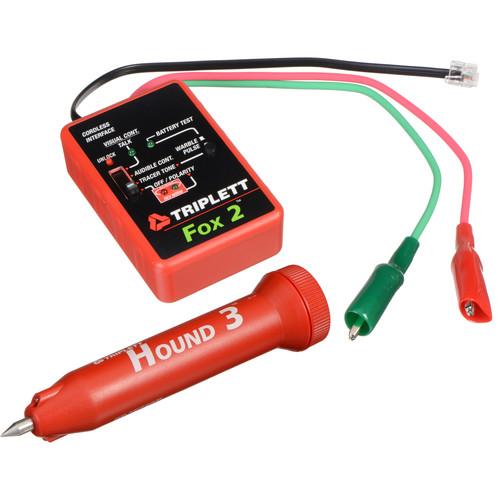

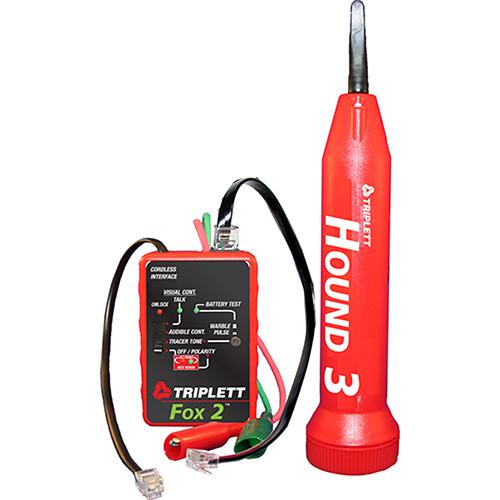

Product description The Fox & Hound from Triplett is a handheld, wire-tracing tone generator and probe kit useful for testing signal throughout any apposite cable (red/green telephone lines, LAN cables, Alarm cables, and more). It features two separate units, the Fox 2 tone generator and the Hound 3 probe, an inductive amplifier which follows the signal generated by the Fox throughout the cable you're testing.
The Fox 2 is battery operated and capable of generating both pulse and warble tones. It has a magnetized back for mounting in multiple situations, as well as an on/off locking button to prevent you from accidentally turning off the unit mid-use. For connection purposes, the unit utilizes alligator clips, an RJ-11 connection point, or an RJ-45 termination (via the included RJ-11 to RJ-45 adapter). Furthermore, the device features proprietary TrueTrace technology for quicker identification of cabling, 120 VAC overload protection in case you touch a hot line, and a continuity tester.

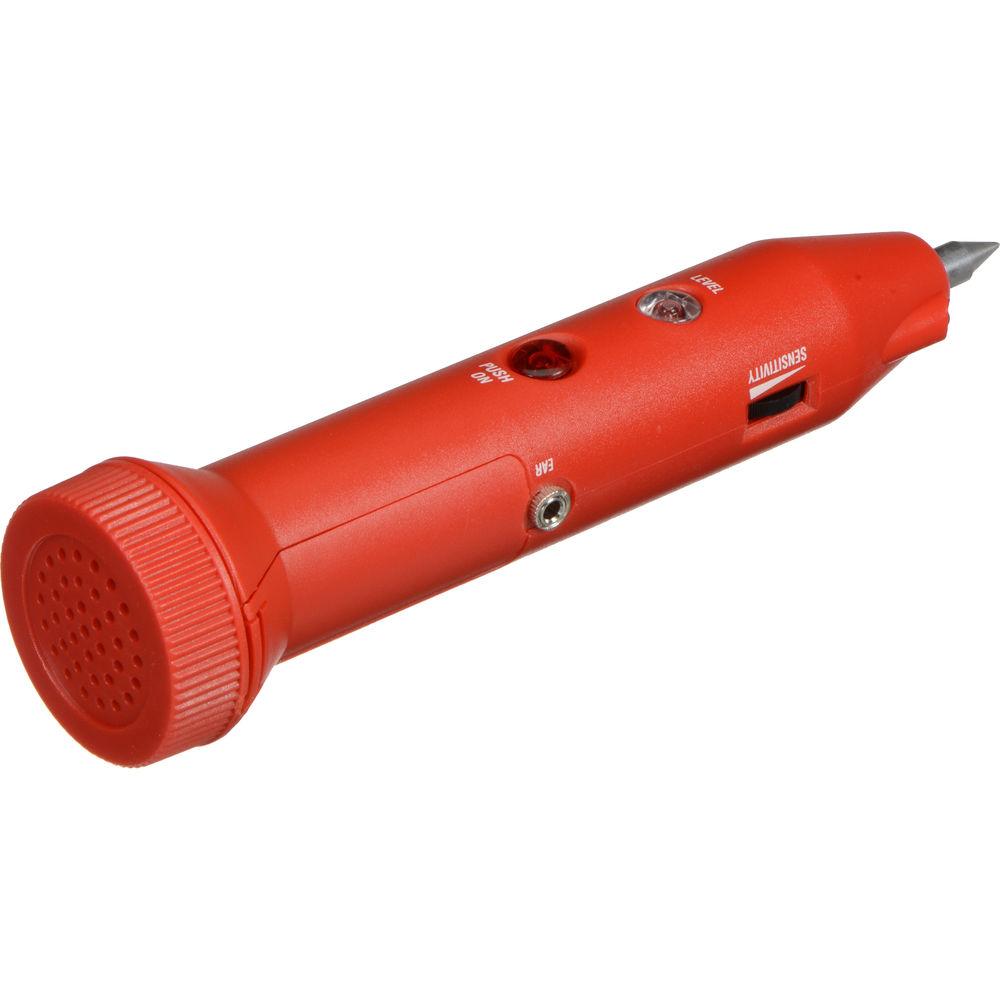

The Hound 3, on the other hand, sports a range of 12", allowing you to trace tones through cables from a foot away. It features adjustable sensitivity and loudness controls, though you can also monitor tones privately via a standard 3.5mm headphone jack. Built-in LED lights at the head of the probe improve visibility in dark areas, and boast the added effect of reducing the noise of fluorescent lights. Additionally, a bandpass filter suppresses unwanted frequencies. - Hound 3 Features
-
- Adjustable sensitivity and loudness control
- Bandpass filter suppresses 60 Hz and high-frequency noise
- Identifies Fox 2’s tracer tone up to 12 inches away
- Headlights illuminate dark areas and reduce fluorescent-light noise
- Built-in signal-strength indicator
- Earphone jack for use in quiet or noisy environments
- Easy-access battery door
- Rugged, moisture resistant
- Mylar cone speaker
- Fox 2 Features
-
- 3 methods of connectivity: RJ-11, RJ-45, or Alligator Clips
- Cordless-phone interface
- High-output, selectable tracer tone (Warble and Pulse)
- Magnetic back for easy mounting
- TrueTrace cadence shift for definite ID of cable or par within cable
- Red/green telephone lines polarity LEDs
- Tone/battery LED – indicates that Tracer tone is on and battery status
- Overload protection to 120 VAC
UPC: 614395001124 In the Box Triplett Fox & Hound Wire-Tracing Toner & Probe Kit Fox 2 Tone Generator Hound 3 Probe RJ-11 to RJ-45 Adapter Duckbill Metal Tip Earphones with 36" Leads Durable Cordura Case with Beltloop Storage Box Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Triplett Fox & Hound Wire-Tracing Toner & Probe Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTriplett 3399 Specs | | | Indicators | 3 x LED, red | | Load | Approximately 13 mA at 50 VDC | | Waveform | Square wave or differentiated square-wave level
Approximately 8 Vp-p (+14 dBu, 600 Ohms) into an open circuit
Approximately 5 Vp-p (+2 dBm into 600 Ohms), terminated phone line | | Frequencies | Low: Approximately 800 Hz
High: Approximately 1000 Hz
Warble: Alternates between low and high frequencies | | Battery | 9 V alkaline battery | | Battery Life | 500 hours continuous | | Dimensions | 3.7 x 2.4 x 1.1" / 9.4 x 6.1 x 2.8 cm | | Weight | < 7.0 oz / 198.4 g, including battery | | | | Detection Range | 12.0" / 30.5 cm | | Speaker | 1.5" / 3.8 cm mylar driver with alnico magnet | | Supported Probes | Solid aluminum conical probe for low-resistance contact testing
Conductive Plastic duckbill probe with metal threads for sensitive non-shorting testing | | Earphone Jack | 1 x 1/8" / 3.55 mm jack | | Battery | 9 V | | Indicators | Tone / Battery LED: Indicates that Tracer tone is on and battery status | | Dimensions | Diameter at speaker: 1.9" / 4.8 cm Diameter at body: 1.4" / 3.5 cm Length with metal probe: 8.3" / 21.0 cm Length with plastic probe: 9.3" / 23.5 cm | | Weight | < 8.0 lb / 3.6 kg, including battery | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 11.0 x 5.8 x 2.7" |
