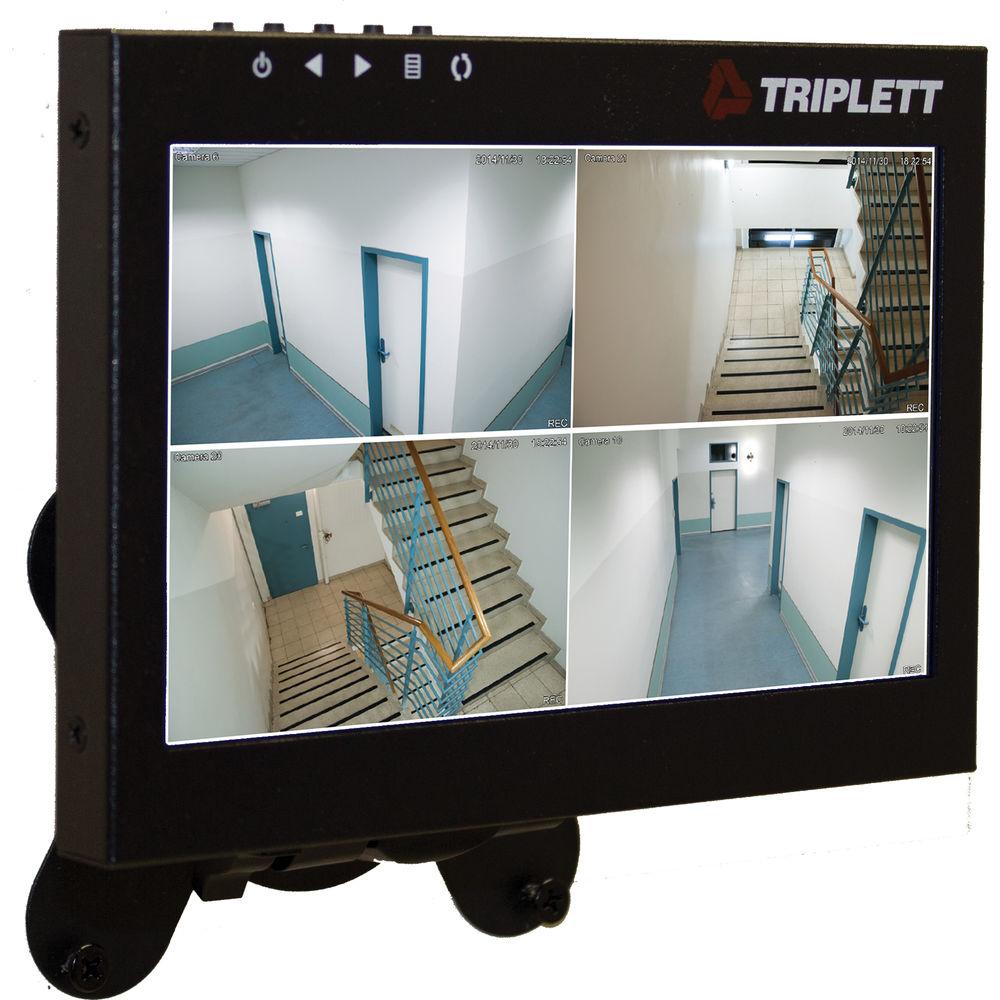

Product description Designed for monitoring surveillance cameras, the Triplett HDCM2 7" HD LED Monitor features a ruggedized outer construction, and can be used mounted to a desk or wall using an included swiveling stand.
The HDCM2 has a Full HD 1080p screen resolution, and offers HDMI, VGA, Composite, and Component inputs for connecting a DVR. 1080p signals connected over HDMI will be displayed in 1080p, but analog signals will be shown in their native resolution, such as 1024 x 768.
Your DVR can be set up to display multiple camera signals in various split screen configurations, and the HDCM2 will display whatever configuration is generated, such as a quad split. The monitor also has a built-in speaker for monitoring audio.
The HDCM2 has a built-in rechargeable battery, and also includes an AC adapter for continuous power. There's also an off button for the battery so that you can preserve it when using AC power. A case is also included for safely and conveniently transporting/storing the monitor. - Key Features
-
- 7" display for monitoring surveillance cameras
- Ruggedized outer construction

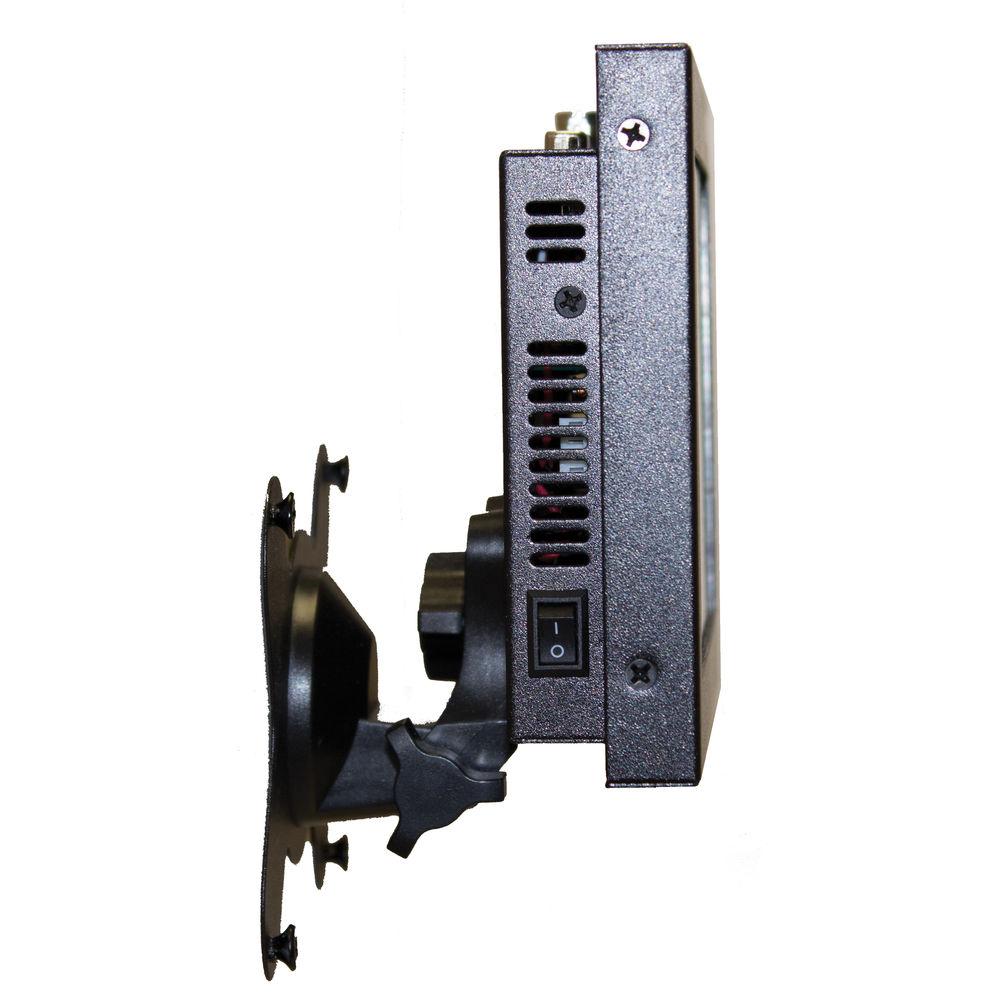

- Mounts to a desk or wall using an included swiveling stand
- Full HD 1080p screen resolution
- Displays analog signals in their native resolution, such as 1024 x 768
- HDMI, VGA, Composite, and Component inputs for connecting a DVR
- Input toggle button on top of monitor
- Built-in speaker
- Volume control button
- Built-in rechargeable battery
- Includes an AC adapter for continuous power
- Off button for the battery when using AC power
- Includes a case for safe transport and storage
UPC: 614395001865 In the Box Triplett HDCM2 7" HD LED Monitor for Security Cameras Swiveling Desk-/Wall-Mount Stand AC Adapter HDMI Cable Carry Case Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Triplett HDCM2 7" HD LED Monitor for Security Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTriplett HDCM2 Specs | Screen Size | 7" (17.8 cm) | | Screen Resolution | Full HD 1080p (1920 x 1080)
*Will display 1080p signals connected over HDMI, but will also display lower-resolution analog signals in their native resolution, such as 1024 x 768. | | Aspect Ratio | 4:3 | | Contrast Ratio | 400:1 | | Brightness | 400 cd/m² | | Response Time | 12 ms | | Viewing Angle | 160 x 160° | | Frequency | 60-75 Hz | | Signal Input | 1 x HDMI
1 x VGA
1 x AV/Composite
1 x Component on BNC | | Backlight | LED | | Standards | NTSC/PAL | | Speaker | Built-in | | Battery | Built-in lithium-polymer (3 cell) 11.1 V, 1000 mAh
(Charging via included AC adapter: 12.6 VDC, 2 A) | | Languages | English, Chinese, Russian | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | | | Package Weight | 3.45 lb | | Box Dimensions (LxWxH) | 14.3 x 9.5 x 3.4" |
