Product description - Alphatron Light TriStar 4

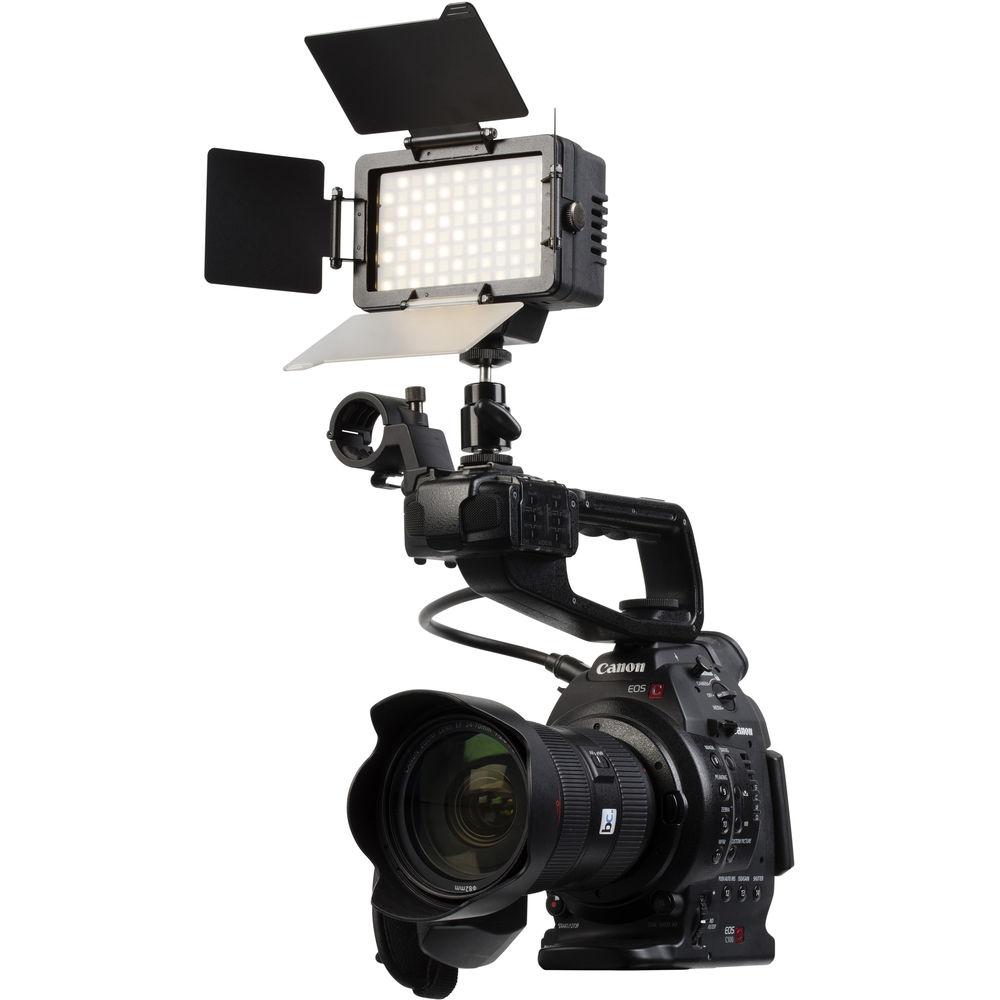

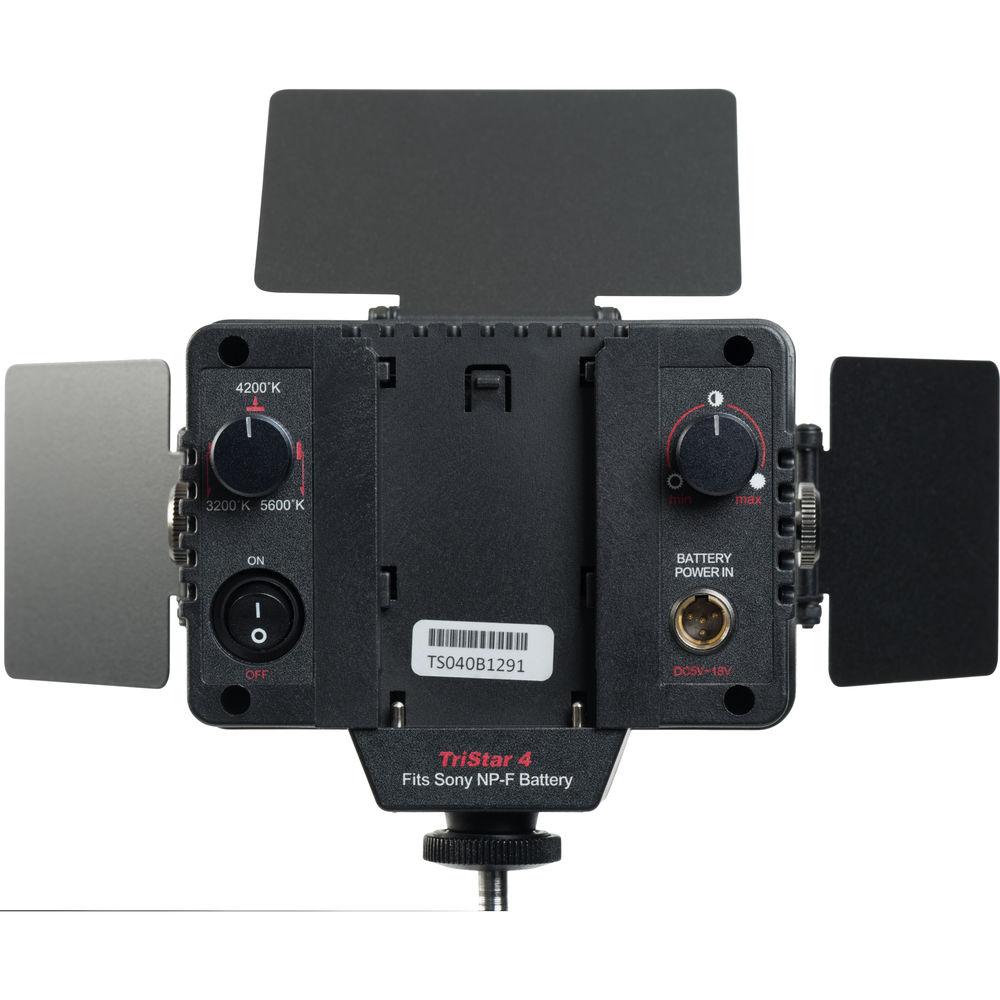

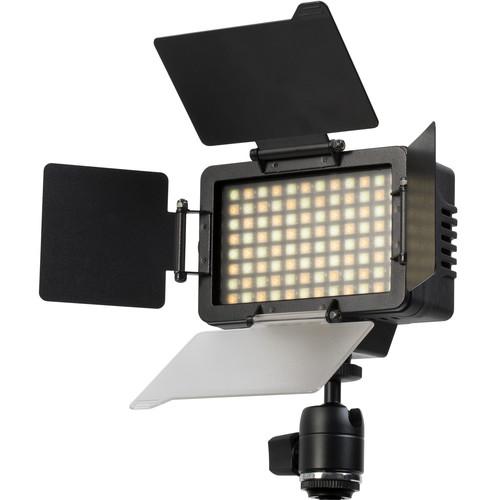

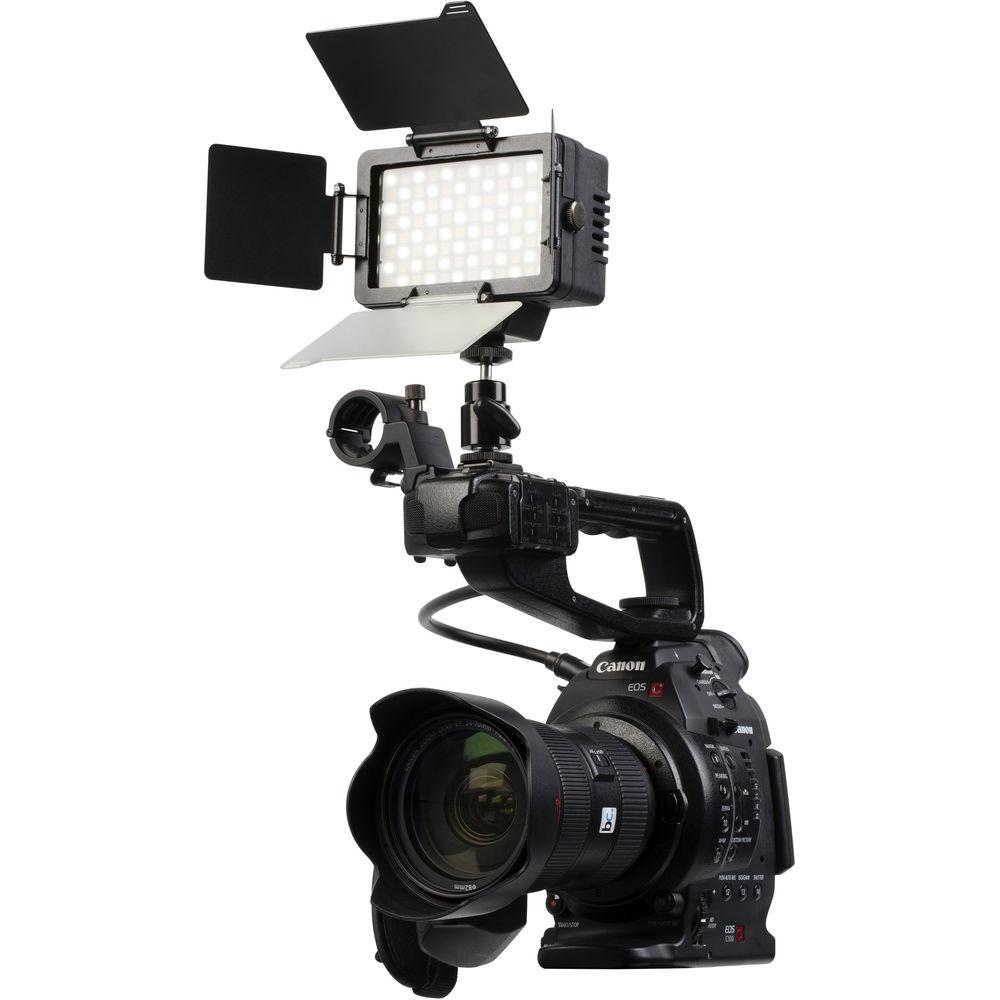

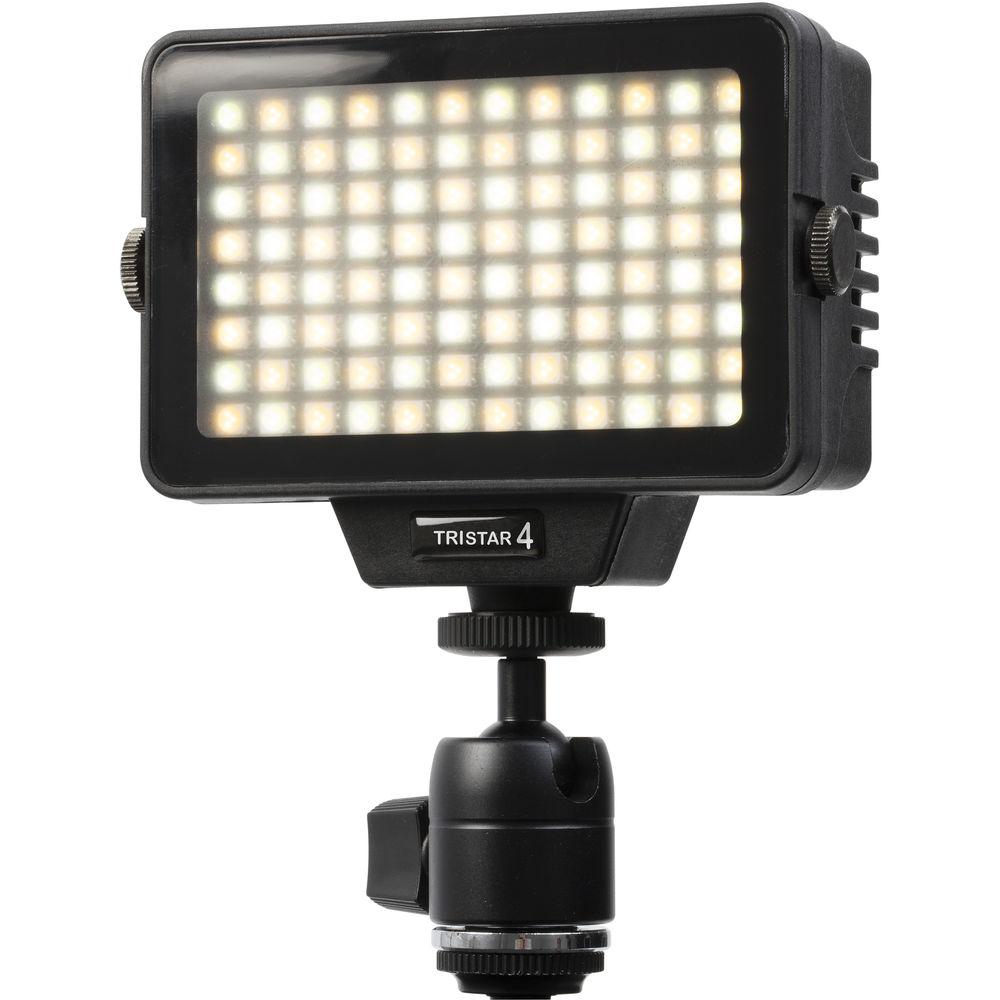

The TriStar 4 is a compact, on-camera LED light with variable 3200 to 5600K color temperature for smooth adjustment from tungsten to daylight balance. It produces a 120° beam angle and features a built-in variable dimmer that can dim the light output from 100 to 10%. A 1/4"-20 thread is provided for mounting the light, with a ball head shoe mount adapter included for on-camera use. The light can be powered via an optional Sony L-series battery pack or via a D-Tap output using the included D-Tap to mini 4-pin XLR power cable. For increased control over the light, a detachable metal barn door system with diffusion filter is also included. -
- 96 3-chip SMD (surface-mount device) LEDs
- 3200–5600K variable color temperature
- 100–10% dimming
- Lightweight and compact design

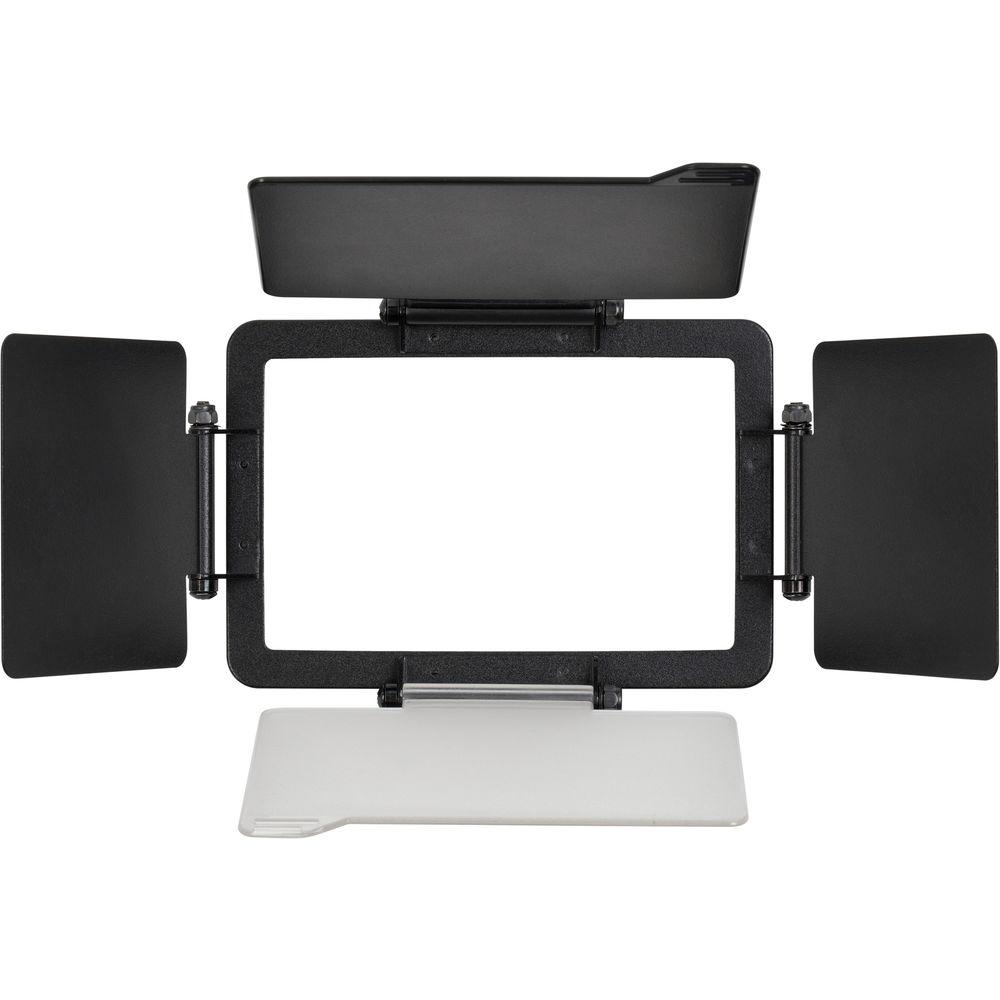

- Detachable metal barndoors with diffusion filter

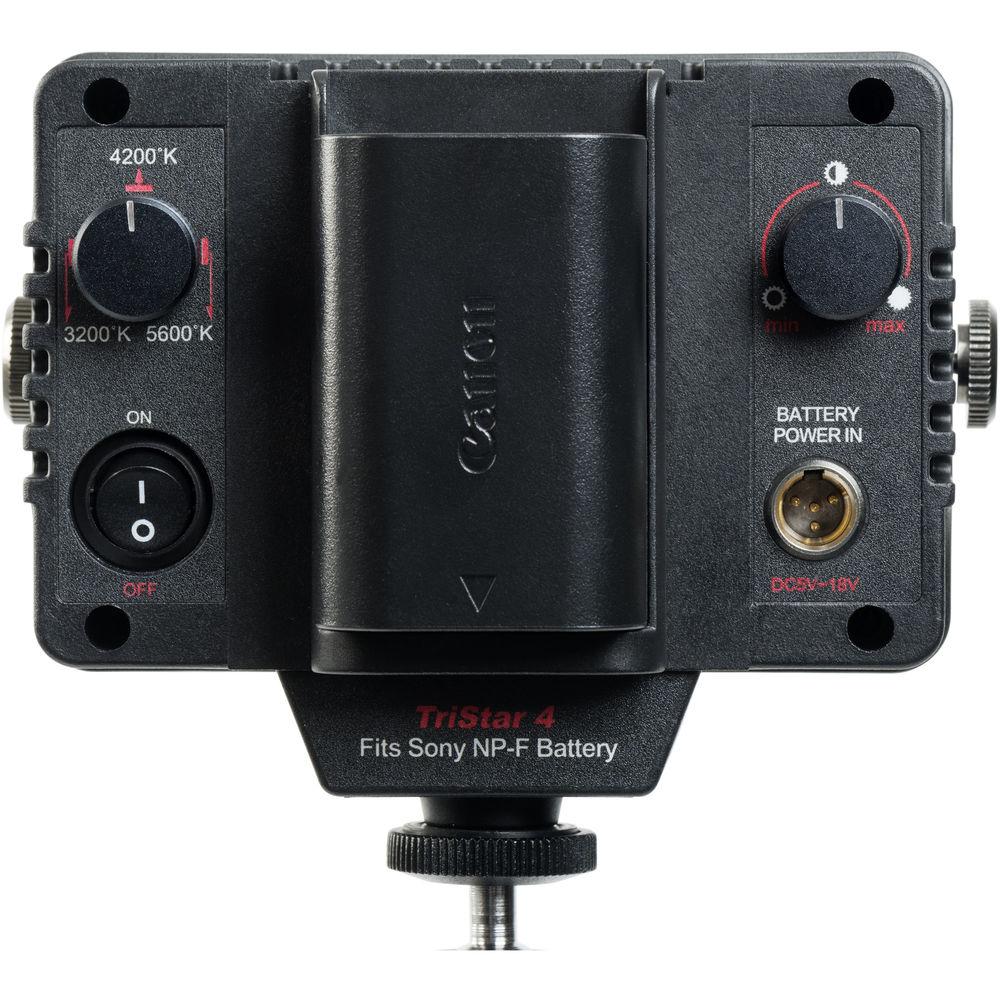

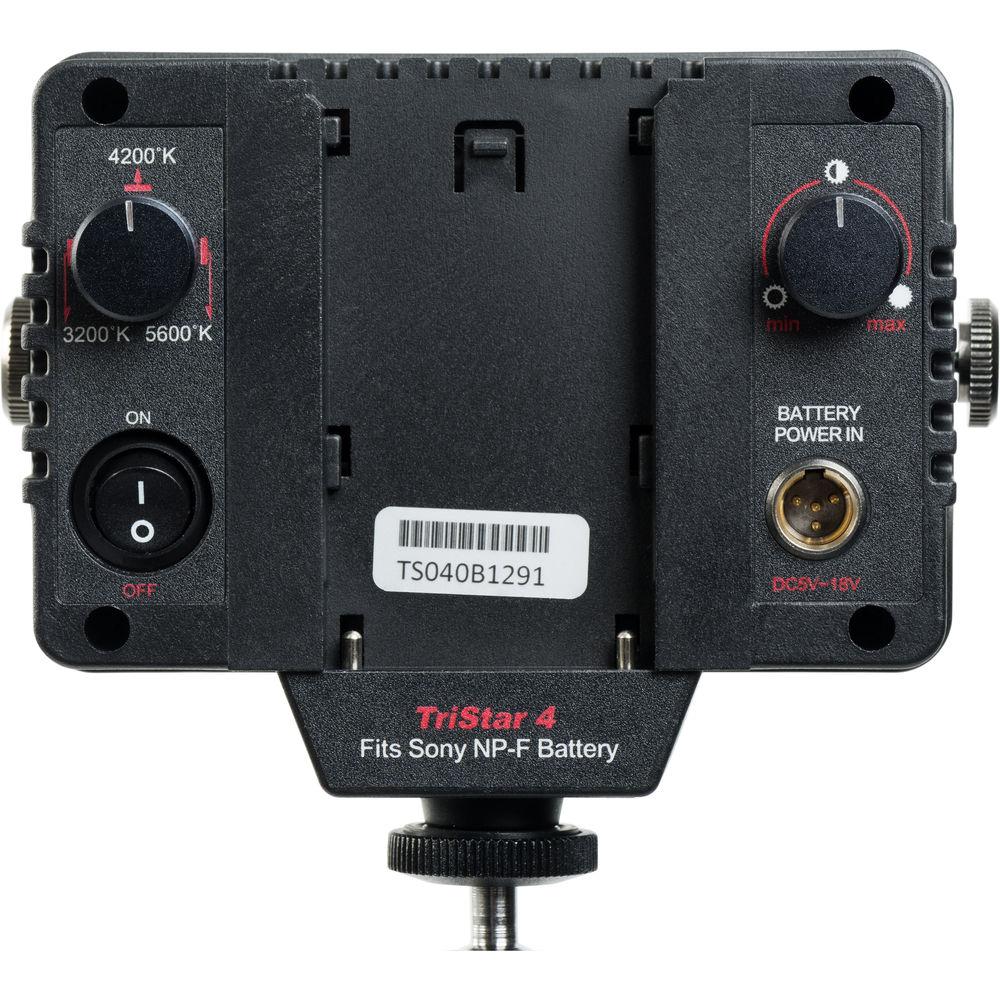

- Powered by mini 4-pin XLR or Sony L-series battery

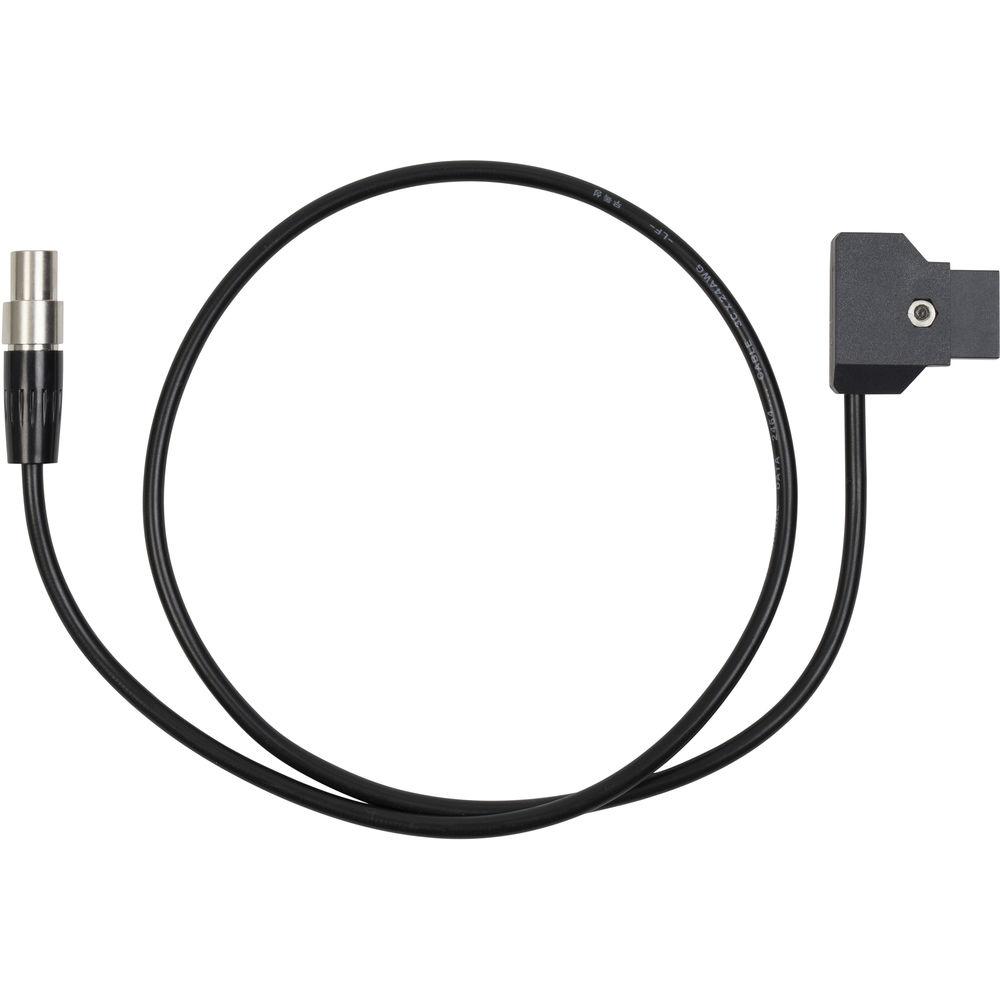

- D-Tap to mini 4-pin XLR power cable
- 1/4"-20 mounting thread

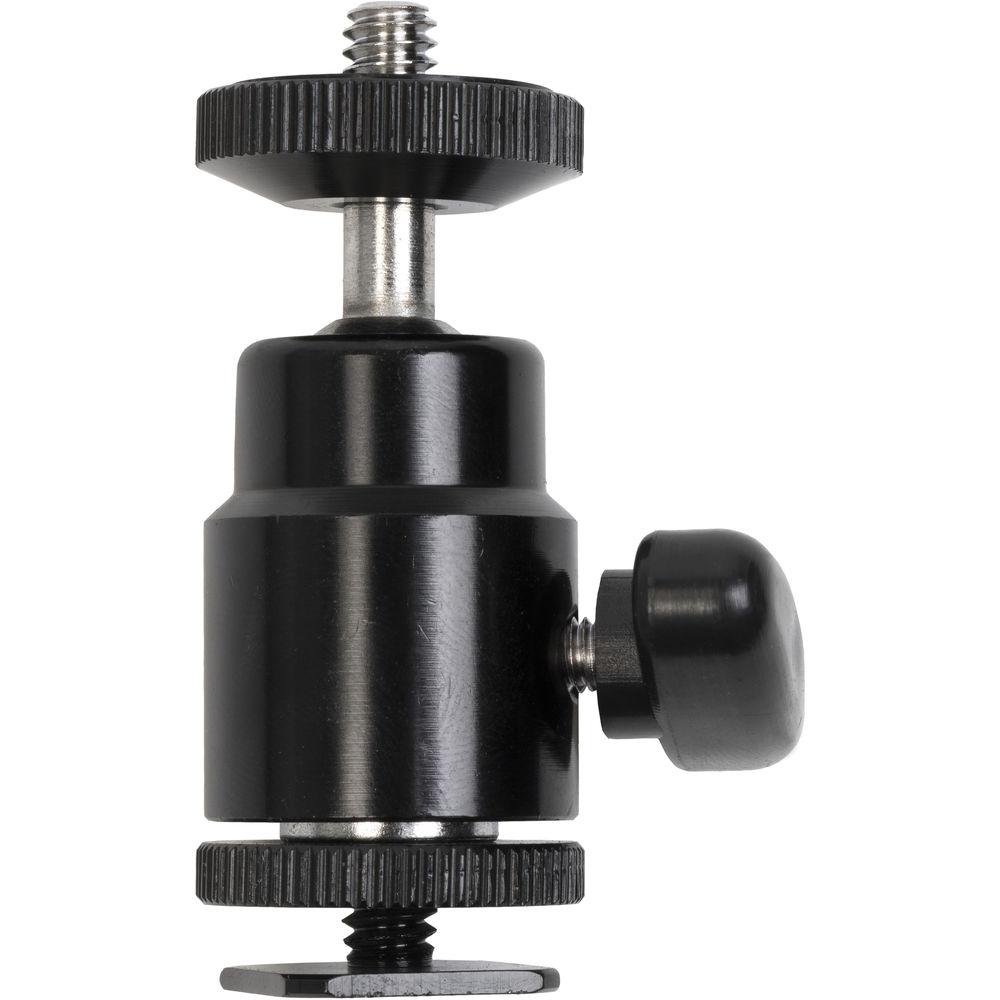

- Shoe mount ball head adapter
In the Box TriStar 4 On-Camera Bi-Color LED Light Metal Barn Door System & Diffusion Filter Ball Head Shoe Mount Adapter D-Tap to Mini 4-Pin XLR Power Cable BP-U Battery Bracket LP-E6 Battery Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TriStar 4 On-Camera Bi-Color LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTriStar ALP-TRISTAR-4 Specs | | | Beam Angle | 120° | | Color Temperature | 3200 to 5600K | | Color Accuracy Standard | CRI 85 | | Expected Lamp Life | 10000 Hours | | Number of LEDs | 96 | | | | Battery Plate | 1 x Sony L-Series (NP-F) | | DC Input Power | 5 to 18 VDC | | Max Power Consumption | 12 W | | Power Input Connector | 4-Pin XLR | | Power Source | External Battery | | | | Mount Type | 1/4"-20 Female Thread, Cold Shoe | | Dimensions | 4.3 x 3.5 x 2.2" / 11 x 9 x 5.5 cm | | Weight | 8 oz / 227 g | | | | Package Weight | 1.41 lb | | Box Dimensions (LxWxH) | 7.5 x 6.2 x 4.0" |
