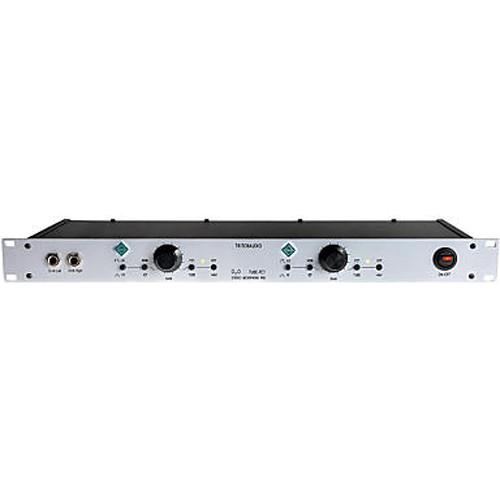

User Manual for TRITON AUDIO D20 Stereo Rackmountable Microphone Preamp Click to enlarge the picture
Contents of the user manual for the TRITON AUDIO D20 Stereo Rackmountable Microphone
- Product category: Microphone Preamps TRITON AUDIO
- Brand: TRITON AUDIO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TRITON AUDIO Microphone Preamps
|
User manual for the TRITON AUDIO D20 Stereo Rackmountable Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TRITON AUDIO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TRITON AUDIO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TRITON AUDIO product will considerably shorten its lifespan!
|
Product description The D20 Stereo Rackmountable Preamp from Triton Audio is a dual microphone preamp suitable for a wide swath of instrument signals, from guitars to vocals to drum overheads. Its construction consists of Lundahl 1571 transformers followed by two gain stages on each channel, the second of which is switchable between FET or Tube modes. A discrete low-impedance FET buffer on each channel powers the output drive, while a low-ESR voltage regulator ensures the amplifier circuit operates without unwanted noise.
This preamp also boasts input-impedance selectors, which affect the overall sonic characteristics of the signal passing through. This parameter, in concert with the ability to switch between Tube mode and FET mode, fosters creative options in sculpting colorful tones on the way in. Furthermore, this unit supports 48V phantom power on both channels and sports a built-in power supply. UPC: 764804148558 In the Box TRITON AUDIO D20 Stereo Rackmountable Microphone Preamp Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRITON AUDIO D20 Stereo Rackmountable Microphone Preamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRITON AUDIO D20 Specs Modes | Tube-FET, FET | Gain | Tube-FET: 60 dB FET: 70 dB | EIN | -128 dB | Headroom | 32 dB | Input Impedance | 2.25 kOhms, 6.25 kOhms | Output Impedance | 100 Ohms | Power | Built-in 115 / 230 VAC, 3-pin IEC socket | Input | 2x XLR | Output | 2x XLR (pin 2 hot) 2x 1/4" TRS | Dimensions (W x H) | 19" x 1.75" / 48.3 x 4.45 cm |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 46 owners. Add your rating and experience with the product.
