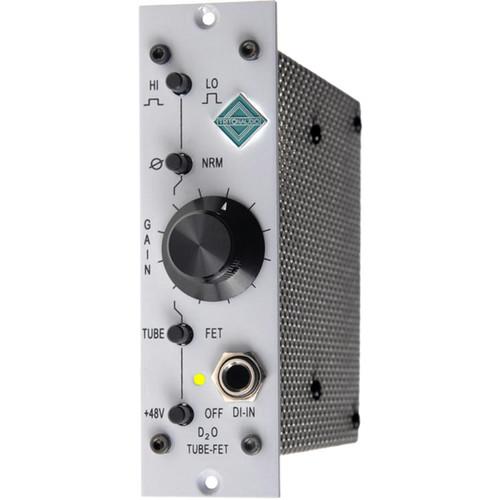

User Manual for TRITON AUDIO D2O 500 Series Microphone Preamp Click to enlarge the picture
Contents of the user manual for the TRITON AUDIO D2O 500 Series Microphone
- Product category: Microphone Preamps TRITON AUDIO
- Brand: TRITON AUDIO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TRITON AUDIO Microphone Preamps
|
User manual for the TRITON AUDIO D2O 500 Series Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TRITON AUDIO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TRITON AUDIO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TRITON AUDIO product will considerably shorten its lifespan!
|
Product description Designed for 500 series racks, the D2O from TritonAudio is a microphone preamp suitable for a wide swath of instrument signals, from guitars to vocals to drum overheads. Its construction consists of a Lundahl 1571 transformer followed by two gain stages, the second of which is switchable between FET or Tube modes. A discrete low impedance FET buffer powers the output drive, while a low-ESR voltage regulator ensures the amplifier circuit operates without ancillary, unwanted noise.
This preamp also boasts an input-impedance selector that affects the overall sonic characteristics of the signal passing through. This parameter, in concert with the ability to switch between tube mode and FET mode, fosters creative options in sculpting colorful tones on the way in. Furthermore, this unit supports 48V phantom power. UPC: 764804148541 In the Box TRITON AUDIO D2O 500 Series Microphone Preamp Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRITON AUDIO D2O 500 Series Microphone Preamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRITON AUDIO D2O 500 Specs | Modes | Tube-FET, FET | | Gain | Tube-FET: 60 dB
FET: 70 dB | | EIN | -128 dB | | Headroom | 32 dB | | Input Impedance | 2.25 kOhms, 6.25 kOhms | | Output Impedance | 100 Ohms | | Power | Supplied by 500 series rack | | Input | 1x XLR | | Output | 1x XLR (pin 2 hot)
1x 1/4" TRS |
