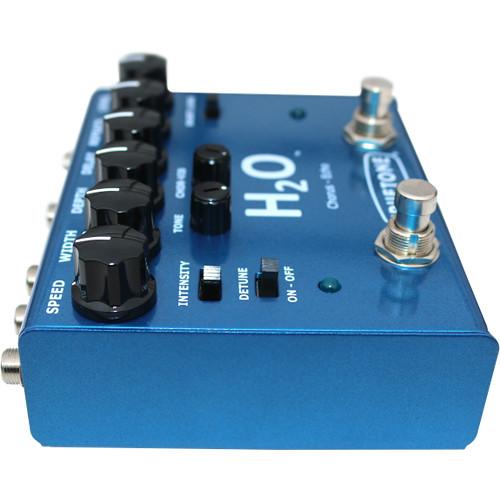

User Manual for Truetone V3 H2O Liquid Chorus Echo Pedal Click to enlarge the picture
Contents of the user manual for the Truetone V3 H2O Liquid Chorus Echo
- Product category: Effects Pedals Truetone
- Brand: Truetone
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Truetone Effects Pedals
 |
User manual for the Truetone V3 H2O Liquid Chorus Echo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Truetone product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Truetone user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Truetone product will considerably shorten its lifespan!
|
Product description The dual V3-Series Truetone H2O Liquid Chorus/Delay Pedal offers two distinct pedals within a single enclosure with smaller footprint than two standard pedals. The Chorus/Vibrato section offers a broad range of dreamy liquid tones and includes Leslie-esque eddy or subdued currents reminiscent of a lazy river that's gently flowing to a relaxed and blissful tonal destination.
The hybrid-analog Echo offers a broad range of delayed colors including short slap back echoes to long mesmerizing depths of tidal waves and textured shimmers. It can encompass your tone with a warm, deep delay or ferry you on to controlled, eternal oscillations that will turn your mind into a raging torrent, flooded with rivulets of thought cascading into a waterfall of creative alternatives.
By patching, you can reverse the order or use separate inputs and outputs for the ultimate in flexibility. Each channel can be set to buffered or True Bypass via internal switches. The custom designed Forever Footswitch is rated for up to 10 million hits, which interact with relays with gold-plated contacts. The Truetone H2O offers a lifetime warranty and ships with a velvet storage bag. -
- Each channel can be set to either True Bypass mode or buffered, via internal switches. The buffered mode utilizes Truetone’s Pure Tone circuit
- Features the custom designed "forever footswitch" rated for 10 million hits. This interacts with relays having gold-plated contacts
- Limited lifetime warranty (even for second or third owners)
- Separate inputs and outputs so each side of the pedal, which can be used in a loop device, or midi switcher. Also, it is possible to reverse the order of effects with a patch cable. Like having 2 pedals, but in 1 housing

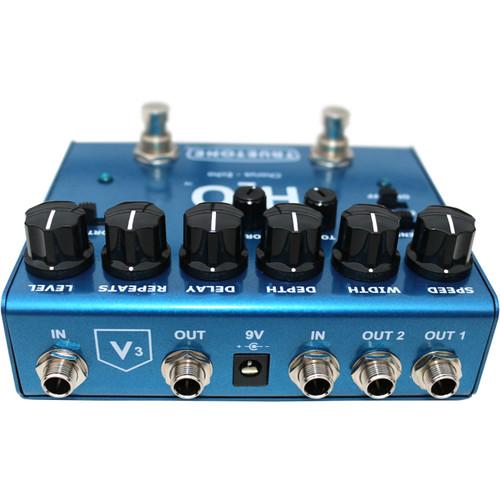

- Small, pedal board friendly size, with front mounted jacks. Smaller footprint than two standard sized pedals
- Comes in a black velvet bag inside the package box

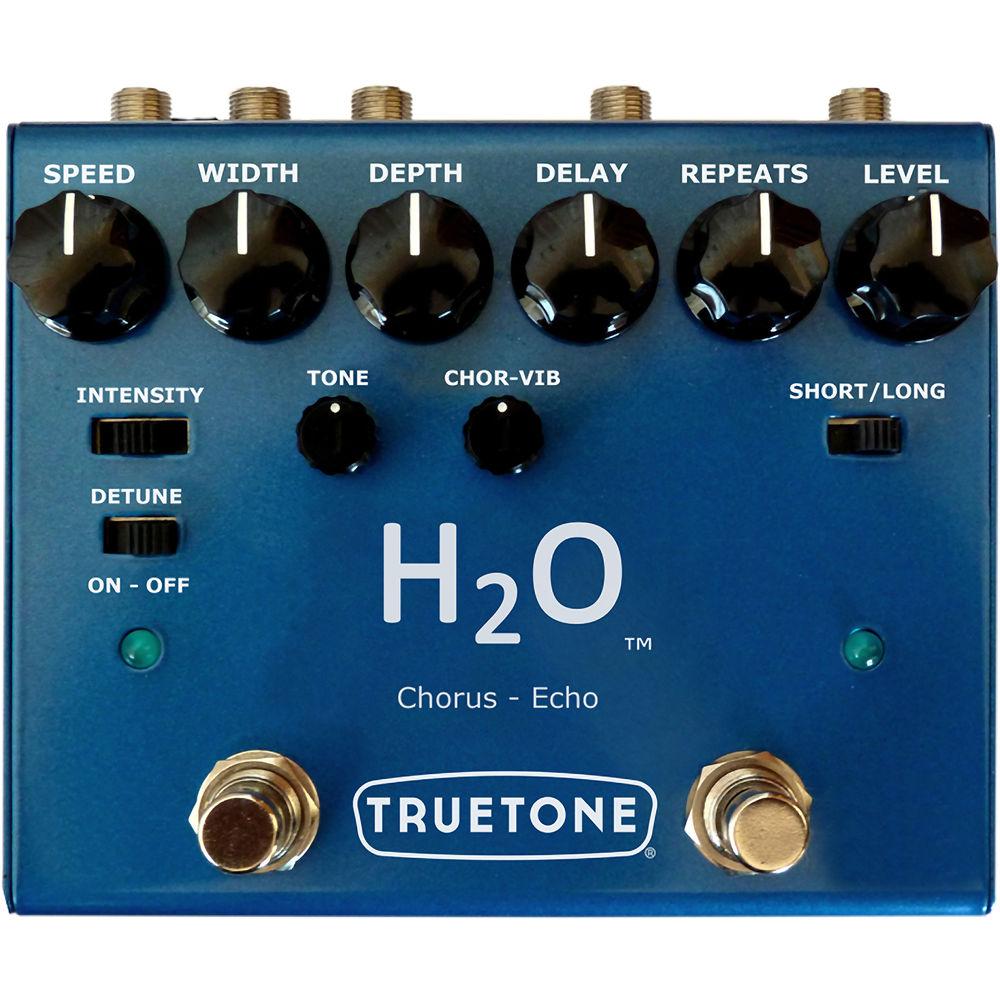

- Echo:
- Delay: Controls delay time; how fast the notes are repeated
- Repeats: Controls how many times the notes are repeated, from once to infinite
- Level: Controls the volume of the repeated notes
- Short/Long: This switch splits the Delay knob into two ranges
- Short is approximately 10 to 225 ms
- Long is approximately 225 to 450 ms
- Liquid Chorus:
- Speed: Controls the speed of the vibrato effect that is inherent in the Chorus circuit
- Width: Controls the overall wavelength of the vibrato effect
- Depth: Controls the overall lushness of the Chorus, from very subtle to very lush
- Chor-Vib: Controls whether the effect is Chorus, Vibrato, or a blend of both. Vibrato removes the clean signal entirely, leaving only the effected signal
- Tone: This is a typical high-cut tone control, effecting the entire Chorus circuit
- Intensity: This 3-position switch chooses between 3 levels of intensity in the Chorus circuit
- Detune: Off is normal Chorus. On allows the Liquid Chorus to go into ranges that other chorus pedals never go, from relatively normal lush chorus to true noise effects
- Out 2: Use this jack in combination with Out 1 for true stereo chorus. The Echo channel will be parallel mono, not stereo when using this jack in a normal setup
In the Box Truetone V3 H2O Liquid Chorus / Echo Pedal Black Velvet Bag Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Truetone V3 H2O Liquid Chorus Echo Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTruetone V3H2O-U Specs | Current Draw | Max: 56 mA | | Dimensions | 5.1 x 4.4 x 2.0" / 130.0 x 113.0 x 52.0 mm | | Weight | 1.5 lb / 0.7 kg |
