TUBE-TECH CL1B - Single Channel Opto-Cell

Search your instruction manual in PDF to download

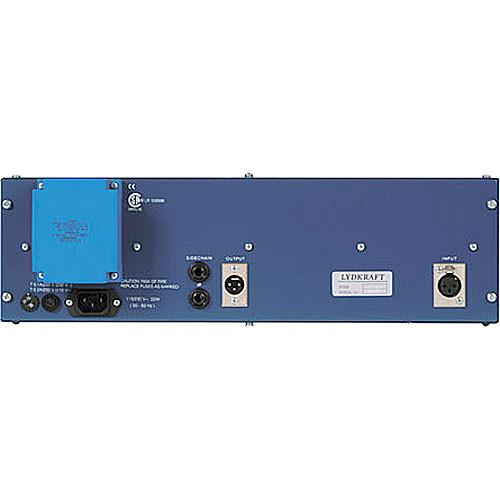

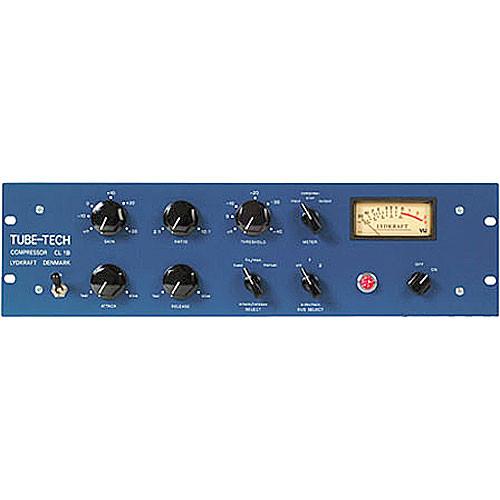

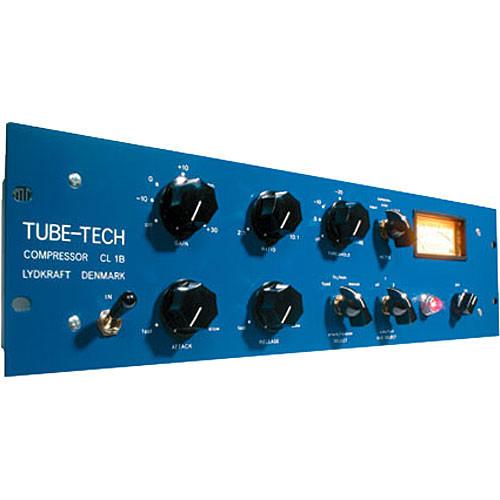

User Manual for TUBE-TECH CL1B - Single Channel Opto-Cell Tube Compressor

Click to enlarge the picture
TUBE-TECH CL1B - Single Channel Opto-Cell Tube Compressor Contents of the user manual for the TUBE-TECH CL1B - Single Channel Opto-Cell
  • Product category: Dynamics Processors TUBE-TECH
  • Brand: TUBE-TECH
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for TUBE-TECH Dynamics Processors

TUBE-TECH CL1B - Single Channel Opto-Cell Tube Compressor TUBE-TECH CL1B - Single Channel Opto-Cell Tube Compressor
User manual for the TUBE-TECH CL1B - Single Channel Opto-Cell contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any TUBE-TECH product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official TUBE-TECH user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a TUBE-TECH product will considerably shorten its lifespan!



Product description

The CL 1B is single channel optical compressor with a push-pull tube amplifier. The unit contains a unique low distortion gain-reduction element, and the input and output are balanced and are fully floating. The gain reduction element is positioned immediately after the input transformer, and is controlled by the sidechain amplifier, which also contains the two circuits for time control, one for fixed, the other for variable attack/release. The two time controllers on the CL 1B can be used either separately or combined. The gain-reduction element is followed by a tube based push-pull amplifier, which has a variable gain of up to 30dB. Several compressors can be linked together. The input and output transformers of the CL 1B come with a static-screen between primary and secondary wirings.
  • Single channel opto compressor
  • Multiple interconnection of several compressors is possible via two busses
  • Clickless IN/OUT key
  • VU-meter for monitoring input, compression and output
In the Box TUBE-TECH CL1B - Single Channel Opto-Cell Tube Compressor
  • Power Cable
  • One Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the TUBE-TECH CL1B - Single Channel Opto-Cell Tube Compressor in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    TUBE-TECH CL1B Specs

    Function Compressor
    Number of Channels 1
    Inputs 1 x XLR
    Output 1 x XLR
    Maximum Input Level +21dBmdBu
    Compression Threshold -40dBu to +20dBu
    Compression Ratio Variable
    Attack Time Continuously variable
    Release Time Continuously variable
    Gate Threshold Not applicable
    Gate Rate Not applicable
    Maximum Output Level +24dBm
    Make-up Gain 0dB to +30dB
    Frequency Response 5Hz to 25kHz
    Dynamic Range Not specified by manufacturer
    Noise <-75dBm @ +30dB gain, unweighted
    Dimensions 3U rack mount
    Specialties Similar in function to LA-2A
    Package Weight 12.68 lb
    Box Dimensions (LxWxH) 21.0 x 10.5 x 7.5"
