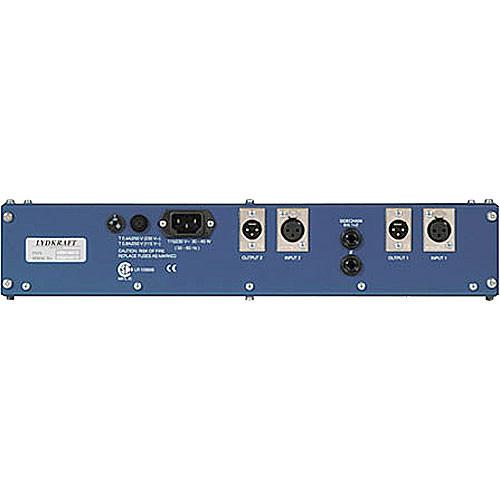

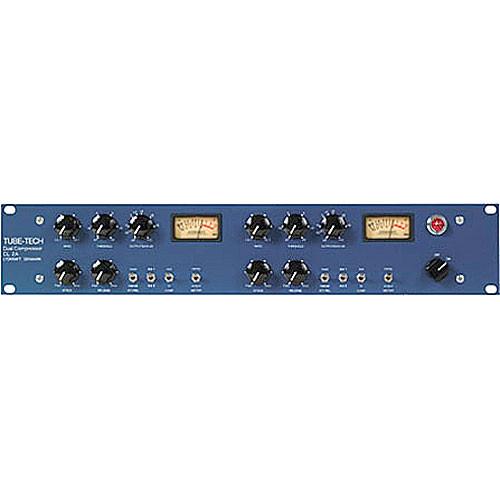

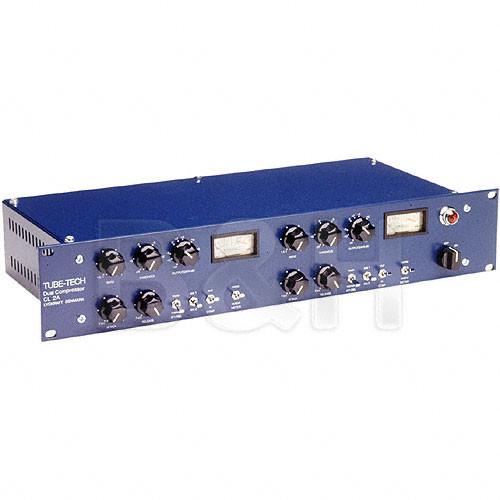

User Manual for TUBE-TECH CL2A - Dual Channel Opto-Cell Tube Compressor Click to enlarge the picture
Contents of the user manual for the TUBE-TECH CL2A - Dual Channel Opto-Cell
- Product category: Dynamics Processors TUBE-TECH
- Brand: TUBE-TECH
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TUBE-TECH Dynamics Processors
 |
User manual for the TUBE-TECH CL2A - Dual Channel Opto-Cell contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TUBE-TECH product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TUBE-TECH user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TUBE-TECH product will considerably shorten its lifespan!
|
Product description The CL 2A is a two channel version of the CL 1B optical compressor with an all tube based output amplifier. The unit contains unique low distortion gain-reduction elements, and the inputs and outputs are balanced and are fully floating. The optical gain reduction element is positioned immediately after the input transformer, and is followed by an all tube-based amplifier, with a gain of +10dB. The power supply and side-chain circuit on the CL 2A is based on a solid state circuit. All DC voltages are stabilized except the anode voltage for the output stage. A switch with three positions is used when the two channels are used in stereo mode, or if several compressors are linked together. The two link busses are identical. Both input and output of the CL 2A have balanced and fully floating transformers with a static screen. - Dual channel opto compressor
- Multiple interconnection of several compressors is possible via two busses
- VU-meter for monitoring input, compression and output
In the Box TUBE-TECH CL2A - Dual Channel Opto-Cell Tube Compressor Power Cable One Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TUBE-TECH CL2A - Dual Channel Opto-Cell Tube Compressor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTUBE-TECH CL2A Specs | Function | Compressor | | Number of Channels | 2 | | Inputs | 2 x XLR | | Output | 2 x XLR | | Maximum Input Level | Not specified by manufacturer | | Compression Threshold | -20 to off | | Compression Ratio | 1.5:1 to 10:1 | | Attack Time | 3mSec to 60mSec | | Release Time | 60mSec to 2 Sec | | Gate Threshold | Not applicable | | Gate Rate | Not applicable | | Maximum Output Level | +26dBU | | Make-up Gain | Off to -10dB | | Frequency Response | 5Hz to 60kHz | | Dynamic Range | Not specified by manufacturer | | Noise | <-80dBU | | Dimensions | 2U rack mount | | Specialties | Very low noise |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 35 owners. Add your rating and experience with the product.
