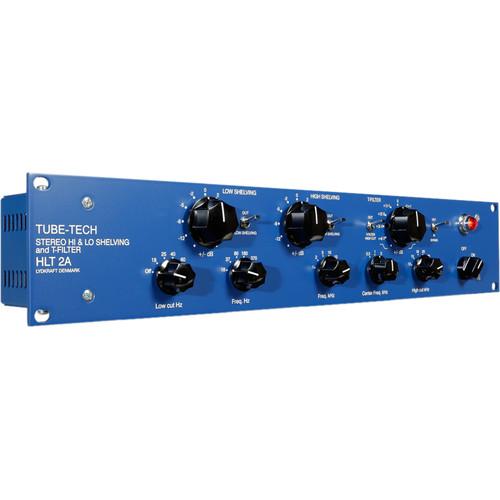

Product description The HLT2AM Hi & Lo Shelving Analog EQ from Tube-Tech is a stereo unit combining variable high and low shelving EQ and filters with an adjustable midrange T-Filter. The shelving filters are designed around a high gain tube amplifier. The T-filter is a passive filter placed between the shelving filters and the output amplifier. All three sections are supplied with an in/out switch. The low and high cut filters are also passive with a slope of 6 dB/octave. A bypass switches the whole filter section out of the amplifier circuit, keeping the output stage in the circuit. This unit has stepped pots and a smaller and more detailed range for the shelf and T- filter EQ.When the low end goes up, the high end goes down and vice versa. When the potentiometer is turned clockwise, the high frequencies are boosted and the low frequencies are attenuated. When the potentiometer is turned counter clockwise, the low frequencies are boosted and the high frequencies are attenuated. The unit is all tube based except for the power supply. Input and output have fully floating transformers. All DC voltages are stabilized, except the anode voltage for the output stage. -
- Tube-based push-pull amplifier
- Conductive plastic potentiometers
- In- and output are transformer balanced and fully floating
- All-tube active/passive EQ
Table of Contents
|
Upload User Manual
Have you got an user manual for the TUBE-TECH HLT2AM Hi & Lo Shelving Analog EQ with T-Filter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTUBE-TECH HLT2AM Specs | Frequency Response | @ -3 dB: 5 Hz to 55 kHz | | Low Noise | < -80 dBU @ 0 dB gain | | CMRR | > 60 dB @ 10 kHz | | Filters | Low cut: 18, 25, 40, 60, 85 Hz, 6 dB/octave
Low shelving: 18, 37, 80, 180, 370, 800 Hz, Gain: +/‑12 dB
High shelving: 1, 2, 5, 10, 15, 22 kHz, Gain: +/‑12 dB
T.-filter: 0.5, 1, 2 kHz, Gain: +4/-7 dB
High cut: 12, 15, 18, 20, 25 kHz, 6 db/octave
Tracking between channels: +/-0,3 dB | | Input Impedance | >10 kOhms | | Output Impedance | < 60 Ohms | | Dimensions | 19 x 3.5 x 6.5" (48 x 8.9 x 17 cm) | | Weight | 9.5 lb (4.3 kg) |
