User Manual for TUBE-TECH MEC-1A - Tube Based Recording Channel with Microphone Preamp DI, Three Band EQ and Optical Compressor Click to enlarge the picture
Contents of the user manual for the TUBE-TECH MEC-1A - Tube Based Recording
- Product category: Channel Strips TUBE-TECH
- Brand: TUBE-TECH
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TUBE-TECH Channel Strips
 |
User manual for the TUBE-TECH MEC-1A - Tube Based Recording contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TUBE-TECH product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TUBE-TECH user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TUBE-TECH product will considerably shorten its lifespan!
|

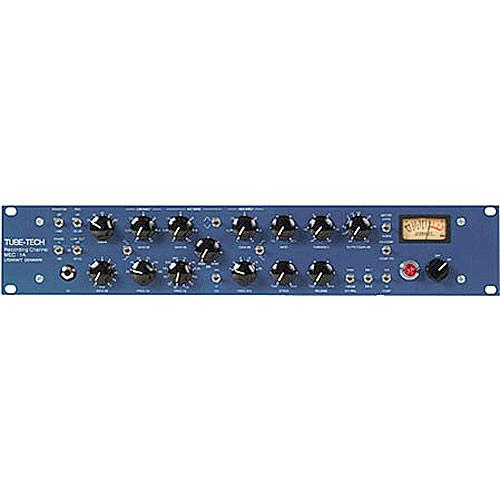

Product description The MEC 1A from Tube Tech is a single channel "Recording Channel" featuring a microphone preamp, equalizer and opto compressor. The unit is all tube based except for the power supply. MEC 1A features a master output gain control, a VU meter for displaying the output or amount of compression, gold plated switches and conductive plastic potentiometers. The heart of the shelving and bell filters feature a tube operational amplifier. The input and output have fully floating transformers and all DC voltages are stabilized, except the anode voltage for the output stage. Microphone Preamp - Consists of a microphone input transformer (with a static screen) and two dual tube preamplifiers, delivering a total gain range of +20dB to +70dB
- Switchable -20dB pad, switchable +48V phantom-power and phase reverse
- High-pass filter for the microphone and the DI input is switchable between off, 20Hz and 40Hz
EQ - Low and high shelving filter with a gain range of +/-15dB, each with six switchable frequencies
- Band filter with a gain range of +/-20dB, twelve switchable frequencies and a bandwidth control
- The shelving and the bell filters are designed around a dual tube amplifier
- Separate EQ-section I/O switch
Compressor - Optical compressor with controls for ratio, threshold, attack and release
- Can be switched between "manual" attack and release and "fixed" attack and release
- Linkable for stereo applications
- Can be placed pre or post EQ
In the Box TUBE-TECH MEC-1A - Tube Based Recording Channel with Microphone Preamp/DI, Three Band EQ and Optical Compressor AC Power Cable One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TUBE-TECH MEC-1A - Tube Based Recording Channel with Microphone Preamp DI, Three Band EQ and Optical Compressor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

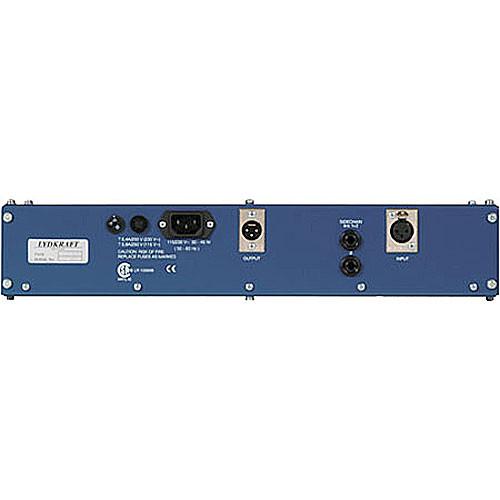

Technical parametersTUBE-TECH MEC1A Specs | Number of Channels | Single | | Inputs | 1 x XLR
1 x 1/4" TRS Link | | Outputs | 1 x XLR
1 x 1/4" TRS Link | | Frequency Response | 15Hz to 80kHz, -3dB | | Noise | <-82dBu, gain @ 20dB (22Hz-22kHz) | | | | Gain Range | Mic: 20dB to 70dB
DI: 10dB to 60dB | | Maximum Output | >+26dBu | | Input Impedance | Mic preamp: >1.2kΩ
DI input: 1MΩ | | Phantom Power | +48V | | | | Threshold Range | Off to -20dBu | | Ratio | 1.5:1 to 10:1 | | Attack Time | 1 mS to 100 mS | | Release Time | 60 mS to 2 S | | Slope | Not specified by manufacturer | | Sidechain | For linking multiple units only | | | | Filter Type | Low-shelf
Mid-band
High-shelf | | Frequency Bands | Low-shelf: 20, 30, 50, 70, 100, 160Hz (stepped)
Mid-band: 40, 60, 80, 130, 250 and 500Hz and 1, 1.6, 2.5, 4, 7, 10kHz (stepped)
High-shelf: 4, 6, 8, 12, 18, 26kHz (stepped) | | Bandwidth | Mid-band: Continuously variable from sharp to broad | | Range (Boost/Cut) | Low-shelf: +/-15dB
Mid-band: +/-20dB
High-shelf: +/-15dB | | Light Indication | | | Threshold Range | Not applicable | | Ratio | Not applicable | | Attack Time | Not applicable | | | | Threshold Range | Not applicable | | Frequency Range | Not applicable | | | | Gate Threshold | Not applicable | | Gate Rate | Not applicable | | | | Dimensions (WxDxH) | 19" x 8 1/8" x 3 1/2" | | Weight | 12.1 lbs | | Specialties | Side-chain circuit allows up to ten compressors to be linked together | | | | Package Weight | 15.6 lb | | Box Dimensions (LxWxH) | 24.4 x 14.8 x 9.4" |
