TUBE-TECH MP2A Dual Microphone Preamplifier

Search your instruction manual in PDF to download

User Manual for TUBE-TECH MP2A Dual Microphone Preamplifier

Click to enlarge the picture
TUBE-TECH MP2A Dual Microphone Preamplifier Contents of the user manual for the TUBE-TECH MP2A Dual Microphone Preamplifier
  • Product category: Microphone Preamps TUBE-TECH
  • Brand: TUBE-TECH
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for TUBE-TECH Microphone Preamps

TUBE-TECH MP2A Dual Microphone Preamplifier TUBE-TECH MP2A Dual Microphone Preamplifier
User manual for the TUBE-TECH MP2A Dual Microphone Preamplifier contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any TUBE-TECH product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official TUBE-TECH user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a TUBE-TECH product will considerably shorten its lifespan!



Product description

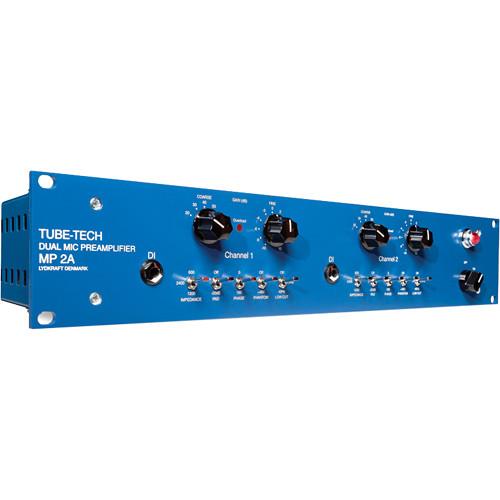

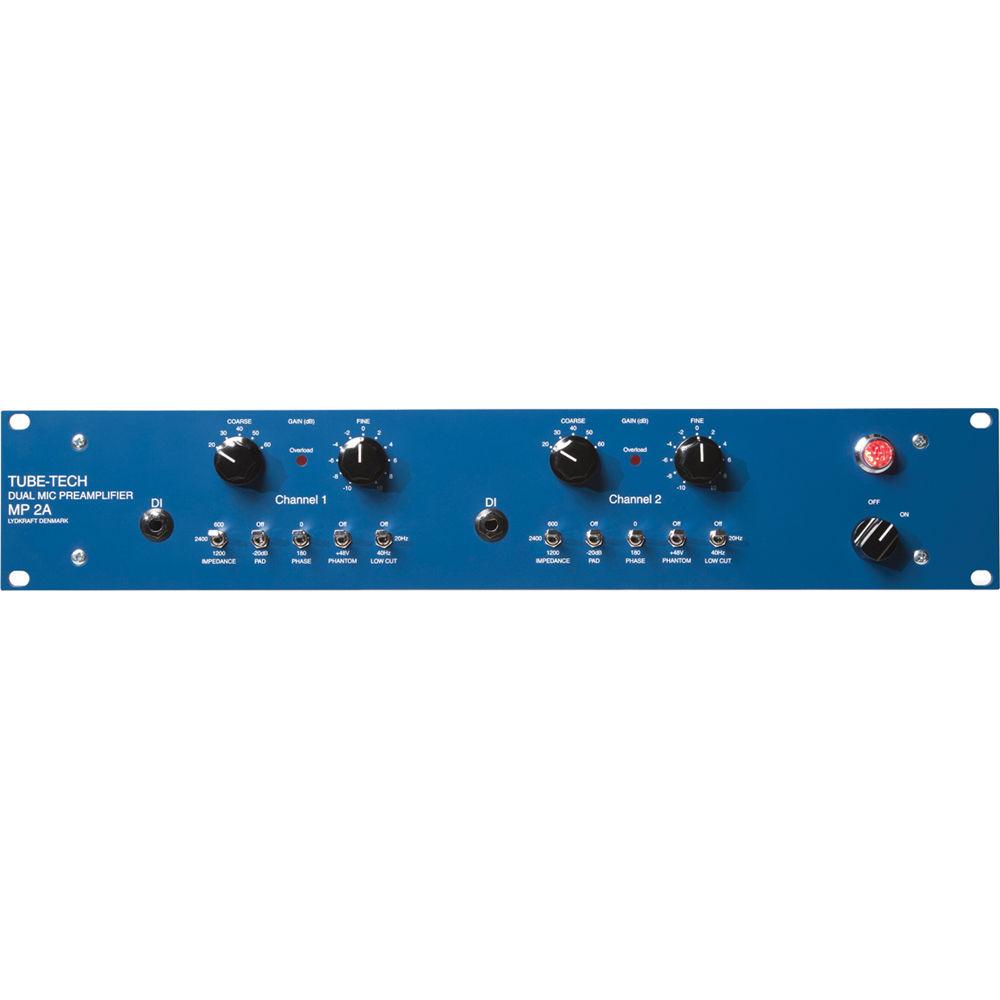

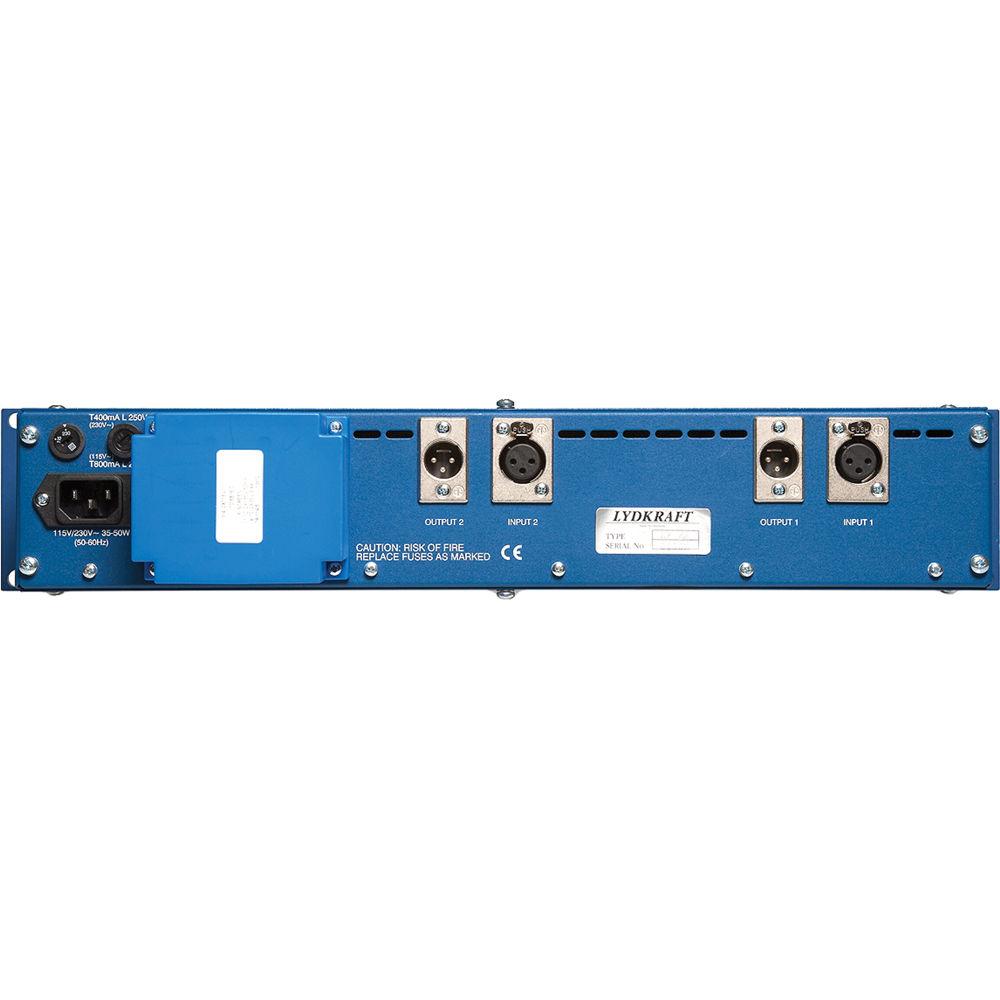

The MP2A from TUBE-TECH is a professional two-channel microphone preamplifier and direct instrument amplifier designed to deliver a clear, pristine signal good enough for demanding studio recordings. The input channel provides switchable +48V phantom power, selectable microphone impedance of 600/1200/2400 ohms, phase reverse switch, low-cut filter (20 Hz/40 Hz/off), as well as a switchable -20 dB pad. Gain is adjustable from -10 to +70 dB (10 dB steps, coarse/+2 dB steps, fine). The direct instrument inputs are unbalanced with a gain ranging from 0 to + 60 dB and the amplifier is all tube. The input transformer is enclosed in an MU-metal can to provide shielding, and input and output transformers come with a static screen between the primary and secondary wirings. The balanced input and output are also fully floating. The MP2A continues the TUBE-TECH tradition of good sounding DIs and mic preamplifiers, and offer even higher fidelity and headroom with a few updated features.
  • All-tube based featuring push-pull output amplifier
  • Frequency response @ -3 dB is 5 Hz to 60 kHz
  • Gain from -10 to +70 dB in 2 dB increments and DI gain is 0 to 60 dB
  • Microphone input impedance selectable between 600/100/2400 ohms
  • Features a selectable pad in front of input transformer (-20 dB)
  • Selectable +48V phantom power
  • Overload indication (red LED) lights up when the output level exceeds approximately +26 dBu
  • Direct instrument jack-socket input for various instruments
In the Box TUBE-TECH MP2A Dual Microphone Preamplifier
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the TUBE-TECH MP2A Dual Microphone Preamplifier in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    TUBE-TECH MP2A Specs

    Impedance Mic Input: 600/1200/2400 ohms
    DI Input: > 1 MOhm/82 pF
    Output: < 60 ohms
    Frequency Response 5 Hz to 60 kHz @ -3 dB
    THD + N @ 40 Hz:
    < 0.10% THD @ 0 dBu
    < 0.10% THD @ +10 dBu
    Max. output: < 1% THD @ +26 dBu
    Max Input Without Pad: < 1% THD @ +6 dBu
    Max Input With Pad: < 1% THD @ +26 dBu
    Noise Rg = 200 ohms:

    Gain: +20 dB
    22 Hz to 22 kHz: < -82 dBu
    CCIR-468-4: < -72 dBu

    Gain: +60 dB
    22 Hz to 22 kHz: < -60 dBu
    CCIR-468-4: < -50 dBu
    CMRR < -60 dB @ 10 kHz
    Gain Mic Input: -10 to +70 dB
    DI input: 0 to 60 dB
    Tubes 2x ECC82
    4x ECC83
    Power Requirements 30 to 45 W @ 115/230 VAC
    Dimensions (H x W x D) 3.5 x 19 x 6.5" (88 x 483 x 165 mm)
    Weight 9.5 lb (4.3 kg)
    Package Weight 13.15 lb
    Box Dimensions (LxWxH) 24.0 x 14.5 x 9.0"
