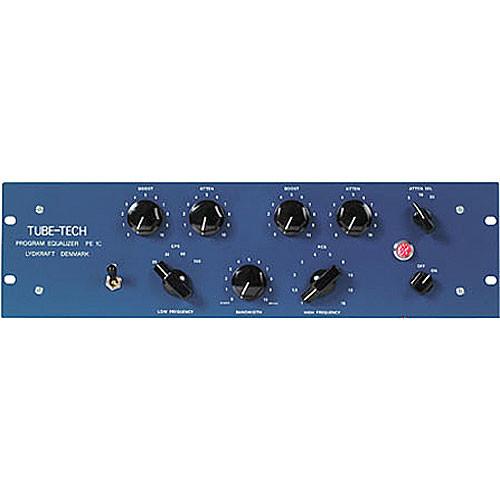

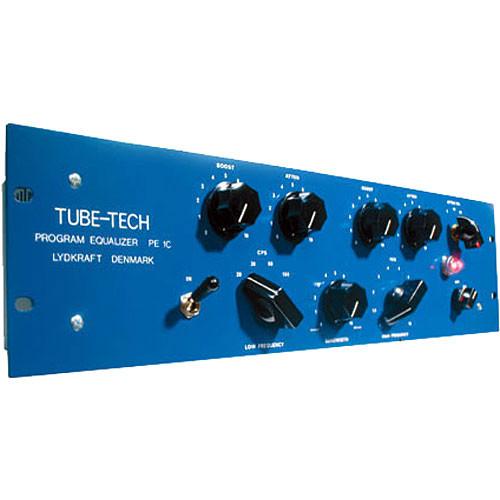

User Manual for TUBE-TECH PE1C - Single Channel Passive Program Equalizer Click to enlarge the picture
Contents of the user manual for the TUBE-TECH PE1C - Single Channel Passive
- Product category: Equalizers TUBE-TECH
- Brand: TUBE-TECH
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TUBE-TECH Equalizers
 |
User manual for the TUBE-TECH PE1C - Single Channel Passive contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TUBE-TECH product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TUBE-TECH user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TUBE-TECH product will considerably shorten its lifespan!
|

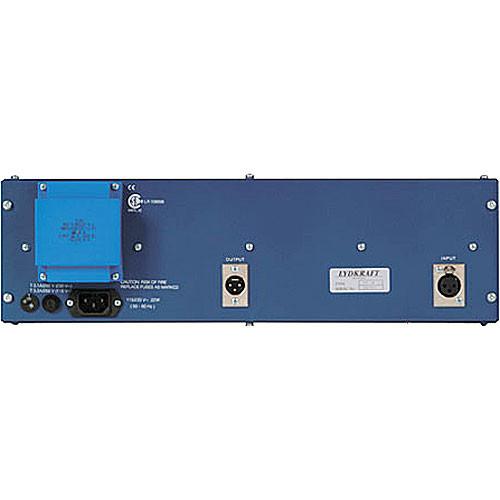

Product description The PE 1C is a single channel passive equalizer, with a tube based push-pull amplifier for restoring gain. A passive equalizer is variable equalizer requiring no power to operate. Consisting only of inductors, capacitors and resistors, it is favored for its low noise performance (no active components to generate noise), high dynamic range (no active power supplies to limit voltage swing), extremely good reliability, and lack of RFI interference. The equalizer provides low-frequency boost and attenuation, along with high frequency boost with variable bandwidth, and high-frequency attenation. To compensate for the inevitable gain loss, the filter section of the PE 1C is followed by a tube based amplifier. The input and output transformers come with a static screen between primary and secondary wiring, and the input and output are balanced and fully floating. - Passive equalizer with tube push-pull tube amplifier
- Very low noise and broad frequency response
- Master bypass with clickless relay
In the Box TUBE-TECH PE1C - Single Channel Passive Program Equalizer Power Cable One Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TUBE-TECH PE1C - Single Channel Passive Program Equalizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTUBE-TECH PE1C Specs | Filter Type | Passive | | Number of Channels | 1 | | Inputs | 1 x XLR | | Output | 1 x XLR | | Maximum Input Level | +21dBm | | Frequency Bands | Low: 20, 30, 60, 100Hz
High Frequency Boost: 1, 1.5, 2, 3, 4, 5, 8, 10,12,16kHz
High Frequency Attenuate: 5, 10, 20kHz | | Bandwidth | High frequency variable | | Range (Boost/Cut) | Low: 0 to +10dB, 0 to -18dB
10-High Frequency: 0 to +18dB (Sharp BW) 0 to +10dB (Broad BW)
3-High Frequency: 0 to -18dB | | Maximum Output Level | +26dBm | | Frequency Response | 5Hz to 40kHz | | Dynamic Range | Not specified by manufacturer | | Noise | <-85dBm | | Dimensions | 2U rack | | Specialties | Push-pull tube based amplifier for restoring gain | | | | Package Weight | 11.85 lb | | Box Dimensions (LxWxH) | 21.0 x 10.3 x 7.0" |
