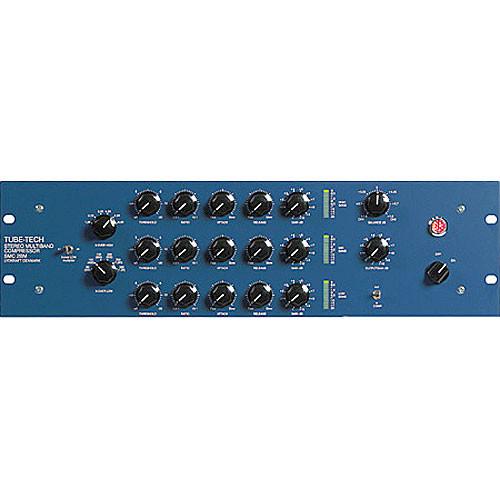

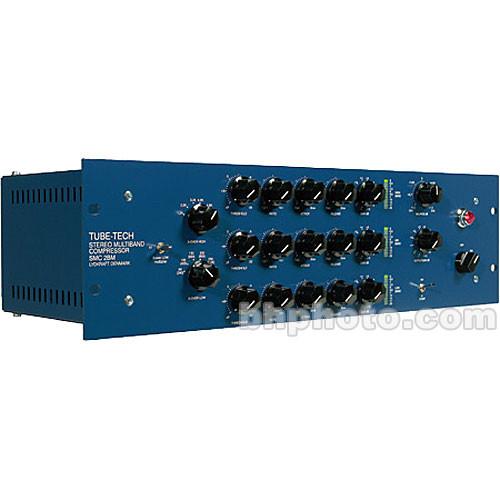

User Manual for TUBE-TECH SMC 2BM - Tube Based, Three-Band Stereo Compressor - Mastering Version Click to enlarge the picture
Contents of the user manual for the TUBE-TECH SMC 2BM - Tube Based,
- Product category: Dynamics Processors TUBE-TECH
- Brand: TUBE-TECH
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TUBE-TECH Dynamics Processors
 |
User manual for the TUBE-TECH SMC 2BM - Tube Based, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TUBE-TECH product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TUBE-TECH user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TUBE-TECH product will considerably shorten its lifespan!
|

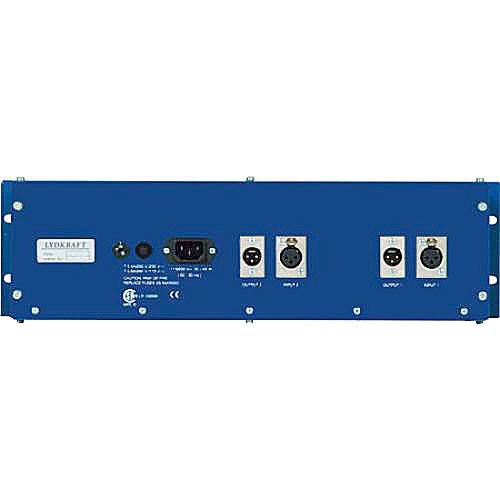

Product description The Tube Tech SMC 2BM is a tube based, stereo, multi-band compressor designed to add vintage quality warmth while mastering a mix. The unit features three independent optical stereo compressors with the signal being divided into low, mid and high bands by 6dB/octave crossover networks with twelve selectable frequencies for the low/mid band and six for the mid/high band. The design of the crossover networks optimizes the summing of all three bands, resulting in a flat frequency response (within +/-0.25dB) when the gain controls for each band are set to the same level. Each of the three compressors features threshold, ratio, attack, release and gain, while an LED ladder displays gain reduction. Master levels are set with output gain and balance controls. Both input and output are balanced and have fully floating transformers with a static screen. The power supply and the side-chain circuits are based on a solid state circuit. With the exception of the output stage all DC voltages are stabilized. - All tube based multi-band optical mastering compressor
- All relevant controls are detented for absolute repeatability of settings
- Three bands per channel with variable crossover frequencies between bands
- Stereo side chain with variable threshold, ratio, attack, release and gain controls for all three bands
- Twelve selectable frequencies between 60Hz and 1.2kHz for the low/mid band and six selectable frequencies between 1.2kHz and 6kHz for the mid/high band
- Potentiometers with thirty-one detents for threshold, ratio, attach, release and balance
- Gain controls have twelve position gold plated switches
In the Box TUBE-TECH SMC 2BM - Tube Based, Three-Band Stereo Compressor - Mastering Version AC Power Cable One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TUBE-TECH SMC 2BM - Tube Based, Three-Band Stereo Compressor - Mastering Version in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTUBE-TECH SMC2BM Specs | Function | Stereo mastering compression | | Number of Channels | 2 | | Inputs | 2 x XLR | | Outputs | 2 x XLR | | Maximum Input Level | Not specified by manufacturer | | Compression Threshold | Off to -20dBu (31 detent potentiometer) | | Compression Ratio | 1.5:1 to 10:1 (31 detent potentiometer) | | Attack Time | 3 mSec to 200 mSec (31 detent potentiometer) | | Release Time | 60 mSec to 2 S (31 detent potentiometer) | | Gate Threshold | Not applicable | | Gate Rate | Not applicable | | Maximum Output Level | >+26dBu | | Make-up Gain | -1dB to +10dB, 1dB/step | | Frequency Response | 5Hz to 60kHz, @-3dB | | Dynamic Range | Not specified by manufacturer | | Noise | @ 0dB output: <-70dBu, 22Hz to 22kHz
@ +10dB output: <-60dBu, 22Hz to 22kHz | | Dimensions (WxDxH) | 19" x 8 1/8" x 5 1/4" | | Weight | 13.7 lbs | | Specialties | Variable crossover frequencies for the three-bands | | | | Package Weight | 17.6 lb | | Box Dimensions (LxWxH) | 24.0 x 14.3 x 11.0" |
