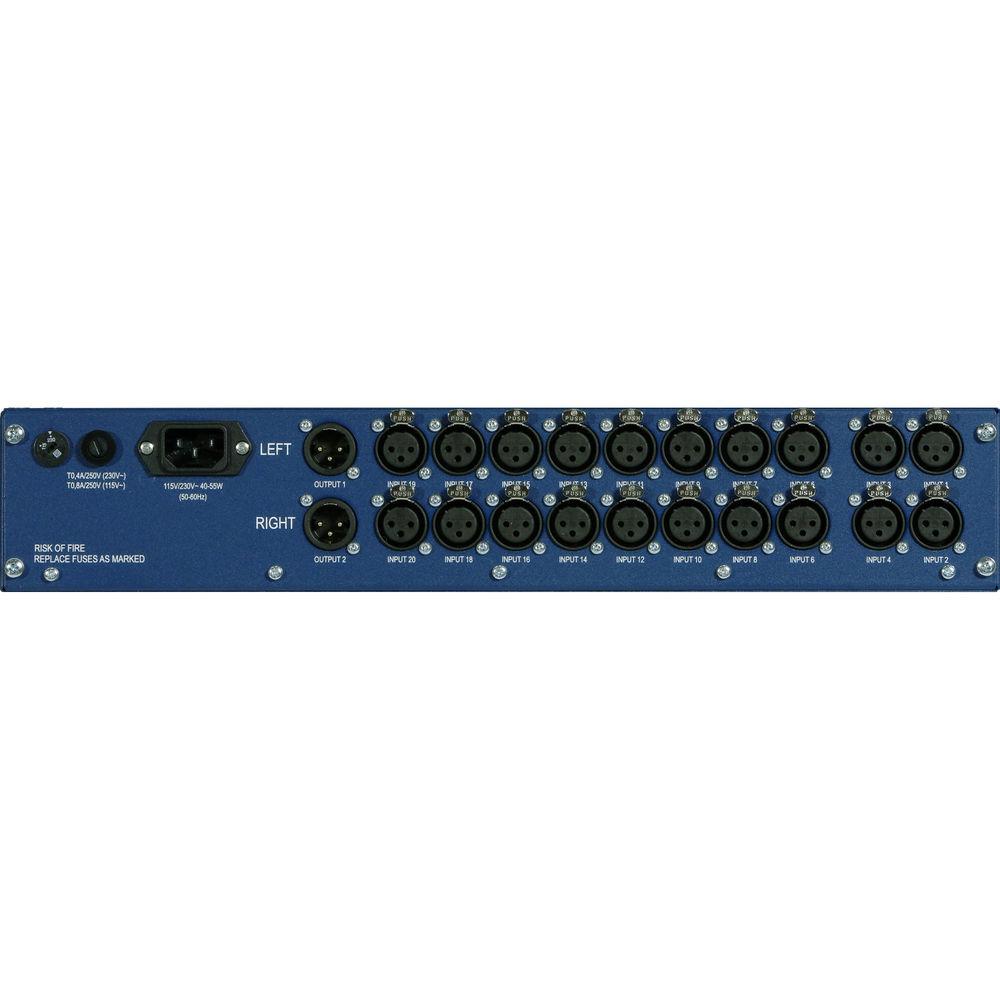

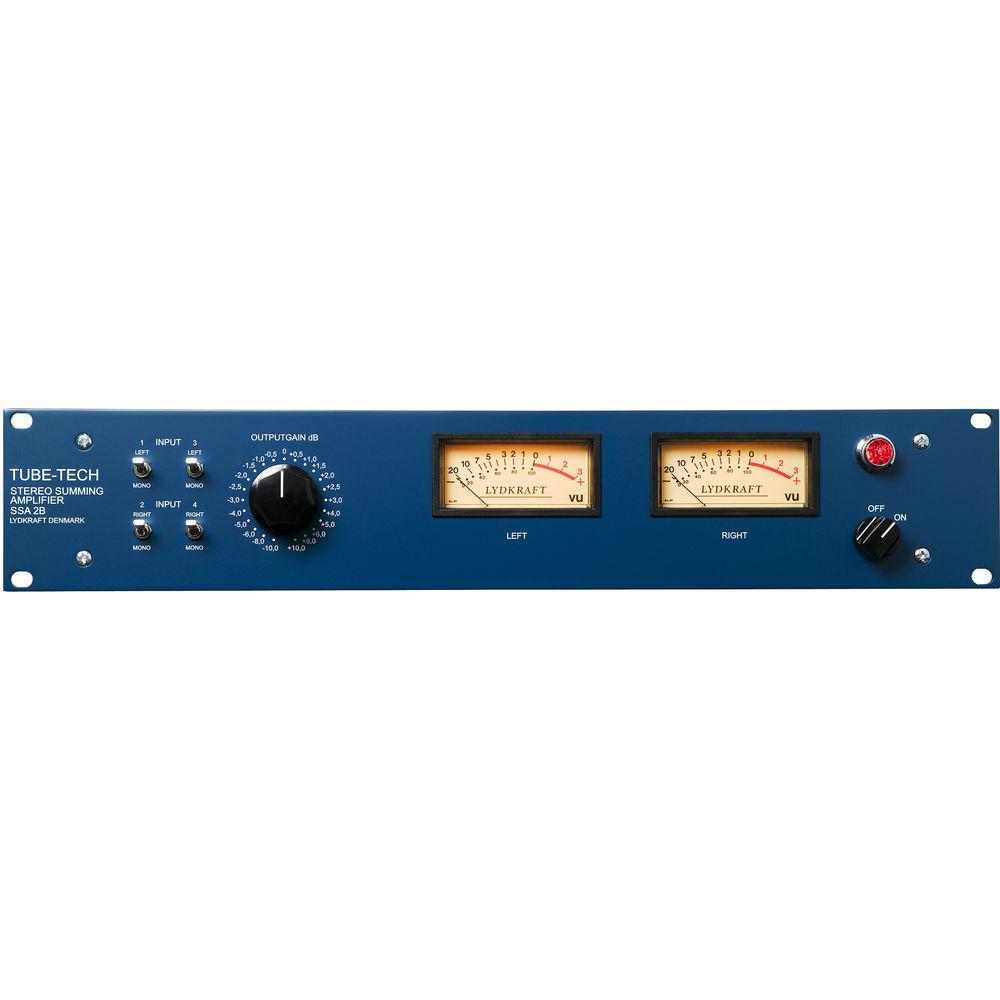

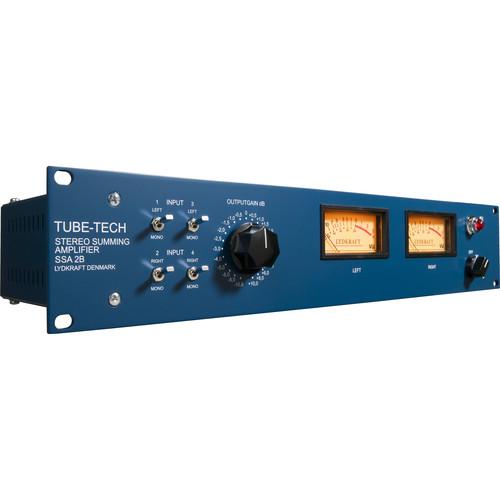

User Manual for TUBE-TECH SSA 2B - Stereo Summing Amplifier Click to enlarge the picture
Contents of the user manual for the TUBE-TECH SSA 2B - Stereo Summing
- Product category: Analog Recording Mixers TUBE-TECH
- Brand: TUBE-TECH
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TUBE-TECH Analog Recording Mixers
 |
User manual for the TUBE-TECH SSA 2B - Stereo Summing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TUBE-TECH product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TUBE-TECH user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TUBE-TECH product will considerably shorten its lifespan!
|
Product description The SSA 2B from Tube Tech is a stereo summing amplifier that accepts up to 10 stereo pairs of input channels and sums them down to a single stereo output. The first 2 stereo pairs can be reconfigured as 4 mono inputs ready for hard-center panned tracks such as kick, snare, bass and lead vocals. For users of Digital Audio Workstations (DAW) that experience dissatisfaction with the sound of the internal digital-summing of their systems, the SSA 2B provides a solution. By combining the best of both the digital and analog worlds - the convenience of digital editing and repeatability, with the subjective "warmth" of an analog console's 2-bus summing action, the unit is able to deliver a more open, clear and punchier sound. The SSA 2A is a symmetrical two-stage amplifier, designed around 2, dual low impedance and high transconductance triodes. The output stage is designed around 2 dual triodes in push-pull configurations, and an output transformer. Both the summing amplifiers and the output amplifiers are symmetrical. Note: It is important that the any unused mono input be connected to an output or terminated by shorting plugs to prevent additional noise - Tube based summing amplifier with 10 stereo-channel inputs and 2 outputs
- First 2 stereo inputs can be switched to function as 4 mono inputs
- Inputs are capable of handling extremely high input levels
- Outputs are balanced and have fully floating transformers
- 23-step gold plated output gain control
- Fully symmetrical circuitry from input to output
- Zero field transformer balanced inputs
- Two large VU meters display output level
In the Box TUBE-TECH SSA 2B - Stereo Summing Amplifier AC Power Cable One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TUBE-TECH SSA 2B - Stereo Summing Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTUBE-TECH SSA 2B Specs | Type | Active | | Inputs | 20 x XLR | | Outputs | 2 x XLR | | Inserts | No | | On-Board Processors | No | | Gain Control | Yes | | Gain Range | -10dB to +10dB | | Maximum Output Level | +26dBu | | Frequency Response | 5Hz to 80kHz, @ -3.0dB | | Noise | All inputs, +10dB: <-85dBu (22Hz to 22kHz) | | Power Requirements | 30W to 45W @ 115~230V, 50/60Hz | | Dimensions (WxDxH) | 19 x 8.1 x 3.5" (483 x 205 x 89mm) | | Weight | 12.8 lbs (5.8kg) | | Specialties | Dual VU meters for displaying output level |
