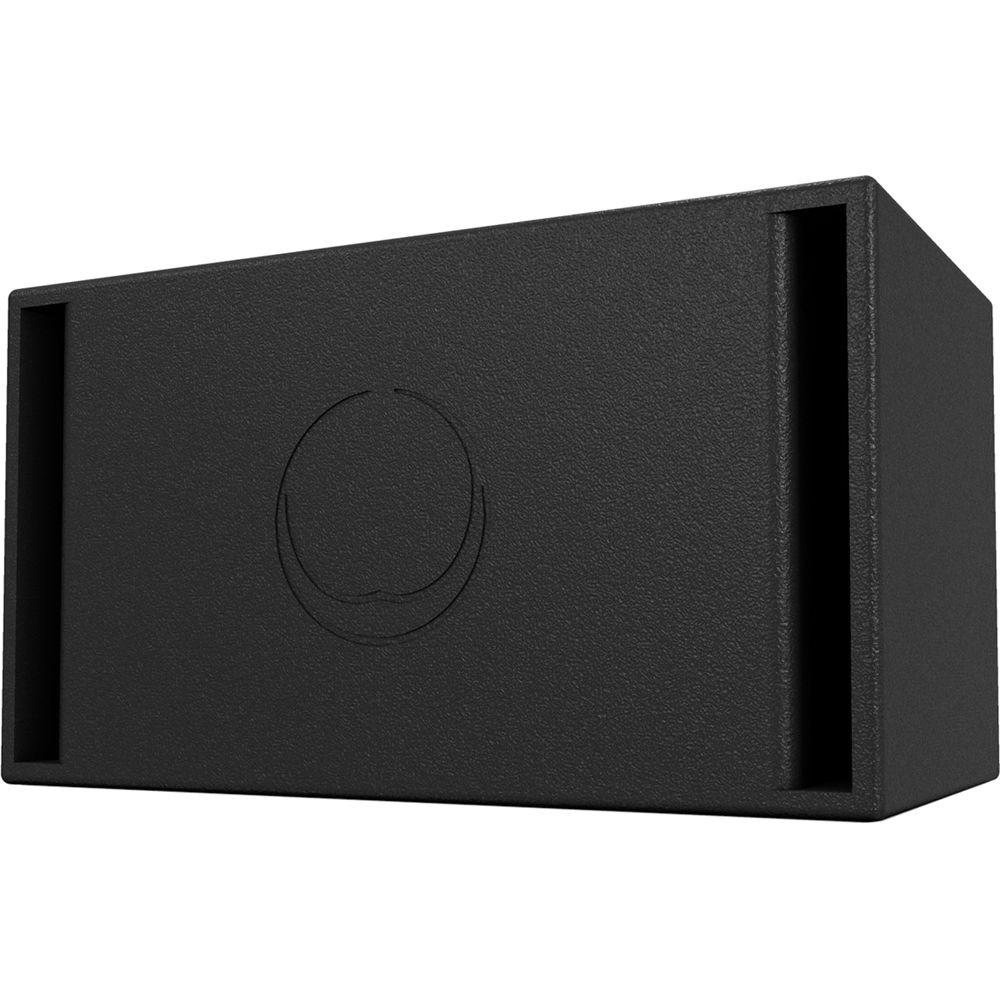

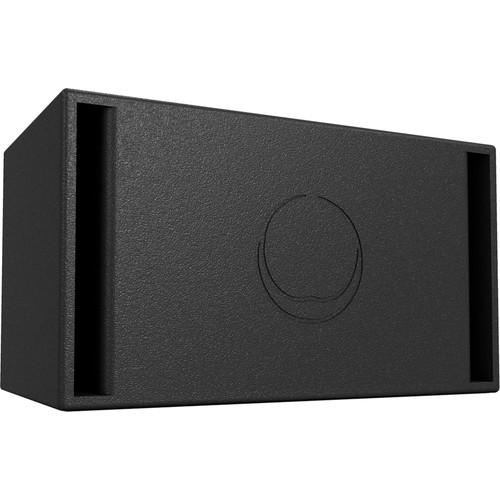

Product description The black Athens TCS110B 10" Band Pass Subwoofer from Turbosound is a high performance 10" subwoofer system designed for a wide range of speech and music sound-reinforcement applications. Engineered to work in conjunction with Turbosound loudspeaker management systems, the TCS110B provides extended low-frequency performance from a compact enclosure.

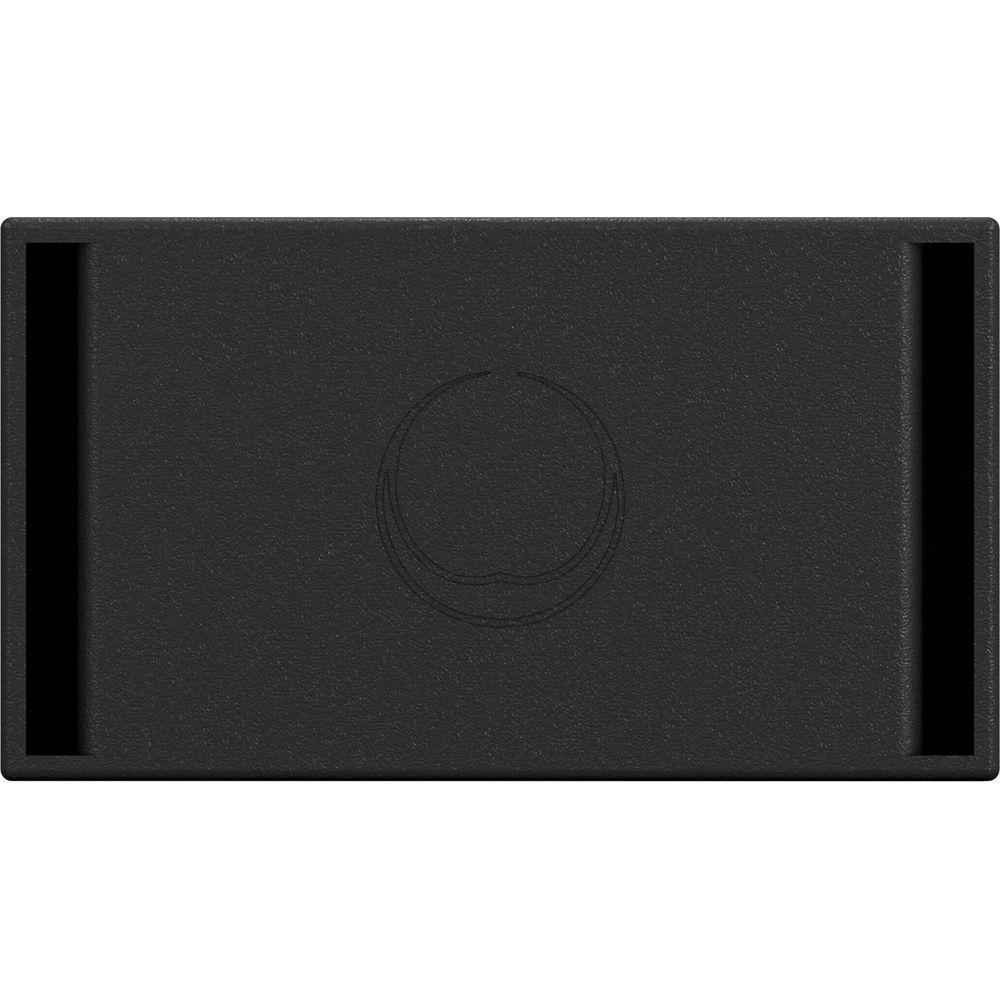

A dual-port design enclosure, the TCS110B features a powerful, high excursion 10" low-frequency driver with a specialized voice-coil wound on both the inside and outside of the coil for higher magnetic density, heat dissipation, higher power handling capacity, and improved efficiency. The TCS110B provides fast and accurate transient response for virtually distortion-free operation.

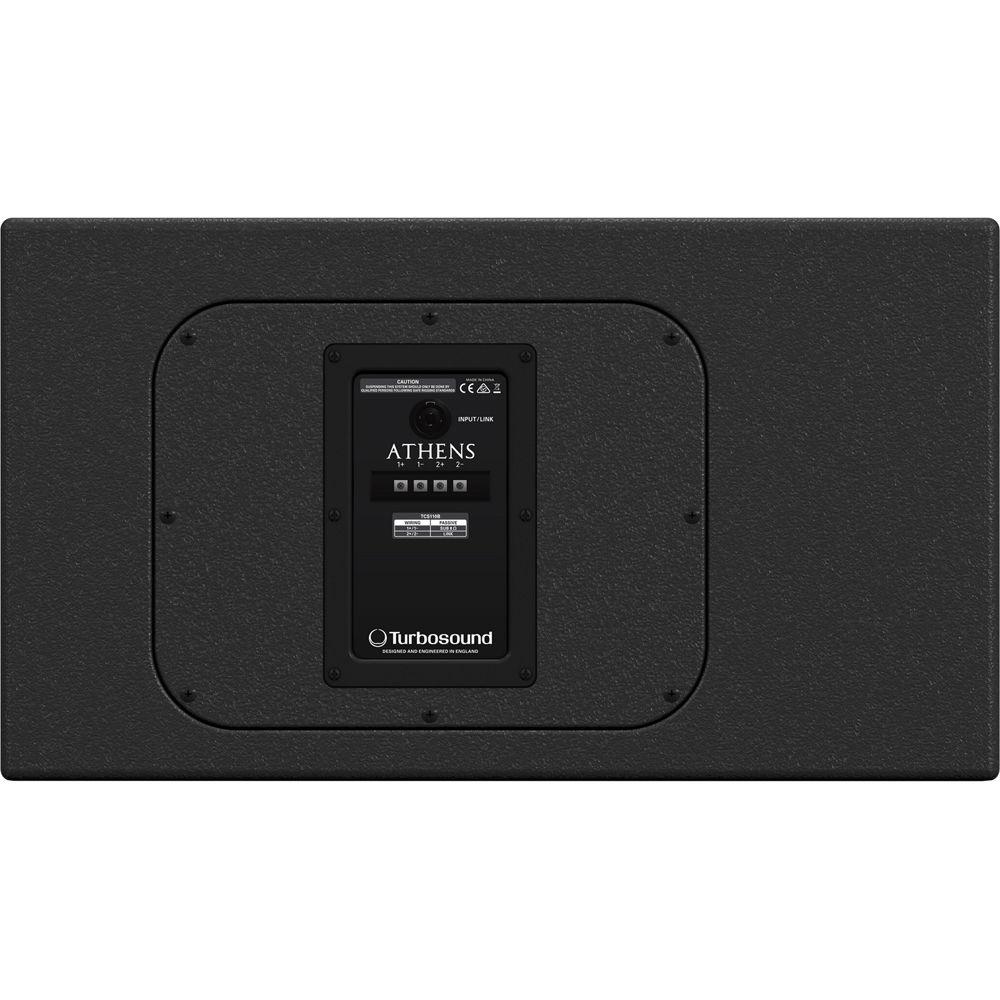

The cabinet is constructed from 15 mm (5/8") birch plywood with integral M10 threaded rigging points. The rear panel connector plate carries Neutrik Speakon NL4 and barrier strip connectors for input and link connections to additional enclosures. - Band pass subwoofer for installation applications
- High-excursion 10" low-frequency driver with inside/outside wound coil
- Low-distortion dual-port design for maximum sound pressure level
- Integral M10 rigging points for ease of installation
- Designed and engineered in England
UPC: 696859306358 In the Box Turbosound Athens TCS110B 10" Band Pass Subwoofer (Black) Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound Athens TCS110B 10" Band Pass Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound TCS110B Specs | Frequency Response | 50 - 150 Hz @ ±3 dB
40 - 200 Hz @ -10 dB | | Nominal Dispersion | Half space | | Power Handling | Continuous: 300 W
Peak: 1200 W | | Sensitivity | 94 dB, 1W @ 1m | | Maximum Sound Pressure Level (SPL) | Continuous: 119 dB
Peak: 125 dB | | Impedance | 8 ohms | | Driver | 1 x 10" (262 mm) LF | | Connectors | 1 x Speakon NL4
1 x barrier strip terminal | | Construction | 15 mm (5/8") birch plywood | | Grille | Powder-coated perforated steel | | Hardware | 8 x M10 | | Dimensions | 13 x 23 x 13" (330 x 585 x 330 mm) | | Weight | 34.8 lb (15.8 kg) | | | | Package Weight | 43.55 lb | | Box Dimensions (LxWxH) | 26.4 x 16.4 x 14.9" |
