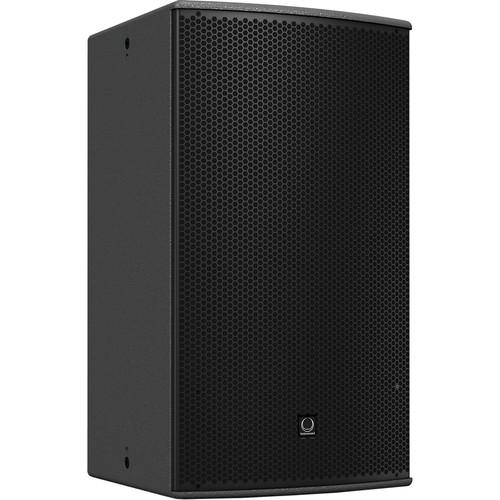

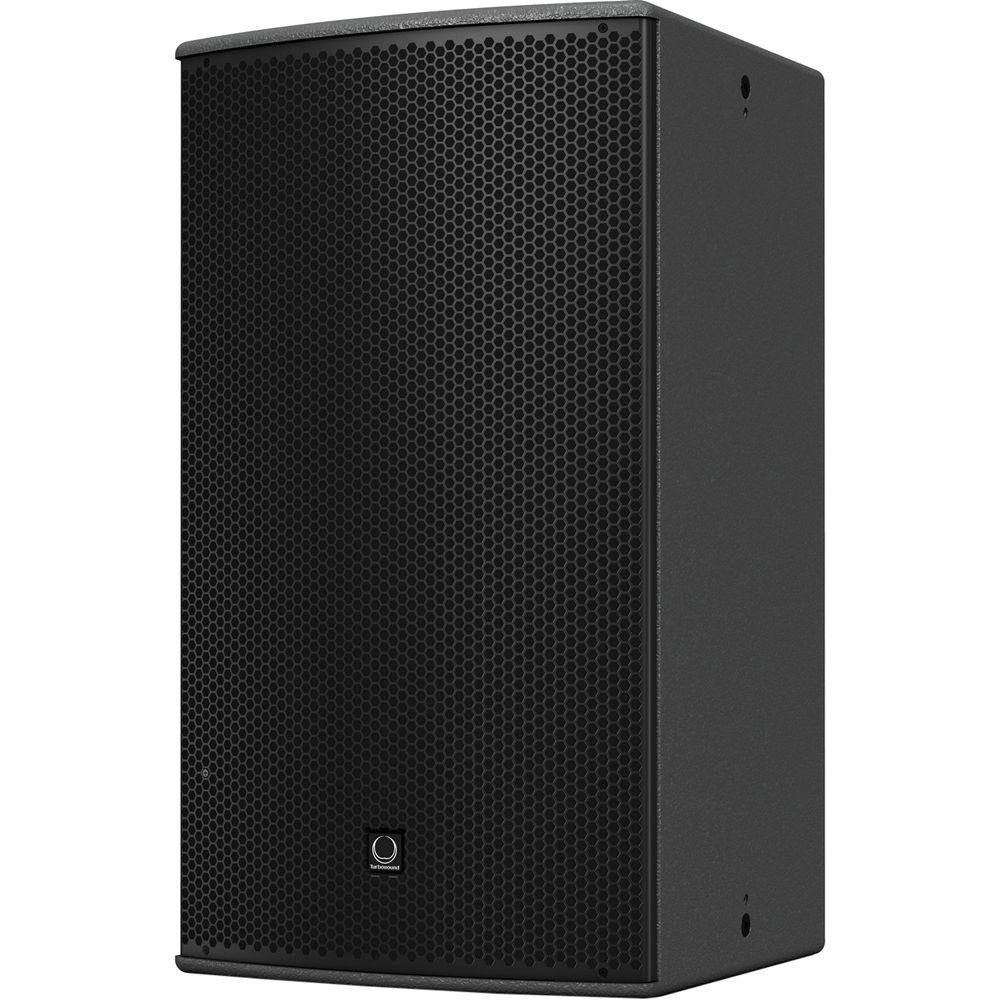

Product description The black Athens TCS115B 15" Front-Loaded Subwoofer is suitable for a wide range of speech and music sound-reinforcement applications. It provides optimal low-frequency reinforcement when used in conjunction with all TCS-series loudspeakers.The subwoofer features an enclosure with a bass-reflex port and a double-suspension 15" low-frequency driver that utilizes a specialized voice coil wound on both inside and outside of the coil former. This results in higher magnetic density, better heat dissipation, higher power-handling capacity, and improved efficiency. The rear-panel connector plate features four Neutrik speakON NL4 and barrier-strip connectors for input and link connections to additional enclosures. The Athens TCS115B provides fast and accurate transient response for virtually distortion-free operation even in the most demanding applications.The subwoofer's cabinet is constructed from 5/8" (15mm) birch plywood and includes a rugged powder-coated perforated-steel mesh grille backed with reticulated foam. Multiple internal rigging points allow bracket mount and suspension in many different configurations in permanent installations. An array of two or more cabinets can be configured using Turbosound fly plates and coupler kits (sold separately). - Front-loaded subwoofer for installation applications
- 500W continuous, 2,000W peak power
- Double-suspension 15" low-frequency driver with inside/outside wound coil
- Low-distortion bass-reflex port design
- 5/8" (15mm) birch-plywood enclosure with durable semi-matte black paint finish

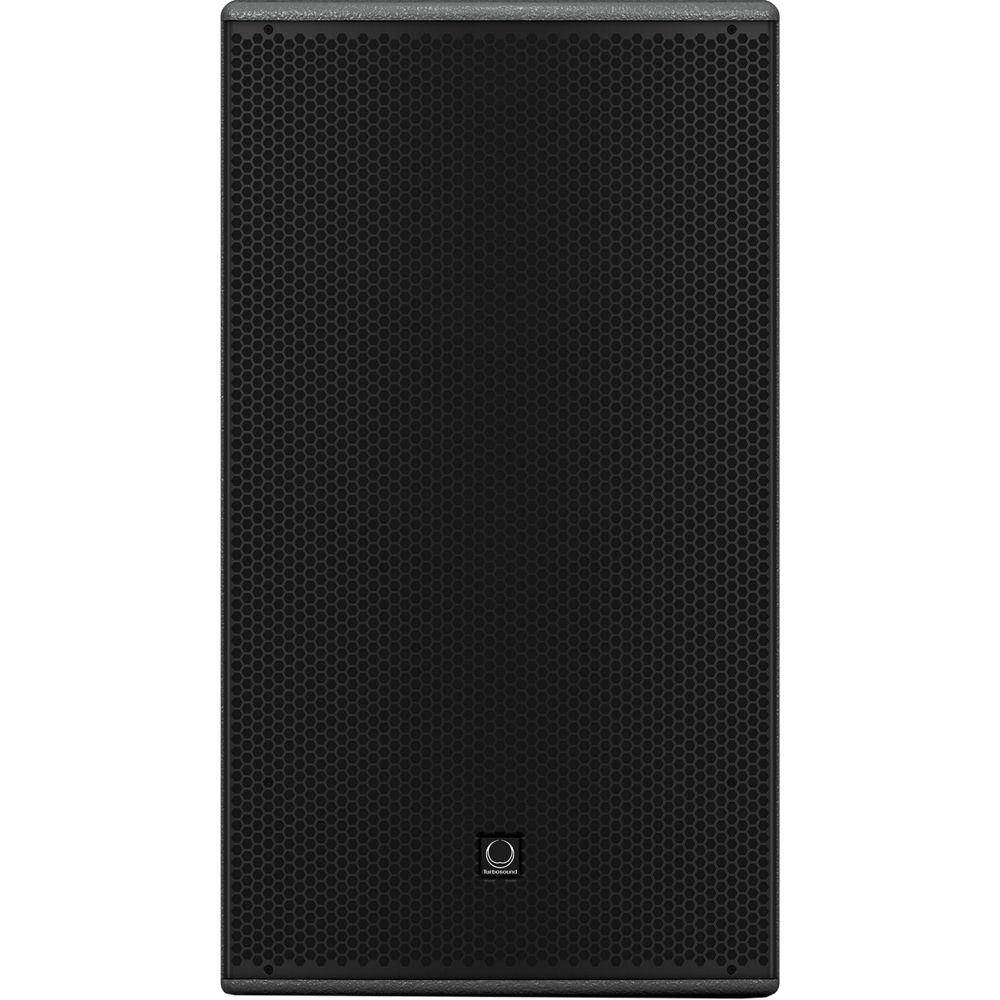

- Architecturally styled powder-coated perforated plated-steel mesh grille with foam backing
- Multiple internal rigging points allow bracket mount and suspension in many different configurations

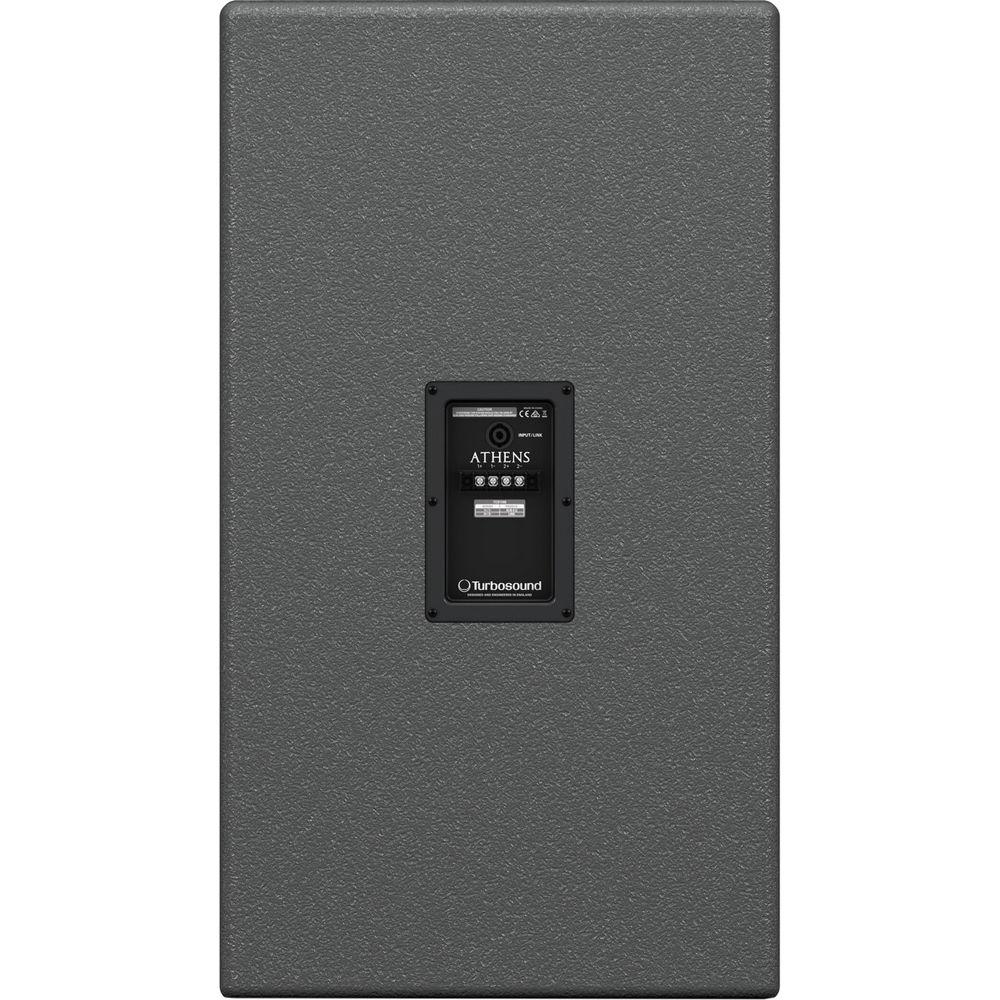

- Neutrik speakON NL4 and barrier-strip connectors
In the Box Turbosound Athens TCS115B 15" Front-Loaded Subwoofer (Black) Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound Athens TCS115B 15" Front-Loaded Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound TCS115B Specs | | | Frequency Response | 45 Hz to 150 Hz, ±3 dB
40 Hz to 200 Hz, -10 dB | | Nominal Dispersion | Half space | | Power Handling | 500 W continuous, 2,000 W peak | | Sensitivity | 97 dB (1 W @ 1 m) | | Maximum SPL | 124 dB continuous, 130 dB peak | | Impedance | 8 ohms | | LF Driver Size | 1 x 15" (387 mm) | | | | Connectors | 1 x Neutrik speakON NL4
1 x Barrier-strip terminals | | Wiring | Parallel / No Switch: Pins 1+ / 1- input, pins 2+ / 2- link | | Construction | 5/8" (15 mm) birch plywood | | Grille | Powder-coated perforated steel | | Rigging Points | 8 x M10 | | Dimensions (H x W x D) | 32.9 x 18.5 x 17.8" (84 x 47 x 45 cm) | | Weight | 72 lb (32.7 kg) |
