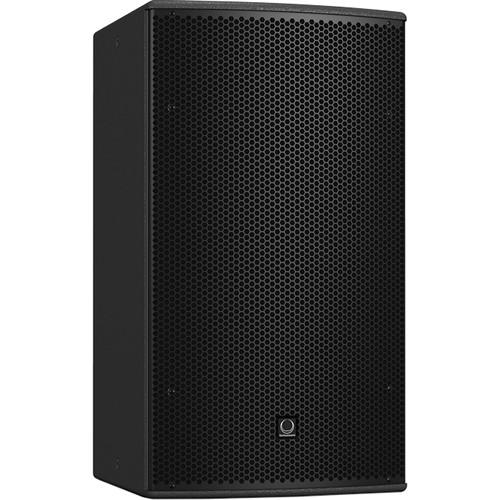

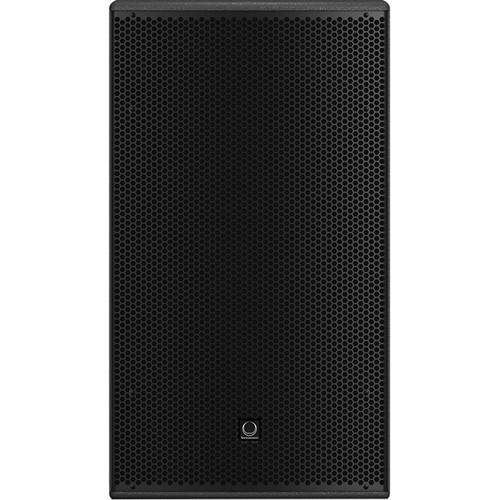

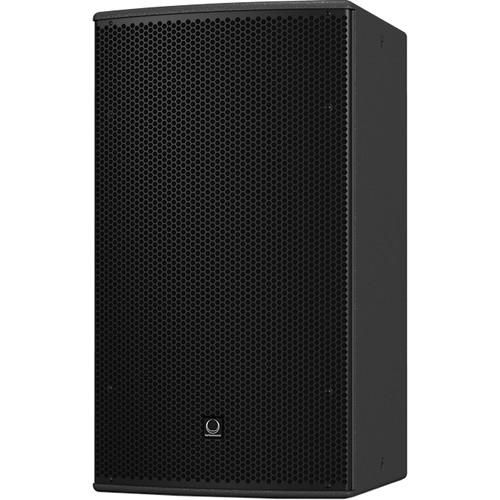

Product description The black Athens TCS115B-R 15" Front-Loaded Weather-Resistant Subwoofer from Turbosound is designed for a wide range of fixed installation and portable PA applications. It provides optimal low frequency reinforcement when used in conjunction with all TCS series loudspeakers. This IP54-rated weather-resistant subwoofer is suitable for outdoor use. The subwoofer features an enclosure with a bass reflex port and a double suspension 15" low frequency driver that utilizes a specialized voice coil wound on both inside and outside of the coil former. This results in higher magnetic density, better heat dissipation, higher power handling capacity, and improved efficiency. The Athens TCS115B-R provides fast and accurate transient response for virtually distortion-free operation even in the most demanding applications. The subwoofer's cabinet is constructed from 5/8" (15mm) birch plywood and includes a rugged powder coated perforated steel mesh grille backed with reticulated foam. Multiple internal rigging points allow bracket mount and suspension in many different configurations in permanent installations. An array of two or more cabinets can be configured using Turbosound fly plates and coupler kits (sold separately). Connectivity is provided in the form of a captive cable tail, which enters the cabinet by means of a sealed cable gland on an aluminum panel. - Front-loaded subwoofer for installation applications
- 500W continuous, 2,000W peak power
- IP54-rated weather-resistant components for outdoor use
- Double suspension 15" low frequency driver with inside/outside wound coil
- Low distortion bass reflex port design
- 5/8" (15mm) birch plywood enclosure with durable semi matte black paint finish
- Architecturally styled powder coated perforated plated steel mesh grille with foam backing
- Multiple internal rigging points allow bracket mount and suspension in many different configurations

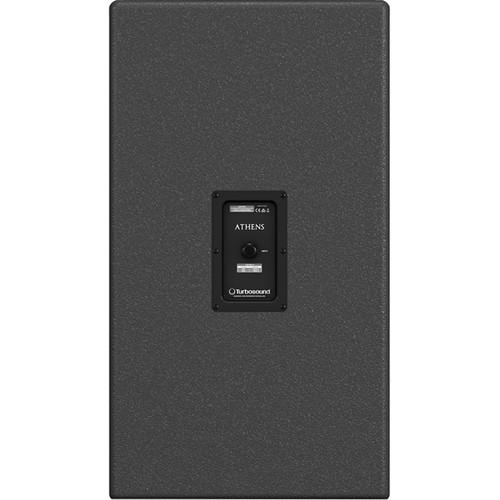

- Captive cable tail with sealed cable gland on aluminum connector panel
- Designed and engineered in England
In the Box Turbosound Athens TCS115B-R 15" Front-Loaded Weather-Resistant Subwoofer (Black) Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound Athens TCS115B-R 15" Front-Loaded Weather-Resistant Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound TCS115BR Specs | | | Frequency Response | 45 Hz to 150 Hz, ±3 dB
40 Hz to 200 Hz, -10 dB | | Nominal Dispersion | Half space | | Power Handling | 500 W continuous, 2,000 W peak | | Sensitivity | 97 dB (1 W @ 1 m) | | Maximum SPL | 124 dB continuous, 130 dB peak | | Impedance | 8 Ohms | | LF Driver Size | 1 x 15" (387 mm) | | | | Connectors | 2-core capacitive tail | | Wiring | Passive: Red/blue input + / - | | Construction | 5/8" (15 mm) birch plywood | | Weather Resistance | IP54-rated | | Grille | Powder-coated perforated steel | | Rigging Points | 8 x M10 | | Dimensions (H x W x D) | 32.9 x 18.5 x 17.8" (834 x 469 x 452 mm) | | Weight | 74.7 lb (33.9 kg) |
