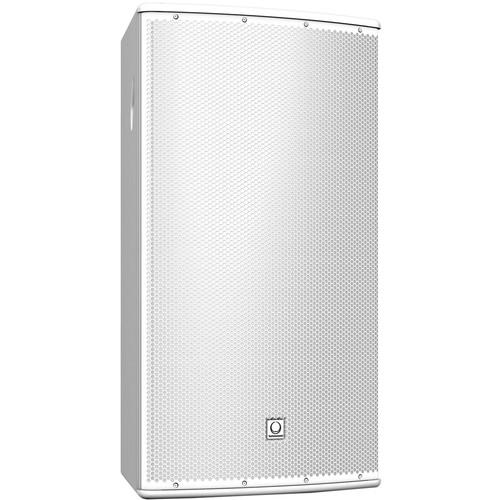

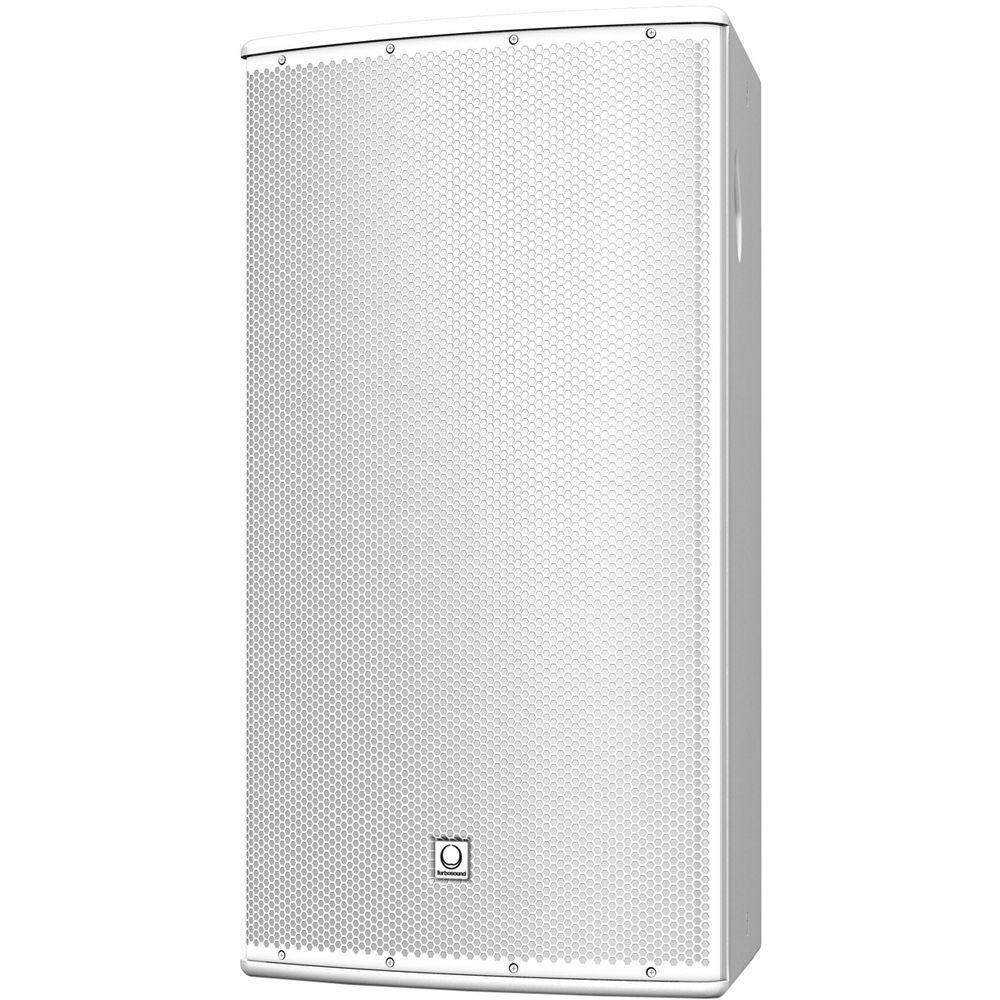

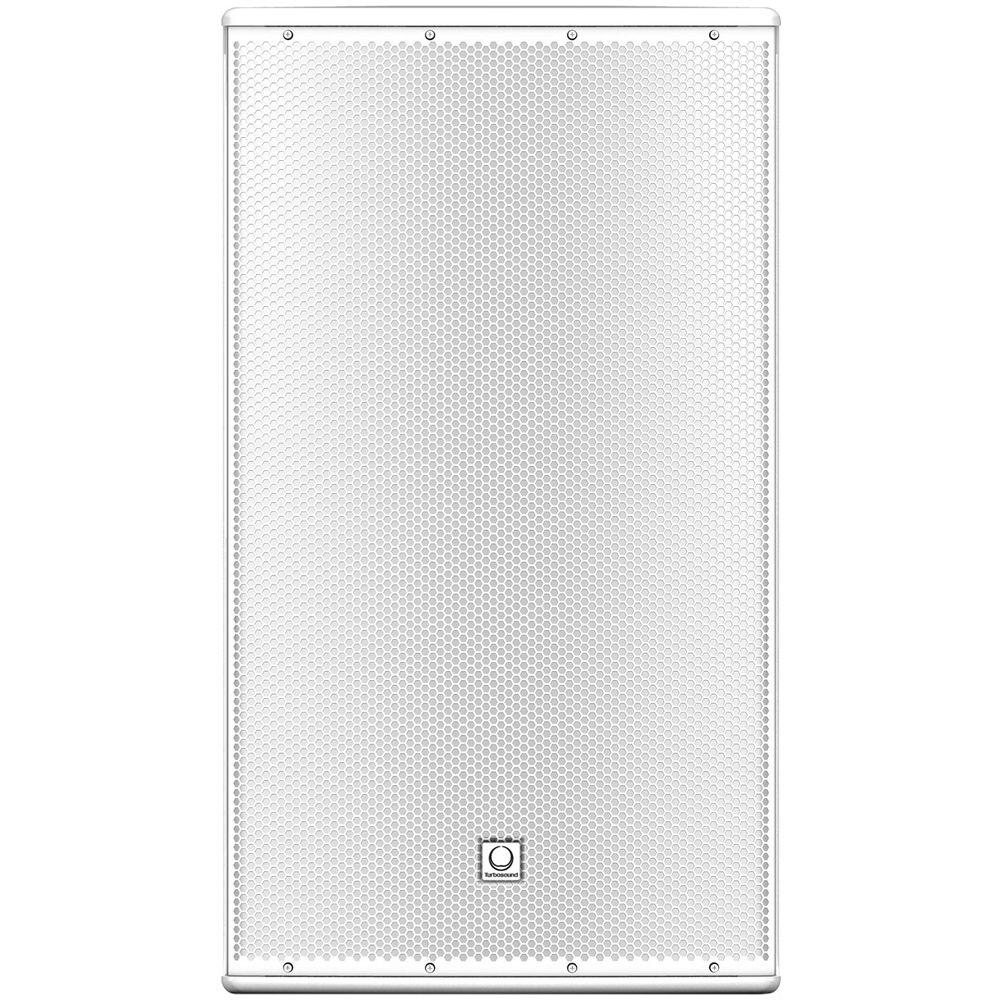

Product description The white TCS152-96-AN 2500W 2-Way 15" Loudspeaker from Turbosound features a glass fiber loaded 15" low frequency driver with an aluminum voice coil for improved transient response. The titanium dome 1.4" neodymium motor compression driver is mounted on a rotatable 90° horizontal by 60° vertical proprietary Dendritic waveguide, which features multiple hornlets with identical path lengths to provide a flat constant-phase wavefront. The built-in KLARK TEKNIK Class-D power amplifier provides up to 2500W of power and a KLARK TEKNIK DSP provides dynamic EQ for impressive full range response at low volume levels and transparent limiting for clarity at high output levels and for long-term reliability.

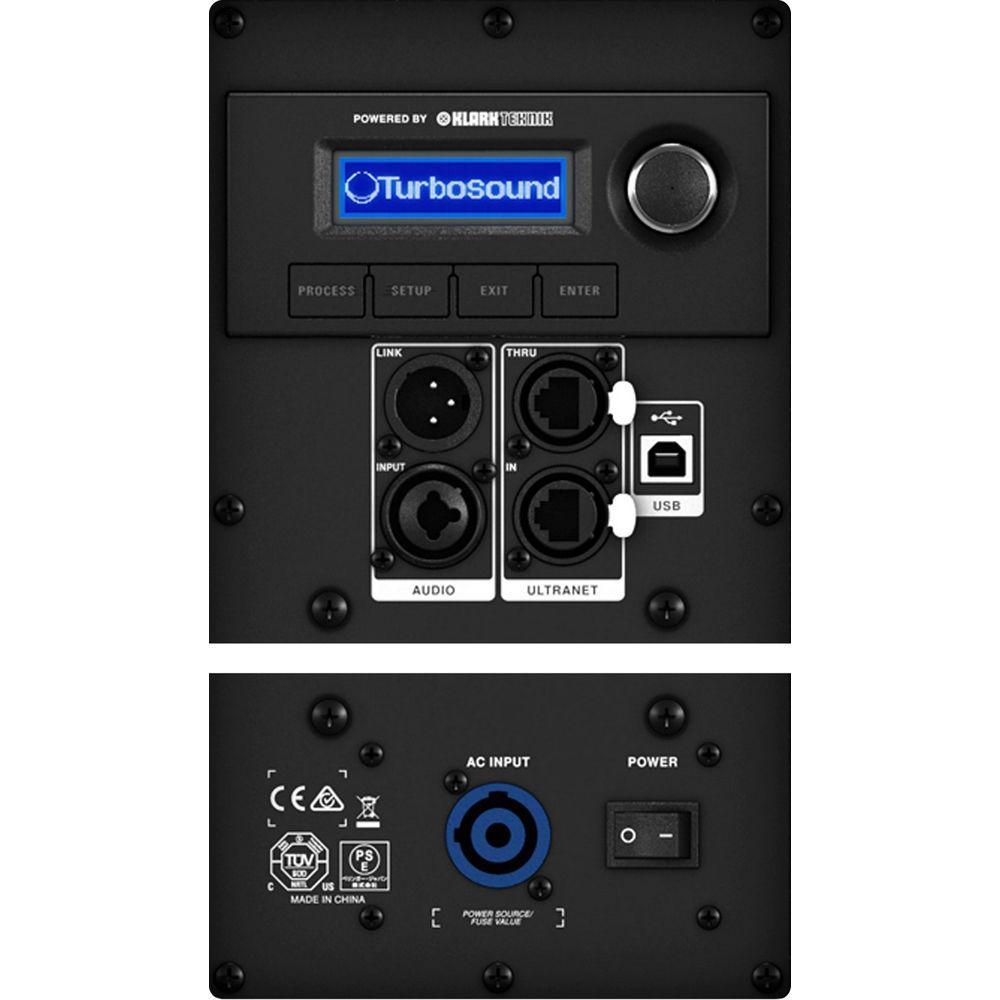

The user interface’s LCD display and single rotary encoder provide intuitive access to array, position, user EQ control, and signal routing features. In addition to the combination balanced XLR/jack input, an XLR output is provided for daisy-chaining or for use with an active subwoofer. An onboard USB port provides access for remote control of the TCS152-96-AN loudspeaker via PC computer, as well as DSP firmware updates.

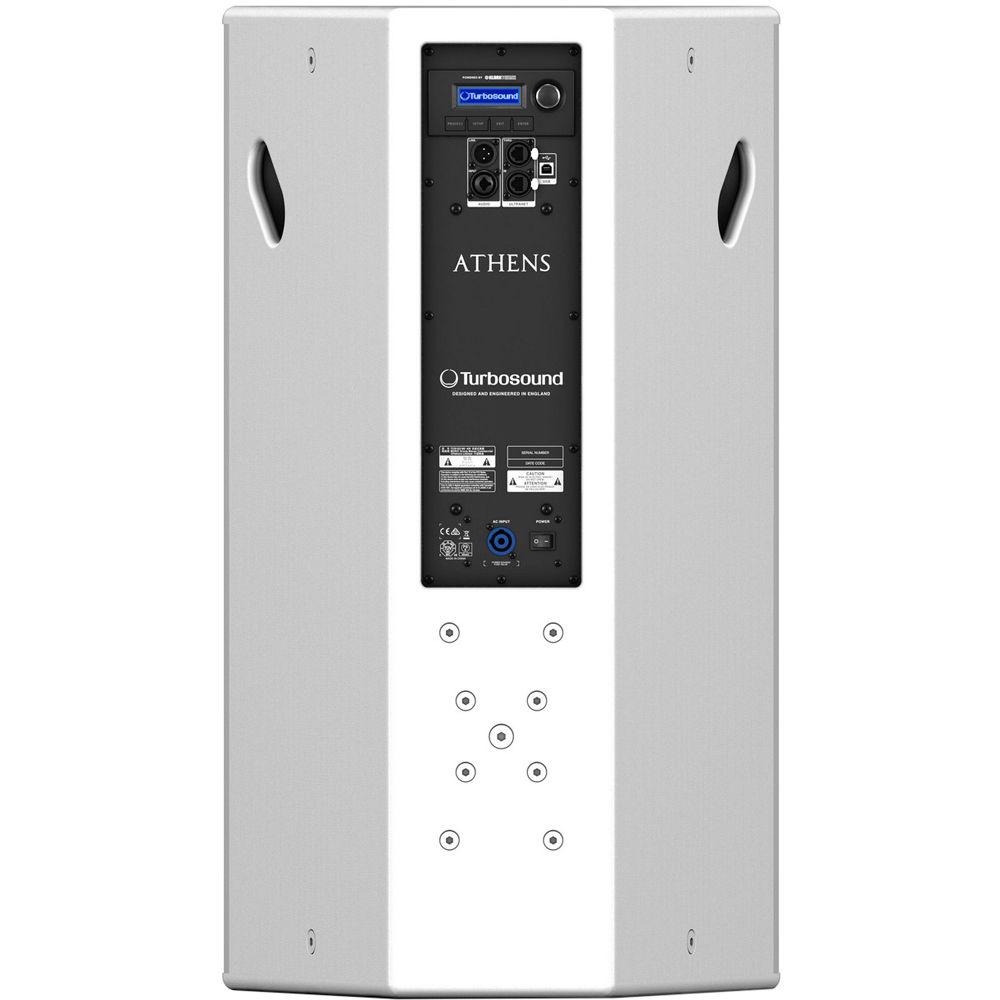

Ultranet connectivity is provided by two locking etherCON connectors. Up to 16 independent channels of 24-bit digital audio and control data are transmitted via a single CAT5 cable between compatible digital devices including mixers, I/O stage boxes, powered loudspeakers, and personal monitoring systems. Finished in a highly durable semi-matt black paint, the cabinet is constructed from 5/8" birch plywood and is constructed with a rugged powder coated perforated steel mesh grille backed with reticulated foam. Multiple threaded rigging points are provided for suspension in any orientation, or for mounting with standard mounts and brackets. Mains power input is provided via Neutrik powerCON connector. - Two-way full range loudspeaker for installation applications
- Rotatable Dendritic waveguide with 90° (H) x 60° (V) dispersion
- KLARK TEKNIK Class-D technology
- KLARK TEKNIK digital signal processing for total system control
- Ultranet digital audio networking connects to mixers and other sources
- Low frequency driver (15") with aluminum voice coil for improved transient response
- Titanium dome 1.4" neodymium motor compression driver
- User interface with LCD display for ease of navigation
- Multiple array configurations for extended coverage
- Trapezoidal cabinet shape enables visually unobtrusive loudspeaker arrays
- Multiple internal rigging points allow bracket mount and suspension in any orientation
- Birch plywood enclosure (5/8") with hard wearing semi matt black paint finish
- Powder coated perforated steel mesh grille
- Main inputs on Neutrik powerCON connector
In the Box Turbosound Athens TCS152-96-AN 2500W 2-Way 15" Loudspeaker (White) Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound Athens TCS152-96-AN 2500W 2-Way 15" Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound TCS152/96AN Specs | | | Frequency Response | 41 Hz to 18 kHz ±3 dB
35 Hz to 20 kHz -10 dB | | Nominal Dispersion | 90 x 60° Dendritic Waveguide @ -6 dB points, rotatable | | Maximum SPL | 133 dB peak | | Crossover Type | Active | | Transducer | 1 x 15" (381 mm) LF driver
1 x 1.4" (36 mm) HF compression driver | | Limiter | Independent HF, LF, peak and rms | | | | Maximum Output Power | 2500 W | | Type | Class-D | | Protection | Short circuit, thermal | | | | Input | 1 x Combo Jack / XLR, 1 x XLR
Ultranet: 2 x RJ45 | | Sensitivity | +4 dBu or +14 dBu software switchable | | Input Impedance | 40 kΩ balanced | | Maximum Input Level | +22 dBu | | Mains Supply | Neutrik powerCON 20A | | | | DSP | Rotary push-encoder and level control buttons for process, setup, exit, enter | | | | Presets | Factory EQ: Positioning, sound mode, FBQ
20 total presets, 19 user-definable | | Display | LCD 128 x 32, blue, backlit | | Delay | 0 to 300 ms | | Equalization | High and low shelving EQ 2 x parametric EQ | | Limiter | Zero attack input limiter | | Crossover | High Pass L-R 24 dB / oct | | Protection | Lock-out function for all settings | | | | A/D Conversion | 24-bit, 44.1 / 48 kHz sample rate | | Converter Type | 24-bit, delta-sigma | | | | Signal | 16-channels | | Latency | < 0.9 ms | | Frequency Response | 20 Hz to 20 kHz (+0 / -3 dBu) | | Dynamic Range | Typical 92 dBu | | | | Cables | Shielded CAT5 | | Cable Length | Maximum 246' (75 m) recommended | | | | Power Consumption | 90 W @ 1/8 max power | | | | USA / CAN | 120 VAC, 60 Hz (T 15 A H 250 VAC) | | | | Construction | 5/8" (15 mm) birch plywood | | Finish | Semi matt white paint | | Grille | Powder coated perforated steel | | Hardware | M10 x 9, M8 x 8 points | | Dimensions (H x W x D) | 33 x 19 x 18" (834 x 473 x 451 mm) | | Weight | 67.3 lb (30.5 kg) |
