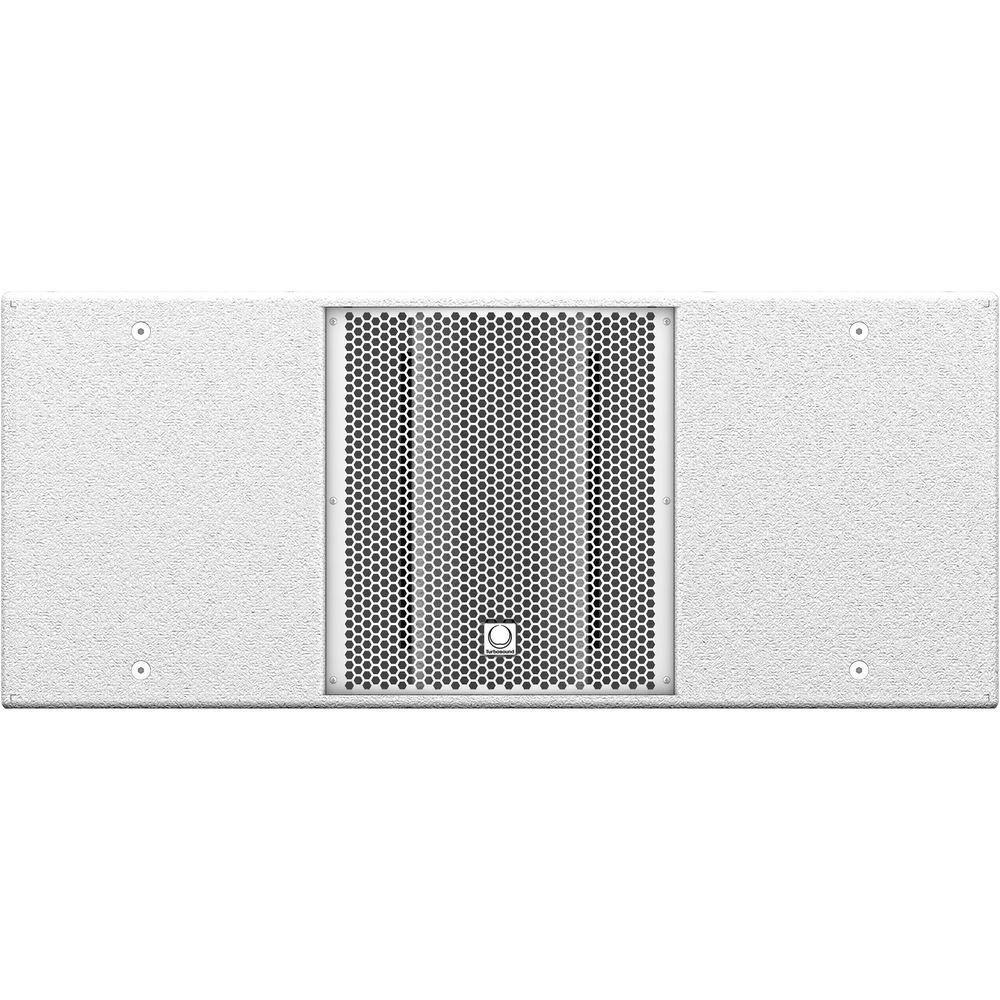

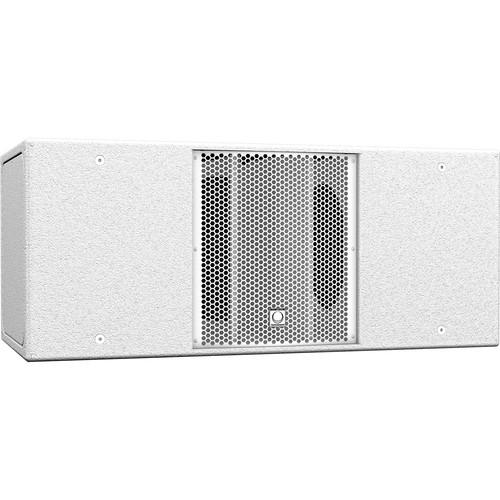

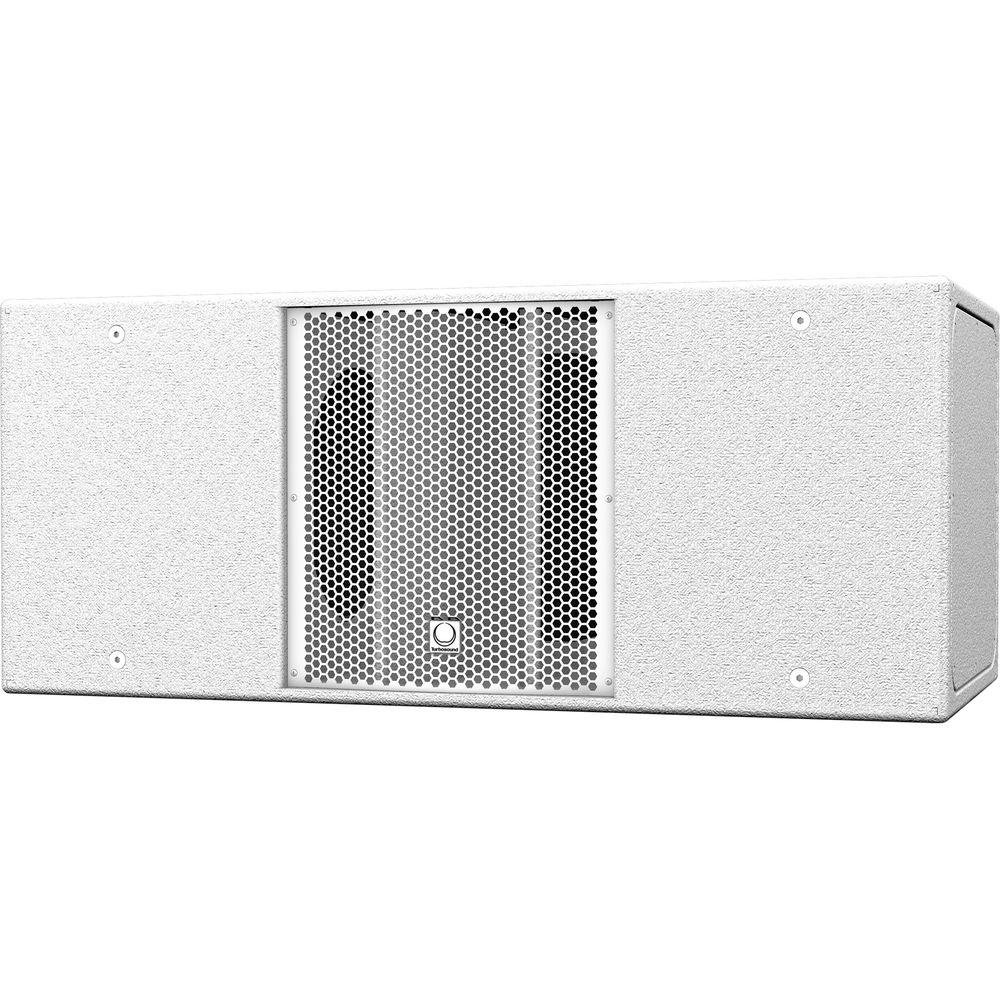

Product description The white Athens TCS212B-WH Dual 12" Band Pass Subwoofer from Turbosound is a 3,200W high performance dual 12" subwoofer system that is ideally suited for a wide range of speech and music sound reinforcement applications. Engineered to work in conjunction with Turbosound loudspeaker management systems, the TCS212B-WH provides very high output, extended low-frequency performance from a compact enclosure.
The dual-port band pass design ensures symmetrical high-velocity and low-turbulence airflow that yields reduced distortion both in the port and the drivers, which are loaded by identical compartments in a force-cancelling arrangement. Each of TCS212B-WH's two high-excursion 12" low-frequency drivers utilize a specialized voice coil wound on both the inside and outside of the coil former for higher magnetic density, better heat dissipation, higher power-handling capacity, and improved efficiency. The subwoofer generates ample amounts of high-definition bass energy in a space-saving form factor, regardless of its position in the room.
Finished in a highly durable semi-matte white paint, the cabinet is constructed from 0.6" (15.0mm) birch plywood with integral M10 threaded rigging points. The rear connection plate carries a Neutrik speakON NL4 connector and a barrier strip connector for input and link connections to additional enclosures. - Dual band pass subwoofer for installation applications
- 800W continuous, 3,200W peak power
- High-excursion 12" low-frequency drivers with inside/outside wound coils
- Low-distortion dual-port design for maximum sound pressure level
- 0.6" (15.0mm) birch plywood enclosure with hard-wearing semi-matte white paint finish
- Integral M10 rigging points for ease of installation
- Neutrik speakON NL4 and barrier strip connectors
UPC: 748252138446 In the Box Turbosound Athens TCS212B-WH Dual 12" Band Pass Subwoofer (White) Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound Athens TCS212B-WH Dual 12" Band Pass Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound TCS212B Specs | Frequency Response | 38 - 200 Hz @ ±3 dB
32 - 200 Hz @ -10 dB | | Nominal Dispersion | Half space | | Power Handling | Continuous: 800 W
Peak: 3200 W | | Sensitivity | 100 dB, 1 W @ 1 m | | Maximum SPL | Continuous: 129 dB
Peak: 135 dB | | Impedance | 4 Ohms | | Components | 2 x 12" (316 mm) LF driver | | Connectors | 1 x Neutrik speakON NL4
1 x barrier strip terminals | | Construction | 0.6" (15.0 mm) birch plywood | | Finish | Semi-matte paint | | Grille | Powder-coated perforated steel | | Hardware | Flying Hardware: 16 x M10 | | Dimensions | 16.5 x 39.4 x 18.5" (41.9 x 100.1 x 47.0 cm) | | Weight | 99.6 lb (45.2 kg) | | | | Package Weight | 112.5 lb | | Box Dimensions (LxWxH) | 44.0 x 22.8 x 18.5" |
