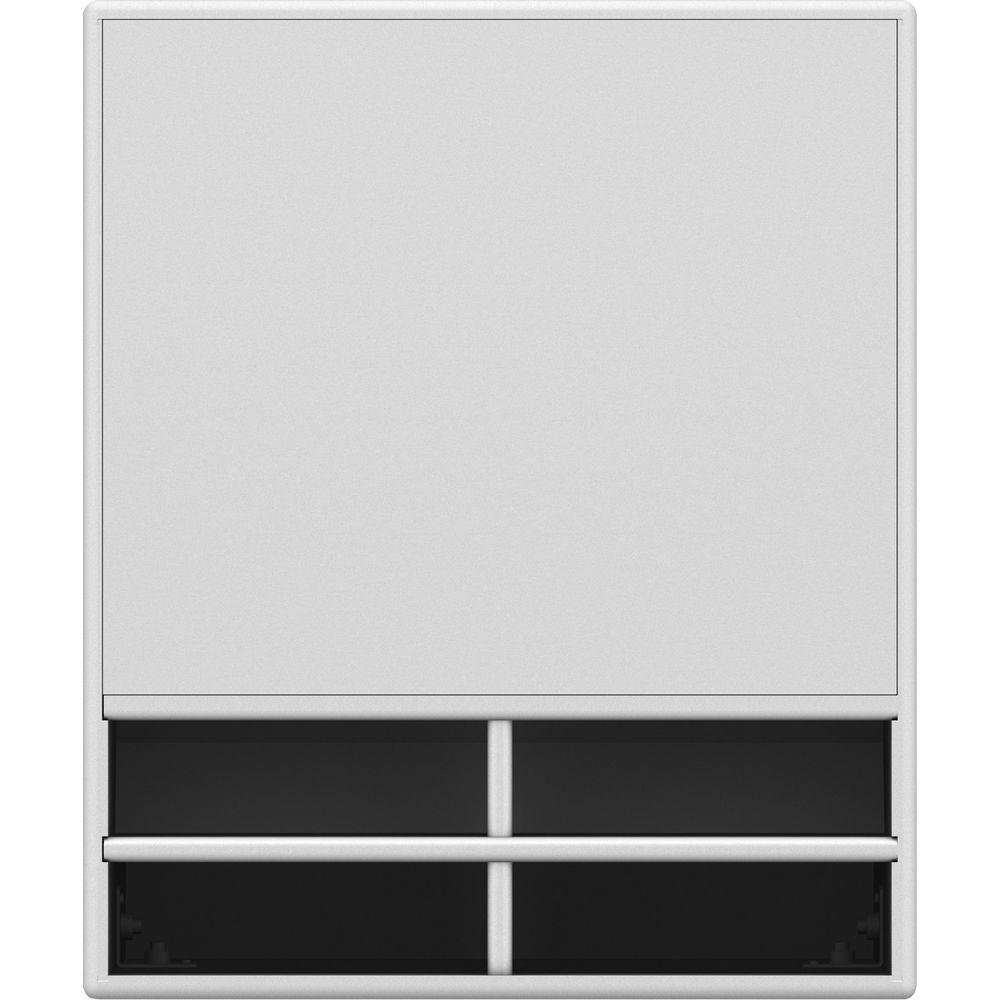

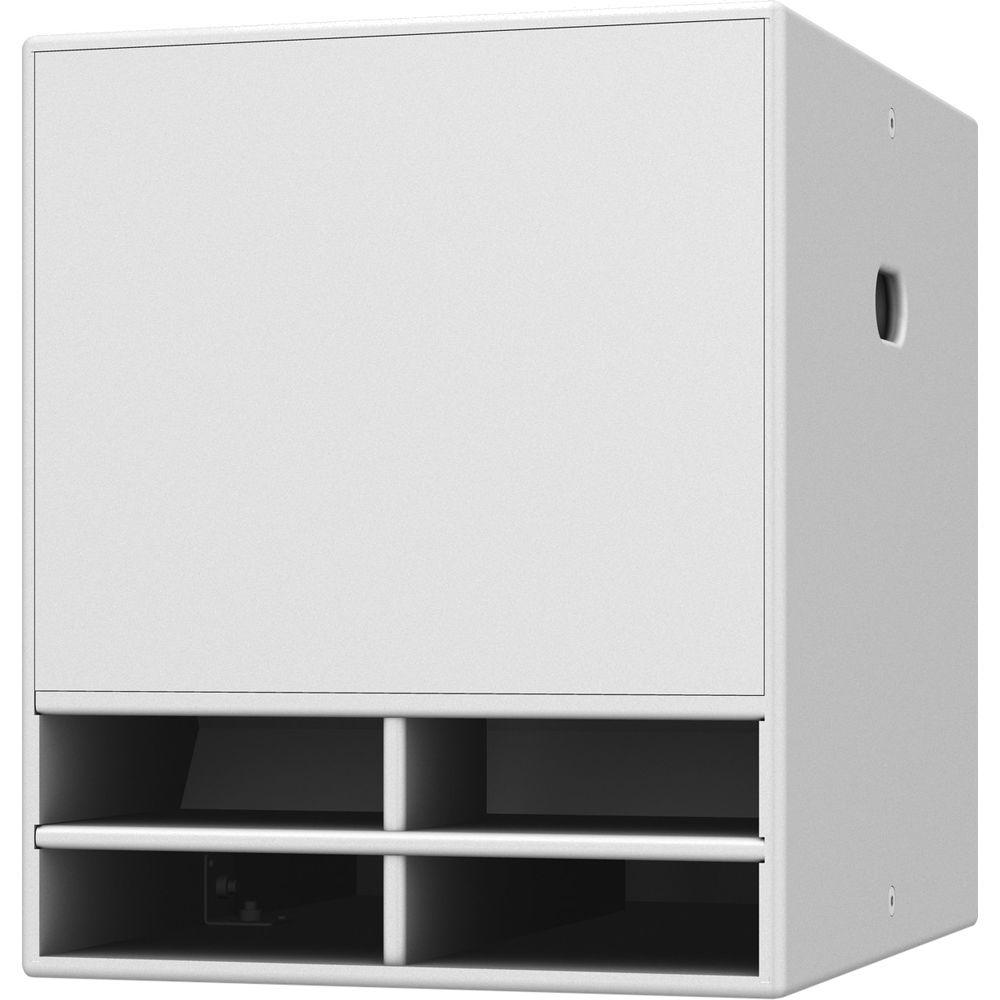

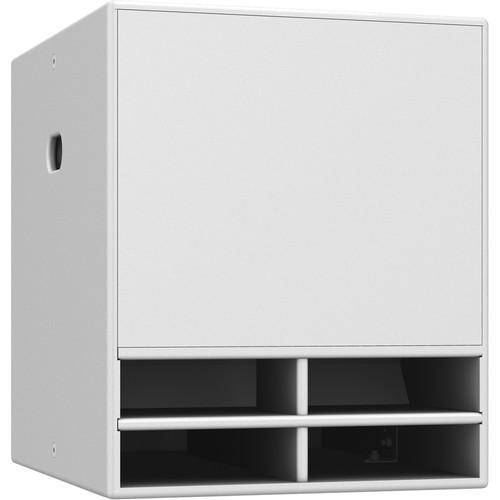

User Manual for Turbosound Dublin TCX115B-R-WH 15" Band-Pass Weather-Resistant Subwoofer Click to enlarge the picture
Contents of the user manual for the Turbosound Dublin TCX115B-R-WH 15" Band-Pass Weather-Resistant
- Product category: PA Speakers Turbosound
- Brand: Turbosound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Turbosound PA Speakers
 |
User manual for the Turbosound Dublin TCX115B-R-WH 15" Band-Pass Weather-Resistant contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Turbosound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Turbosound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Turbosound product will considerably shorten its lifespan!
|
Product description The Dublin TCX115B-R-WH 15" Band-Pass Weather-Resistant Subwoofer from Turbosound is a dual-ported band-pass enclosure that is optimally tuned for extended low-frequency response and offers 4000W of peak power. Engineered to work in conjunction with Turbosound loudspeaker-management systems, this subwoofer provides a high-output FOH performance and is suitable for a wide range of music and live sound-reinforcement applications.The band-pass subwoofer features a double-suspension 15" low-frequency driver that utilizes an inside/outside wound voice coil for higher magnetic density, efficient heat dissipation, high power-handling capacity, and efficient performance. The low-distortion band-pass design utilized in the subwoofer reinforces the bass musical-instrument frequencies, and steep cut-off slopes ensuring an effective acoustic transition for use with Dublin-series full-range loudspeakers.Constructed from 0.6” (15mm) birch plywood, the cabinet features a matte-white textured paint, and includes internal M10 threaded rigging points that allow it to be suspended in permanent installations. The rear panel features a sealed captive cable and gland for added protection from the elements. The weatherized paint, zinc-plated grille with outdoor powder coat, and weather-resistant coated drivers deliver an IP54-rated package that is suitable for outdoor use. - Band-pass subwoofer for portable PA and installation applications
- Offers 1000W continuous and 4000W peak power
- All components are weather resistant to IP54 for outdoor use
- Double-suspension 15" low-frequency driver with inside/outside wound coil
- 0.6" (15mm) birch-plywood enclosure with hard-wearing semi-matte white paint finish
- Integral M10 rigging points for ease of installation

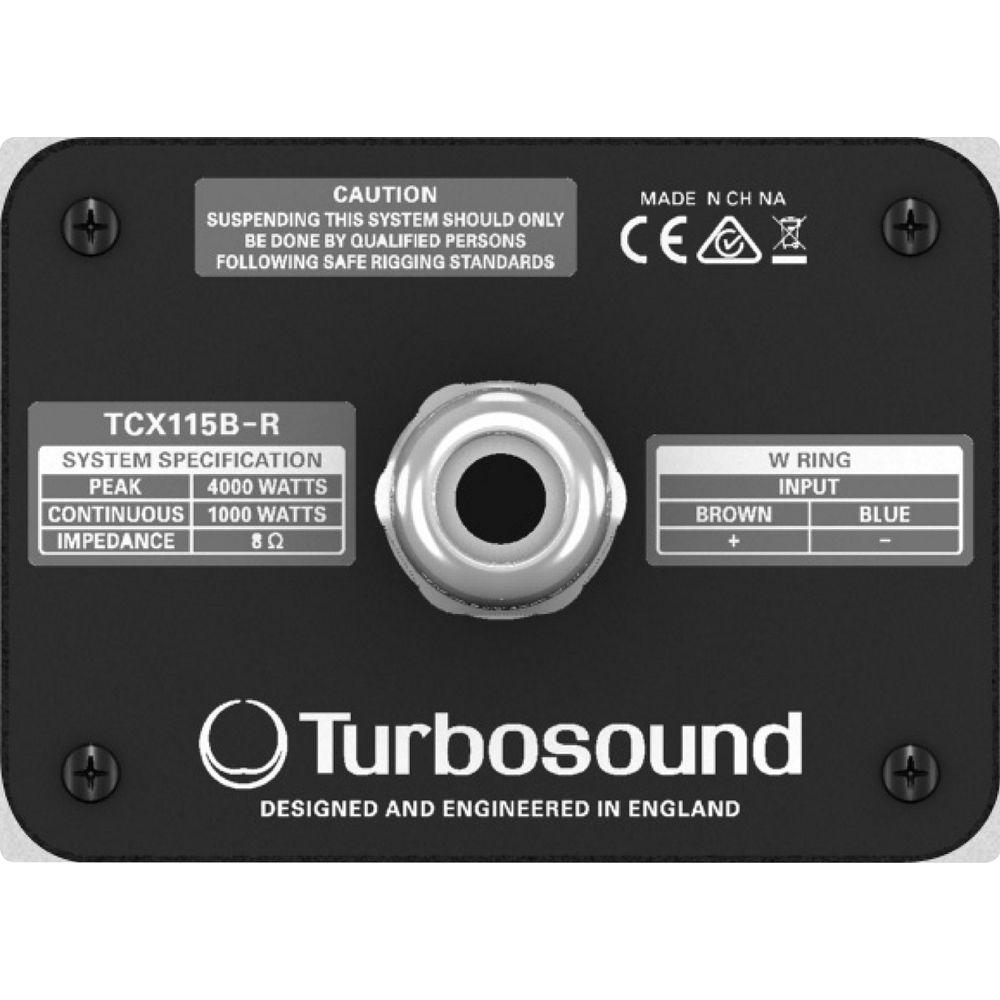

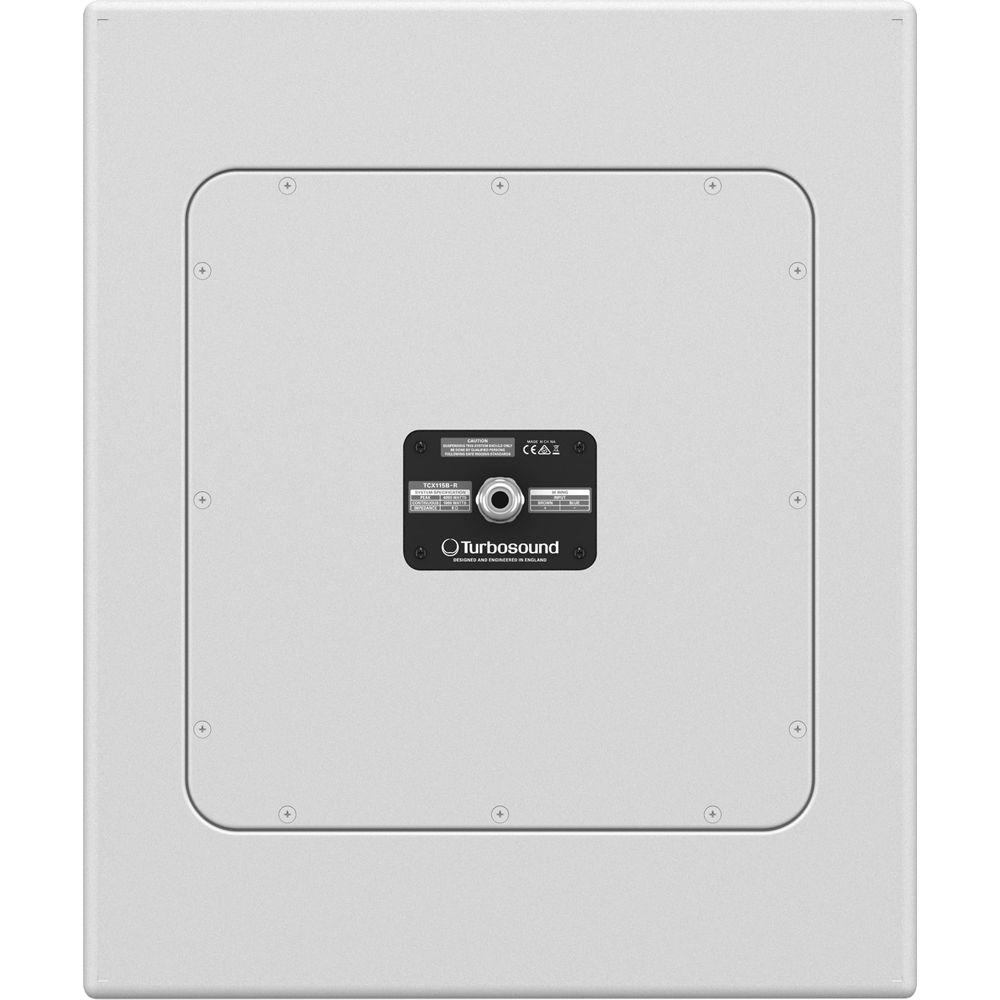

- Captive cable tail with sealed cable gland on aluminum connector panel
In the Box Turbosound Dublin TCX115B-R-WH 15" Band-Pass Weather-Resistant Subwoofer (White) Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound Dublin TCX115B-R-WH 15" Band-Pass Weather-Resistant Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound TCX115BR Specs | | | Frequency Response | 35 Hz to 125 Hz, ±3 dB
28 Hz to 170 Hz, -10 dB | | Nominal Dispersion | Half space | | Power Handling | IEC
Continuous: 1000 W
Peak: 4000 W | | Sensitivity | 95 dB (1 W @ 3.3' (1.0 m)) | | Maximum SPL | Continuous: 127
Peak: 131 dB | | Impedance | 8 ohms | | Components | 1 x 15" (380 mm) LF driver | | | | Connectors | 2-core captive cable tail | | Wiring | Pins 1+ / 1- input, pins 2+ / 2- link | | Construction | 0.6" (15.0 mm) birch plywood | | Grille | Powder-coated perforated zinc-plated steel | | Mounting Interface | M10 x 8 Points | | Dimensions (H x W x D) | 23.6 x 19.6 x 23.6" (59.9 x 49.9 x 59.9 cm) | | Weight | 80.7 lb (36.7 kg) |
