User Manual for Turbosound Dublin TCX118B-WH 18" Band Pass Subwoofer Click to enlarge the picture
Contents of the user manual for the Turbosound Dublin TCX118B-WH 18" Band Pass
- Product category: PA Speakers Turbosound
- Brand: Turbosound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Turbosound PA Speakers
 |
User manual for the Turbosound Dublin TCX118B-WH 18" Band Pass contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Turbosound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Turbosound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Turbosound product will considerably shorten its lifespan!
|

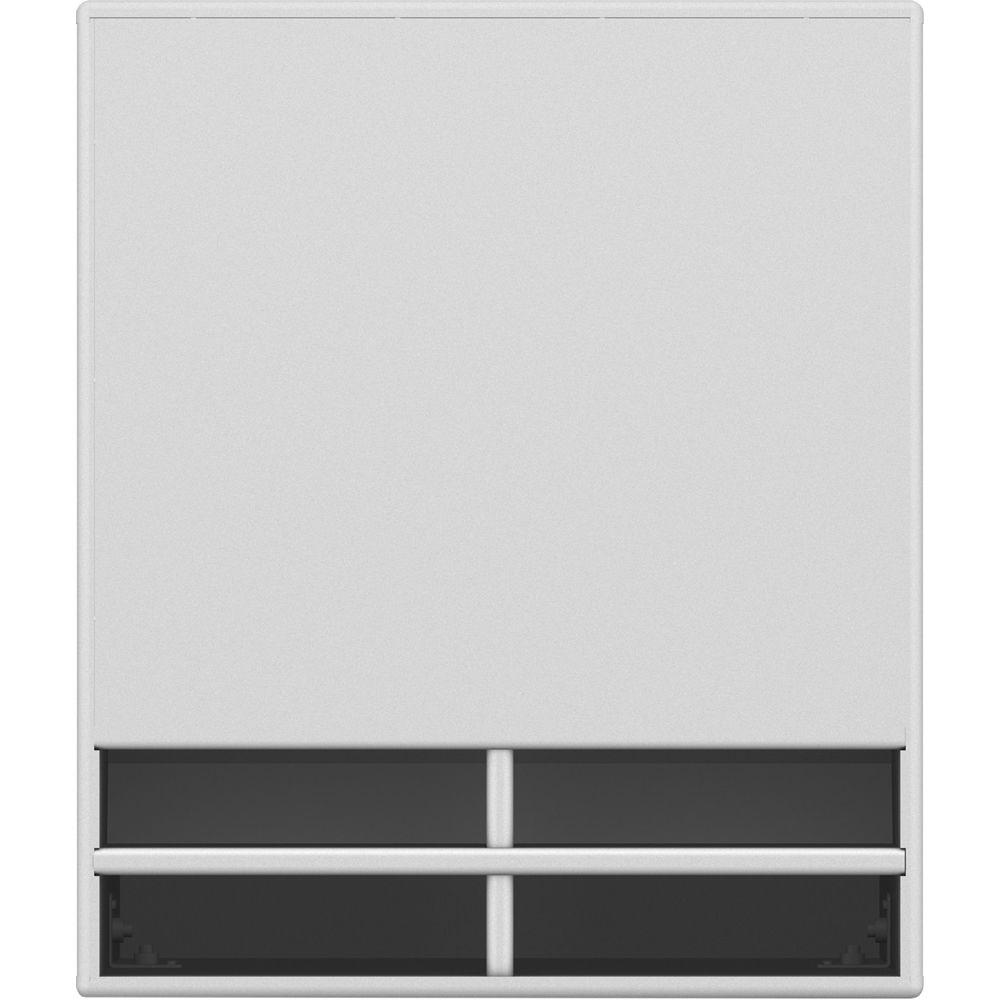

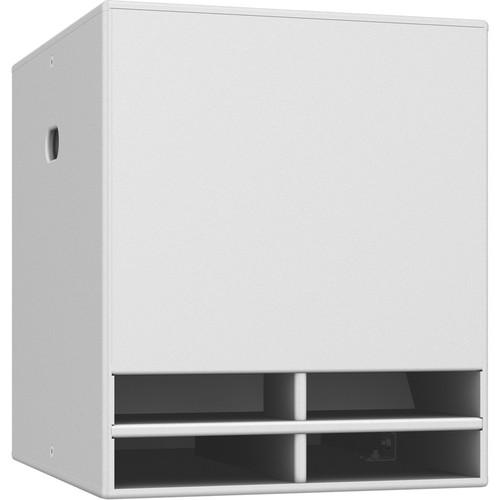

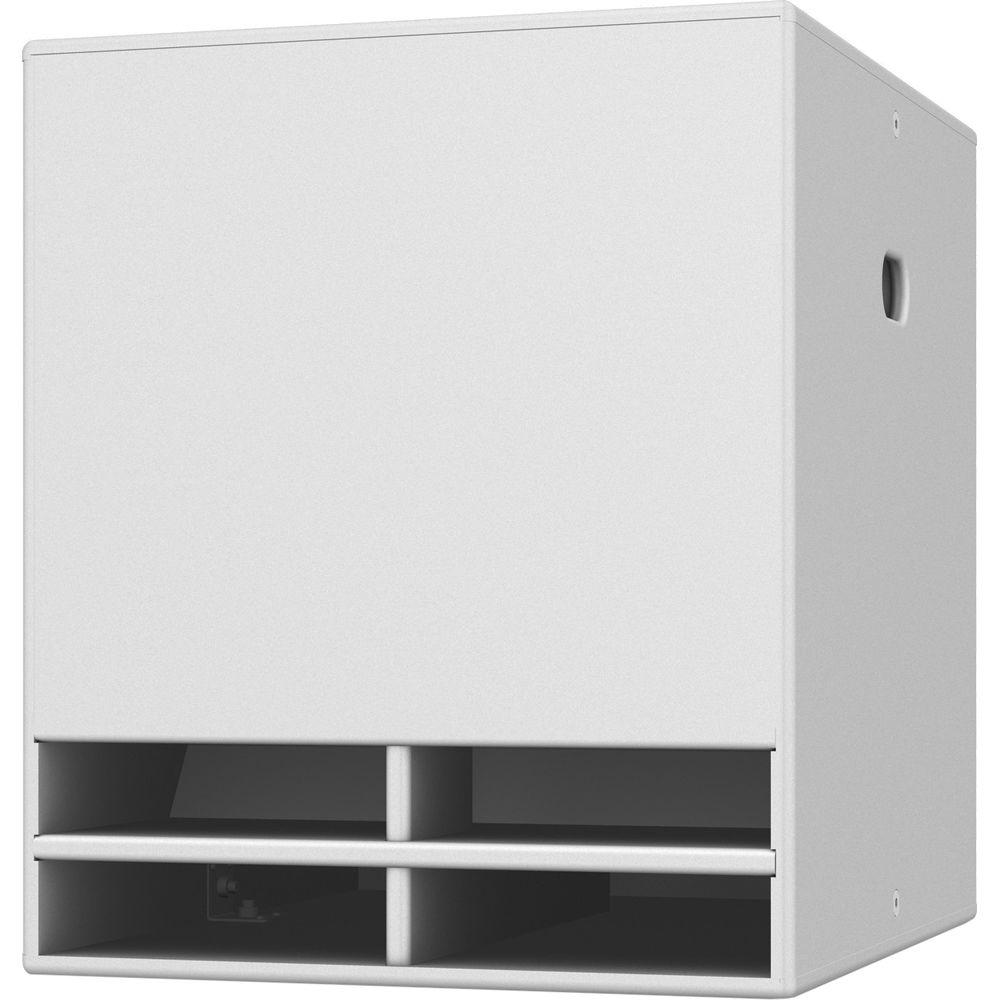

Product description The Dublin TCX118B-WH 18" Band Pass Subwoofer from Turbosound is a band pass subwoofer designed to complement TCX series mid/high cabinets in a wide range of installed and portable music sound-reinforcement applications. It consists of a double suspension 18" low-frequency driver with an inside/outside wound coil in a low-distortion dual-port band-pass enclosure, and is designed for maximum sound pressure level and extended low-frequency response.

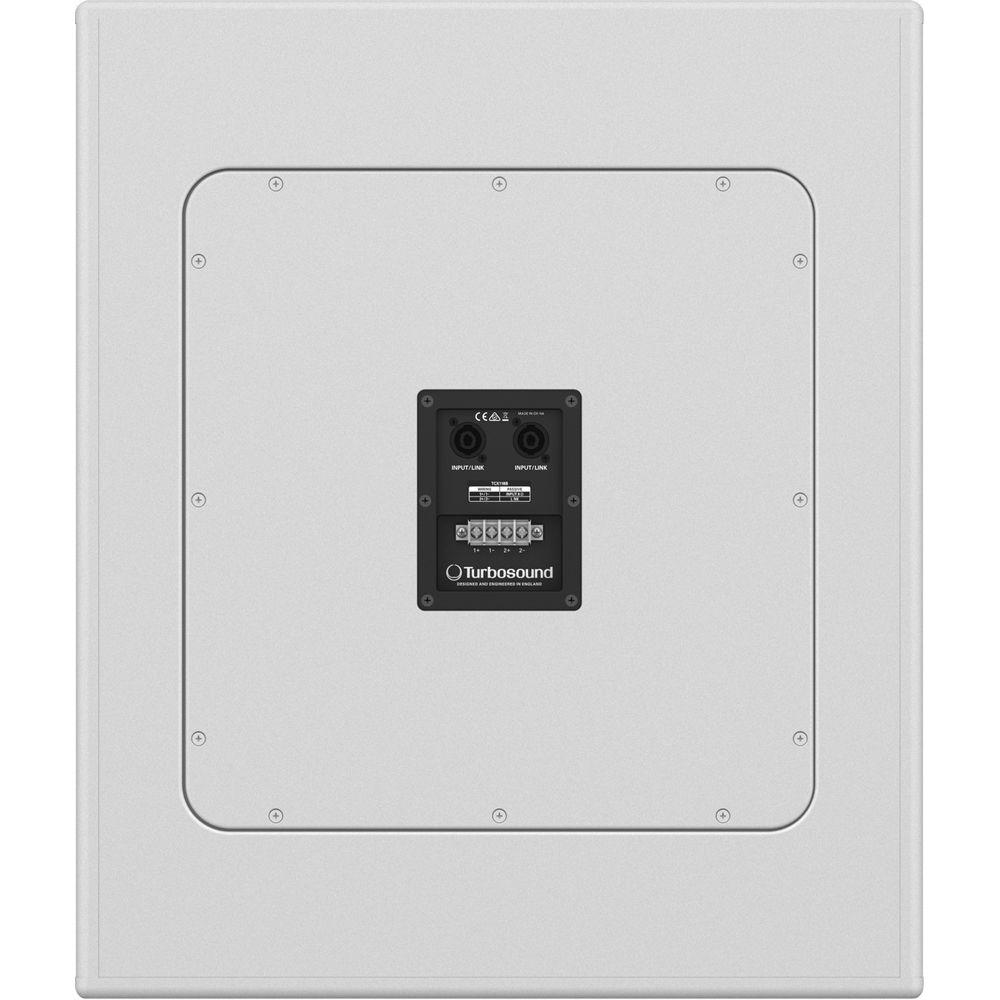

The cabinet is constructed from 0.6" (15mm) birch plywood, and includes 8 internal M10 threaded rigging points that allow it to be suspended in permanent installations using M10 eyebolts. A pole-mount socket is provided to allow two-way cabinets to be mounted at the correct height above the subwoofer. The rear connector panel provides two Speakon NL4 connectors for input and link functions, wired in parallel with a 4-way barrier strip connector. It features a semi matt white finish. - Band pass subwoofer for portable and fixed installation applications
- Double-suspension 18" low-frequency driver with inside/outside wound coil
- Eight Internal M10 rigging points for ease of installation
- Features a semi matt white finish
- Designed and engineered in England
In the Box Turbosound Dublin TCX118B-WH 18" Band Pass Subwoofer (White) Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound Dublin TCX118B-WH 18" Band Pass Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound TCX118B Specs | Driver | 1 x 18" (457 mm) LF | | Frequency Response | 35 Hz to 125 Hz @ ±3 dB
25 Hz to 170 Hz @ -10 dB | | Nominal Dispersion | Half space | | Sensitivity | 97 dB, 1 W @ 3.3' (1.0 m) | | Power Handling | (IEC)
Continuous: 1000 W
Peak: 4000 W | | Maximum Sound Pressure Level (SPL) | Continuous: 127 dB
Peak: 133 dB | | Nominal Impedance | 8 ohms | | Connectors | 2 x Neutrik Speakon NL4
1 x NL4 barrier strip terminal | | Construction | 0.6" (15 mm) birch plywood | | Rigging | 8 x M10 Internal Rigging Points | | Dimensions | 26 x 22 x 26" (66 x 56 x 66 cm) | | Weight | 85.0 lb (38.6 kg) |
