User Manual for Turbosound Dublin TCX122-R 12" 2-Way Weather-Resistant Loudspeaker Click to enlarge the picture
Contents of the user manual for the Turbosound Dublin TCX122-R 12" 2-Way Weather-Resistant
- Product category: PA Speakers Turbosound
- Brand: Turbosound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Turbosound PA Speakers
 |
User manual for the Turbosound Dublin TCX122-R 12" 2-Way Weather-Resistant contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Turbosound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Turbosound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Turbosound product will considerably shorten its lifespan!
|

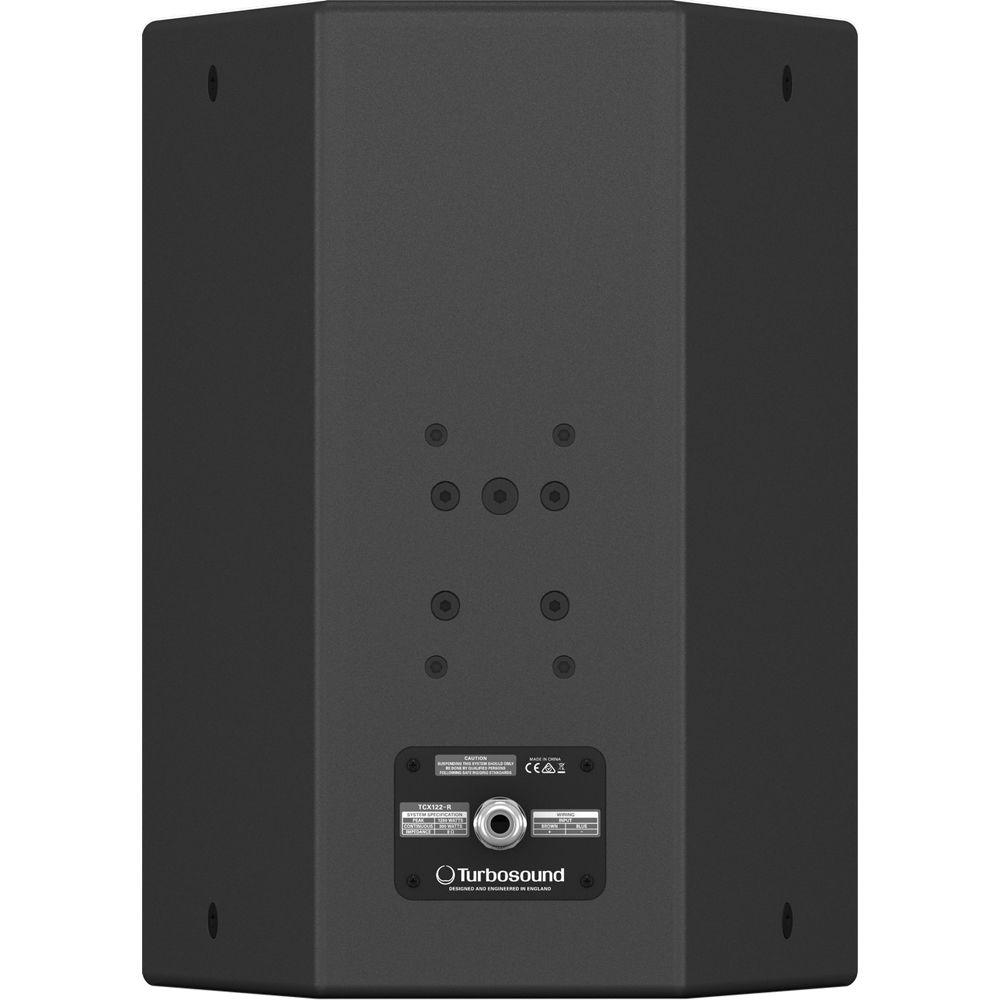

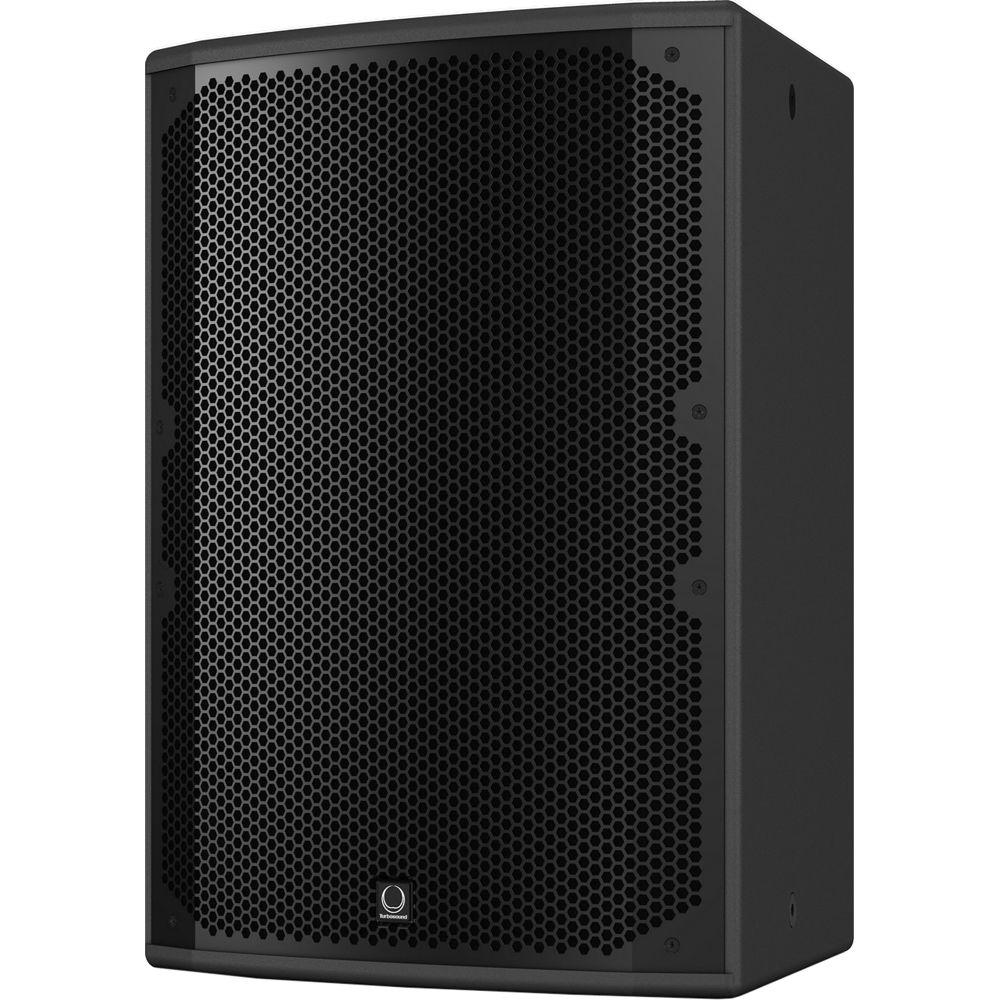

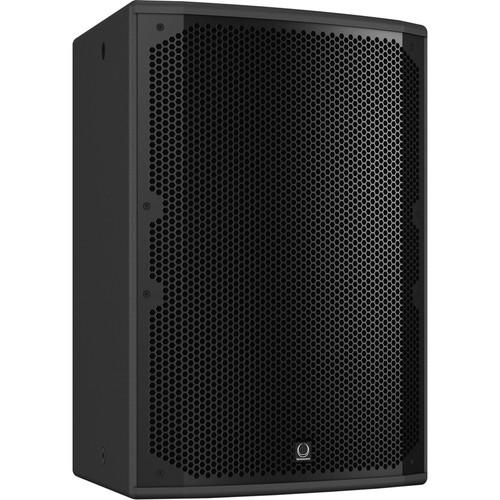

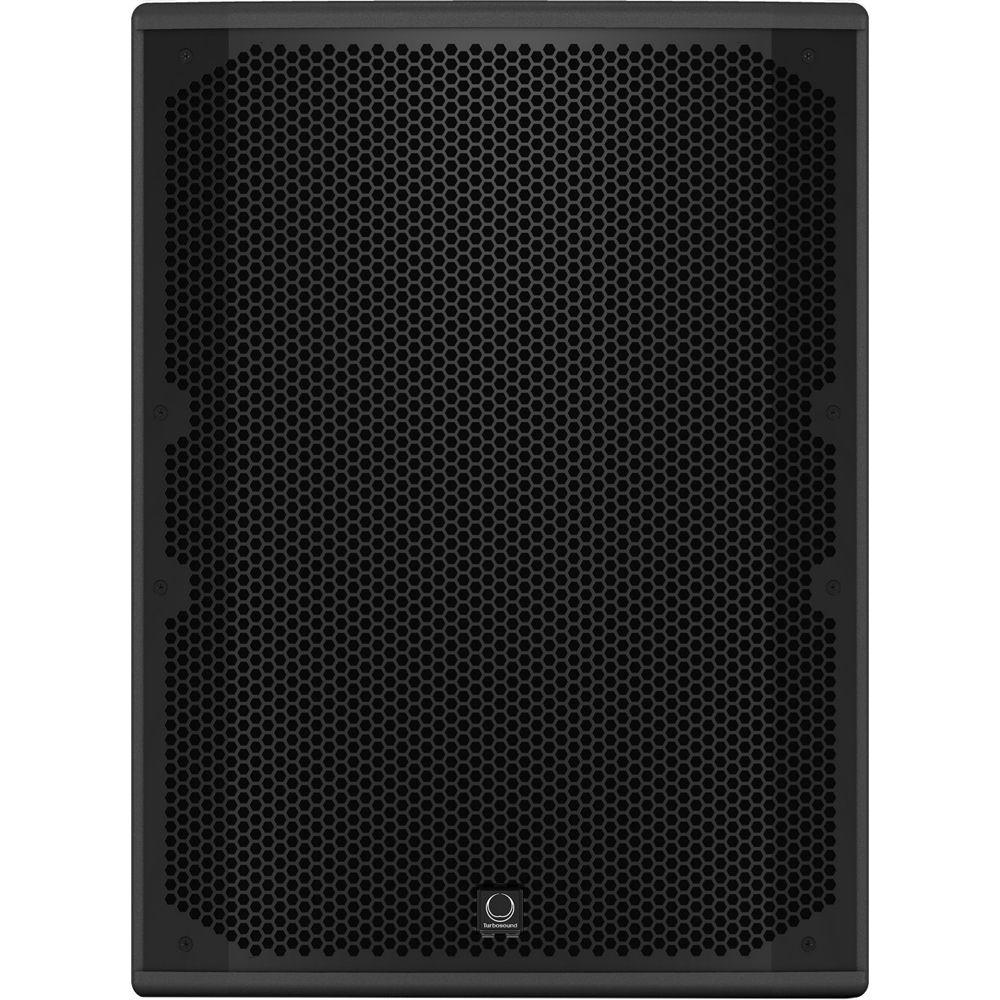

Product description The Dublin TCX122-R 12" 2-Way Weather-Resistant Loudspeaker from Turbosound is a 1200W compact 12" passive loudspeaker that is suitable for a wide range of portable or installed speech and music sound reinforcement applications. Constructed from 0.6" birch plywood, the cabinet is finished in semi matt black textured paint. It consists of a trapezoidal enclosure housing a high excursion 12" reflex-loaded low frequency driver with low mass voice coil for improved transient response, and a 1" high temperature dome compression driver mounted on a rotatable converging elliptical waveguide, which provides a 90° horizontal by 60° vertical dispersion pattern.The loudspeaker’s compression driver is mated to a converging elliptical waveguide that is rotatable through 90°, allowing a swap of the horizontal and vertical dispersion patterns for a smooth wave front, while providing exceptional pattern control. This is useful for retaining wide horizontal dispersion when the enclosure is mounted horizontally due to ceiling height restrictions.A perforated steel mesh grille backed with reticulated foam protects the drive units. The rear panel features a sealed captive cable and gland. The weatherized paint, zinc plated grill with outdoor powder coat, and weather resistant coated drivers deliver an iP54 rated package that is suitable for outdoor use.The cabinet is fitted with M6, M8, and M10 internally-threaded rigging points that allow it to be rigged with optional shoulder eyebolts and mounted in many different configurations in permanent installations. Adjustment of the length of the rear cable allows the cabinet to be angled for optimum room coverage. The horn of each cabinet may be rotated through 90° to optimize the coverage. The cabinet is compatible with industry standard wall and ceiling brackets. - Two way loudspeaker for installation applications
- Offers 300W continuous and 1200W peak power
- All components weather resistant to IP54 for outdoor use
- High excursion 12" low frequency driver with low mass voice coil for improved transient response
- High temperature 1" dome compression driver with extended high frequency reproduction
- Rotatable converging elliptical waveguide provides 90° H x 60° V dispersion
- M10, M8 and M6 rigging points compatible with Turbosound and OmniMount brackets
- Trapezoidal cabinet shape enables visually unobtrusive loudspeaker arrays
- Birch plywood enclosure (0.6") with hard wearing semi matt black paint finish
- Powder coated perforated plated steel mesh grille with foam backing

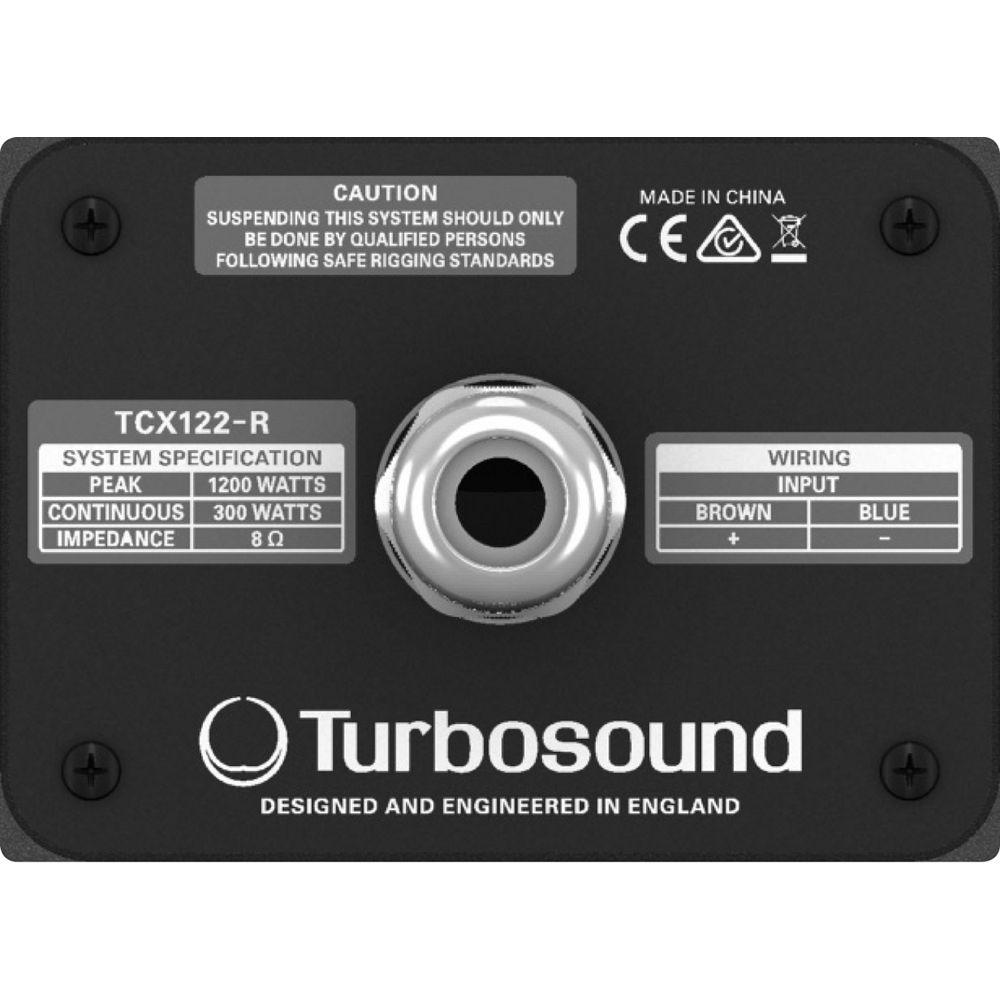

- Captive cable tail with sealed cable gland on aluminum connector panel
In the Box Turbosound Dublin TCX122-R 12" 2-Way Weather-Resistant Loudspeaker (Black) Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound Dublin TCX122-R 12" 2-Way Weather-Resistant Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound TCX122R Specs | | | Frequency Response | 100 Hz to 18 kHz, ±3 dB; 68 Hz to 20 kHz, -10 dB | | Nominal Dispersion | 90° H x 60° V @ -6 dB points | | Power Handling | Continuous: 300 W
Peak: 1200 W | | Sensitivity | 97 dB (1 W @ 3.3' (1.0 m)) | | Maximum SPL | Continuous: 122 dB
Peak: 128 dB | | Impedance | 8 Ω | | Components | 1 x 12" (305 mm) LF driver
1 x 1" (25 mm) HF compression driver | | | | Connectors | 2-core captive cable tail | | Construction | 0.6" (15.0 mm) birch plywood | | Grille | Powder-coated perforated zinc plated steel | | Mounting Interface | M10 x 9, M8 x 4, M6 x 4 Points | | Dimensions (H x W x D) | 21.7 x 16.0 x 14.5" (55.2 x 40.6 x 36.8 cm) | | Weight | 40.2 lb (18.3 kg) |
