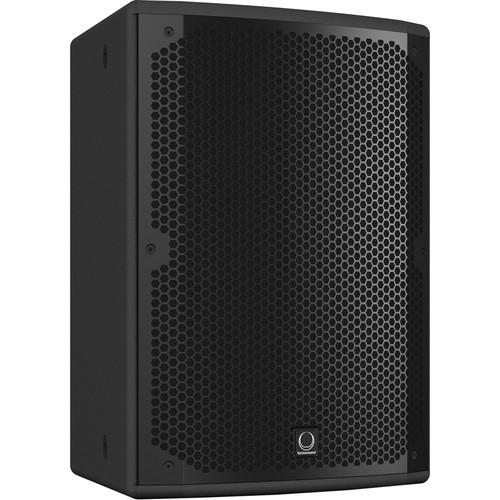

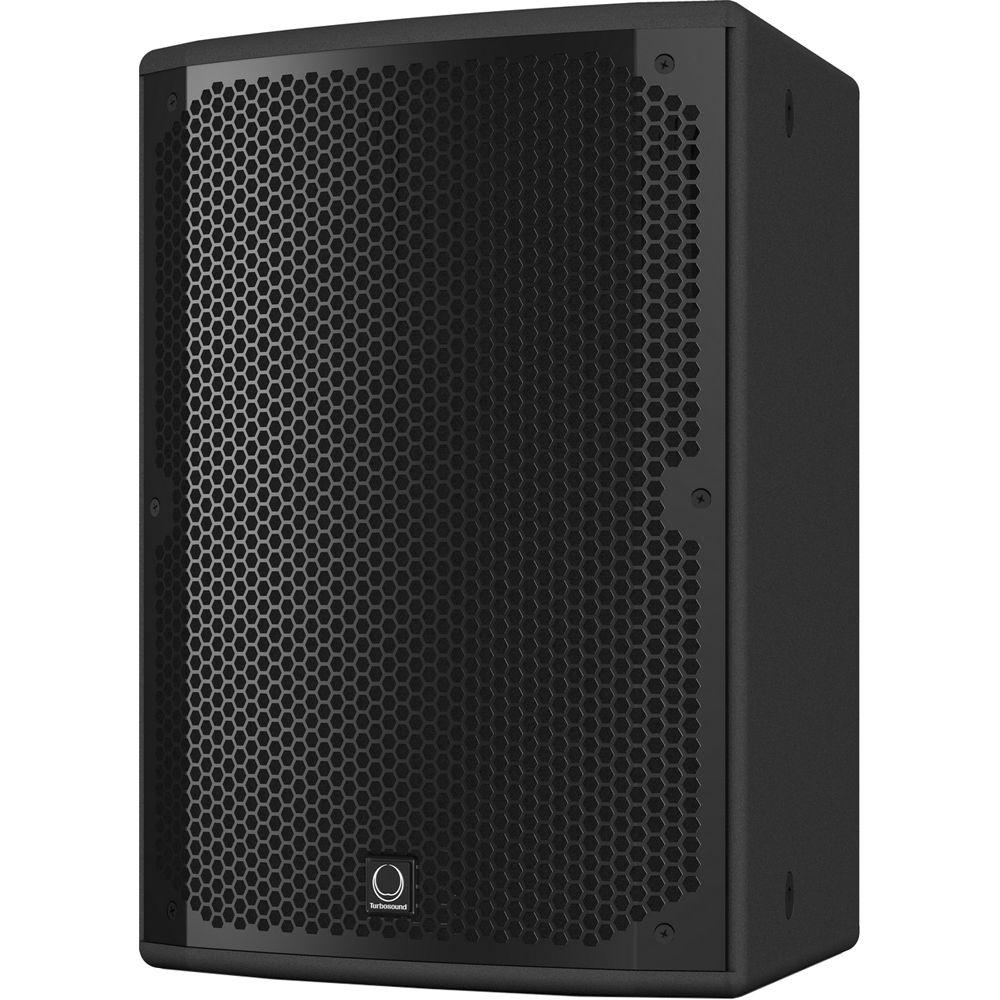

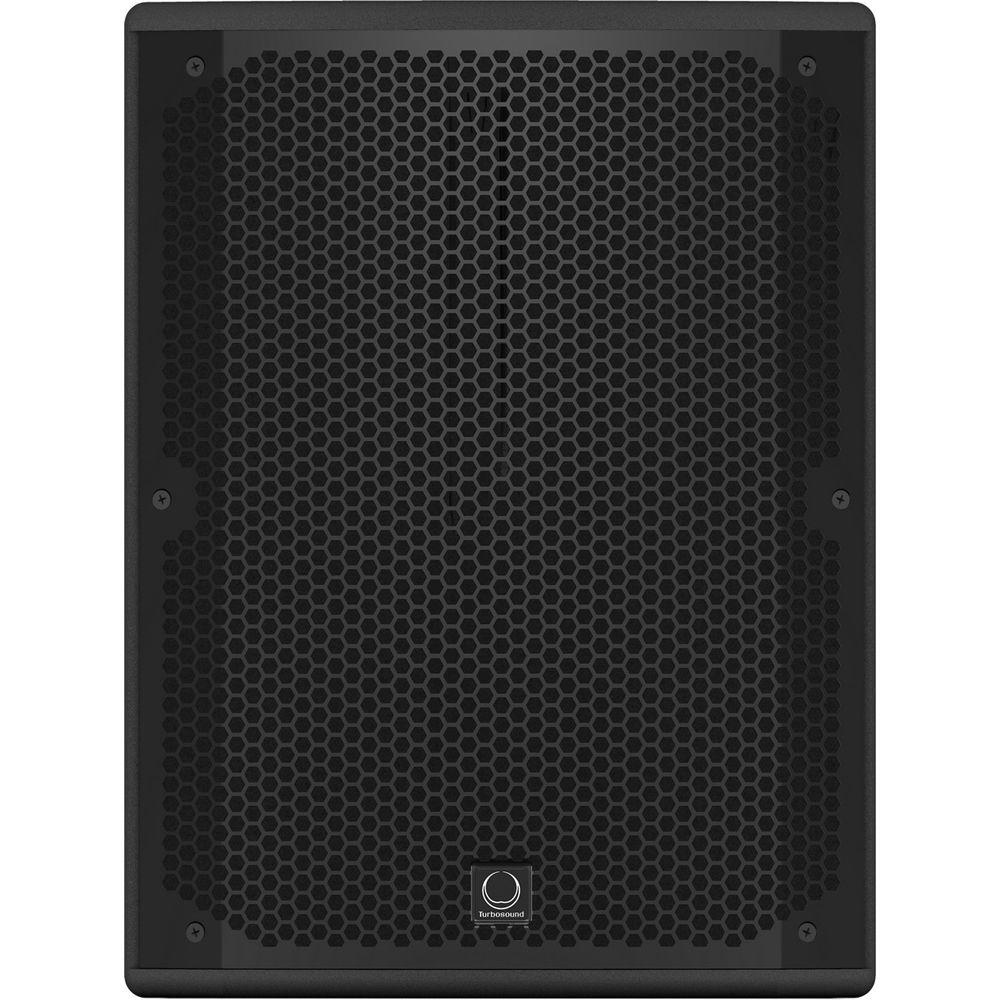

User Manual for Turbosound Dublin TCX82 Two-Way 8" Loudspeaker Click to enlarge the picture
Contents of the user manual for the Turbosound Dublin TCX82 Two-Way 8" Loudspeaker
- Product category: PA Speakers Turbosound
- Brand: Turbosound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Turbosound PA Speakers
 |
User manual for the Turbosound Dublin TCX82 Two-Way 8" Loudspeaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Turbosound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Turbosound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Turbosound product will considerably shorten its lifespan!
|

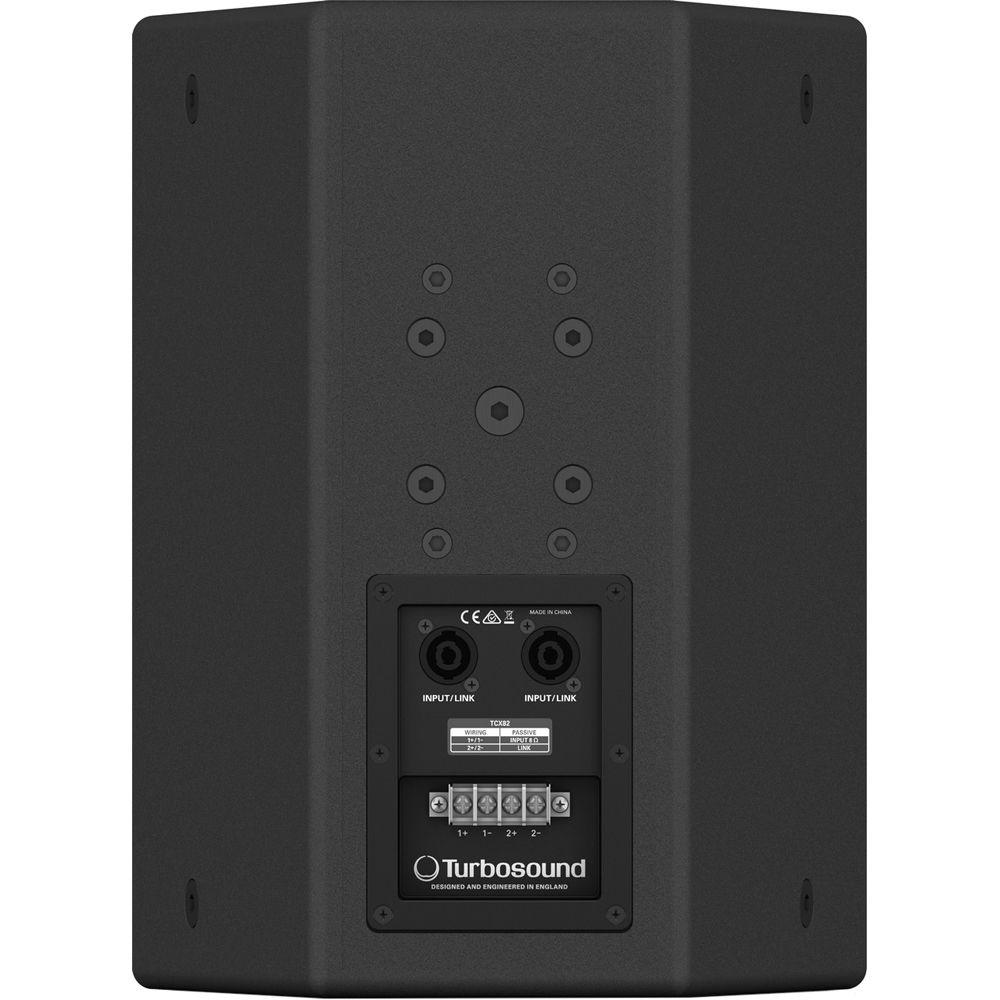

Product description The Dublin TCX82 Two-Way 8" Loudspeaker from Turbosound is a passive 800W loudspeaker suitable for a wide range of speech and music sound-reinforcement applications. It consists of a trapezoidal enclosure housing a high-excursion 8" low-frequency driver with low-mass voice coil for improved transient response, and a dome with 1" compression driver mounted on a rotatable 90° horizontal by 60° vertical dispersion-converging elliptical waveguide. The rear-panel connector provides two Neutrik speakON NL4 connectors for input and link functions wired in parallel to a 4-way barrier strip connector.
Finished in a highly durable semi-matte black paint, the cabinet is constructed from 12mm birch plywood and is constructed with a rugged powder-coated perforated steel-mesh grille backed with reticulated foam. Multiple threaded rigging points are provided for suspension in any orientation, or for mounting with standard wall and ceiling brackets. The TCX82 Loudspeaker also features concealed socket for standard pole mounting, as well as integrated handles for convenient transport. - 2-way full-range loudspeaker for portable PA applications
- 200W continuous, 800W peak power
- 8" low-frequency driver with low-mass voice coil for improved transient response
- Dome with 1" motor compression driver
- Rotatable converging-elliptical waveguide provides 90° H x 60° V dispersion
- 12mm birch plywood enclosure with hard-wearing semi-matte black paint finish
- Rugged powder-coated perforated steel-mesh grille
- Multiple internal-rigging points allow bracket mount and suspension in any orientation
- Trapezoidal cabinet shape enables visually unobtrusive loudspeaker arrays
- Concealed pole mount socket enables mobile applications
- Integral handle for convenient transport
- Two Neutrik speakON NL4 connectors for input and link functions wired in parallel to a 4-way barrier strip connector (sold separately)
UPC: 748252140142 In the Box Turbosound Dublin TCX82 Two-Way 8" Loudspeaker Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound Dublin TCX82 Two-Way 8" Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound TCX82 Specs | | | Frequency Response | 100 Hz to 20 kHz ±3 dB
70 Hz to 20 kHz -10 dB | | Nominal Dispersion | 90° (H) x 60° (V) @ -6 dB points | | Power Handling | 200 W continuous, 800 W peak | | Sensitivity | 94 dB (1 W @ 1 m) | | Maximum SPL | 117 dB continuous, 123 dB peak | | Impedance | 8 ohms | | Components | 1 x 8" (203 mm) LF driver
1 x 1" (25.4 mm) HF compression driver | | | | Connectors | 2 x Neutrik speakON NL4, 1 x barrier strip terminals | | Wiring | Pins 1+ / 1- input, pins 2+ / 2- link | | Construction | 1/2" (12 mm) birch plywood | | Finish | Semi matt black paint | | Grille | Powder coated perforated steel | | Dimensions (H x W x D) | 16.1 x 12.1 x 11.0" (408.9 x 307.3 x 279.4 mm) | | Weight | 22.7 lb (10.3 kg) |
