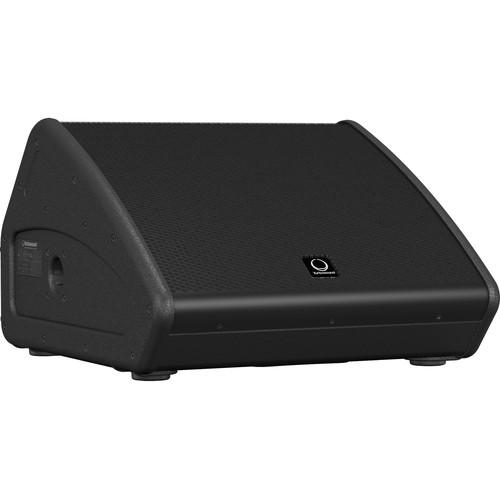

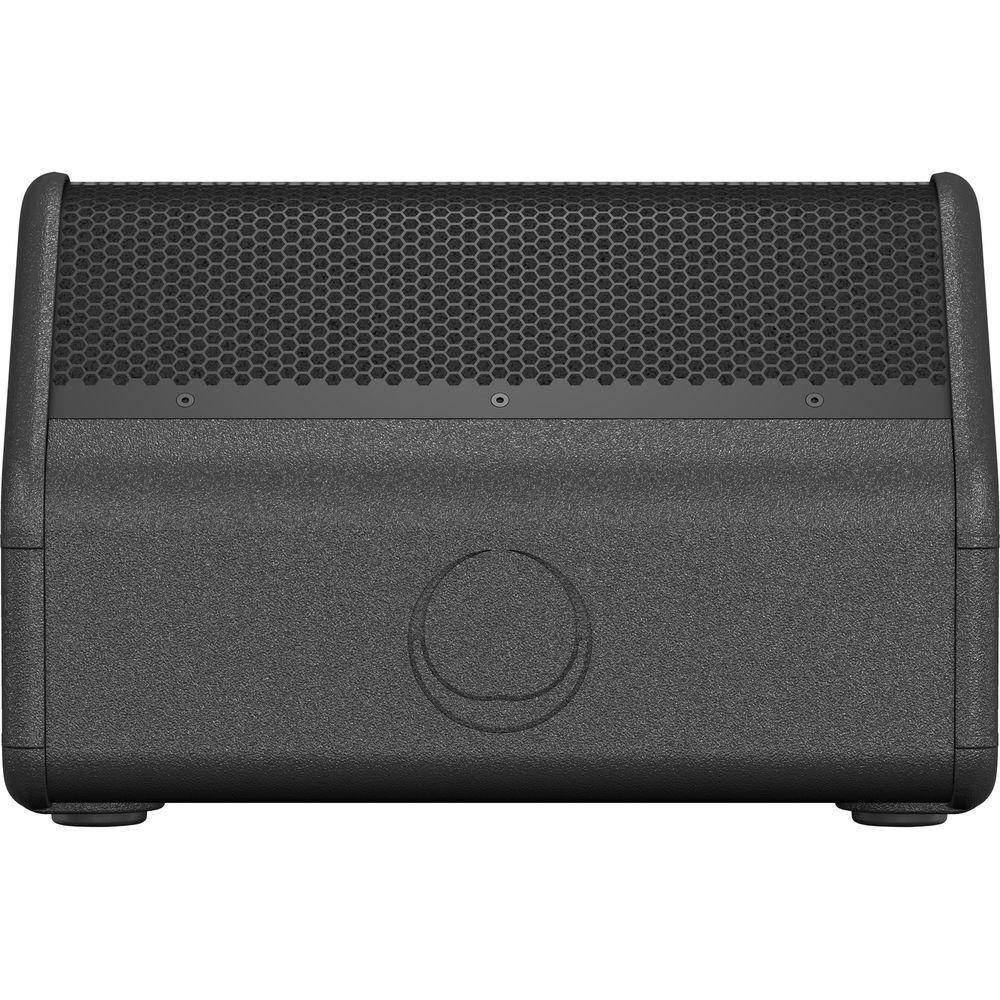

Product description The semi-matt black FLASHLINE Series TFM122M-AN 12" 2-Way Co-Axial 2500W Stage Monitor from Turbosound is a powered loudspeaker system that is suited for a wide range of portable speech and music sound reinforcement applications. Designed to work individually without a controller, it provides optimal performance for wedge monitoring and is a suitable choice for FOH, sidefill, and delay line applications. The loudspeaker features a carbon fiber-loaded 12" neodymium low-frequency driver and a titanium dome 1.4" neodymium high-frequency compression driver, which is mounted on a 60 x 40° (H x V) dispersion low distortion waveguide. The Klark Teknik digital signal processing is used for total system control and the low-profile design helps to maximize audience sight lines. - Class-D Amplification
- Equipped with the Klark Teknik Class-D power amplifier, the stage monitor provides up to 2500W of output power in a portable and lightweight package. The Class-D amplifier offers energy efficiency and eliminates the need for heavy power supplies and larger heat sinks.
- Onboard DSP
- The Klark Teknik DSP (Digital Signal Processor) provides dynamic EQ and transparent limiting for improved sound quality at high output levels and long-term reliability.
- ULTRANET Connectivity
- The ULTRANET connectivity is provided by two locking etherCON connectors. Up to 16 independent channels of 24-bit digital audio and control data are transmitted via a single CAT5 cable between compatible digital devices including mixers, I/O stage boxes, powered loudspeakers, and personal monitoring systems. Simplified cable routing and ease of setup translate directly into significant time saved during installation.
- Intuitive User Interface

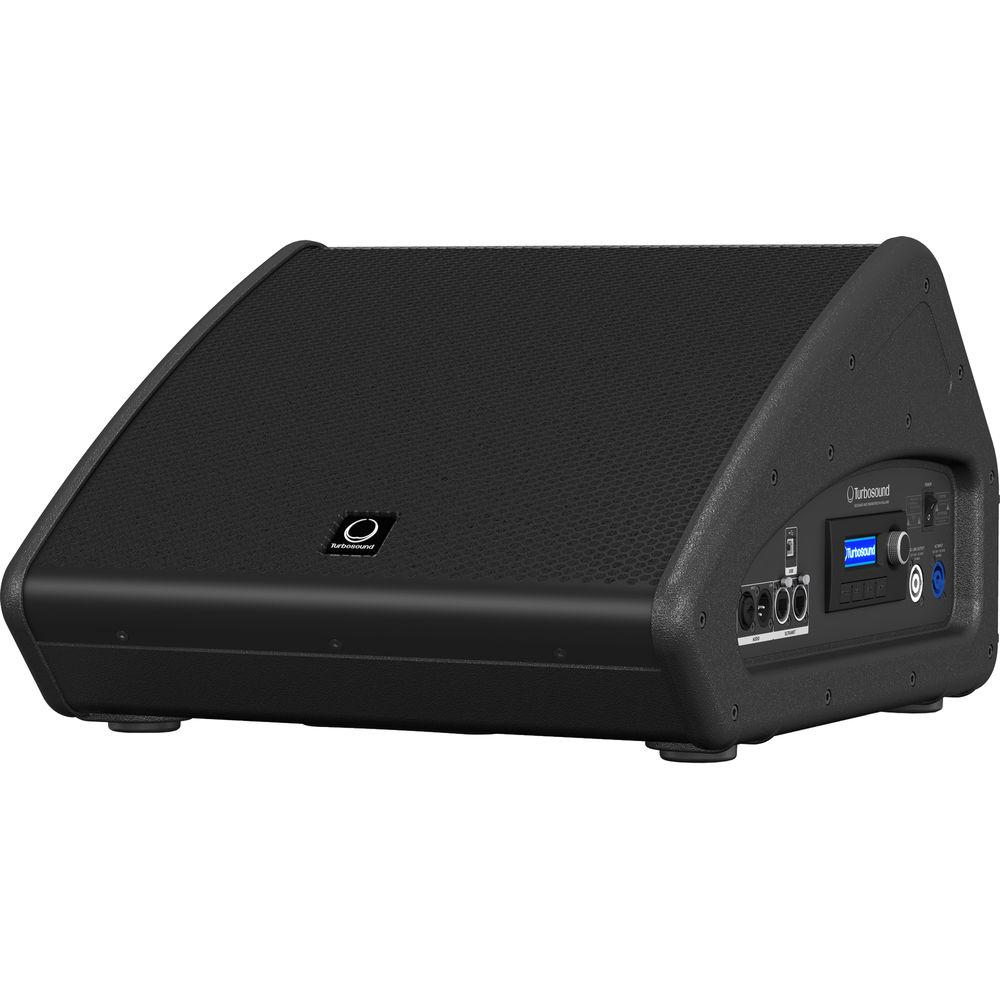

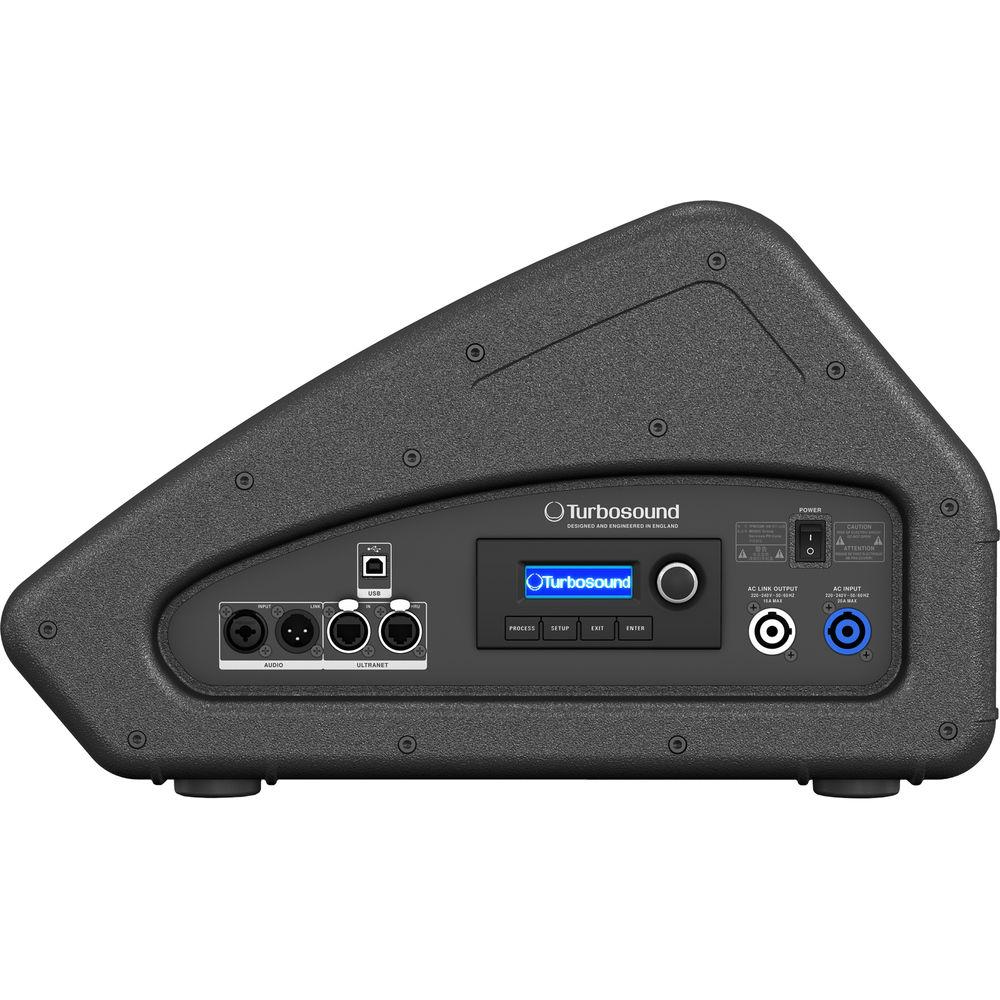

- On the rear panel of the amplifier module, an LCD display and single rotary encoder provides easy access to position compensation, user EQ control, subwoofer integration, and signal routing features. In addition to the balanced XLR input, an XLR output is provided for daisy-chaining more active loudspeakers or for use with active subwoofers. An onboard USB port provides access for remote control of the stage monitor via PC software and convenient DSP firmware updates.
- Plywood Construction

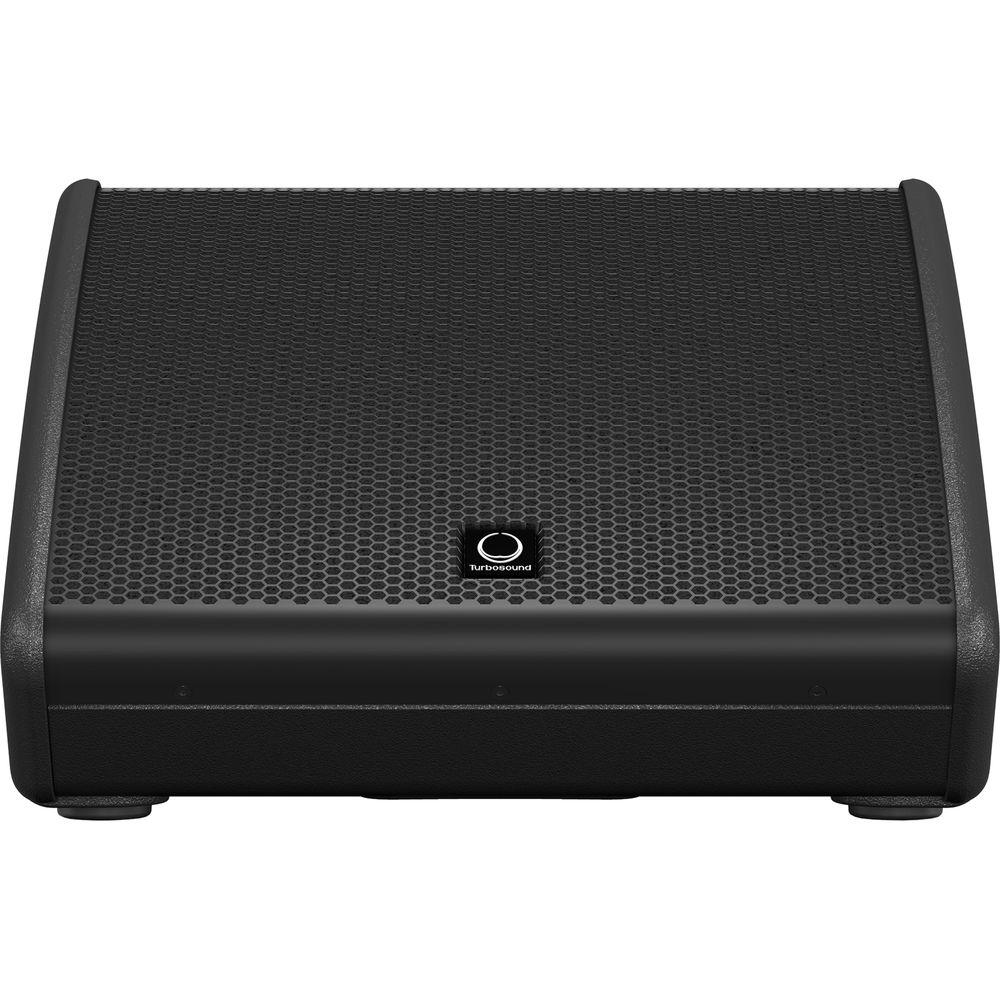

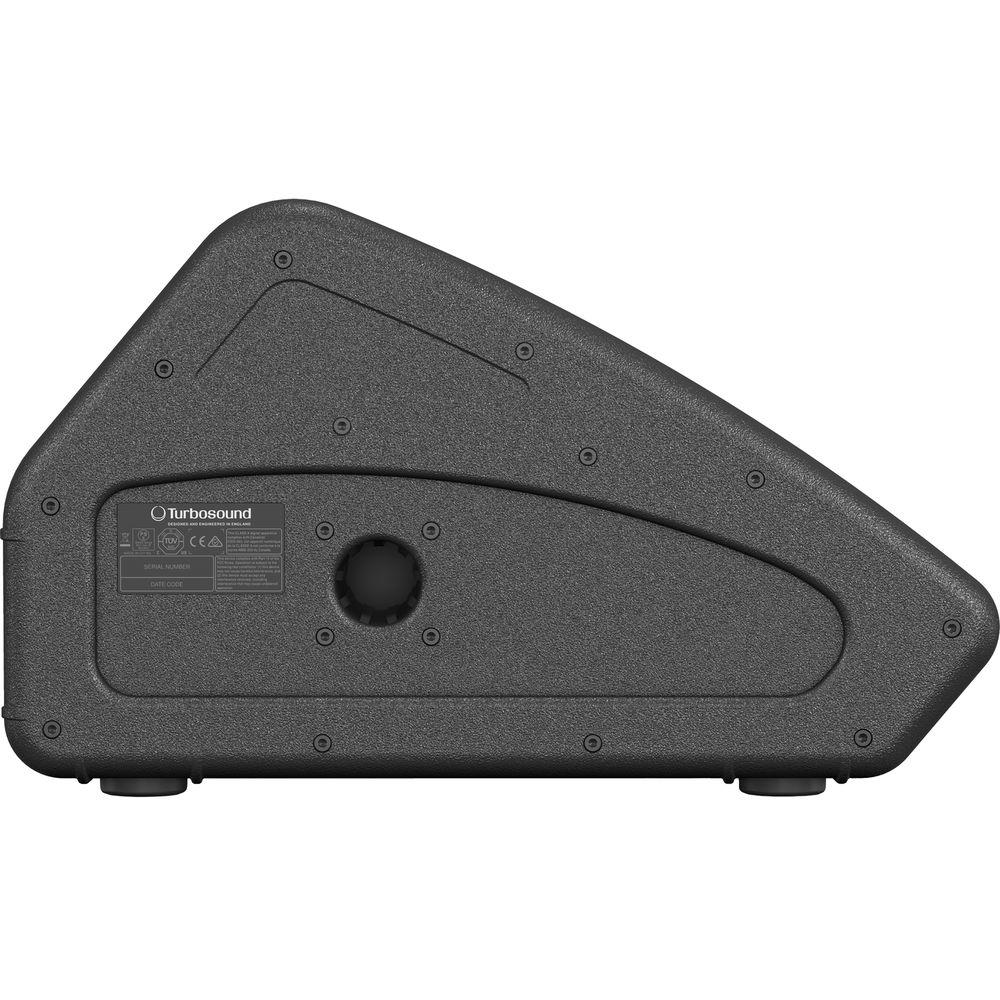

- The stage monitor's cabinet is constructed from 5/8" plywood with a fiber glass reinforced composite end cheeks and a rugged powder-coated perforated steel mesh grille backed with reticulated foam. The stage monitor features a pole mount socket for use with 1.3" poles or speaker stands to optimize coverage. The main power input is provided via a Neutrik powerCON connector. In addition, the stage monitor comes with a durable handle for easy transportation.
- Applications
- The two-way stage monitor can be used for onstage performance by traveling musicians and by houses of worship, banquet facilities, night clubs, and a host of other venues.
UPC: 748252161543 In the Box Turbosound FLASHLINE Series TFM122M-AN 12" 2-Way Co-Axial 2500W Stage Monitor with Klark Teknik DSP Technology and ULTRANET Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound FLASHLINE Series TFM122M-AN 12" 2-Way Co-Axial 2500W Stage Monitor with Klark Teknik DSP Technology and ULTRANET in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound TFM122M-AN Specs | | | Frequency Response | 70 to 18 kHz, ±3 dB
63 to 20 kHz, -10 dB | | Dispersion | H x V: 60 x 40° at -6 dB points, rotatable | | Maximum SPL | 130 dB peak | | Crossover Type | Active | | Transducers | LF Driver: 1 x 12" / 1 x 315 mm
HF Compression Driver: 1 x 1.4" / 1 x 33 mm | | Limiter | Independent HF, LF, peak, and rms | | | | Maximum Output Power | 2500 W | | Type | Class-D | | Protection | Short circuit, thermal | | | | Input/Link | 1 x combo XLR-1/4" jack
1 x XLR | | Sensitivity | -2 dBu | | Input Impedance | 40 kOhms balanced | | Maximum Input Level | 12.5 dBu | | Ultranet Input/Link | 2 x RJ45 | | Mains Supply | Neutrik powerCON, Input: 20 A, Link: 15 A | | | | DSP | Rotary push-encoder and level control buttons for Process, Setup, Exit, Enter | | | | EQ Presets | Positioning, Sound mode, and FBQ | | Display | LCD 128 x 32, blue, backlit | | Delay | 0 to 300 ms | | Equalization | High and low shelving EQ
2 x parametric EQ | | Limiter | Zero attack input limited | | Presets | 20 total presets, 19 user-definable | | Crossover | High pass L-R 24 dB/oct | | Protection | Lock-out function for all settings | | | | EQ Presets | Digital Processing Factory EQ Presets: 24-bit, 44.1 / 48 kHz sample rate | | System | Signal: 16 channels
Latency: < 0.9 ms | | Cabling | Cables: Shielded Cat5
Cable Length: 246' / 75 m (maximum) recommended | | Active or Passive | Active | | | | Power Consumption | 180 W at 1/8 maximum power | | Voltage | USA/Canada: 120 VAC, 60 Hz (Fuse: T 15 A, H 250 V) | | | | Grille | Powder-coated perforated steel | | Enclosure Material | 5/8" / 15 mm birch plywood + polypropylene plastic | | Dimensions (H x W x D) | 11.9 x 17.8 x 19.9" / 302 x 452 x 504 mm | | Weight | 36.3 lb / 16.5 kg | | | | Package Weight | 44.0 lb | | Box Dimensions (LxWxH) | 24.0 x 22.0 x 15.0" |
