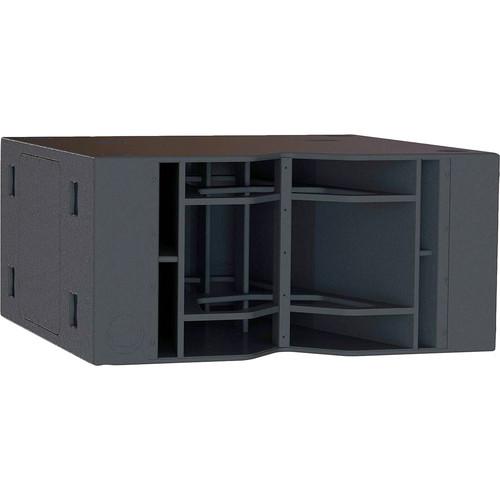

User Manual for Turbosound Flashline Series TFS-900B Dual 18" Horn Loaded Subwoofer for Touring Applications Click to enlarge the picture
Contents of the user manual for the Turbosound Flashline Series TFS-900B Dual 18"
- Product category: PA Speakers Turbosound
- Brand: Turbosound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Turbosound PA Speakers
|
User manual for the Turbosound Flashline Series TFS-900B Dual 18" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Turbosound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Turbosound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Turbosound product will considerably shorten its lifespan!
|
Product description The Flashline Series TFS-900B from Turbosound is a 6,400W subwoofer designed for touring and fixed installation applications. It consists of two carbon fiber loaded 18" neodymium low frequency drivers utilizing specialized voice coils wound on both the inside and the outside of the former for higher magnetic density. This results in better cooling, higher power handling, and improved efficiency. These high power drivers are mounted in a hybrid horn-loaded enclosure which makes use of output from the rear of the cones as well as the front, providing improved high output at sub-bass frequencies. The TFS-900B subwoofer is designed for ground stacking with the Flashline TFS-900H flown line-array loudspeakers. The cabinet is constructed from extensively braced 3/4" (18mm) birch plywood with multiple recessed handle positions, side driver access doors, and heavy-duty wheels. It is fitted with a stainless steel IP54-rated grille, and is finished in black TourTough coating. A recessed panel at the rear of the cabinet carries two parallel linked Neutrik speakON NL4 connectors for input and link through connections. - Horn-loaded ground stack subwoofer for touring applications
- 1,600W continuous, 6,400W peak power handling
- Two carbon fiber loaded 18" neodymium motor low-frequency drivers with inside/outside wound coil
- Low-distortion horn design for maximum sound pressure level
- IP54-rated weather-resistant components, suitable for outdoor use
- 3/4" (18mm) birch plywood enclosure with hard wearing semi-matt black paint finish
- Powder-coated perforated plated steel mesh grille with foam backing
- Neutrik speakON NL4 connectors for reliable long life operation
In the Box Turbosound Flashline Series TFS-900B Dual 18" Horn Loaded Subwoofer for Touring Applications (Black) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound Flashline Series TFS-900B Dual 18" Horn Loaded Subwoofer for Touring Applications in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound TFS-900 Specs | Frequency Response | 35 to 150 Hz at ±3 dB
30 to 200 Hz at ±10 dB | | Power Capacity | Continuous: 1,600 W
Peak: 6,400 W
Optimized for 20000DP amplifier (not included) | | Maximum Sound Pressure Level (SPL) | Peak: 151 dB, 1 W @ 1 m half space
Continuous 145 dB, 1 W @ 1 m half space | | Nominal Sensitivity | 107 dB, 1 W @ 1 m half space | | Impedance | 2 x 8 Ohms | | Crossover | Not specified by the manufacturer | | Low Frequency Driver | 2 x Carbon fiber loaded 18" (457 mm) neodymium motor driver | | Enclosure Material | 3/4" (18mm) birch plywood painted in TourTough IP54 | | Grille | Stainless steel IP54-rated | | Input Connections | 2 x Speakon NL4, one driver per pair | | Dimensions | 23.6 x 49.1 x 44.9" (60 x 125 x 114 cm) | | Weight | 338.8 lb (154 kg) | | | | Package Weight | 338.0 lb | | Box Dimensions (LxWxH) | 52.0 x 49.0 x 26.0" |
