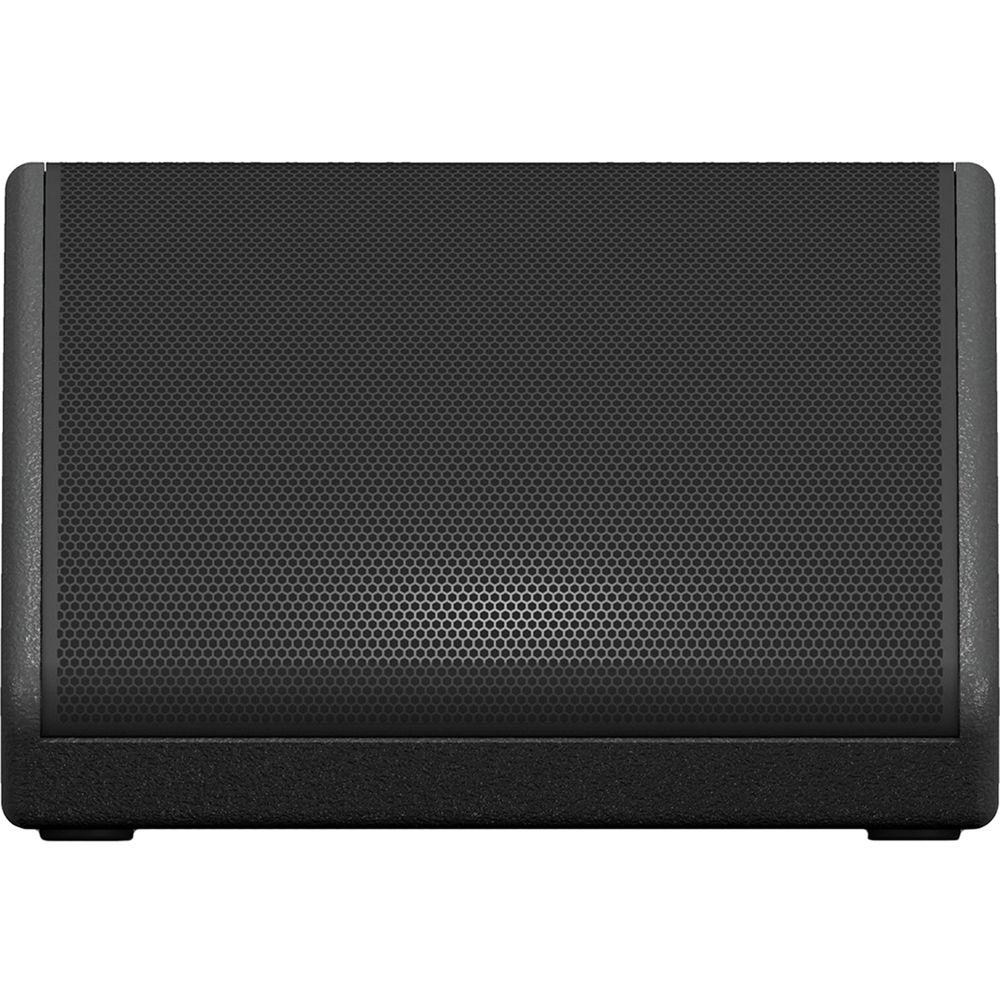

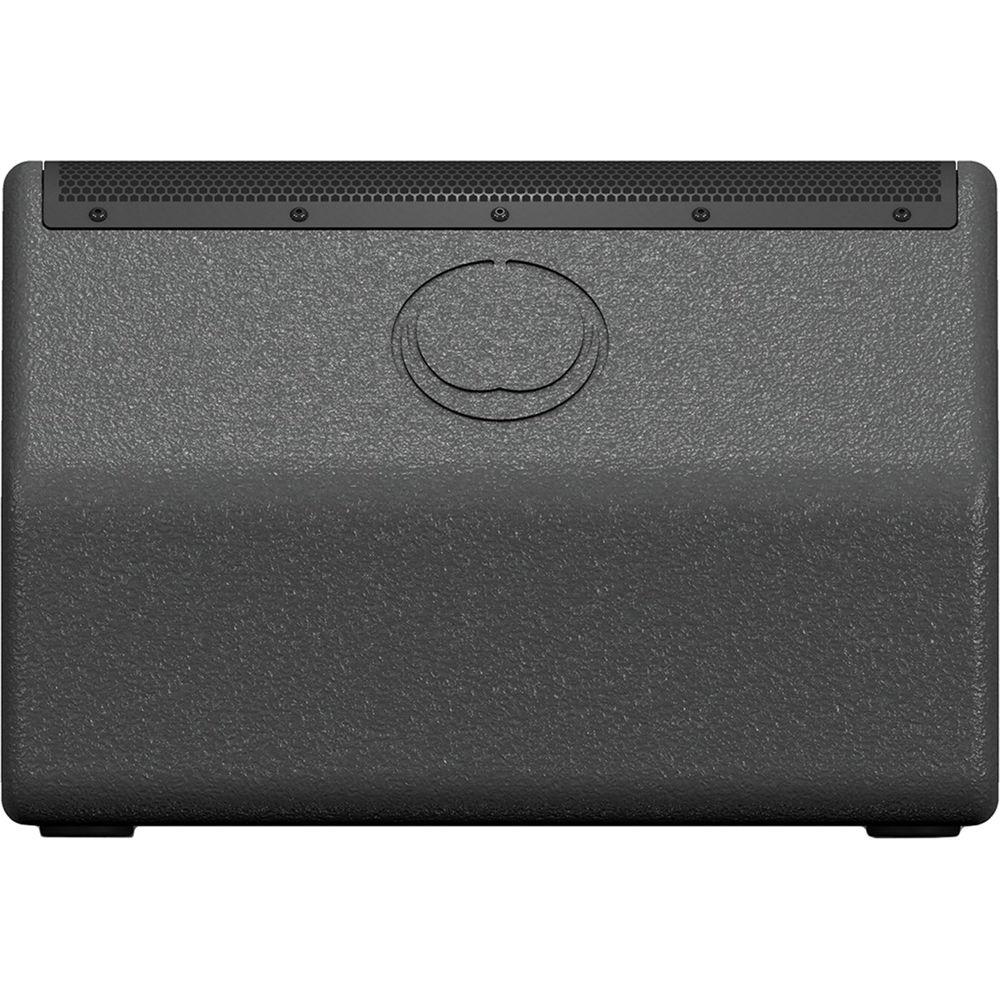

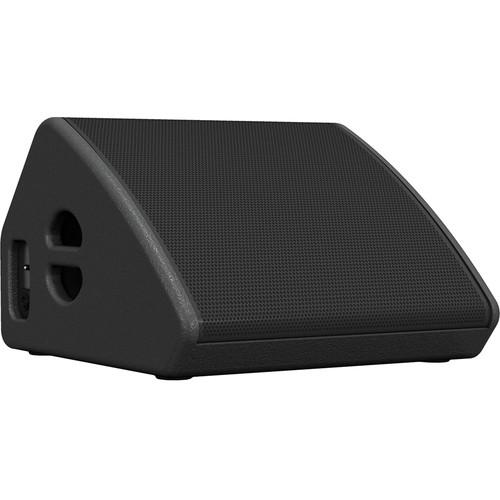

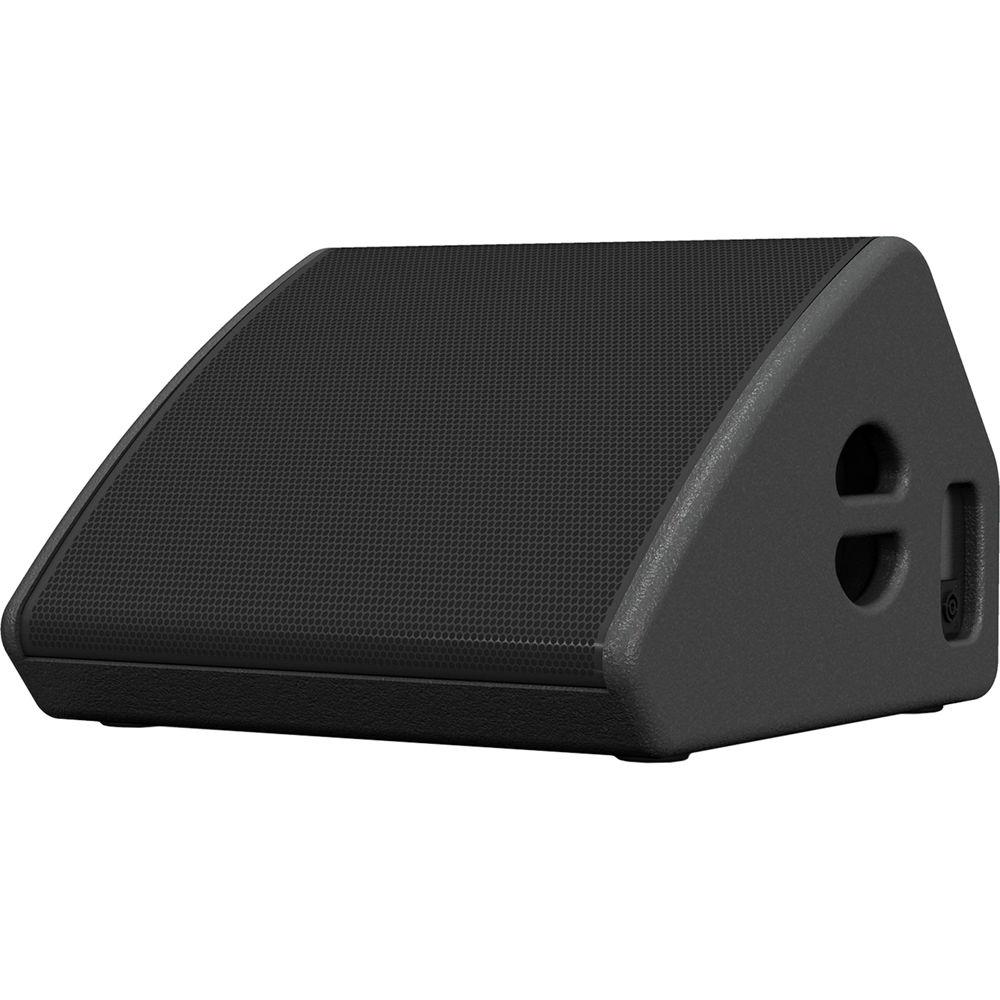

User Manual for Turbosound Flashline TFM152M Coaxial 2-Way 15" Stage Monitor Click to enlarge the picture
Contents of the user manual for the Turbosound Flashline TFM152M Coaxial 2-Way 15"
- Product category: PA Speakers Turbosound
- Brand: Turbosound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Turbosound PA Speakers
 |
User manual for the Turbosound Flashline TFM152M Coaxial 2-Way 15" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Turbosound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Turbosound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Turbosound product will considerably shorten its lifespan!
|
Product description The Turbosound Flashline TFM152M Coaxial 2-Way 15" Stage Monitor is a compact 1600W switchable passive/bi-amped floor monitor consisting of a coaxial carbon fiber-loaded 15" neodymium low-frequency and titanium dome 1.4" neodymium high-frequency combination driver in a reflex-loaded enclosure designed for concert touring. The coaxial drive unit is matched with an exponential horn flare for improved acoustic loading and controlled coverage. Both HF and LF coils utilize the same neodymium magnet assembly, which gives better efficiency and reduced weight. This allows the creation of a minimal-footprint monitor wedge, which combined with a 35° projection angle and 60 x 40° (H x V) dispersion pattern, is suitable as a vocal monitor on smaller stages where space is limited, while its low profile maximizes audience sightlines.The 5/8" (15mm) birch-plywood cabinet is equipped with two flush recessed handles, and Neutrik speakON NL4 connectors are provided at each side for tidy interconnects. The cabinet is finished in semi-matte black paint finish and includes a curved-profile perforated-steel grille backed with reticulated foam, and supported by a steel reinforcing strip positioned across the front of the drive unit. - 2-Way stage monitor for touring applications
- 400W continuous, 1600W peak power
- Carbon fiber-loaded 15" neodymium motor low-frequency driver
- Titanium dome 1.4" neodymium motor compression driver
- Low-profile design to maximize audience sightlines
- Low-distortion waveguide provides 60 x 40° (H x V) dispersion
- Switchable passive/bi-amp operation for flexibility of use
- 5/8" (15mm) birch-plywood enclosure with durable semi-matte black paint finish
- Rugged powder-coated perforated-steel mesh grille
- Neutrik speakON NL4 connectors for reliable operation
- Designed and engineered in England
In the Box Turbosound Flashline TFM152M Coaxial 2-Way 15" Stage Monitor Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound Flashline TFM152M Coaxial 2-Way 15" Stage Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound TFM152M Specs | Components | 1 x coaxial 15" (381mm) LF driver; 1 x 1.4" (35.6mm) HF compression driver | | Frequency Response | 90 Hz to 18 kHz, ±3 dB
50 Hz to 20 kHz, ±10 dB | | Dispersion | H x V: 60 x 40° @ -6 dB points | | Sensitivity | 98 (1 W @ 1 M) | | Power Handling | LF: 400 W continuous, 1600 W peak
HF: 80 W continuous, 320 W peak
Passive: 400 W continuous, 1600 W peak | | Maximum SPL | 125 dB continuous, 131 dB peak | | Nominal Impedance | LF: 8 ohms; HF: 8 ohms; Passive: 8 ohms | | Crossover | Passive crossover network at 1 kHz | | Construction | 5/8" (15 mm) birch plywood, finished in black textured polyurethane
Two recessed carrying handles | | Grille | Black powder-coated perforated steel backed with foam | | Connectors | 2 x Neutrik speakON NL4 Wired
Pin1+: LF positive; Pin1-: LF negative; Pin2+: HF positive; Pin2-: HF negative | | Dimensions (H x W x D) | 14.1 x 20.9 x 22.9" (359 x 530 x 580 mm) | | Weight | 49.5 lb (22.5 kg) |
