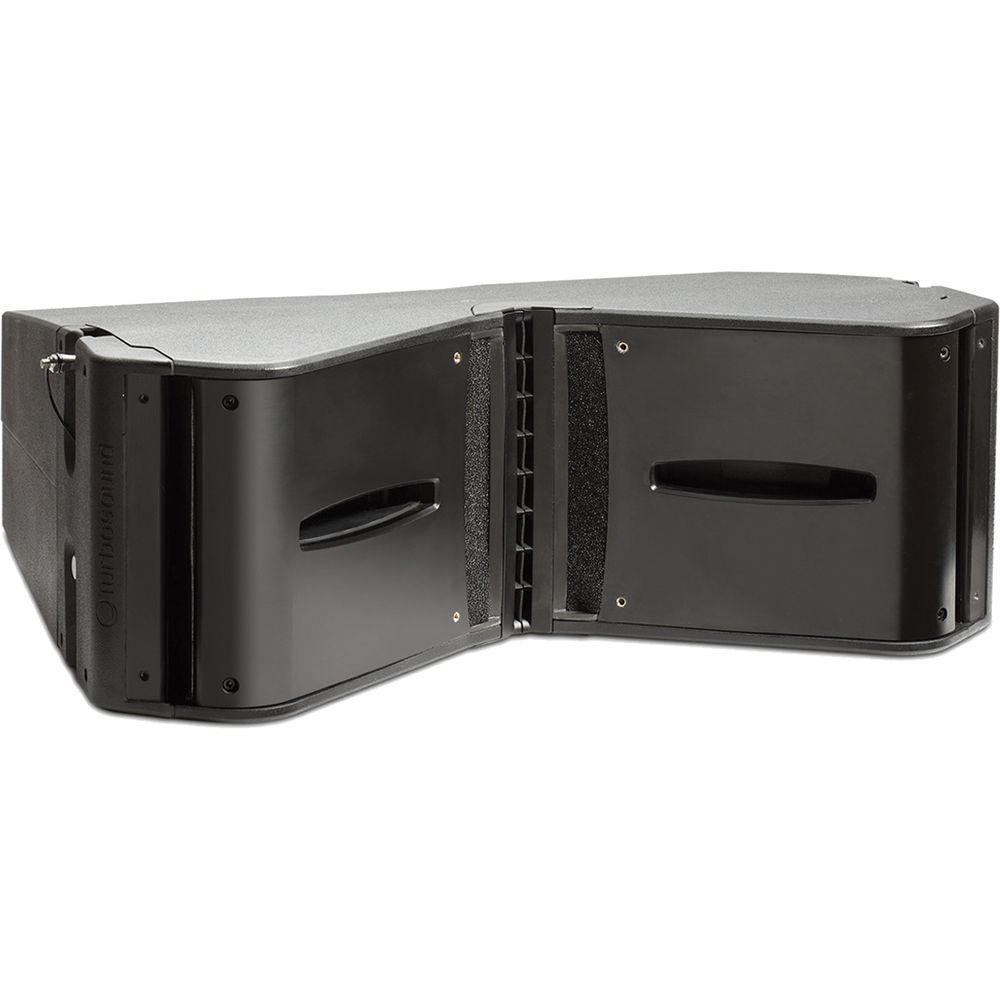

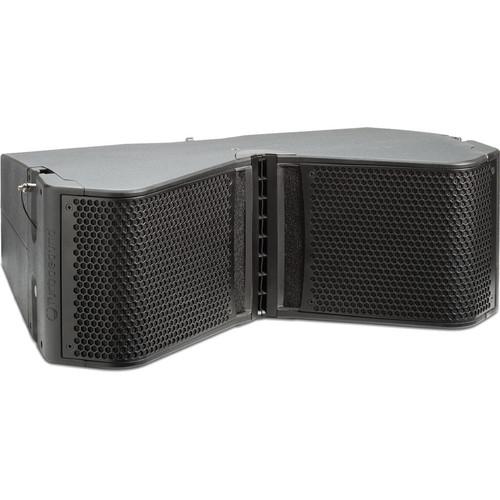

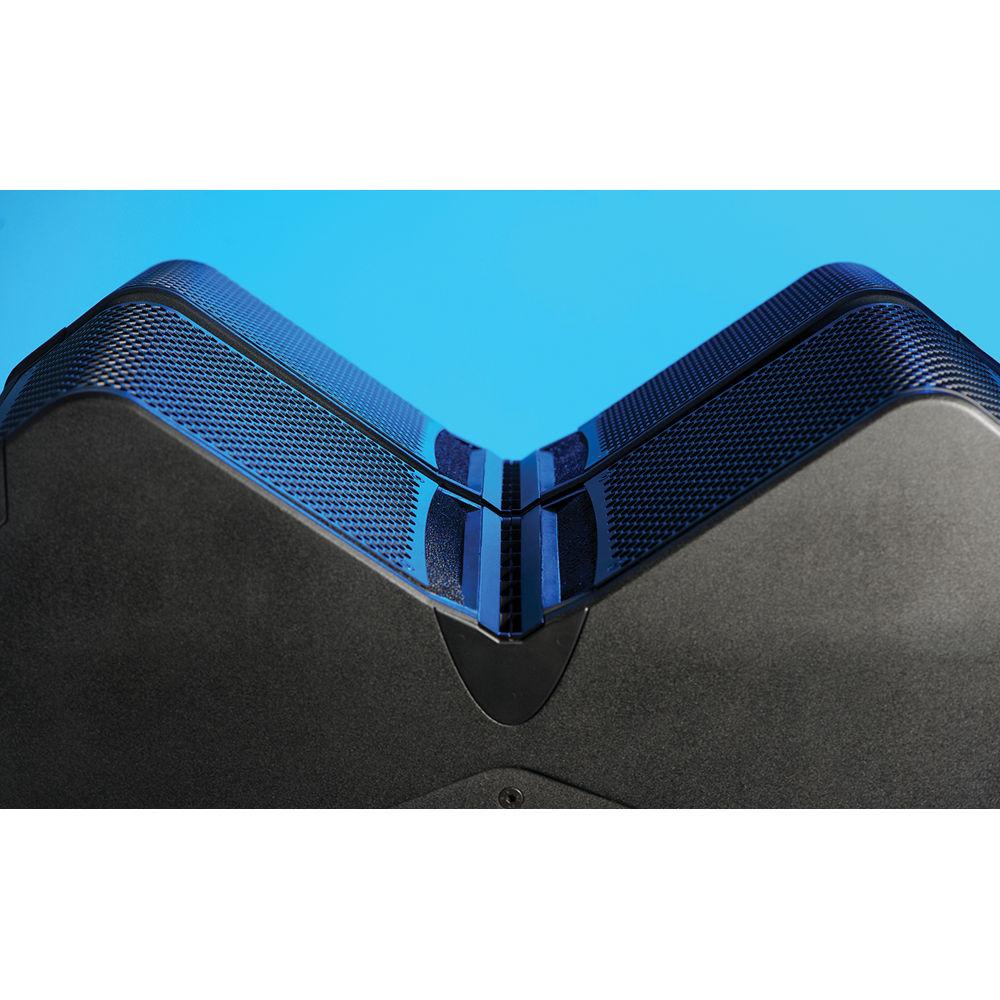

Product description The Turbosound FLASHLINE TFS-550H is a compact 640 watt (peak) three way bi-amped line array loudspeaker designed for a wide range of medium scale touring and fixed installation applications. It consists of two high excursion 6.5" neodymium low frequency drivers with compression loading, a high efficiency 4" neodymium mid range driver loaded by a Polyhorn device, and a proprietary 1" neodymium high frequency compression driver on a Dendritic horn.
In common with existing TURBOSOUND technologies deployed in the larger FLASHLINE TFS-900 and FLEX ARRAY TFS-600 systems, the HF Dendritic waveguide features multiple hornlets with identical path lengths designed to give a flat constant phase wavefront with horizontal dispersion of 110°. When coupled to the horn, the waveguide shapes the spherical wave produced by the compression driver into the cylindrical wavefront that is a key component of line source array behavior. The cabinet is symmetrically loaded to create coplanar symmetry with smooth and consistent horizontal and vertical coverage, creating a co-linear source, the cylindrical domain equivalent of a coaxial arrangement for individual spherical sources. In addition, the precise positioning of the neodymium drive units saves space within the enclosure and enables a very compact package.

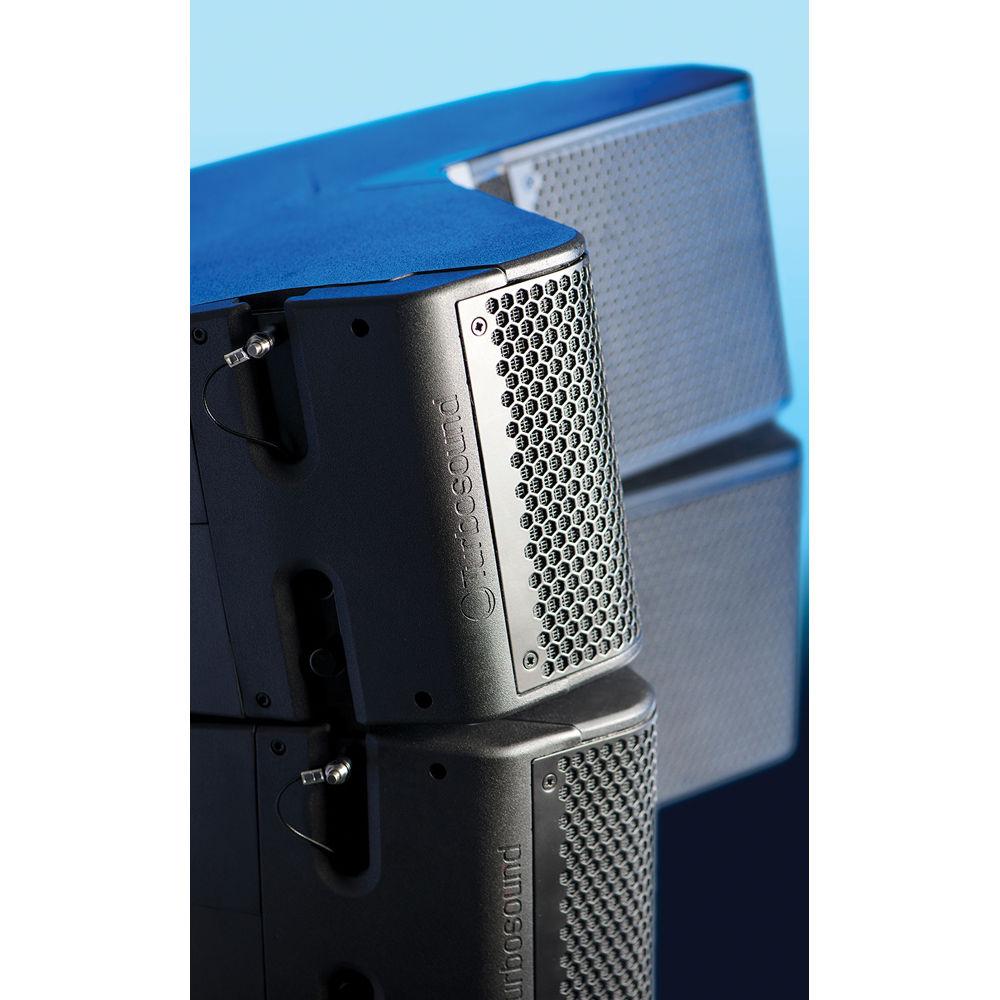

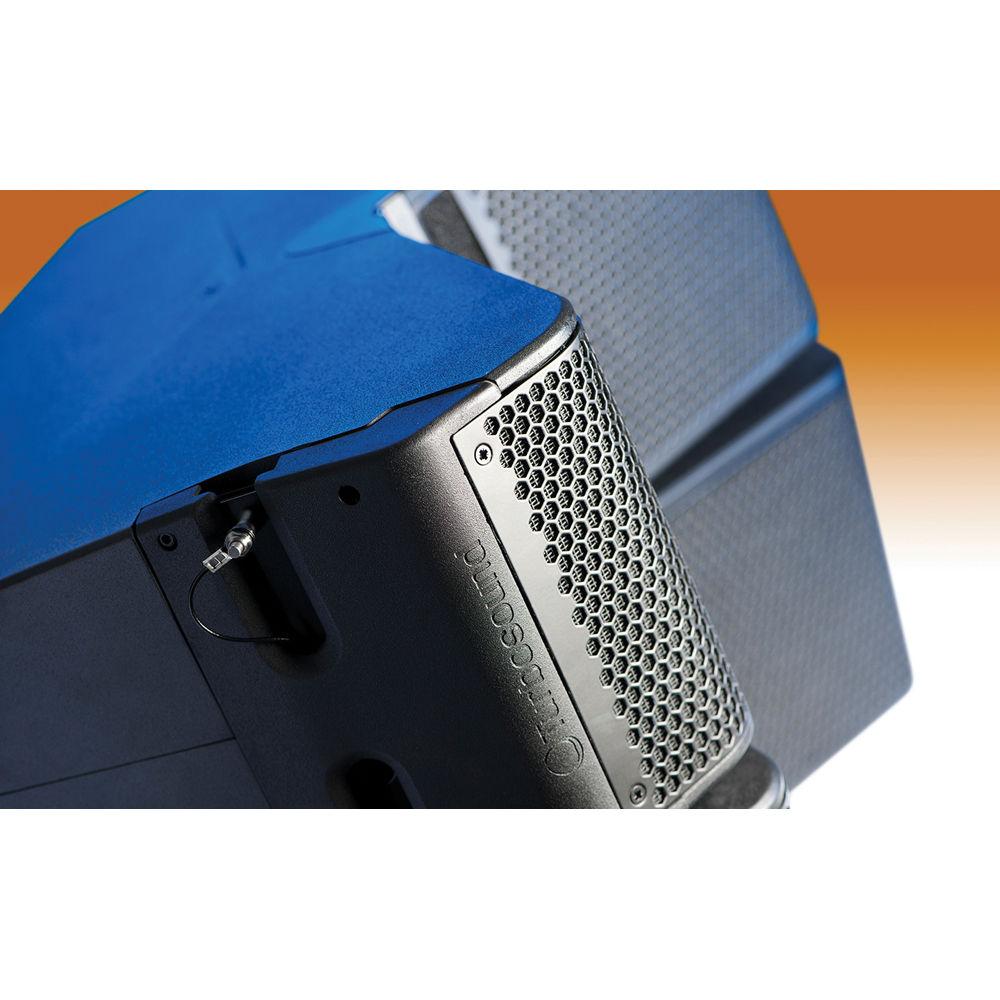

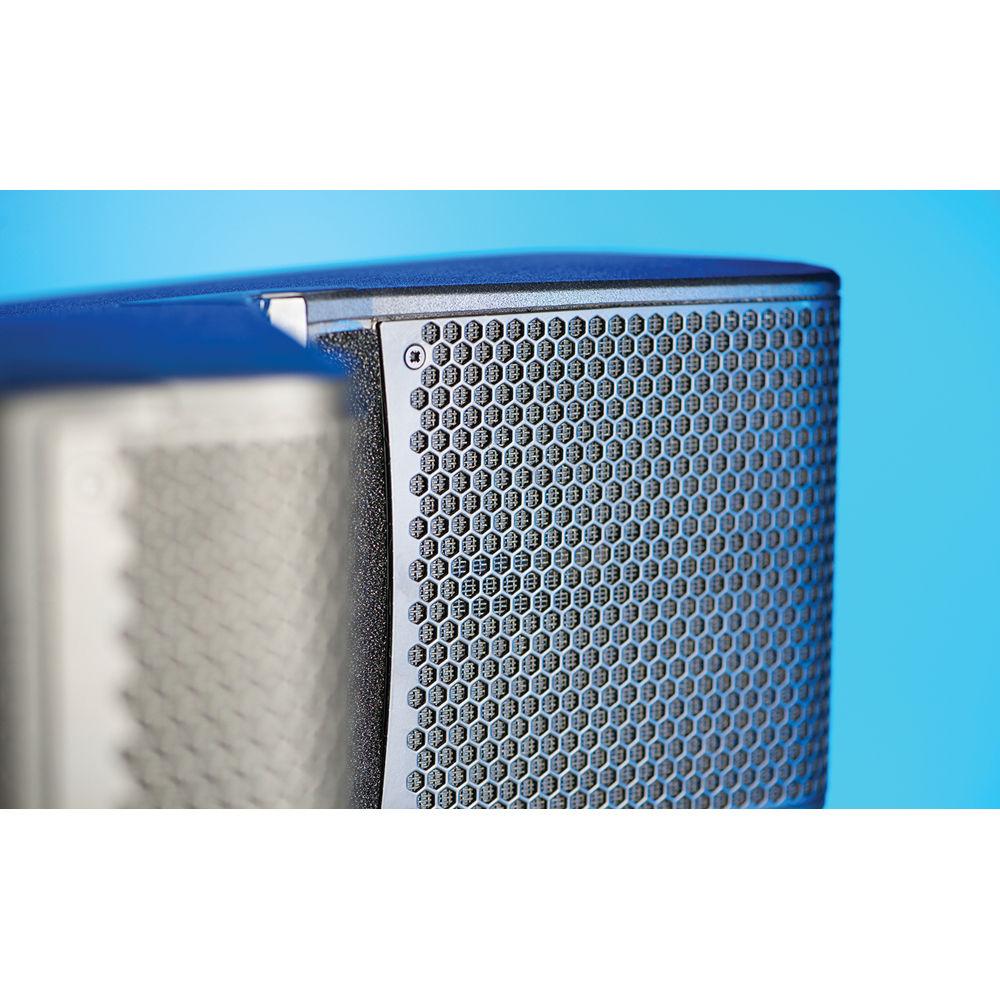

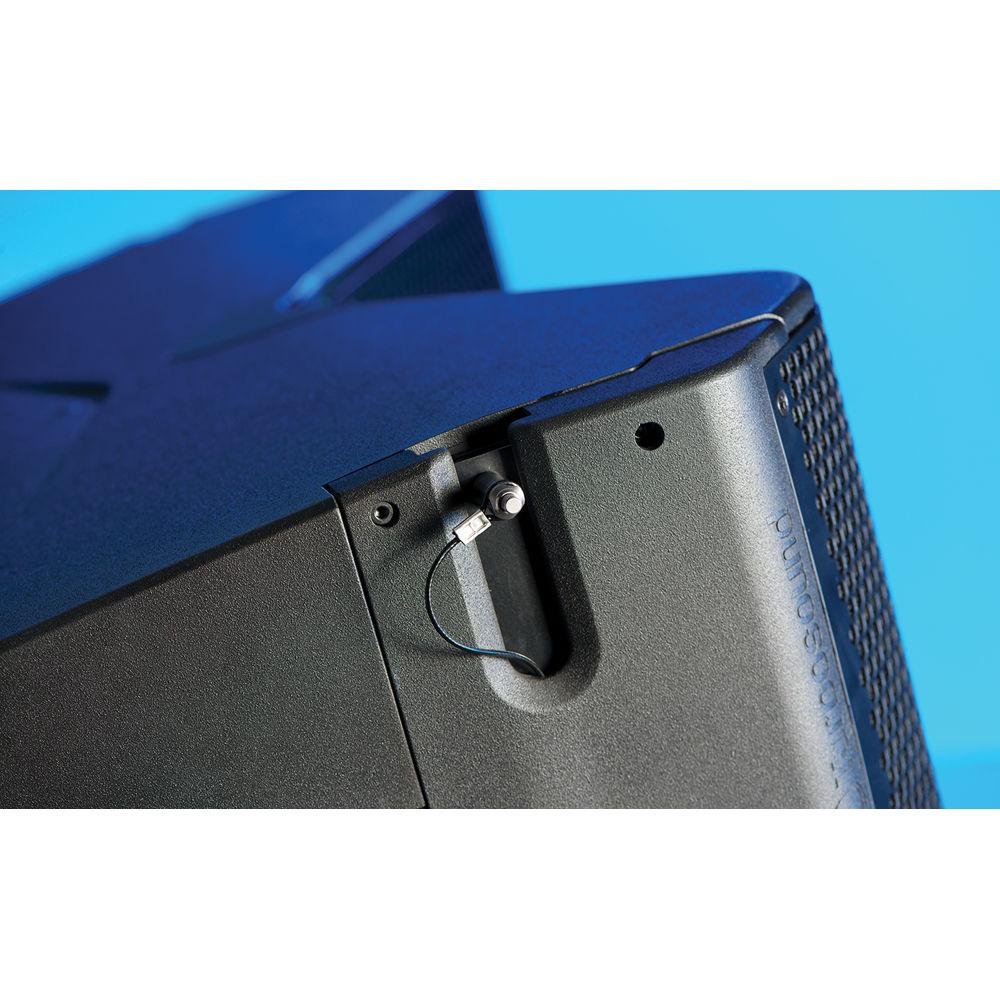

The cabinet is constructed using a polyurethane composite hard foam and finished in textured semi matt black, making a very lightweight, rigid and non-resonant enclosure. Stainless steel grilles backed with woven PVC mesh protect the drive units. Domex steel rigging hardware is fully integrated into the end-cheeks at the sides of the cabinet consisting of drop links which engage into the flyware of the cabinet below, secured by rigging pins on captive lanyards which stow away on the cabinet when not in use. The rear flyware provides a range of inter-cabinet splay angles from 0° to 12° in one degree increments. The touring flybar provides multiple pickup points located along a central spine, and allows arrays of either mid/high enclosures or bass cabinets or a combination of both types to be flown in a visually unobtrusive array. A further range of rigging hardware is available for pole mounting, ground stacking and truss mounting applications.

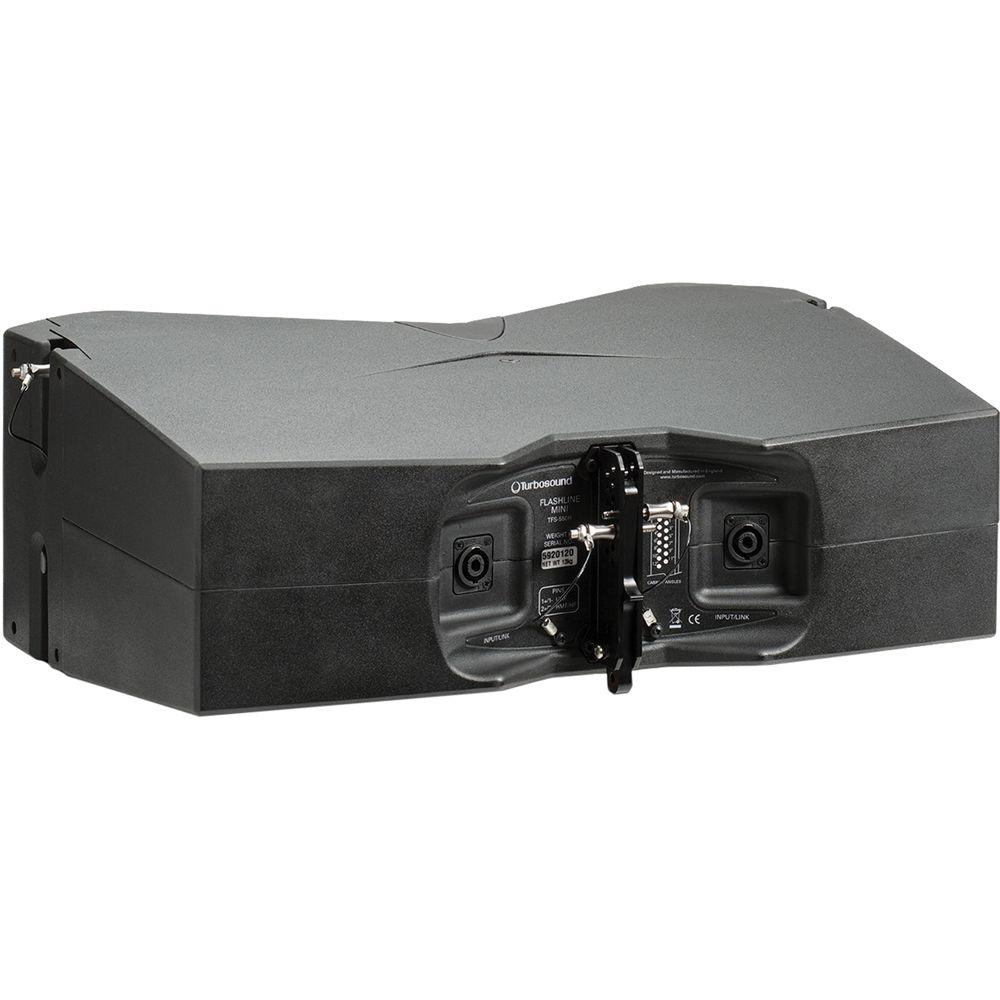

Two Neutrik speakON NL4 connectors provide input and link connections to the loudspeaker. Recommended amplification is provided in the form of the highly advanced and extremely powerful 10000DP four channel amplifier with Lake processing and Dante networking built in. -
- 3 way line array element for touring applications
- Combined Polyhorn and Dendritic waveguide with 110° H x 8° V dispersion
- High excursion 6.5" neodymium low frequency drivers with compression loading
- High efficiency 4" neodymium motor mid range compression driver
- Aluminium dome 1" neodymium motor compression driver
- Integral Domex steel rigging for flying up to 16 elements in a variable curvature array
- Glass fibre reinforced polyurethane enclosure with a semi matt black textured finish
- Rugged powder coated perforated stainless steel mesh grille
- Neutrik speakON NL4 connectors designed for reliable long life operation
In the Box Turbosound FLASHLINE TFS-550H - Dual 3 Way 6.5" Line Array with Combined Polyhorn and Dendritic Waveguide Limited 1-Year Warranty, Extended to 3-Years with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound FLASHLINE TFS-550H - Dual 3 Way 6.5" Line Array with Combined Polyhorn and Dendritic Waveguide in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound TFS-550H Specs | Components | 2 x 6.5" (165 mm) LF drivers, 1 x 4" (101 mm) MF driver, 1 x 1" (25.4 mm) HF compression driver | | Frequency Response | 80 Hz - 20 kHz ±3dB | | Dispersion | 110° H x 8° V | | Sensitivity | LF: 101 dB, HF: 106 dB; LF: 101 dB, HF: 106 dB (single enclosure), (1 W @ 1 M) | | Power Handling | LF: 100 watts continuous, 400 watts peak
MF/HF: 60 watts continuous, 240 watts peak | | Maximum SPL | 124 dB continuous, 130 dB peak | | Nominal Impedance | LF: 8 ohms; MF/HF: 16 ohms | | Crossover | Internal passive crossover at 3.5 kHz, 24 dB/octave | | Construction | Polyurethane composite hard foam | | Grille | 2 x powder coated stainless steel backed with woven PVC mesh | | Connectors | 2 x NL4 wired pin 1+: LF positive, pin 1-: LF negative; pin 2+: HF positive, pin 2-: HF negative | | Rigging | Integrated | | Dimensions | 7.6 x 21.7 x 15.6" (194 x 550 x 395 mm) | | Weight | 29.5 lb (13.4 kg) |
