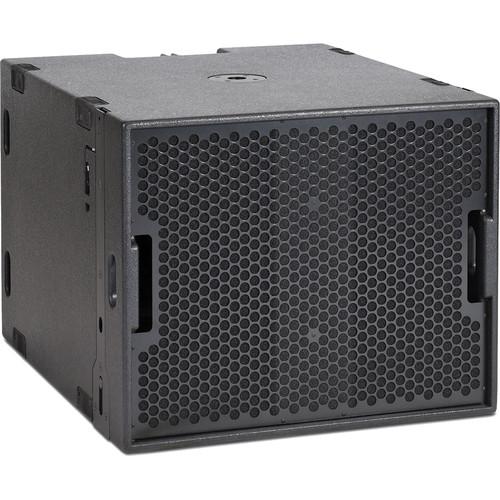

User Manual for Turbosound Flex Array TFA-600L Horn Loaded Subwoofer Click to enlarge the picture
Contents of the user manual for the Turbosound Flex Array TFA-600L Horn Loaded
- Product category: PA Speakers Turbosound
- Brand: Turbosound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Turbosound PA Speakers
|
User manual for the Turbosound Flex Array TFA-600L Horn Loaded contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Turbosound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Turbosound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Turbosound product will considerably shorten its lifespan!
|
Product description The Flex Array TFA-600L Horn Loaded Subwoofer from Turbosound is a compact horn loaded bass enclosure designed to be flown with Flex Array mid/highs in a wide range of concert touring applications. It consists of a neodymium 18" low frequency driver in a low distortion horn loaded design. This is the same drive unit as the one used in the ground stacked single 18" TFA-600B and the larger double 18" TSW-218 (both sold separately); the TFA-600L also employs the same loading techniques as those bass enclosures, and therefore all three models can be freely mixed in any application.
The enclosure is equipped with an integrated flying system which enables it to be flown at the top of a column of Flex Array loudspeakers (sold separately) using a simple conversion frame between the bass enclosures and mid/highs. The same conversion frame is also used to provide a stable Flex Array ground stack. A 20mm threaded pole mount socket is fitted for use with flying yokes.
The 5/8" birch plywood cabinet is equipped with recessed handles on the sides and back, and is supplied with heavy duty wheels in order to aid trucking and handling. It is finished in hard wearing semi matte black paint. A recessed panel at the rear of the cabinet carries two parallel linked Neutrik speakON NL4 connectors for input and link-through connections. The stacking corner protectors allow TFA-600L cabinets to be ground stacked with TFA-600B cabinets. - Horn loaded subwoofer for touring applications
- 800W continuous, 3,200W peak power
- Neodymium 18" low frequency driver
- Integral rigging system for flying and ground stacking
- Low distortion horn design for maximum sound pressure level
- 5/8" birch plywood enclosure with hard wearing semi matte black paint finish
- Rugged powder coated perforated steel mesh grille
- 20mm threaded pole mount to support satellite speaker
- Neutrik speakON NL4 connectors for reliable long life operation
- Designed and engineered in England
In the Box Turbosound Flex Array TFA-600L Horn Loaded Subwoofer Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound Flex Array TFA-600L Horn Loaded Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound TFA600L Specs | Components | LF Driver: 1 x 18" (457 mm) | | Frequency Response | 38 to 150 Hz, ±3 dB
30 to 150 Hz, ±10 dB
Recommended operational range below 250 Hz | | Sensitivity | 104 dB (1 W @ 1 m)
110 dB (1 W @ 1 m) with 16 units | | Power Handling | Continuous: 800 W
Peak: 3,200 W | | Maximum SPL | Continuous: 133 dB
Peak: 139 dB | | Nominal Impedance | 8 ohms | | Construction | 5/8" (15 mm) Birch plywood throughout finished in semi matte textured paint, eight recessed carrying handles | | Grille | 0.08" (2 mm) powder coated perforated steel backed with reticulated foam | | Connectors | 2 x Neutrik speakON NL4 | | Dimensions | 22.6 x 28.0 x 33.4" (574 x 710 x 848 mm) | | Weight | 159.5 lb (72.5 kg) |
