User Manual for Turbosound Impact 35T Compact 2-Way Passive Loudspeaker Click to enlarge the picture
Contents of the user manual for the Turbosound Impact 35T Compact 2-Way Passive
- Product category: PA Speakers Turbosound
- Brand: Turbosound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Turbosound PA Speakers
 |
User manual for the Turbosound Impact 35T Compact 2-Way Passive contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Turbosound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Turbosound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Turbosound product will considerably shorten its lifespan!
|

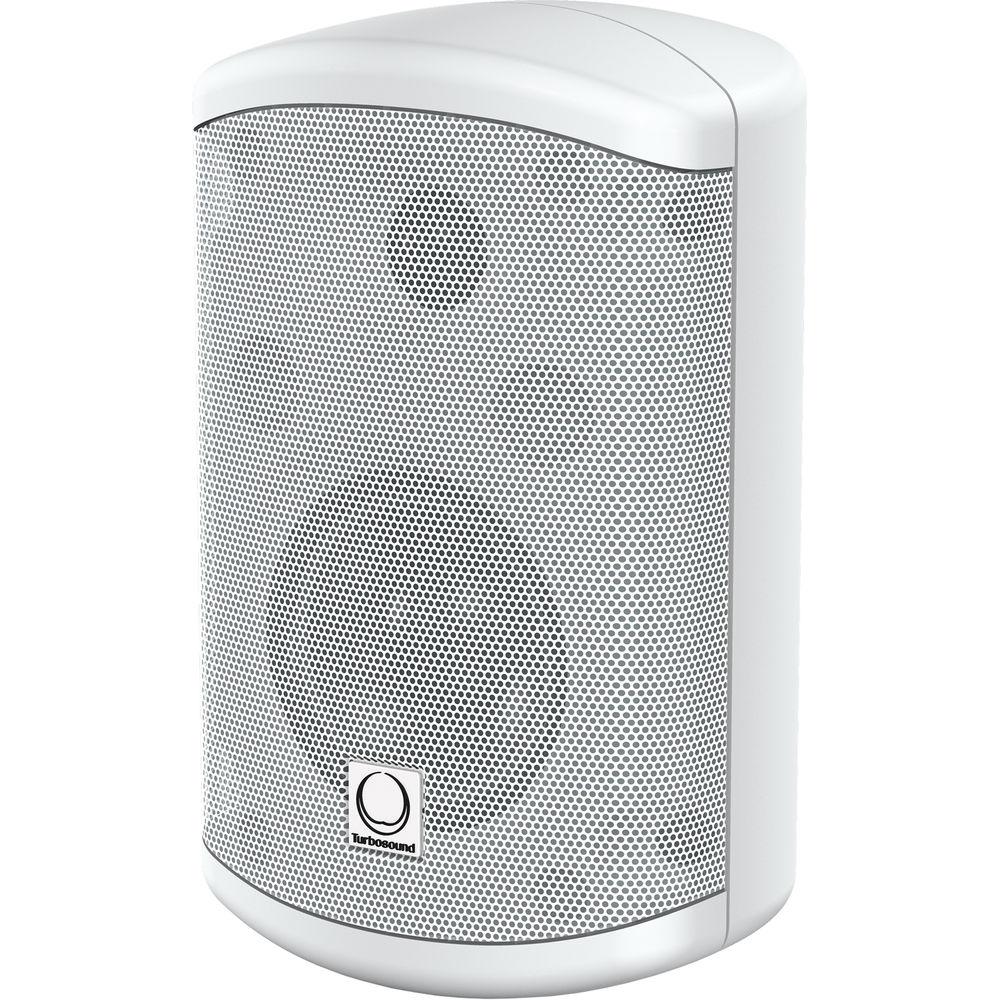

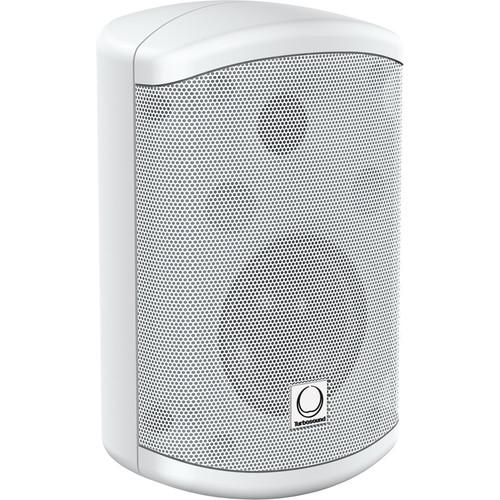

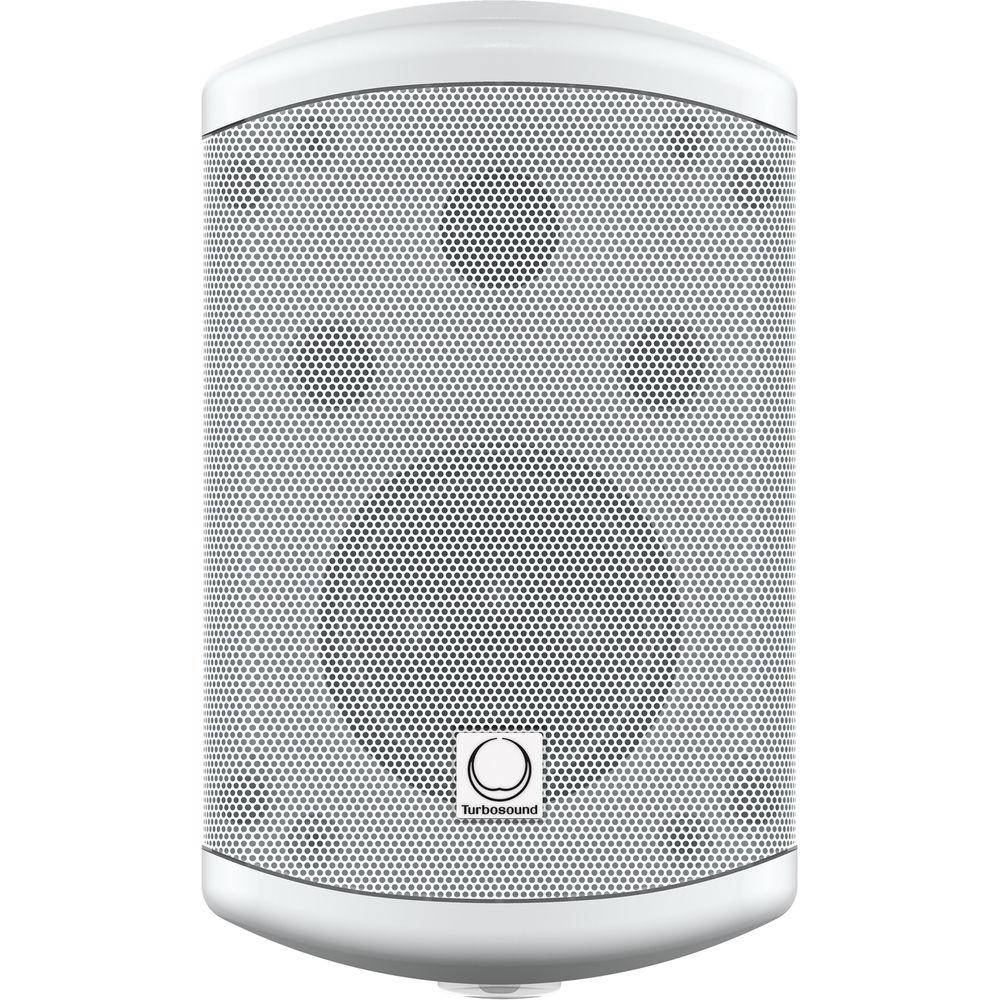

Product description The white Impact 35T from Turbosound is a two-way passive loudspeaker using 3.5" low-frequency drive unit matched to a 1” neodymium ferrofluid-cooled HF tweeter with an internal passive-crossover network and including an internal line transformer. It provides high-quality sound reproduction from an unobtrusive cabinet. It is supplied with a multi-tapped internal line transformer for use in 70V and 100V line-distributed systems, and includes a low-impedance setting. The low-frequency range of the loudspeaker can easily be extended with the TSB-110 Sub-Bass Enclosure (sold separately).

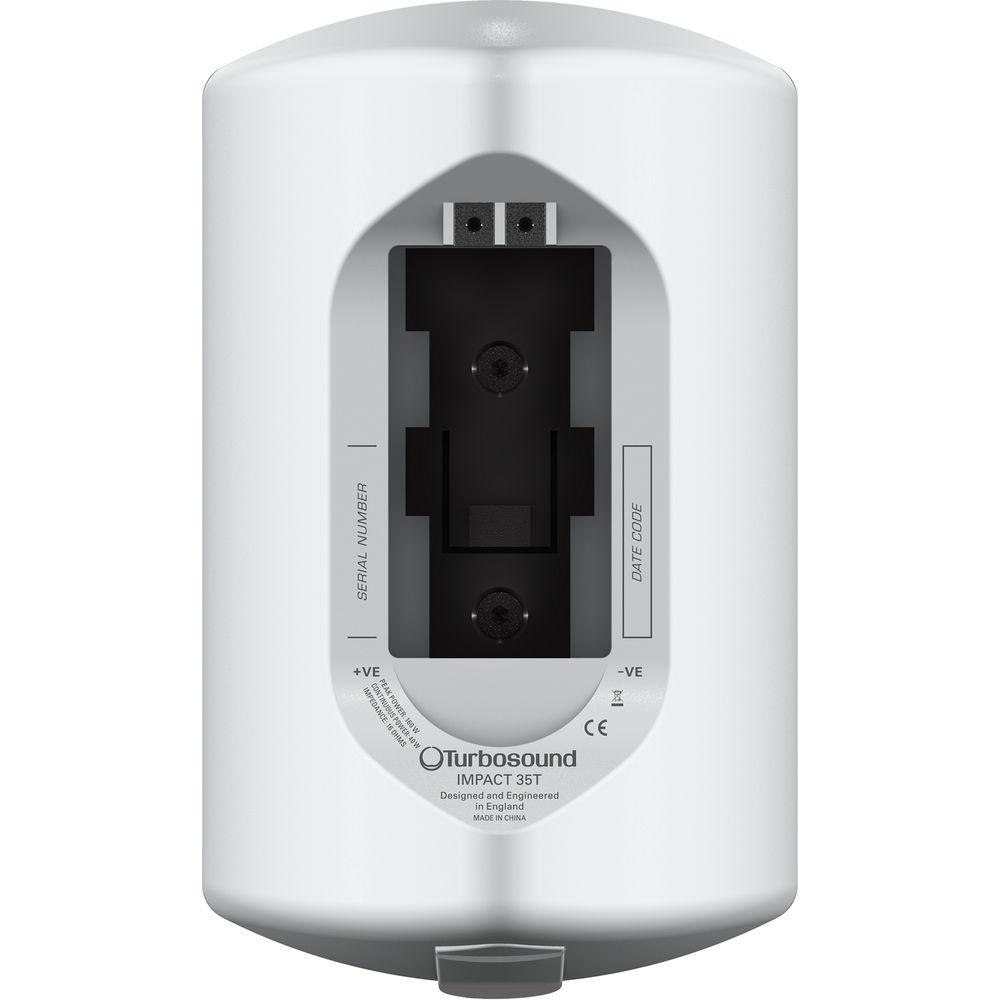

The loudspeaker is supplied with an adjustable wall-mounting bracket which provides the loudspeaker connections as an integral part of the bracket assembly. This allows the brackets to be sited, installed, and wired independently of the loudspeakers being available on-site, making the final installation and commissioning of the loudspeaker system a more efficient process.
The cabinet also provides M6 fixings for use with CB-10 wall brackets, WB-10 ceiling brackets, and OmniMount brackets (all sold separately). A 3/8” threaded insert is provided behind an EPDM rubber cover on the bottom of the cabinet for use with microphone stands as a spot monitor. - Compact gas-filled injection-molded enclosure
- Wall bracket with integral electrical connections
- Internal line transformer
- Applications
- Cafés and bars, restaurants, retail shops, sports and leisure, spot monitor, discotheques and clubs, themed environments, houses of worship
In the Box Turbosound Impact 35T Compact 2-Way Passive Loudspeaker (White) WB-5 Wall Bracket Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound Impact 35T Compact 2-Way Passive Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound 35T Specs | Components | 1 x 3.5" (8.9 cm) LF driver, 1 x 1" (2.5 cm) neodymium ferrofluid-cooled HF tweeter | | Frequency Response | 90 Hz to 20 kHz, ±3 dB
70 Hz to 20 kHz, ±10 dB | | Nominal Dispersion | 120 x 100° (H x V) @ -6 dB points | | Power Handling | 40 W continuous, 80 W program | | Sensitivity | 88 dB SPL, 1 W @ 1 m | | Maximum SPL | 104 dB continuous, 110 dB peak | | Impedance | 16 ohms | | Line Transformer | Transformer taps at 30 W, 15 W, 7.5 W (100 V line); 30 W, 15 W, 7.5 W, 3.75 W (70 V line), and low-impedance setting | | Crossover | Internal passive crossover at 2.5 kHz, 12 dB/octave | | Construction | Gas-injected, glass-filled molded ABS enclosure | | Grille | Powder-coated galvanized perforated steel | | Connectors | Color-coded binding posts | | Standards | Fire retardant to V0 ABS | | Mounting | 2 x M6 fixing points for included WB-5 wall bracket | | Dimensions (H x W x D) | 9.5 x 5.7 x 5.8" (24.1 x 14.5 x 14.7 cm) | | Weight | 6.2 lb (2.8 kg) |
