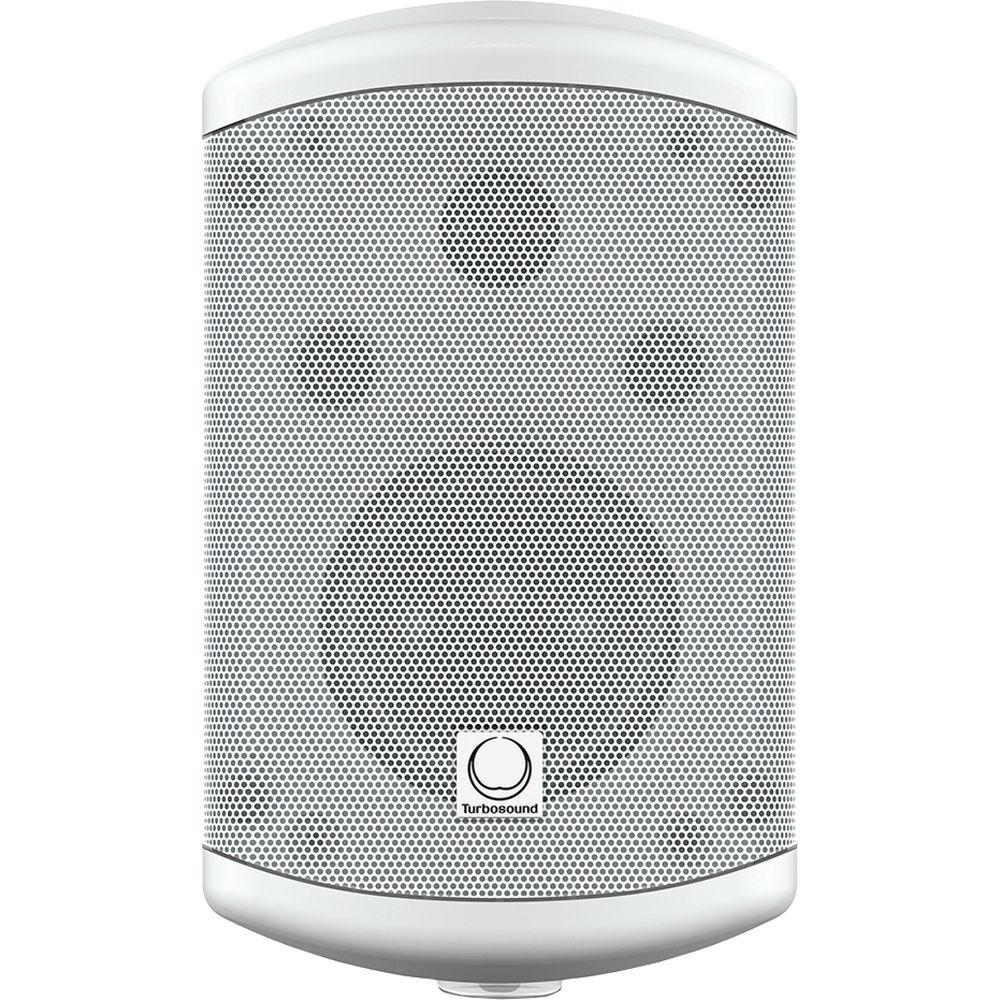

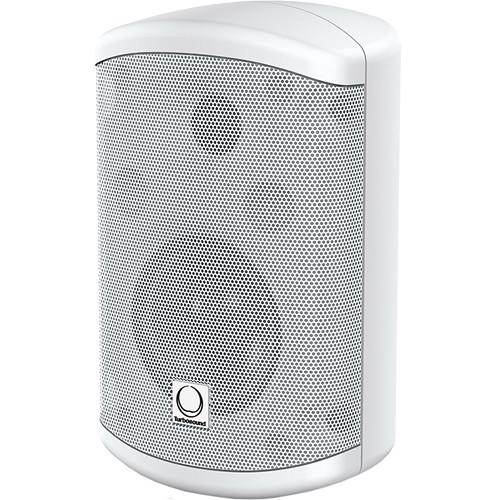

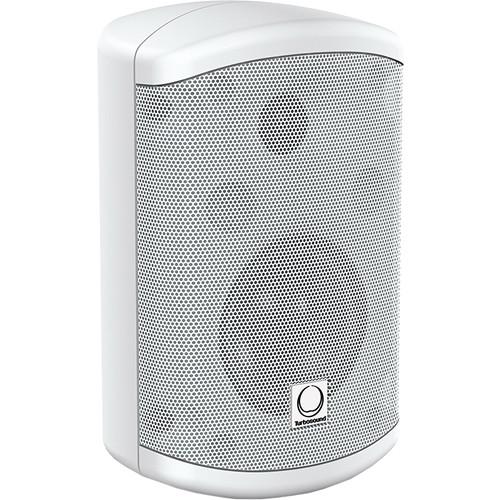

Product description The 120W white Impact TC132-T 2-Way 3.5" Full Range Loudspeaker from Turbosound consists of a high excursion 3.5" low frequency driver with a high temperature voice coil, matched to a 1" ferrofluid cooled neodymium high frequency driver on a proprietary elliptical waveguide providing wide 120° horizontal by 100° vertical dispersion.

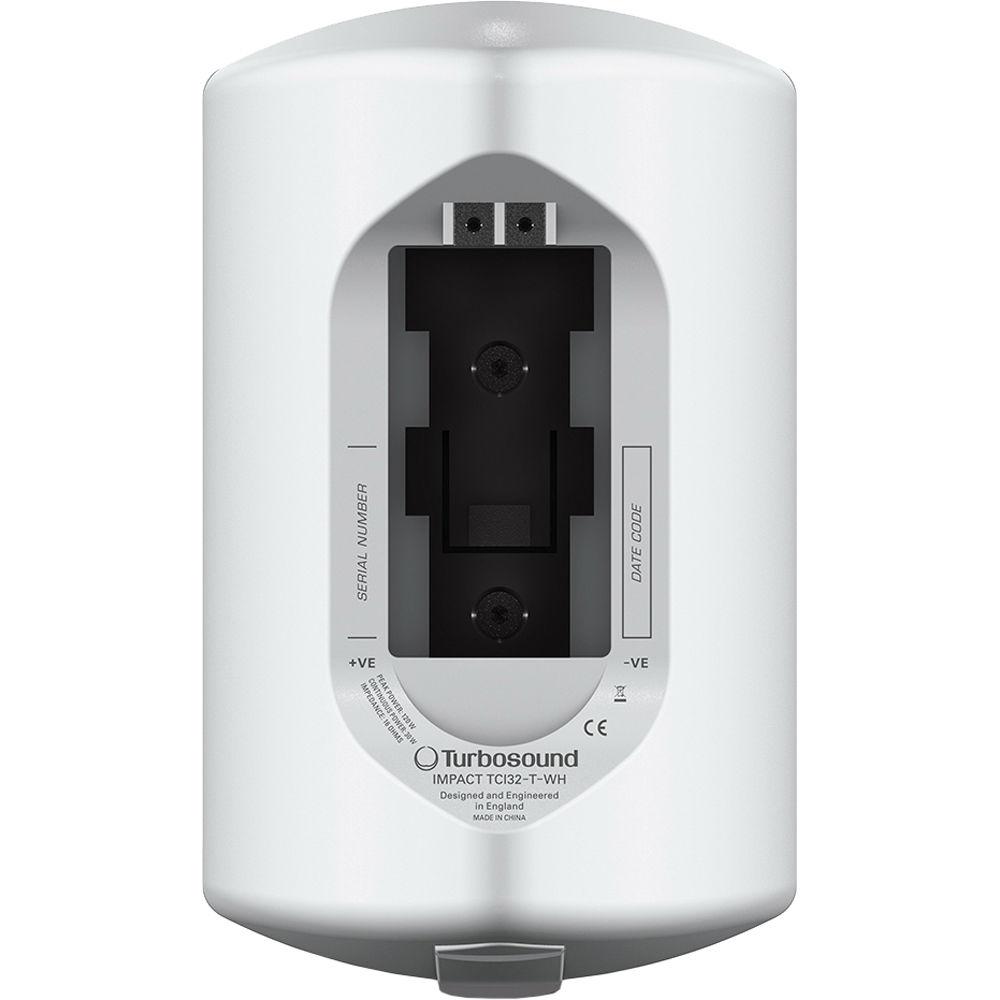

The TCI32-T includes an internal line transformer with multiple taps for use in 70V and 100V line distributed systems, and also provides a 160-ohm low impedance direct input. The TCI32-T is supplied with an adjustable wall mounting bracket which provides the loudspeaker connections as an integral part of the bracket assembly, allowing the brackets to be sited, installed and wired independently.
The architecturally styled glass filled impact resistant enclosure is finished in semi matte white to fit unobtrusively in many environments. M6 threaded fixings are provided on the rear for use with TURBOSOUND wall and ceiling brackets, and OmniMount brackets, and a 3/8" threaded insert is provided behind an EPDM rubber cover on the bottom of the cabinet for use with microphone stands as a spot monitor. - Compact 2 way full range surface-mount loudspeaker for installation applications
- 30W continuous, 120W peak power
- High excursion 3.5" low frequency driver with high temperature voice coil
- 1" ferrofluid cooled neodymium high frequency driver
- Multiple transformer taps for 70 V and 100 V line systems or 16-ohm direct input
- Proprietary elliptical waveguide provides wide 120º H x 100º V dispersion
- Architecturally styled glass filled impact resistant enclosure
- Semi matte white finish fits unobtrusively in any environment
- 2 x M6 rigging points compatible with TURBOSOUND and OmniMount brackets (sold separately)
- 3/8" microphone stand fitting for spot monitor applications
- Designed and engineered in England
In the Box Turbosound Impact TC132-T 2 Way 3.5" Full Range Loudspeaker with Line Transformer (White, 120W) TCI-WB Wall Bracket Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound Impact TC132-T 2 Way 3.5" Full Range Loudspeaker with Line Transformer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound TCI32-T-WH Specs | Components | 1 x 3.5" (89 mm) LF driver
1 x 1" (25 mm) Neodymium Ferrofluid Cooled HF Tweeter | | Frequency Response | 90 Hz to 20 kHz ±3 dB
70 Hz to 20 kHz ±10 dB | | Dispersion | 120° H x 100° V @ -6 dB points | | Sensitivity | 88 dB SPL @ 1 W/3.3' (1 m) | | Power Handling | 30 W continuous, 120 W peak
Transformer Taps at 30 W, 15 W, 7.5 W (100 V Line)
30 W, 15 W, 7.5 W, 3.75 W (70 V Line), and Low Impedance Setting | | Maximum Sound Pressure Level (SPL) | 103 dB continuous, 109 dB peak | | Nominal Impedance | 16 ohms | | Crossover | Internal passive crossover at 2.5 kHz, 12 dB / Octave | | Connectors | Color coded binding posts | | Construction | Gas injected glass filled molded ABS enclosure | | Grille | Powder coated galvanized perforated steel | | Rigging | 2 x M6 fixing points for TCI-WB wall bracket (supplied)
Compatible with TURBOSOUND wall brackets and ceiling brackets, and OmniMount brackets | | Standards | Fire retardant UL94 V-0 ABS | | Dimensions | 9.5 x 5.7 x 5.7" (242 x 145 x 149 mm) | | Weight | 6.2 lb (2.8 kg) |
