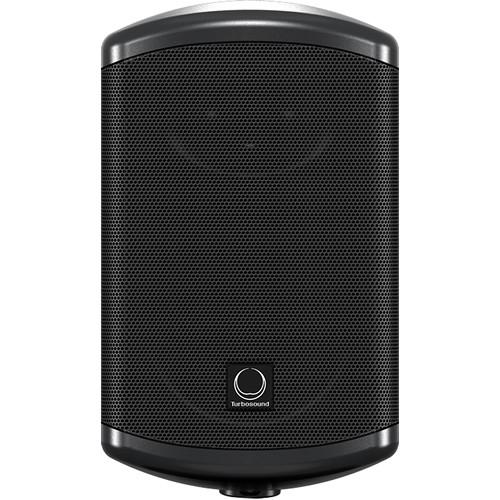

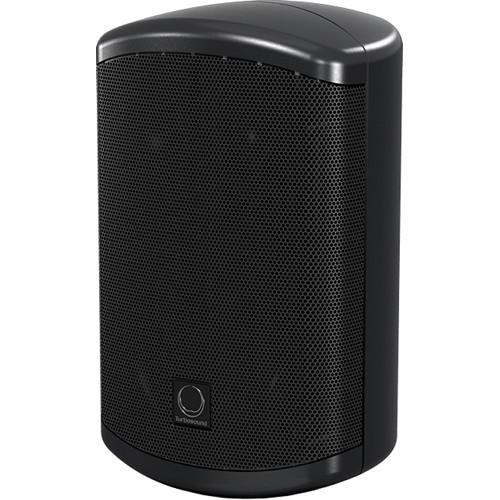

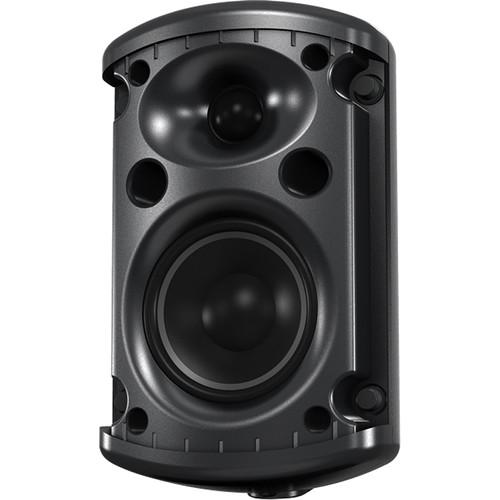

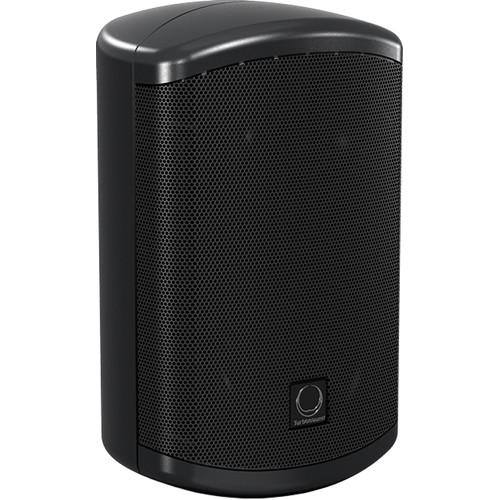

Product description The black IMPACT TCI32-TR 3.5" Full Range Loudspeaker from Turbosound is an indoor/outdoor passive two-way surface-mount loudspeaker that is suitable for a wide range of installed speech and music applications. With a power handling capacity of 120W, the weather-resistant system consists of a high excursion 3.5" low frequency driver with a high temperature voice coil, and a 1" neodymium ferrofluid cooled high frequency driver mated to a proprietary elliptical waveguide. The waveguide helps the speaker to achieve a wide 120° x 100° dispersion pattern. - Internal Transformer
- The TCI32-TR includes an internal line transformer with multiple taps for use in 70 and 100V line distributed sound applications. It also includes a direct 16 ohms input for use with low-impedance amplifiers. On the 100V line, taps are provided at 30, 15, and 7.5W whereas on the 70V line, taps are provided at 30, 15, 7.5, and 3.75W.
- Designed to Weather the Elements
- The included integral wall mounting bracket provides hidden cable management. With the IP34-rated weather-resistant housing, this speaker can be used for outdoor applications.
- Other Features
-
- Compact 2-way full range surface-mount loudspeaker for installation applications
- 30W continuous and 120W peak power
- Architecturally styled glass filled impact resistant enclosure
- Semi matt black finish
- Two M6 rigging points compatible with Turbosound and OmniMount brackets
- 3/8" mic stand fitting for spot monitor applications
In the Box Turbosound IMPACT TCI32-TR Weather Resistant Two-Way 3.5" Full Range Loudspeaker (Black) Wall Bracket Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound IMPACT TCI32-TR Weather Resistant Two-Way 3.5" Full Range Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound TCI32TR Specs | | | Frequency Response | 90 Hz to 20 kHz ±3 dB
70 Hz to 20 kHz -10 dB | | Nominal Dispersion | H x V: 120° x 100° @ -6 dB points | | Power Handling | Passive: 30 W continuous, 120 W peak
100 V Line: 30, 15, 7.5 W continuous
70 V Line: 30, 15, 7.5, 3.75 W continuous | | Sensitivity | 88 dB (1 W @ 3' / 1 m) | | Maximum SPL | Passive: 103 dB continuous, 109 dB peak
100 V Line: 109, 106, 103 dB peak
70 V Line: 109, 106, 103, 100 dB peak | | Impedance | 16 Ohms | | Components | 1 x 3.5" (8.9 cm) LF driver

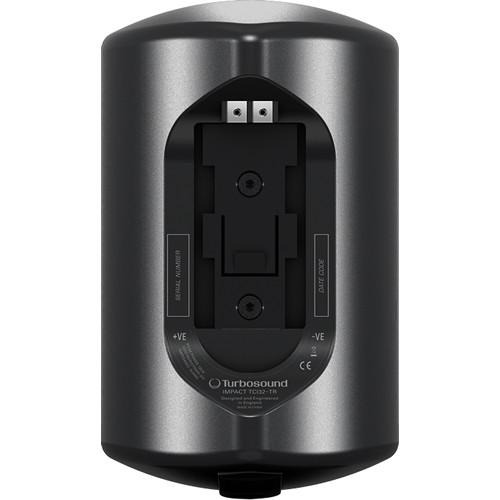

1 x 1.0" (2.5 cm) HF soft dome driver | | | | Connectors | Screw terminal block | | Wiring | Input +ve, -ve | | Construction | Gas injected, glass-filled moulded ABS enclosure | | Grille | Powder coated perforated zinc plated steel | | Hardware | Flying: 2 x M6 points | | Dimensions | 9.4 x 5.7 x 5.8" (24.0 x 14.5 x 14.8 cm) | | Weight | 6.2 lb (2.8 kg) |
