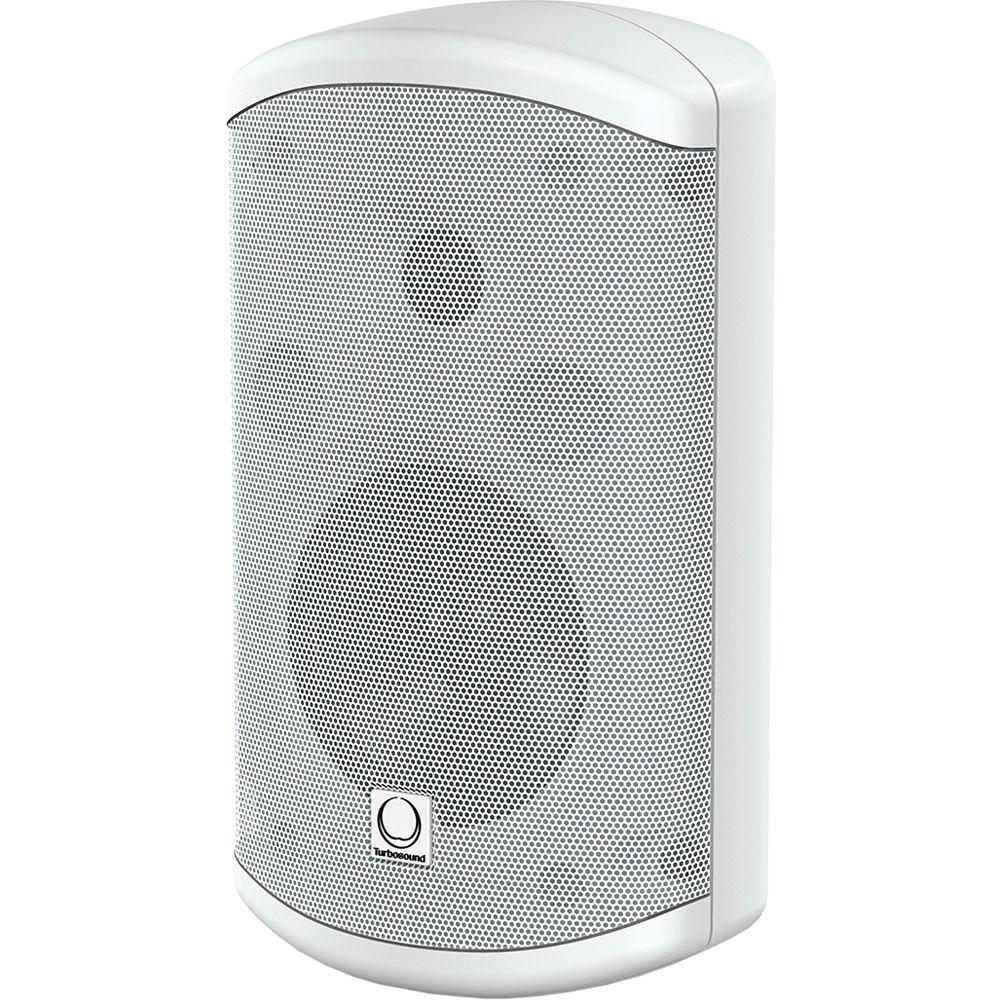

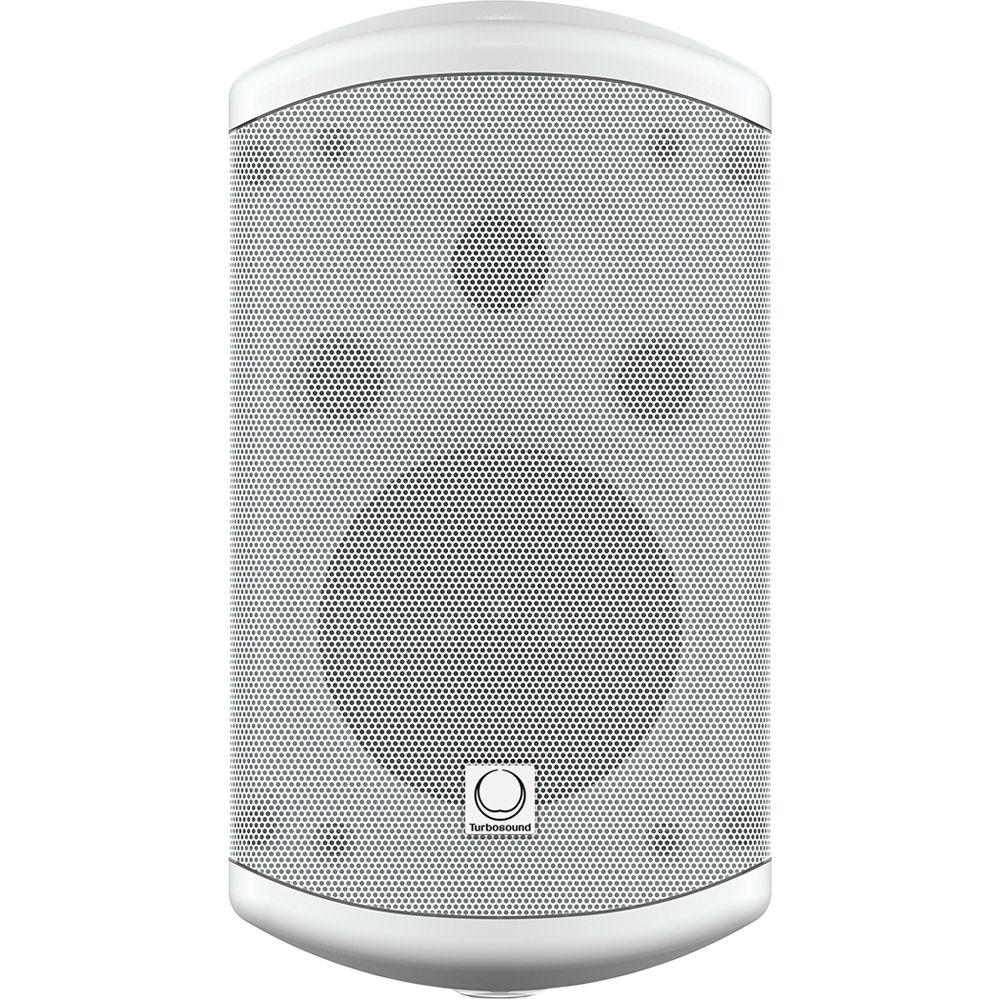

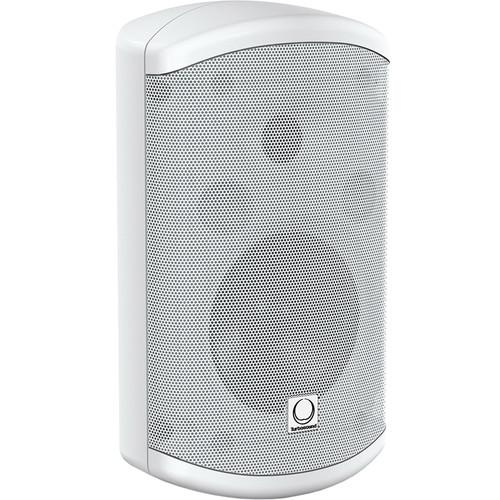

Product description The white Impact TCI52-T 2-Way 5" Full Range Loudspeaker from Turbosoundis a compact passive 240W two-way surface-mount loudspeaker. It consists of a high excursion 5" low frequency driver with a high temperature voice coil, matched to a 1" ferrofluid cooled neodymium high frequency driver, on a proprietary elliptical waveguide providing wide 100º horizontal by 70º vertical dispersion.
The TCI52-T includes an internal line transformer with multiple taps for use in 70V and 100V line distributed systems, and also provides a 16-ohm low impedance direct input. The TCI52-T is supplied with an adjustable wall mounting bracket which provides the loudspeaker connections as an integral part of the bracket assembly, allowing the brackets to be sited, installed and wired independently.
The glass filled impact resistant enclosure is finished in semi matte white designed to fit unobtrusively in any environment. M6 threaded fixings are provided on the rear for use with TURBOSOUND wall and ceiling brackets, and OmniMount brackets (sold separately), and a 3/8" threaded insert is provided behind an EPDM rubber cover on the bottom of the cabinet for use with microphone stands as a spot monitor. - Compact 2-way full range surface-mount loudspeaker for installation applications
- 60 W continuous, 240 W peak power
- High excursion 3.5" low frequency driver with high temperature voice coil
- 1" ferrofluid cooled neodymium high frequency driver
- Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
- Proprietary elliptical waveguide provides wide 100º H x 70º V dispersion
- Architecturally styled glass filled impact resistant enclosure
- Semi matte white finish fits unobtrusively in any environment

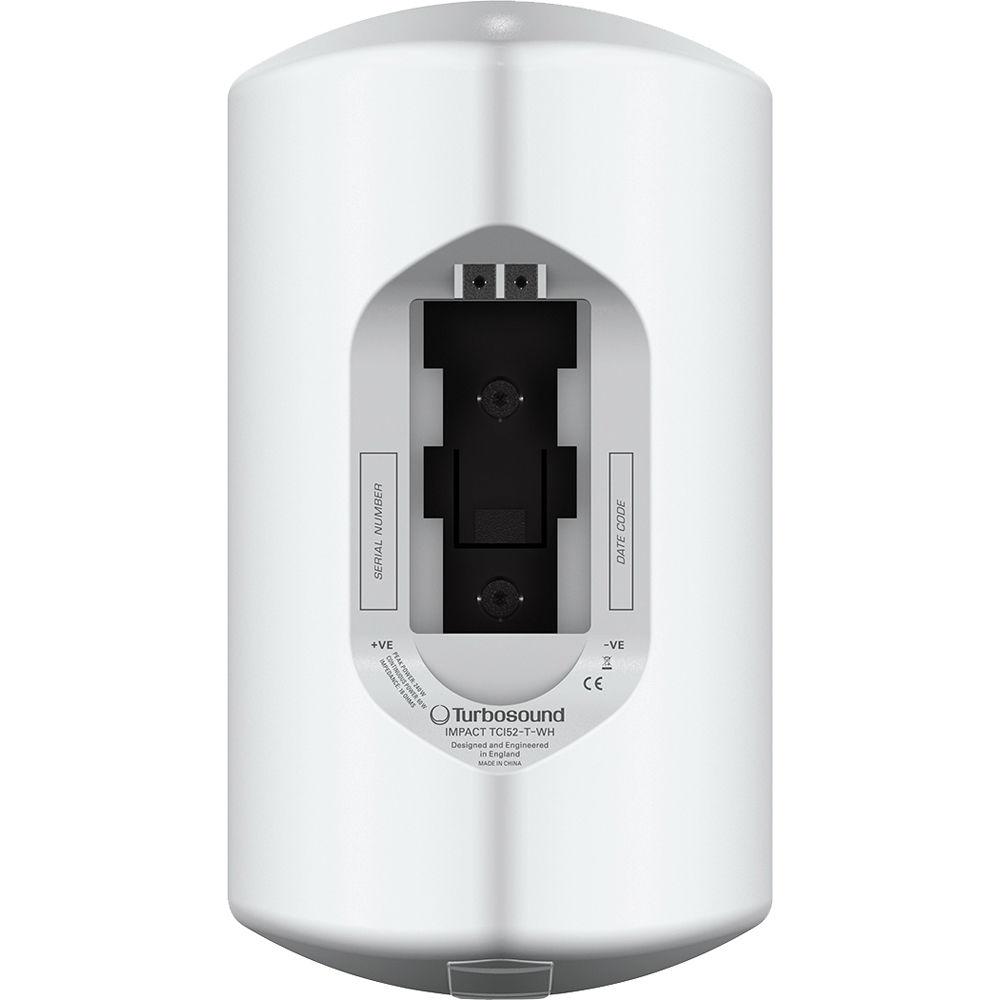

- 2 x M6 rigging points compatible with TURBOSOUND and OmniMount brackets
- 3/8" mic stand fitting for spot monitor applications
- Wall-mount bracket with integral loudspeaker connections included
- Designed and engineered in England
In the Box Turbosound Impact TCI52-T 2-Way 5" Full Range Loudspeaker with Line Transformer (White, 240W) TCI-WB Wall Mount Bracket Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound Impact TCI52-T 2-Way 5" Full Range Loudspeaker with Line Transformer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound TCI52-T-WH Specs | Components | 1 x 5" (127 mm) LF driver
1 x 1" (25 mm) Ferrofluid cooled neodymium HF driver | | Frequency Response | 89 Hz to 20 kHz ±3 dB
64 Hz to 20 kHz ±10 dB | | Dispersion | 100° H x 70° V @ -6 dB points | | Sensitivity | 90 dB SPL 1 W/3.3' (1 m) | | Power Handling | 60 W continuous, 240 W peak
Transformer taps at 60 W, 30 W, 15 W, (100 V line)
60 W, 30 W, 15 W, 7.5 W (70 V line), and low impedance setting | | Maximum Sound Pressure Level (SPL) | 109 dB continuous, 115 dB peak | | Nominal Impedance | 16 ohms | | Crossover | Internal passive crossover at 2.5 kHz, 12 dB / Octave | | Connectors | Color coded binding posts | | Construction | Gas injected glass filled molded ABS enclosure | | Grille | Powder-coated galvanized perforated steel | | Standards | Fire retardant UL 94 V-0 ABS | | Rigging | 2 x M6 fixing points for TCI-WB wall bracket (supplied)
Compatible with TURBOSOUND wall brackets and ceiling brackets, and OmniMount brackets (sold separately) | | Dimensions | 11.8 x 6.5 x 6.2" (300 x 164 x 158 mm) | | Weight | 7.7 lb (3.5 kg) |
