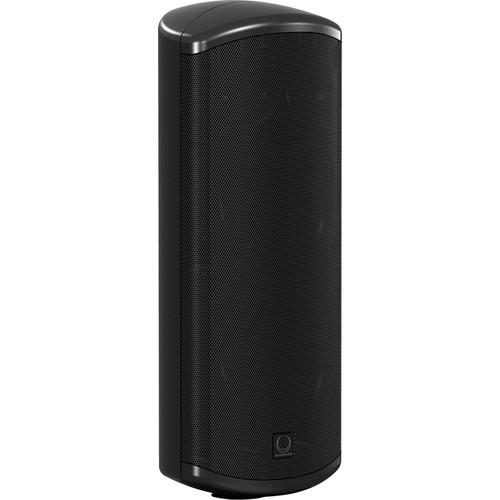

User Manual for Turbosound Impact TCI53-TR Dual 2-Way Weather-Resistant 5" Full-Range Loudspeakers with Line Transformer Click to enlarge the picture
Contents of the user manual for the Turbosound Impact TCI53-TR Dual 2-Way Weather-Resistant
- Product category: PA Speakers Turbosound
- Brand: Turbosound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Turbosound PA Speakers
 |
User manual for the Turbosound Impact TCI53-TR Dual 2-Way Weather-Resistant contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Turbosound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Turbosound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Turbosound product will considerably shorten its lifespan!
|
Product description The Impact TCI53-TR Dual 2-Way Weather-Resistant 5" Full-Range Loudspeakers with Line Transformer from Turbosound is a passive 2-way surface-mount loudspeaker that is suitable for a wide range of installed speech and music applications. It features a power-handling capacity of 480W. The system consists of dual high-excursion 5" low-frequency drivers with a high-temperature voice coil and dual 1" neodymium ferrofluid-cooled high-frequency drivers mated to a proprietary elliptical waveguide for a wide 100 x 70° (horizontal x vertical) dispersion pattern.The loudspeaker includes an internal line transformer with multiple taps for use in 70 and 100 V line-distributed sound applications, as well as a direct 8-ohm input for use with low-impedance amplifiers. Taps are provided at 120, 60, and 30W on the 100V line and 120, 60, 30, and 15W on the 70V line.When permanently installed, the architecturally styled, glass-filled and impact-resistant enclosure sports a semi-matte black finish. The weatherized paint, zinc-plated grille with outdoor powder coat, and weather -resistant coated drivers deliver an IP34-rated package that is suitable for outdoor use. The included integral wall-mounting bracket provides hidden cable management for a seamless visual presentation. The adjustable wall-mounting bracket also features wire connections to simplify installations.Threaded internal M6 rigging points are also provided for installation with Turbosound wall and ceiling hardware, as well as industry-standard brackets. A convenient 3⁄8" mic-stand fitting, hidden under the EPDM rubber cover on the bottom of the cabinet, allows affixing the speaker to a standard microphone stand for use as a spot monitor. - Pair of compact 2-way full-range surface-mount loudspeakers for installation applications
- Offers up to 120W continuous and 480W peak power
- High-excursion dual-5" low-frequency drivers with high-temperature voice coil
- Dual 1" ferrofluid-cooled neodymium high-frequency drivers
- Multiple transformer taps for 70V and 100V line systems or 8-ohm direct input
- Proprietary elliptical waveguide provides wide 100 x 70° (H x V) dispersion
- Includes a wall-mount bracket with integral loudspeaker connections
- Glass-filled impact-resistant enclosure
- Semi-matte black finish fits unobtrusively in any environment
- 2 x M6 rigging points compatible with Turbosound and OmniMount brackets
- 3⁄8" mic-stand fitting for spot-monitor applications
In the Box Turbosound Impact TCI53-TR Dual 2-Way Weather-Resistant 5" Full-Range Loudspeakers with Line Transformer (Black) Wall Bracket Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound Impact TCI53-TR Dual 2-Way Weather-Resistant 5" Full-Range Loudspeakers with Line Transformer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound TCI53TR Specs | | | Frequency Response | 74 Hz to 18 kHz, ±3 dB; 43 Hz to 20 kHz, -10 dB | | Nominal Dispersion | 100 x 70° (H x V) @ -6 dB points | | Power Handling | IEC
Passive: 120 W continuous, 480 W peak
100 V line: 120, 60, 30 W continuous
70 V line: 120, 60, 30, 15 W continuous | | Sensitivity | 90 dB (1 W @ 3.3' (1.0 m)) | | Maximum SPL | Passive: 111 dB continuous, 117 dB peak
100 V line: 117, 114, 111 dB peak continuous
70 V line: 117, 114, 111, 105 dB peak | | Impedance | 8 ohms | | Components | 2 x 5" (127 mm) LF driver
2 x 1" (25 mm) HF soft dome driver | | | | Connectors | Screw terminal block | | Wiring | Input positive, negative | | Construction | Gas-injected, glass-filled molded-ABS enclosure | | Weather Resistant | IP34 | | Grille | Powder-coated perforated zinc-plated steel | | Mounting Interface | M6 x 2 points | | Dimensions (H x W x D) | 17.7 x 6.5 x 6.2" (45.0 x 16.4 x 15.8 cm) | | Weight | 11 lb (5 kg) |
