User Manual for Turbosound iNSPIRE 1000W Powered 15" Subwoofer with Dual Amplifier Click to enlarge the picture
Contents of the user manual for the Turbosound iNSPIRE 1000W Powered 15" Subwoofer
- Product category: PA Speakers Turbosound
- Brand: Turbosound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Turbosound PA Speakers
 |
User manual for the Turbosound iNSPIRE 1000W Powered 15" Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Turbosound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Turbosound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Turbosound product will considerably shorten its lifespan!
|

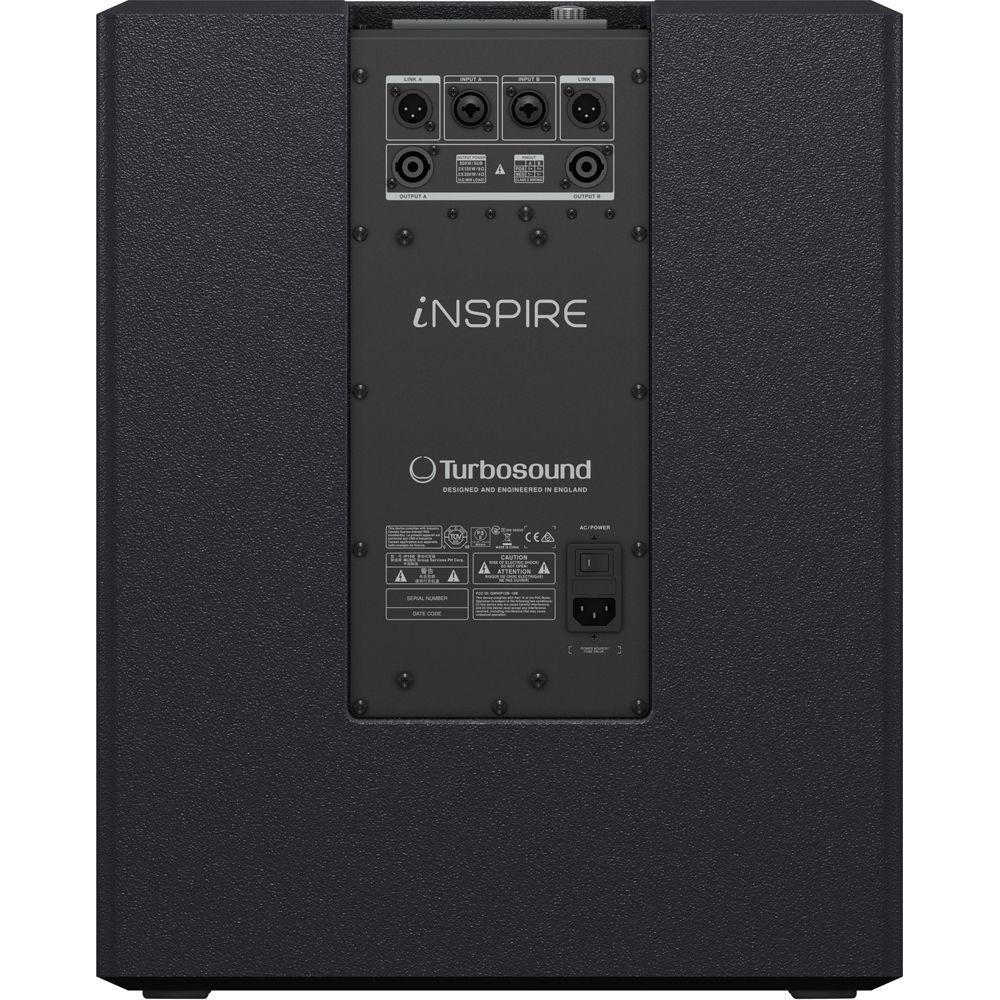

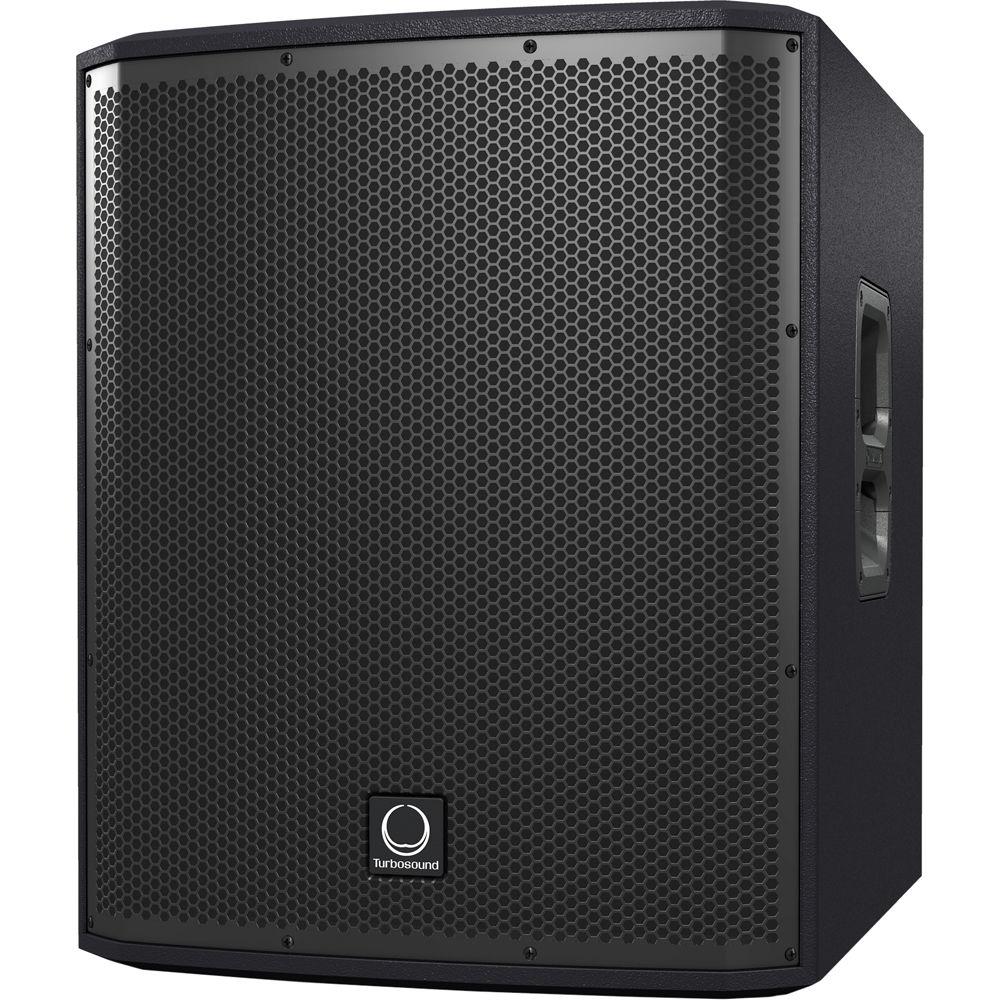

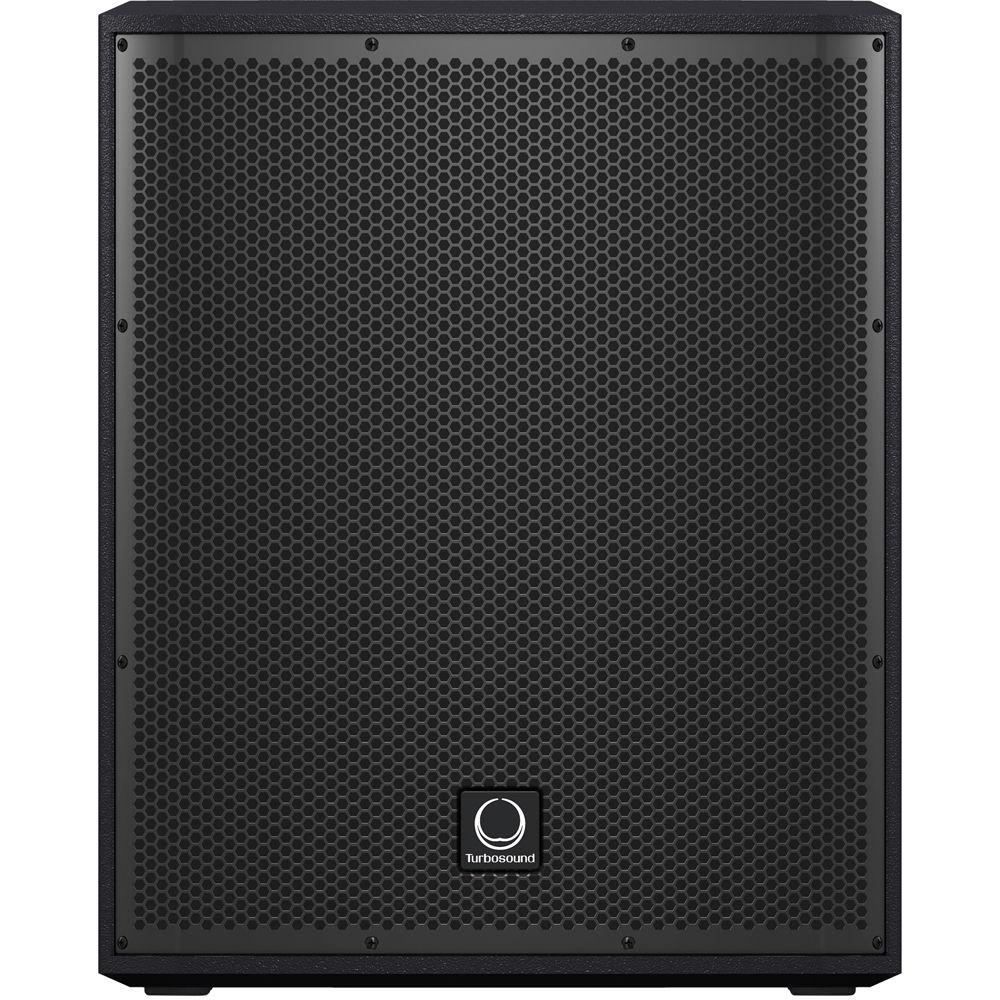

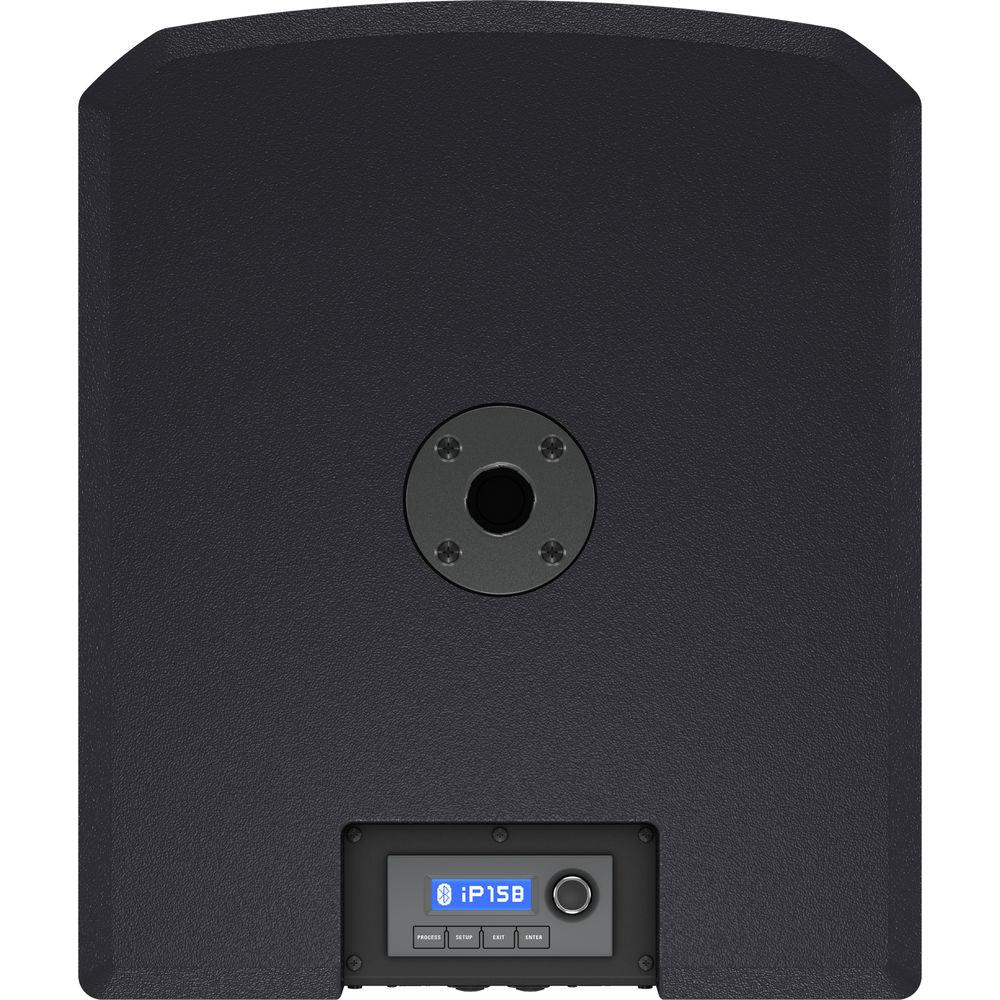

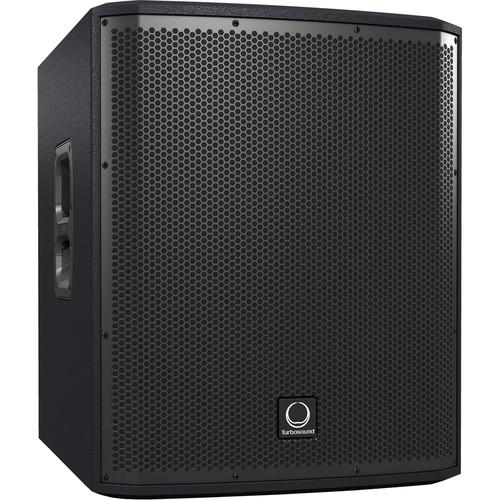

Product description The iNSPIRE 1000W Powered 15" Subwoofer from Turbosound produces high levels of low-end punch, with the definition and clarity reserved for large systems. Equipped with a dedicated 600W Class-D amplifier for the 15" long-excursion low-frequency (LF) driver, and two 200W amps for your passive satellite speakers, this subwoofer is ideally-suited for small-to-medium sized performance venues such as houses of worship, boardroom presentations, nightclubs, and others.Lightweight and easy to transport, the iNSPIRE subwoofer also features a 3-channel digital mixer with KLARK TEKNIK Digital Sound Processing (DSP), Class-D amplifier, and Spatial Sound technologies. Additionally, this subwoofer is capable of convenient Bluetooth stereo audio streaming and iPhone/iPad remote control. - Compact yet Powerful
-
- Designed for maximum portability and low-end support, the subwoofer can be used standalone with your powered full range speakers or speaker system
- Setup is fast and easy
- KLARK TEKNIK Technology
-
- Custom-engineered KLARK TEKNIK Class-D amplifier and DSP technologies enhance the sound performance of the subwoofer
- DSP
-
- Built-in DSP ensures signal integrity
- Other than EQ enhancement, the 24-bit processor analyzes the incoming signal and intelligently applies specific filters to actually improve the sound quality
- Monitors input and output signals, by dialing in suitable EQ and constantly making subtle adjustments to the crossover, compressor/limiter, three discrete amplifier channels, and more
- Custom-Engineered Drivers
-
- Engineered to perform in conjunction with every other element for professional results
- Built-in Digital Mixer & Remote Control
-
- Features a fully addressable onboard digital mixer with two combo XLR-1/4" jack connectors that accept balanced and unbalanced connections for dynamic mics and line-level instruments
- Simple and intuitive user interface consists of a single rotary push-encoder with Process, Setup, Exit and Enter function buttons
- Backlit LCD panel displays parameters for Delay (up to 300 ms), Limiter, High/Low shelving and parametric EQs, and Presets
- All settings can be controlled locally, or via free downloadable iPhone/iPad apps, and locked down to prevent unauthorized access
- Gives you total control of the subwoofer directly from your iPhone or iPad
- Allows you to adjust all settings from either the listening area or the stage
- Bluetooth Ready
-
- You can stream music from any Bluetooth-equipped iOS device, such as your iPad, iPod touch, iPhone, laptop, or PC
- High Performance
-
- Lightweight and powerful with a custom-designed 15" long-excursion LF driver, an integrated mixer, stereo Bluetooth streaming, iPhone/iPad remote control, 1000W of KLARK TEKNIK’s Class-D output power, and Digital Sound Processing, this subwoofer is ideal for both portable and installed applications
UPC: 748252157447 In the Box Turbosound iNSPIRE 1000W Powered 15" Subwoofer with Dual Amplifier Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound iNSPIRE 1000W Powered 15" Subwoofer with Dual Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound iP15 Specs | Frequency Response | 45 Hz - 150 Hz ±3 dB
38 Hz - 200 Hz -10 dB | | Nominal Dispersion | Half space | | Maximum Sound Pressure Level (SPL) | 120 dB | | Nominal Sensitivity | 4 dBu, nominal | | Transducer | 1 x 15" (38 cm) LF driver | | Input Impedance | 16 kOhms unbalanced, 33 kOhms balanced | | Limiter | Peak and RMS | | Output Power | Subwoofer: 600 W
Satellites: 2 x 200 W | | Crossover | Active | | Amplifier Type | Class-D | | Amplifier Protection | Short circuit, open circuit, thermal | | Connectors | Output L/R: 2 x Neutrik speakON
NL4, pins 1+ / 1-
Input A/B: 2 x combo XLR-1/4" Jack | | Maximum Input Level | +22 dBu | | Link | XLR | | Mains Supply | IEC mains connector with integrated power switch | | Controls | Hardware Rotary push-encoder
Software iOS interface via Bluetooth | | DSP Effects | Factory EQ Presets: Positioning, Sound mode, phase
Display: LCD 128 x 32, blue, backlit
Equalization: Bass, middle, and treble
Crossover: High pass L-R 24 dB/oct
Protection: Lock-out function for all settings | | Bluetooth | Frequency Range: 2402 MHz to 2480 MHz
Channel Number: 79
Version: Bluetooth 4.0 dual mode
Output: 8 dBM
Compatibility: Supports A2DP 1.2 profile
Maximum Communication Range: 98' (30 m) without interference
Connectivity Master-Slave: Stereo pairing link | | Power Consumption | 110 W @ 1/8 maximum power | | Voltage | 100 to 120 V, 50/60 Hz (T 6.3 A H 250 V) | | Construction | 5/8" (15 mm) birch plywood sub | | Finish | Semi matt black paint | | Grille | Powder coated perforated steel | | Dimensions | 22 x 18 x 22" (57 x 46 x 55 cm) | | Weight | 58 lb (26 kg) | | | | Package Weight | 75.0 lb | | Box Dimensions (LxWxH) | 26.7 x 26.0 x 23.2" |
