User Manual for Turbosound iNSPIRE iP1000 V2 - Powered Column Loudspeaker with Dual 8" Subwoofer Click to enlarge the picture
Contents of the user manual for the Turbosound iNSPIRE iP1000 V2 - Powered
- Product category: Portable PA Systems Turbosound
- Brand: Turbosound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Turbosound Portable PA Systems
 |
User manual for the Turbosound iNSPIRE iP1000 V2 - Powered contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Turbosound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Turbosound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Turbosound product will considerably shorten its lifespan!
|

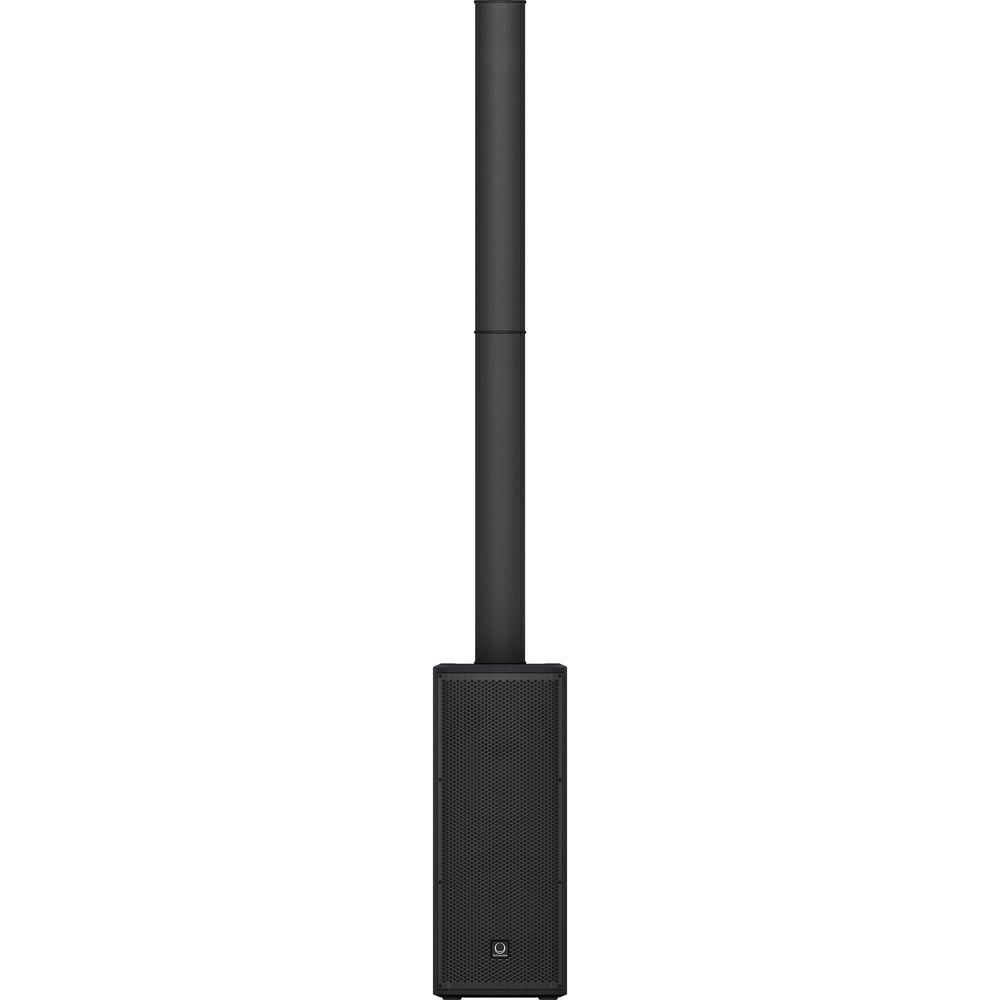

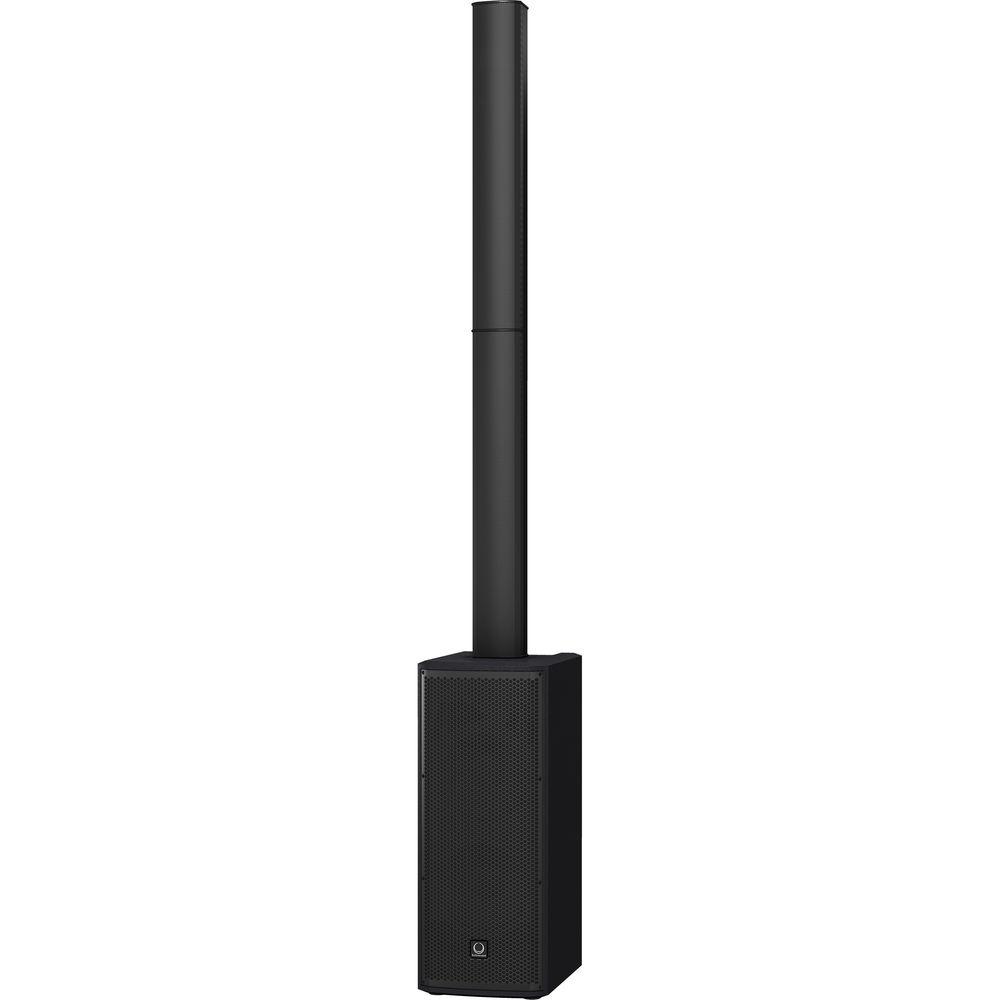

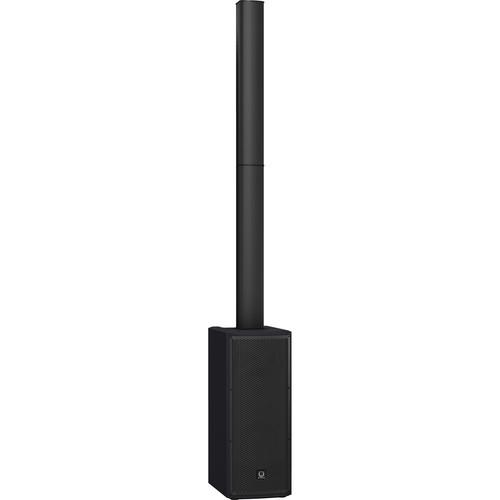

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More ddcfrzqqyxuuafwdztuvewxy Building upon the success of the original iP1000, the Turbosound iNSPIRE iP1000 V2 is a self-contained, full-range powered speaker system well-suited for small to medium-sized performance venues, houses of worship, boardroom presentations, nightclubs, and more. The 1000W powered column loudspeaker features a dual 8" subwoofer, eight neodymium mid-hi drivers, a horn-loaded super tweeter, KLARK TEKNIK Spatial Sound Technology (SST), a digital mixer, Bluetooth audio streaming, and remote control via iPhone/iPad. Additionally, the iP1000 V2 adds a KLARK TEKNIK designed studio-quality stereo reverb for adding depth and space to your mix.
With a 120° dispersion, the iP1000 V2 provides a wide coverage that often eliminates the need for monitor wedges for performers, creating a more even, sonically balanced soundscape that covers the entire room. Additionally, the SST creates a well-defined virtual 3-D environment, enveloping the listener in a rich and more realistic experience. The integrated DSP ensures the greatest signal integrity possible by analyzing the incoming signal and intelligently applying specific filters to improve the sound quality.

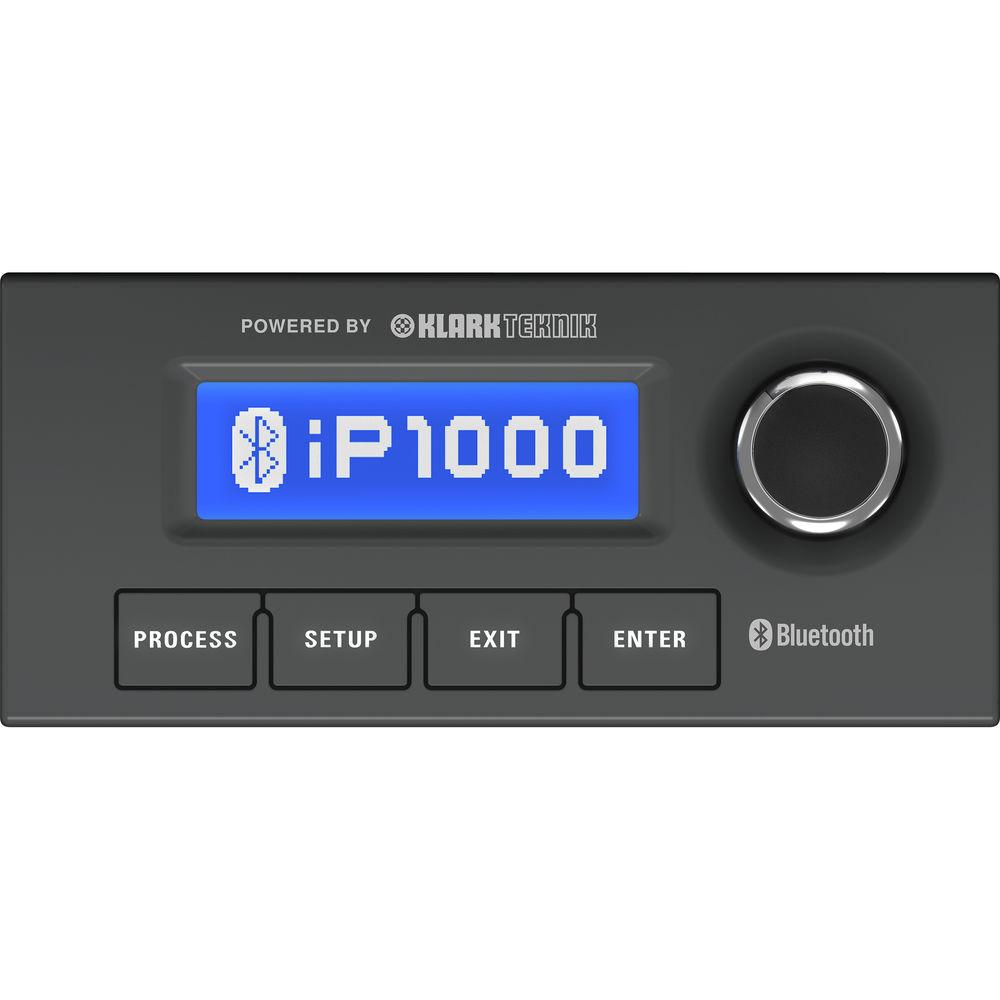

The built-in digital mixer accepts balanced and unbalanced connections for dynamic microphones and line-level instruments. The on-board interface is simple by design with a rotary push encoder and buttons for Process, Setup, Exit, and Enter. The back-lit LCD displays parameters for Delay, Limiter, High/Low shelving and parametric EQs, and Presets. All controls can be controlled locally, or via the free downloadable iOS app. The iP1000 V2 ships with a standard IEC power cord. -
- Modular column loudspeaker for portable PA applications and high-quality music playback
- KLARK TEKNIK’s revolutionary SST (Spatial Sound Technology) for creating 3D acoustic environments
- Wide sound dispersion of 120° provides a consistent sound to the audience and performers
- 1000-Watt power, multi-channel KLARK TEKNIK Class-D technology
- 3-channel digital mixer with gain setting recall
- Studio-grade stereo reverb adds a finishing touch to your sound
- Comprehensive remote control via Apple iPhone/iPad
- High-quality Bluetooth stereo audio streaming
- DSP presets for application type and speaker positioning
- Intuitive single rotary control user interface with LCD display for ease of navigation
- 2 x 8" high-excursion, low-frequency drivers for low-distortion sub-bass response
- 8 x 2.75" neodymium drivers for clean mid-range and high-frequency reproduction
- Horn-loaded super-tweeter extends high-frequency range and throw
- Precision-lock, aluminum array system eliminates speaker stands and cables
- Road-worthy birch plywood enclosure with hard wearing semi-matte black paint finish
- Rugged powder-coated perforated steel mesh grille
- Integral ergonomic carrying handles for ease of portability
UPC: 653341318633 In the Box Turbosound iNSPIRE iP1000 V2 - Powered Column Loudspeaker with Dual 8" Subwoofer Power Cord Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound iNSPIRE iP1000 V2 - Powered Column Loudspeaker with Dual 8" Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound IP1000V2 Specs | | | Frequency Response | 50 Hz to 20 kHz ±3 dB
43 Hz to 20 kHz -10 dB | | Nominal Dispersion | 120° H at -6 dB points | | Max SPL Level | 122 dB | | Crossover Type | 4-Way, Active and Passive | | Transducer | LF Drivers: 2 x 8" / 208 mm
MF Drivers: 8 x 2.75" / 70 mm
HF Compression Driver: 1 x 1" / 25 mm | | Limiter | Independent HF, LF | | | | Max Output Power | 1000 W | | Type | Class-D | | Protection | Short-Circuit, Open Circuit, Thermal | | Channels | 3 | | | | Input | Input A/B: 2 x Combo XLR-1/4" / 6.35 mm | | Sensitivity | 4 dBu, Nominal | | Input Impedance | Unbalanced: 16 kOhms
Balanced: 33 kOhms | | Maximum Input Level | +22 dBu | | Link | Link Output: XLR | | Mains Supply | IEC Mains Connector with Integrated Power Switch | | | | Hardware | Rotary Push-Encoder | | Software | iOS Interface via Bluetooth | | | | EQ Presets | Factory EQ Presets: Positioning, Sound Mode | | Display | LCD 128 x 32, Blue, Backlit | | Equalization | Bass, Middle, and Treble | | Protection | Lock-Out Function for All Settings | | | | Frequency Range | 2402 to 2480 MHz | | Channel | 79 | | Version | Bluetooth 4.0 Dual Mode | | Output | 8 dBM | | Compatibility | Supports A2DP 1.2 Profile | | Maximum Range | 98.4' / 30.0 m (Without Interference) | | Connectivity | Master Slave: Stereo Pairing Link | | | | Power Consumption | 110 W at 1/8 Max Power | | Voltage | Voltage (Fuses)
USA / Canada / Japan 100-120 VAC, 50/60 Hz (T 6.3 A H 250 V)
UK / Australia / Europe 220-240 VAC, 50/60 Hz (T 3.15 A H 250 V)
Korea / China 220-240 VAC, 50/60 Hz (T 3.15 A H 250 V) | | | | Construction Material | Construction Base: 0.6" / 15.0 mm Birch Plywood
Construction Tower: Aluminum Alloy | | Finish and Grille Color | Finish: Semi-Matt Black Paint
Grille: Powder-Coated Perforated Steel | | Dimensions (H x W x D) | Base and Tower: 77.0 x 10.3 x 14.6" / 195 x 26.2 x 37 cm
Base: 25.8 x 10.3 x 14.6" / 65.5 x 26.2 x 37 cm
Tower: 53.0 x 4.1 x 3.5" / 134.5 x 10.3 x 8.9 cm | | Weight | 54.7 lb / 24.8 kg | | | | Package Weight | 71.0 lb | | Box Dimensions (LxWxH) | 56.0 x 38.0 x 15.0" |
