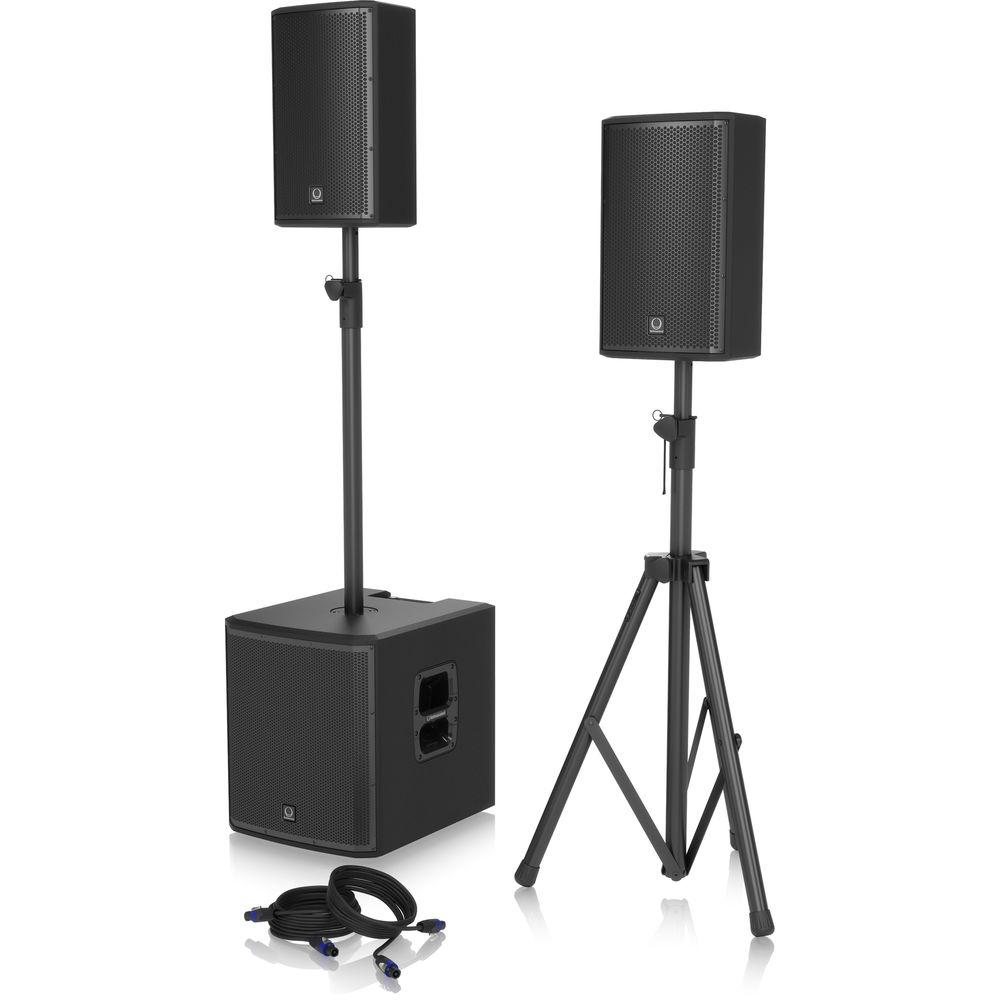

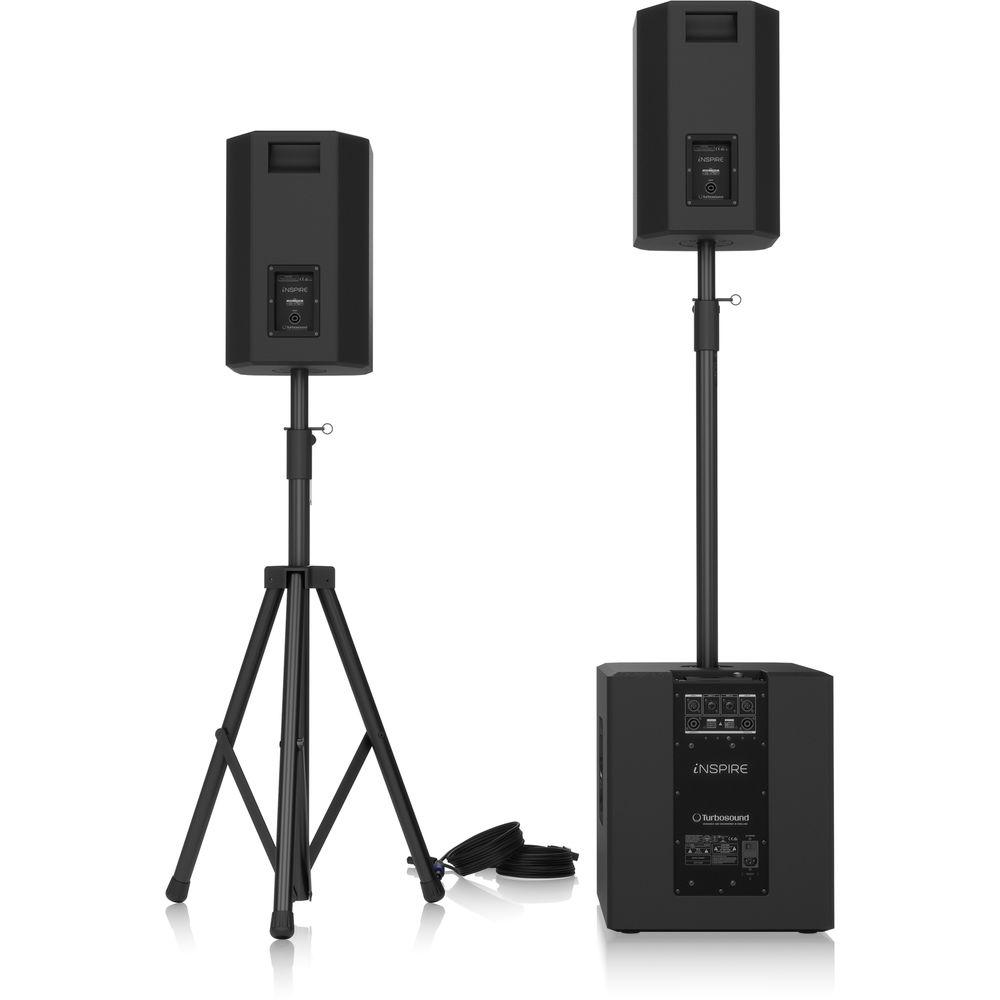

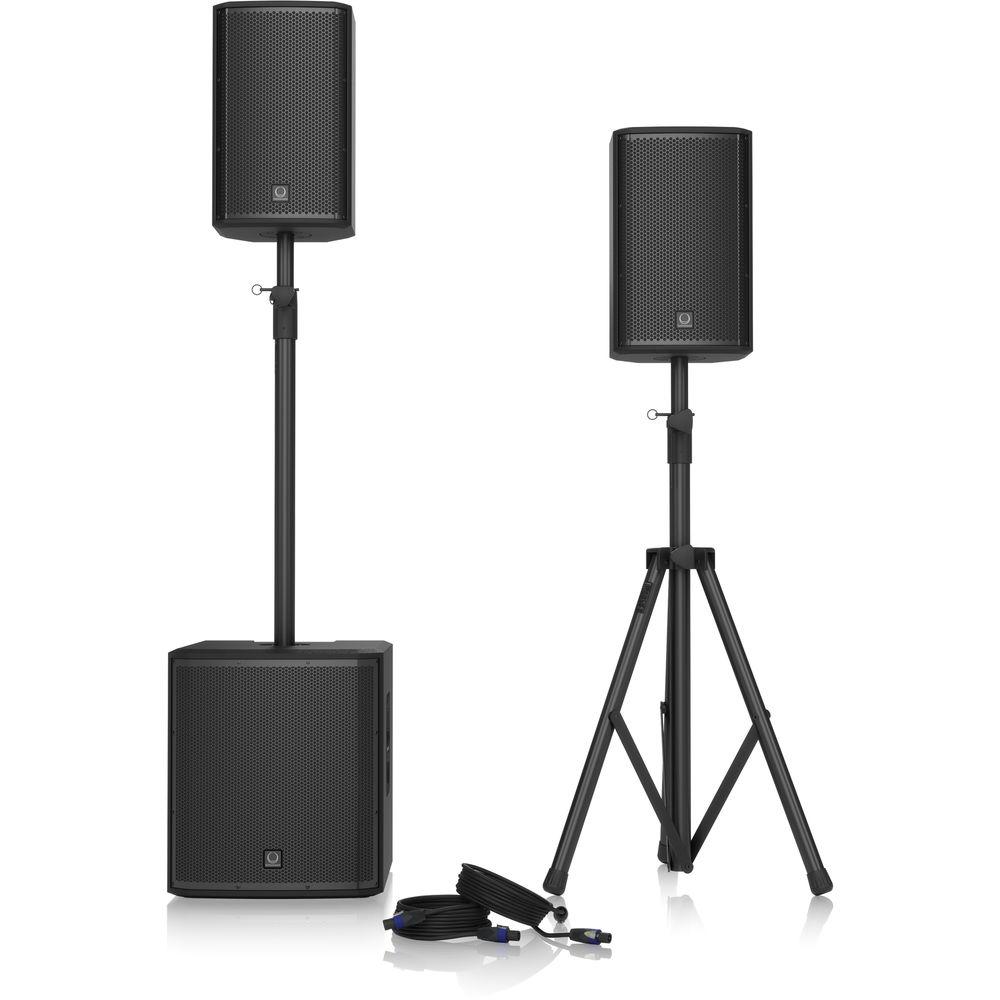

User Manual for Turbosound iNSPIRE iP12 Bundle 1000W Powered Stereo PA System Click to enlarge the picture
Contents of the user manual for the Turbosound iNSPIRE iP12 Bundle 1000W Powered
- Product category: Portable PA Systems Turbosound
- Brand: Turbosound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Turbosound Portable PA Systems
 |
User manual for the Turbosound iNSPIRE iP12 Bundle 1000W Powered contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Turbosound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Turbosound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Turbosound product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More ewdqyyvaeaftuyyyr Pump out true stereo sound to the crowd with the Turbosound iNSPIRE iP12 Bundle, a 1000W powered stereo PA system designed for DJs, bands, presenters, and houses of worship. Thanks to a built-in digital mixer with 24-bit DSP, wireless remote control via iPhone/iPad (mobile device available separately), and 1000W of Class-D amplification, this bundle delivers a potent blend of power and convenience for a variety of applications. It includes two iP82 8" 2-way passive loudspeakers, an iP12B 12" powered subwoofer, a speaker pole, one speaker stand, and two heavy-gauge speakON speaker cables. - iNSPIRE iP82 2-Way 8" Full Range 600W Loudspeaker for Portable PA Applications The iNSPIRE iP82 2-Way 8" Full Range 600W Loudspeaker from Turbosound is a passive loudspeaker system ideally suited for a wide range of portable speech and music sound reinforcement applications. The iP82 Loudspeaker provides optimal performance as an FOH satellite speaker when used with the iP12B or iP15B Active Subwoofer (sold separately). It is also suitable for sidefill, stage lip, balcony, and delay line applications, as well as for small to medium-sized performance venues such as houses of worship, boardroom, nightclubs, and many more.
- Custom-Engineered Drivers
-
- Engineered to perform in conjunction with every other element for professional results
- 2-way full range loudspeaker for portable PA applications
- Features an 8" low frequency driver with a low mass voice coil for improved transient response, and a high temperature dome 1" compression driver mounted on a low distortion 70° horizontal by 70° vertical dispersion waveguide
- All drivers are matched with an internal passive crossover network in a reflex-loaded enclosure, which ensures truly professional performance
- Solid Construction
-
- Finished in a highly durable semi matt black paint, the loudspeaker cabinet is constructed from 5⁄8" birch plywood
- Includes a rugged powder coated perforated steel mesh grille backed with reticulated foam
- Features a 35mm socket for pole mounting atop the iP15B / iP12B Active Subwoofer, or on industry-standard loudspeaker stands
- High Performance
-
- 150W continuous, 600W peak power
- Built rugged to withstand the rigors of the road
- Custom-designed transducer handles up to 600W of input power and is ideal for portable applications
- Neutrik speakON NL4 connector for reliable long life operation
UPC: 748252159045 - iNSPIRE 1000W Powered 12" Subwoofer with Dual Amplifier The iNSPIRE 1000W Powered 12" Subwoofer from Turbosound produces high levels of low-end punch, with the definition and clarity reserved for large systems. Equipped with a dedicated 600W Class-D amplifier for the 12" long-excursion low-frequency (LF) driver, and two 200W amps for your passive satellite speakers, this subwoofer is ideally-suited for small-to-medium sized performance venues such as houses of worship, boardroom presentations, nightclubs, and others.Lightweight and easy to transport, the iNSPIRE subwoofer also features a 3-channel digital mixer with KLARK TEKNIK Digital Sound Processing (DSP), Class-D amplifier, and Spatial Sound technologies. Additionally, this subwoofer is capable of convenient Bluetooth stereo audio streaming and iPhone/iPad remote control.
- Compact yet Powerful
-
- Designed for maximum portability and low-end support, the subwoofer can be used standalone with your powered full range speakers or speaker system
- Setup is fast and easy
- KLARK TEKNIK Technology
-
- Custom-engineered KLARK TEKNIK Class-D amplifier and DSP technologies enhance the sound performance of the subwoofer
- DSP
-
- Built-in DSP ensures signal integrity
- Other than EQ enhancement, the 24-bit processor analyzes the incoming signal and intelligently applies specific filters to actually improve the sound quality
- Monitors input and output signals, by dialing in suitable EQ and constantly making subtle adjustments to the crossover, compressor/limiter, three discrete amplifier channels, and more
- Custom-Engineered Drivers
-
- Engineered to perform in conjunction with every other element for professional results
- Built-in Digital Mixer & Remote Control
-
- Features a fully addressable onboard digital mixer with two combo XLR-1/4" jack connectors that accept balanced and unbalanced connections for dynamic mics and line-level instruments
- Simple and intuitive user interface consists of a single rotary push-encoder with Process, Setup, Exit and Enter function buttons
- Backlit LCD panel displays parameters for Delay (up to 300 ms), Limiter, High/Low shelving and parametric EQs, and Presets
- All settings can be controlled locally, or via free downloadable iPhone/iPad apps, and locked down to prevent unauthorized access
- Gives you total control of the subwoofer directly from your iPhone or iPad
- Allows you to adjust all settings from either the listening area or the stage
- Bluetooth Ready
-
- You can stream music from any Bluetooth-equipped iOS device, such as your iPad, iPod touch, iPhone, laptop, or PC
- High Performance
-
- Lightweight and powerful with a custom-designed 12" long-excursion LF driver, an integrated mixer, stereo Bluetooth streaming, iPhone/iPad remote control, 1000W of KLARK TEKNIK’s Class-D output power, and Digital Sound Processing, this subwoofer is ideal for both portable and installed applications
In the Box Bundle Items 2 x iNSPIRE iP82 2-Way 8" Full Range 600W Loudspeaker for Portable PA Applications ewdqyyvaeaftuyyyr iNSPIRE 1000W Powered 12" Subwoofer with Dual Amplifier
Also Includes - 2 x 26' speakON Speaker Cables
- Speaker Pole
- Speaker Stand
- Limited 10-Year Warranty upon Registration within 90 Days
Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound iNSPIRE iP12 Bundle 1000W Powered Stereo PA System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - iNSPIRE iP82 2-Way 8" Full Range 600W Loudspeaker for Portable PA Applications
| Active or Passive | Passive | | Frequency Response | 70 Hz - 18 Hz ±3 dB
58 Hz - 20 Hz -10 dB | | Nominal Dispersion | 70° H x 70° V @ -6 dB points | | Power Capacity | 150 W continuous, 600 W peak | | Maximum Sound Pressure Level (SPL) | 113 dB continuous, 119 dB peak | | Nominal Sensitivity | 91 dB (1 W @ 1 m) | | Impedance | 4 Ohms | | Components | 1 x 8" (203 mm) LF driver
1 x 1" (25 mm) HF compression driver | | Wiring | Pins 1+ / 1- input, pins 2+ / 2- N/C | | Connectors | 1 x Neutrik speakON NL4 | | Construction | 5/8" (15 mm) birch plywood | | Dimensions | 17.9 x 11.0 x 9.3" (46 x 28 x 24 cm) | | Weight | 20.5 lb (9.3 kg) | | | | Box Dimensions (LxWxH) | 19.3 x 14.3 x 12.5" | - iNSPIRE 1000W Powered 12" Subwoofer with Dual Amplifier
| Frequency Response | 45 Hz - 150 Hz ±3 dB
38 Hz - 200 Hz -10 dB | | Nominal Dispersion | Half space | | Maximum Sound Pressure Level (SPL) | 120 dB | | Nominal Sensitivity | 4 dBu, nominal | | Transducer | 1 x 12" (31 cm) LF driver | | Input Impedance | 16 kOhms unbalanced, 33 kOhms balanced | | Limiter | Peak and RMS | | Output Power | Subwoofer: 600 W
Satellites: 2 x 200 W | | Crossover | Active | | Amplifier Type | Class-D | | Amplifier Protection | Short circuit, open circuit, thermal | | Connectors | Output L/R: 2 x Neutrik speakON
NL4, pins 1+ / 1-
Input A/B: 2 x combo XLR-1/4" Jack | | Maximum Input Level | +22 dBu | | Link | XLR | | Mains Supply | IEC mains connector with integrated power switch | | Controls | Hardware Rotary push-encoder
Software iOS interface via Bluetooth | | DSP Effects | Factory EQ Presets: Positioning, Sound mode, phase
Display: LCD 128 x 32, blue, backlit
Equalization: Bass, middle, and treble
Crossover: High pass L-R 24 dB/oct
Protection: Lock-out function for all settings | | Bluetooth | Frequency Range: 2402 MHz to 2480 MHz
Channel Number: 79
Version: Bluetooth 4.0 dual mode
Output: 8 dBM
Compatibility: Supports A2DP 1.2 profile
Maximum Communication Range: 98' (30 m) without interference
Connectivity Master-Slave: Stereo pairing link | | Power Consumption | 110 W @ 1/8 maximum power | | Voltage | 100 to 120 V, 50/60 Hz (T 6.3 A H 250 V) | | Construction | 5/8" (15 mm) birch plywood sub | | Finish | Semi matt black paint | | Grille | Powder coated perforated steel | | Dimensions | 19 x 17 x 20" (49 x 42 x 50 cm) | | Weight | 49 lb (22 kg) |
