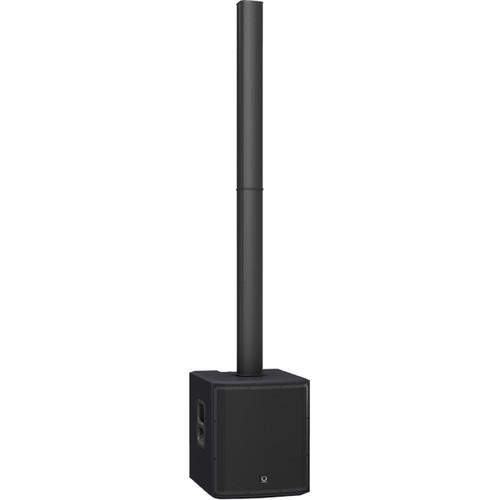

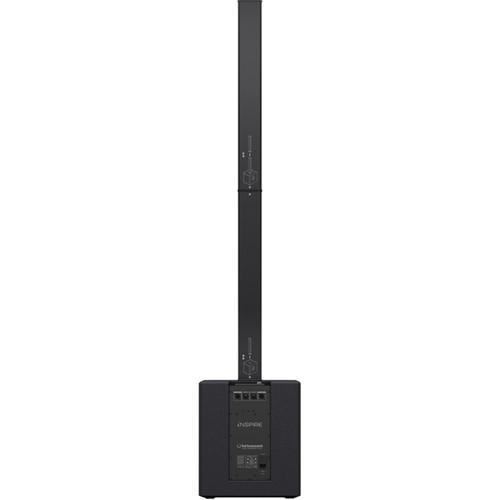

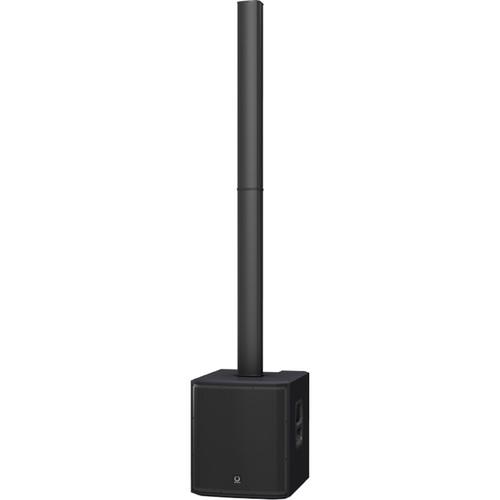

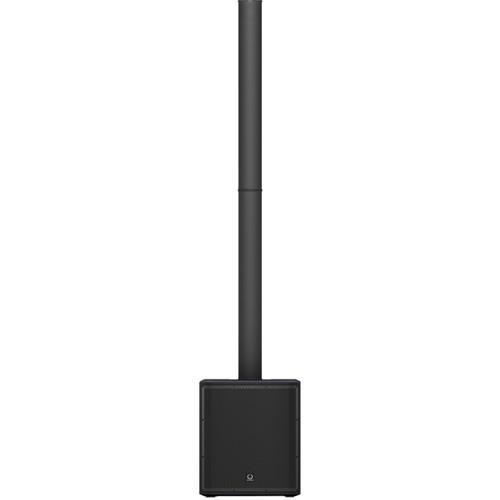

User Manual for Turbosound iNSPIRE iP2000 V2 - Powered Column Loudspeaker with 12" Subwoofer Click to enlarge the picture
Contents of the user manual for the Turbosound iNSPIRE iP2000 V2 - Powered
- Product category: PA Speakers Turbosound
- Brand: Turbosound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Turbosound PA Speakers
 |
User manual for the Turbosound iNSPIRE iP2000 V2 - Powered contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Turbosound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Turbosound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Turbosound product will considerably shorten its lifespan!
|
Product description Building upon the success of the original IP2000, the Turbosound iNSPIRE iP2000 V2 is a self-contained full-range powered speaker system well-suited for small-to-medium-sized performance venues, houses of worship, boardroom presentations, nightclubs, and more. The 1000-watt powered column loudspeaker features a 12" subwoofer, 16 neodymium mid-hi drivers, a horn-loaded super tweeter, KLARK TEKNIK Spatial Sound Technology (SST), a digital mixer, Bluetooth audio streaming, and remote control via iPhone/iPad. The version 2 adds a KLARK TEKNIK designed studio reverb, creating depth and space within your mix.
With a 120° dispersion, the iP2000 V2 provides such wide coverage; it eliminates the need for monitor wedges for performers and creates a more even, sonically balanced soundscape that covers the entire room. Additionally, the SST creates a well-defined virtual 3-D environment, enveloping the listener in a rich and more realistic experience. The integrated DSP ensures the greatest signal integrity possible by analyzing the incoming audio and intelligently applying specific filters to improve the sound quality.
The built-in digital mixer accepts balanced and unbalanced connections for dynamic microphones and line-level instruments. The on-board interface is simple by design with a rotary push encoder and buttons for Process, Setup, Exit, and Enter. The backlit LCD displays parameters for Delay, Limiter, High/Low shelving and parametric EQs, and Presets. All controls can be controlled locally, or via the free downloadable iOS app. The iP2000 V2 ships with a standard IEC power cord. -
- Modular column loudspeaker for portable PA applications and high-quality music playback
- KLARK TEKNIK's SST (Spatial Sound Technology) for creating 3D acoustic environments
- Wide sound dispersion (120°) provides consistent sound to the audience and performers
- 1000W power, multi-channel KLARK TEKNIK Class-D technology
- 3-channel digital mixer with gain setting recall
- Studio-grade stereo reverb adds finishing touch to your sound
- Comprehensive remote control via Apple iPhone/iPad
- High-quality Bluetooth stereo audio streaming
- DSP presets for application-type and speaker positioning
- Intuitive single rotary control user interface with LCD display for ease of navigation
- 12" high-excursion, low-frequency driver for low-distortion, sub-bass response
- 16 x 2.75" neodymium drivers for clean mid-range and high-frequency reproduction
- Horn-loaded super tweeter extends high-frequency range and throw
- Precision-lock, aluminum array system eliminates speaker stands and cables
- Road-worthy birch plywood enclosure with hard wearing semi-matte black paint finish
- Rugged powder-coated perforated steel mesh grille
- Integral ergonomic carrying handles for ease of portability
UPC: 653341318831 In the Box Turbosound iNSPIRE iP2000 V2 - Powered Column Loudspeaker with 12" Subwoofer Power Cord Limited 90-Day Warranty, Extended to 10 Years with Registration Quick start Guide PDF 1.6mbdcaweuzttyzcyufvrvzscfarbfc Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound iNSPIRE iP2000 V2 - Powered Column Loudspeaker with 12" Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound iP2000 v2 Specs | | | Configuration | Active 4-Way | | Total Power Capacity | 1000 W Peak | | Amplifier Class | Class-D | | | | HF Driver | 1 x 1" / 25 mm Compression Driver | | MF Driver | 16 x 2.75" / 70 mm | | LF Driver | 1 x 12" / 304.8 mm Woofer | | | | Frequency Response | 45 Hz to 20 kHz ±3 dB
38 Hz to 20 kHz -10 dB | | Maximum SPL | 123 dB | | Coverage Angle | 120° H at -6 dB | | Input Sensitivity | +4 dBu (Nominal) | | Max Input Level | +22 dBu | | I/O Impedance | Input:
16 kOhms (Unbalanced)
33 kOhms (Balanced) | | Protections | Open Circuit, Short Circuit, Thermal | | | | Audio I/O | 2 x Combo XLR / 1/4" Input
2 x XLR Output | | Bluetooth Version | 4.0 Dual-Mode | | Bluetooth Profiles | A2DP 1.2 | | Wireless Range | 98.4' / 30 m | | | | Crossover | Active/Passive 4-Way Crossover with Active and Passive Components | | EQ | HF Shelf
MF Notch/Peak
LF Shelf
Presets (Factory) | | Dynamic Processing | HF Limiter, LF Limiter | | | | AC Input Power | 100 to 120 VAC, 50 / 60 Hz (T 6.3 A H 250 V) | | AC Power Connector | 1 x IEC | | Power Consumption | 110 W (1/8 Power) | | | | Construction Material | Metal, Plywood | | Dimensions | 81.2 x 16.5 x 19.7" / 206.3 x 42.0 x 50.0 cm (Array and Base)
19.1 x 16.5 x 19.7" / 48.5 x 42.0 x 50.0 cm (Base)
32.8 x 4.1 x 3.5" / 83.4 x 10.3 x 8.9 cm (Array) | | Weight | 68.1 lb / 30.9 kg | | | | Package Weight | 21.6 lb | | Box Dimensions (LxWxH) | 36.0 x 11.0 x 8.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 67 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Turbosound iNSPIRE iP2000 V2 - Powered Column Loudspeaker with 12" Subwoofer
| Subject: Turbosound Inspire Ip2000V | | Date: 20.01.2024 14:52:28 | Name: David Roscoe | Need help. My IP2000 after plugging into power outlet and all cables connected will power up just fine. Once I start to play music through it from laptop my IP2000 will stop playing the music and turns off. Appreciate any help you could give me to troubleshoot this issue.
Thank you. | | Post reply |
