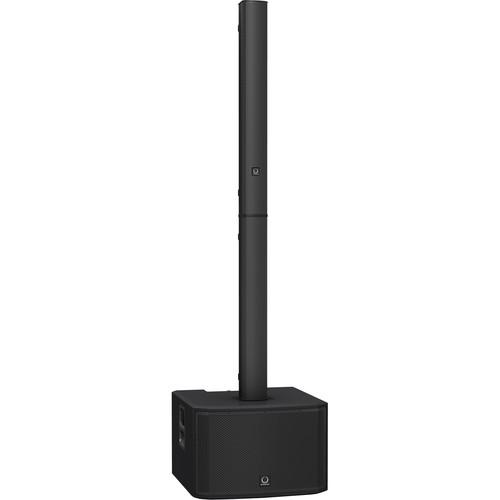

User Manual for Turbosound iNSPIRE iP3000 - Powered Column Loudspeaker with Dual 12" Subwoofers Click to enlarge the picture
Contents of the user manual for the Turbosound iNSPIRE iP3000 - Powered Column
- Product category: Portable PA Systems Turbosound
- Brand: Turbosound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Turbosound Portable PA Systems
|
User manual for the Turbosound iNSPIRE iP3000 - Powered Column contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Turbosound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Turbosound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Turbosound product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More ztrusrxvfafvxswuytrbxauszf The Turbosound iNSPIRE iP3000 is a self-contained full-range powered speaker system well suited for small to medium-sized performance venues, houses of worship, boardroom presentations, nightclubs, and more. The 2000W powered column loudspeaker features dual 12" subwoofers, 16 neodymium mid-hi drivers, dual horn-loaded super tweeters, Klark Teknik Spatial Sound Technology (SST), a digital mixer, Bluetooth audio streaming, and remote control via iOS/Android. With a 120° dispersion, the iP3000 provides such wide coverage; it eliminates the need for monitor wedges for performers and creates an even, sonically balanced soundscape that covers the entire room. Additionally, the SST creates a well-defined virtual 3-D environment, enveloping the listener in a rich and more realistic experience. The integrated DSP ensures the greatest signal integrity possible by analyzing the incoming audio and intelligently applying specific filters to improve the sound quality. The built-in digital mixer accepts balanced and unbalanced connections for dynamic microphones and line-level instruments. The on-board interface is simple by design with a rotary push encoder and buttons for Process, Setup, Exit, and Enter. The back-lit LCD displays parameters for Delay, Limiter, High/Low shelving and parametric EQs, and Presets. All controls can be controlled locally, or via the free downloadable iOS/Android app. The iP3000 ships with a standard IEC power cord. -
- Modular column loudspeaker for portable PA applications and high-quality music playback
- Klark Teknik's Spatial Sound Technology (SST) for creating 3D acoustic environments
- Wide sound dispersion (120°) provides consistent sound to the audience and performers
- 2000W power, multi-channel Klark Teknik Class-D technology
- 3-channel digital mixer with gain setting recall
- Studio-grade stereo reverb adds finishing touch to your sound
- Comprehensive remote control via Apple iPhone/iPad
- High-quality Bluetooth stereo audio streaming
- DSP presets for application type and speaker positioning
- Intuitive single rotary control user interface with LCD display for ease navigation
- Dual 12" high-excursion low-frequency drivers for low distortion sub-bass response
- 16 x 3.5" neodymium drivers for clean mid-range and high-frequency reproduction
- Dual horn-loaded super-tweeters extend high-frequency range and throw
- Precision-lock, aluminum array system eliminates speaker stands and cables
- Road worthy plywood enclosure with hard wearing semi-matte black paint finish
- Rugged powder coated perforated steel mesh grille
- Integral ergonomic carrying handles for ease portability
UPC: 653341306630 In the Box Turbosound iNSPIRE iP3000 - Powered Column Loudspeaker with Dual 12" Subwoofers Power Cord Limited 1-Year Warranty, Extended to 3-Year Warranty with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound iNSPIRE iP3000 - Powered Column Loudspeaker with Dual 12" Subwoofers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound IP3000 Specs | Frequency Response | 45 Hz to 20 kHz ±3 dB 40 Hz to 20 kHz -10 dB | Nominal Dispersion | 120° H @ -6 dB points | Max SPL Level | 130 dB | Crossover Type | 5-way, active | Transducer | LF Drivers: 2 x 12.0" (304.8 mm) MF Drivers: 16 x 3.5" (88.9 mm) HF Compression Drivers: 2 x 1.0" (25.0 mm) | Limiter | Independent high, mid and low frequency | | Max Output Power | 2000 W | Type | Class-D | Protection | Short circuit, open circuit, thermal | Channels | 6 | | Input | Input A/B: 2 x Combo XLR-1/4" (6.35 mm) | Sensitivity | 4 dBu, nominal | Input Impedance | Unbalanced: 16 kOhms Balanced: 32 kOhms | Maximum Input Level | +22 dBu | Link | Link Output: XLR | Mains Supply | IEC mains connector with integrated power switch | | Hardware | Rotary push-encoder | Software | iOS/Android interface via Bluetooth | | EQ Presets | Factory EQ Presets: Positioning, sound mode | Display | LCD 128 x 32, blue, backlit | Level | Main and subwoofer | Equalization | Bass, middle, and treble | | Input Equalization | Bass and treble | Reverb | Klark Teknik design | | Frequency Range | 2402 to 2480 MHz | Channel | 79 | Version | Bluetooth 4.1 dual mode | Output | 8 dBM | Compatibility | Supports GATT/A2DP 1.2 profile | Maximum Range | 98.4' (30 m) (without interference) | Connectivity | Master-Slave: Stereo pairing link | | Power Consumption | 180 W @ 1/8 max power | Voltage | Voltage (fuses) USA / Canada / Japan: 100 to 120 VAC, 60 Hz (T 10 A H 250 V) | | Construction Material | Construction Base: 0.6" (15.0 mm) plywood Construction Tower: Aluminum alloy | Finish and Grille Color | Finish: Semi-matte black paint Grille: Powder coated perforated steel | Dimensions (H x W x D) | Base and Tower: 87.2 x 24.4 x 24.4" (221.5 x 62.0 x 62.0 cm) Base: 16.3 x 24.4 x 24.4" (41.4 x 62.0 x 62.0 cm) Tower: 39.8 x 4.7 x 5.4" (101.1 x 12.0 x 13.7 cm) | Weight | 114.0 lb (51.7 kg) | | Package Weight | 84.5 lb | Box Dimensions (LxWxH) | 29.5 x 29.0 x 20.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 51 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Turbosound iNSPIRE iP3000 - Powered Column Loudspeaker with Dual 12" Subwoofers
Subject: ip3000 drops signal then comes back on | Date: 08.02.2023 20:29:46 | Name: Michael Fields | I’ve got two stacks of IP 3000. When I am DJing are running my band through them, they cut off for a second and come back on. Both sets are doing them I have used other speakers, and the other speakers worked fine so my cabling is good I have seen videos on YouTube saying you have to send the subs back to have them repaired. I do have warranty’s, but is there something a local shop can do our repair that I can do myself. If I need to send them back, do I need to send the subs and the speakers that connect to the subs? | Post reply |
