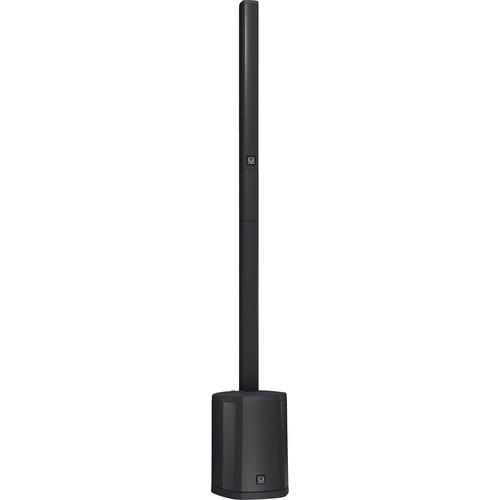

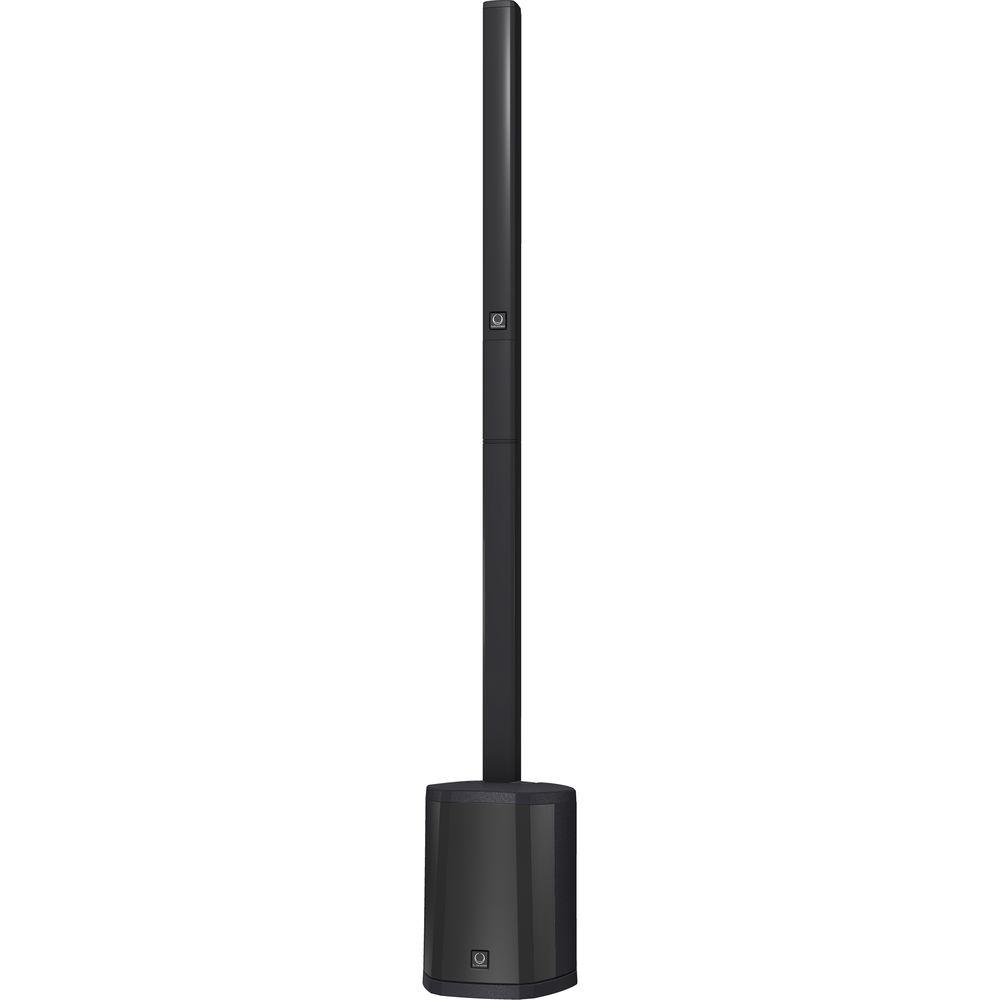

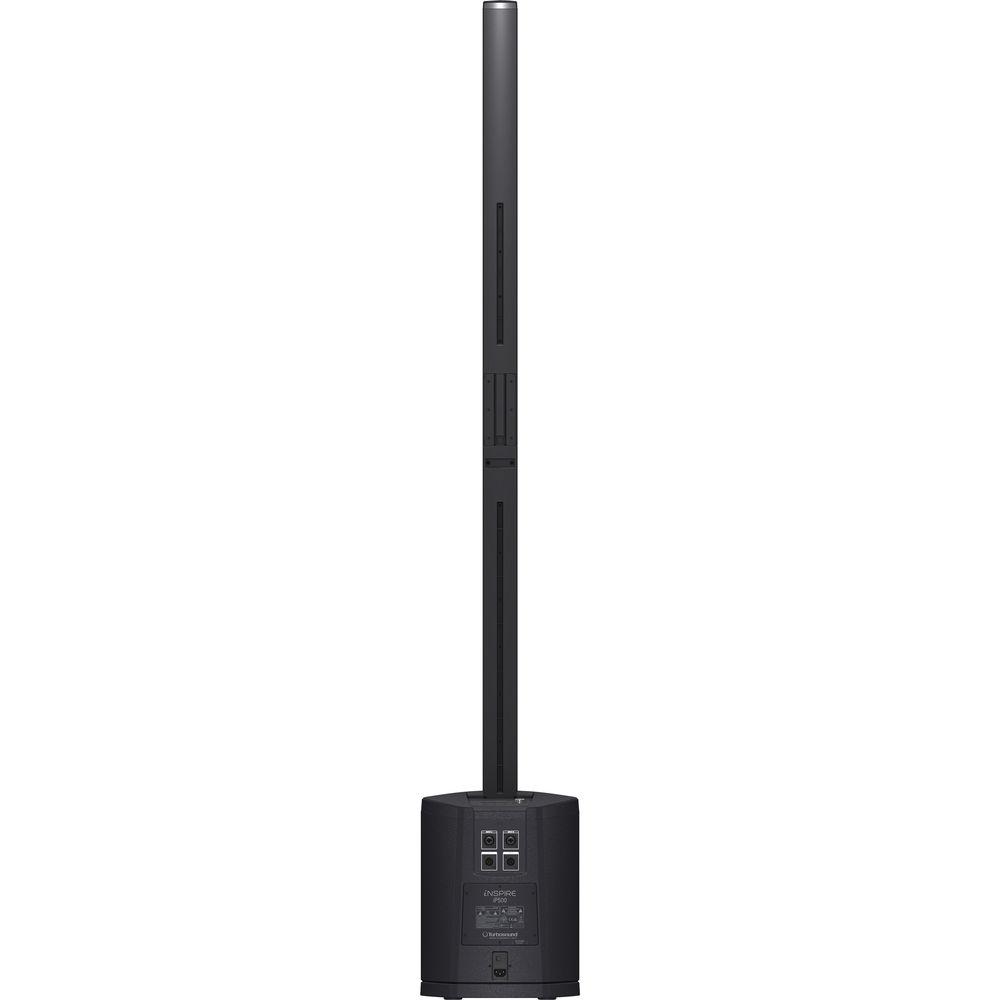

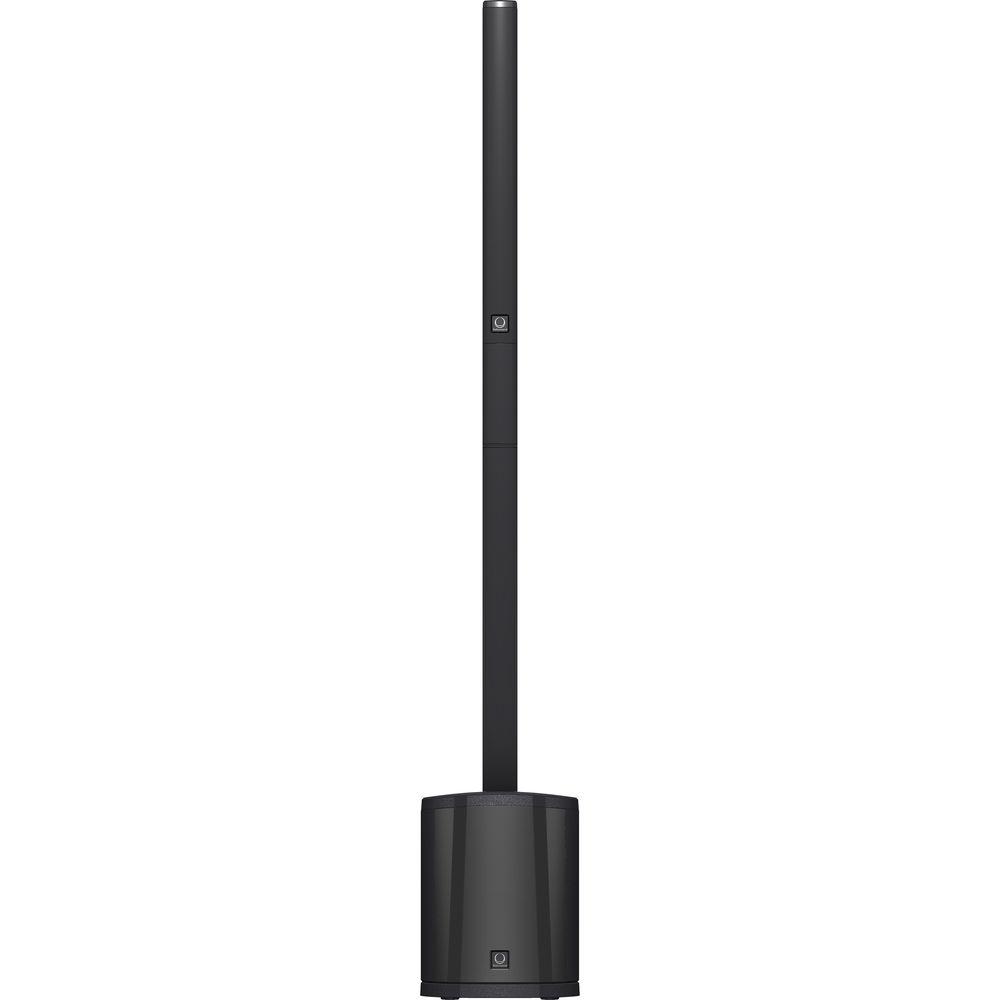

Product description The Turbosound iNSPIRE iP500 V2 is a self-contained full-range powered speaker system well suited for small to medium-sized performance venues, houses of worship, boardroom presentations, nightclubs, and more. The 600-watt powered column loudspeaker features a single 8" subwoofer, six neodymium high-frequency drivers, KLARK TEKNIK Spatial Sound Technology (SST), a digital mixer, Bluetooth audio streaming, and remote control via iPhone/iPad.
With a 100° dispersion, the iP500 V2 provides such wide coverage; it eliminates the need for monitor wedges for performers and creates a more even, sonically balanced soundscape that covers the entire room. Additionally, the SST creates a well-defined virtual 3-D environment, enveloping the listener in a rich and more realistic experience. The integrated DSP ensures the greatest signal integrity possible by analyzing the incoming signal and intelligently applying specific filters to improve the sound quality.

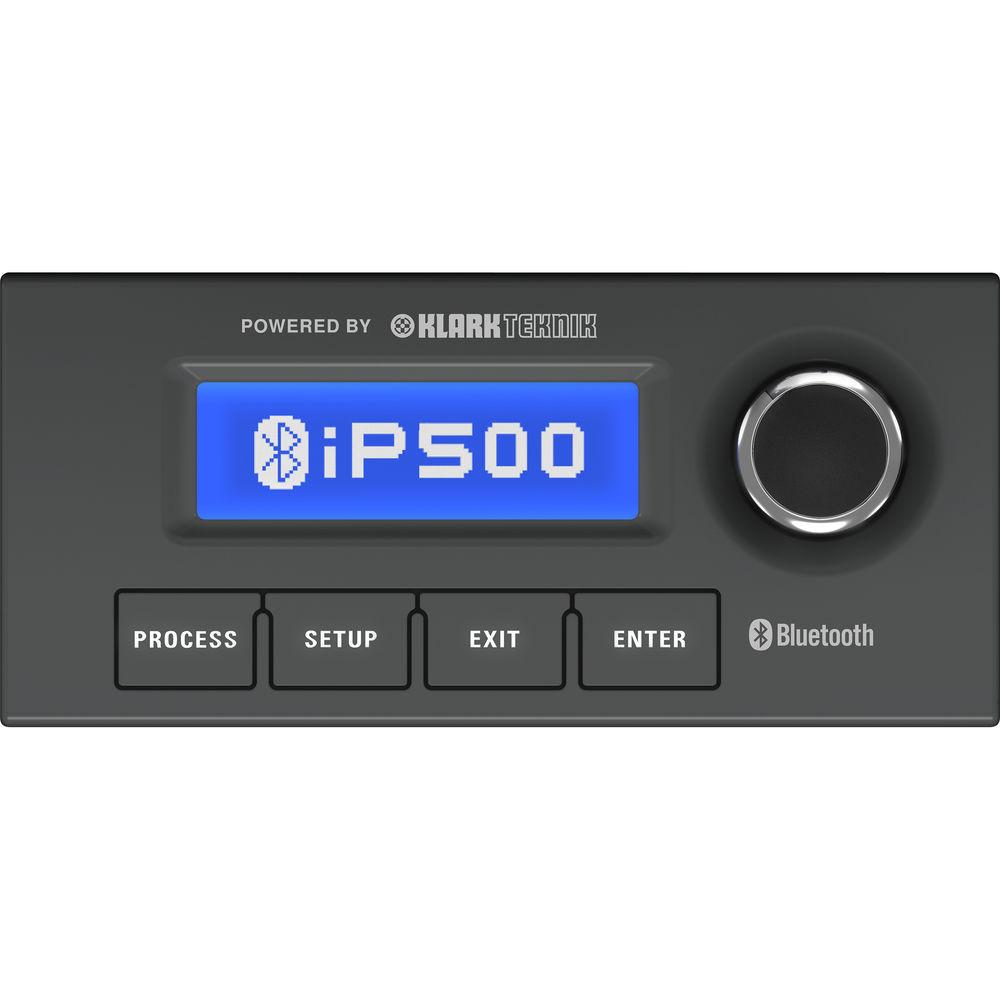

The built-in digital mixer accepts balanced and unbalanced connections for dynamic microphones and line-level instruments. The on-board interface is simple by design with a rotary push encoder and buttons for Process, Setup, Exit, and Enter. The back-lit LCD displays parameters for Delay, Limiter, High/Low shelving and parametric EQs, and Presets. All controls can be controlled locally, or via the free downloadable iOS app. The iP500 ships with a standard IEC power cord and a durable shoulder bag for carrying the column sections. -
- Modular column loudspeaker for portable PA applications and high-quality music playback
- Klark Teknik's revolutionary SST (Spatial Sound Technology) for creating 3D acoustic environments
- Wide sound dispersion provides consistent sound to the audience and performers
- 600W power, multichannel Klark Teknik Class-D technology
- 3-channel digital mixer with gain setting recall
- Studio-grade stereo reverb adds finishing touch to your sound
- Comprehensive remote control via Apple iPhone/iPad
- High-quality Bluetooth stereo audio streaming
- DSP presets for application type and speaker positioning
- Intuitive single rotary control user interface with LCD display for ease of navigation
- 8" high-excursion low-frequency driver for low distortion sub-bass response
- 6 x 2" neodymium drivers with edge wound aluminum voice coils for extended high-frequency reproduction
- Multiple height configurations for floor or elevated use
- Precision-lock system eliminates speaker cables and stands
- High impact and lightweight enclosure
- Integrated protective perforated steel mesh grilles
- Integral ergonomic carrying handle for ease of portability
- Durable shoulder bag included for carrying column sections
UPC: 653341338235 In the Box Turbosound iNSPIRE iP500 V2 - Powered Column Loudspeaker with 8" Subwoofer Power Cord Shoulder Bag Limited 90-Day Warranty, Extended to 10 Years with Registration Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound iNSPIRE iP500 V2 - Powered Column Loudspeaker with 8" Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound P500V2 Specs | | | Configuration | Active Subwoofer | | Total Power Capacity | 600 W Peak | | Amplifier Class | Class-D | | | | HF Driver | 6 x 2" / 54.2 mm | | LF Driver | 1 x 8" / 208 mm Woofer | | | | Frequency Response | 65 Hz to 14 kHz ±3 dB
50 Hz to 16 kHz -10 dB | | Maximum SPL | 118 dB | | Coverage Angle | 100° H at -6 dB | | Input Sensitivity | +4 dBu (Nominal) | | Max Input Level | +22 dBu | | I/O Impedance | Input:
16 kOhms (Unbalanced)

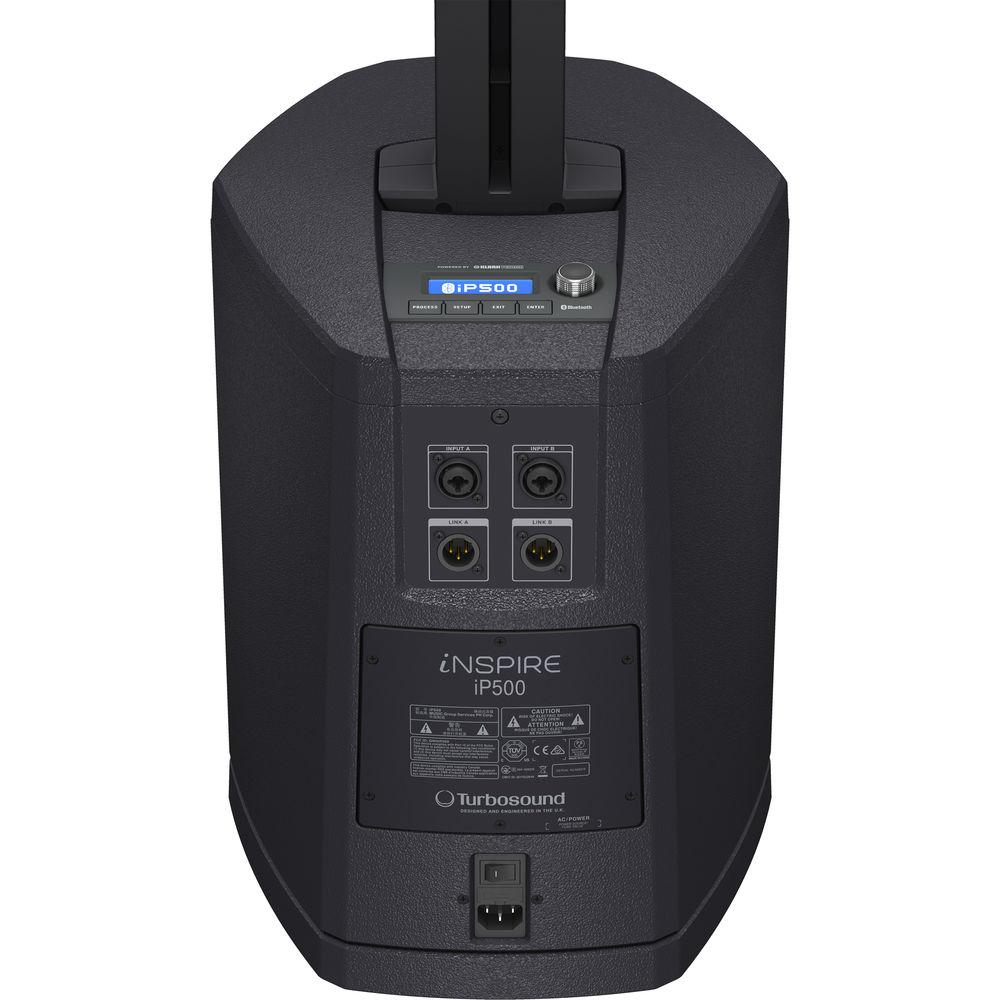

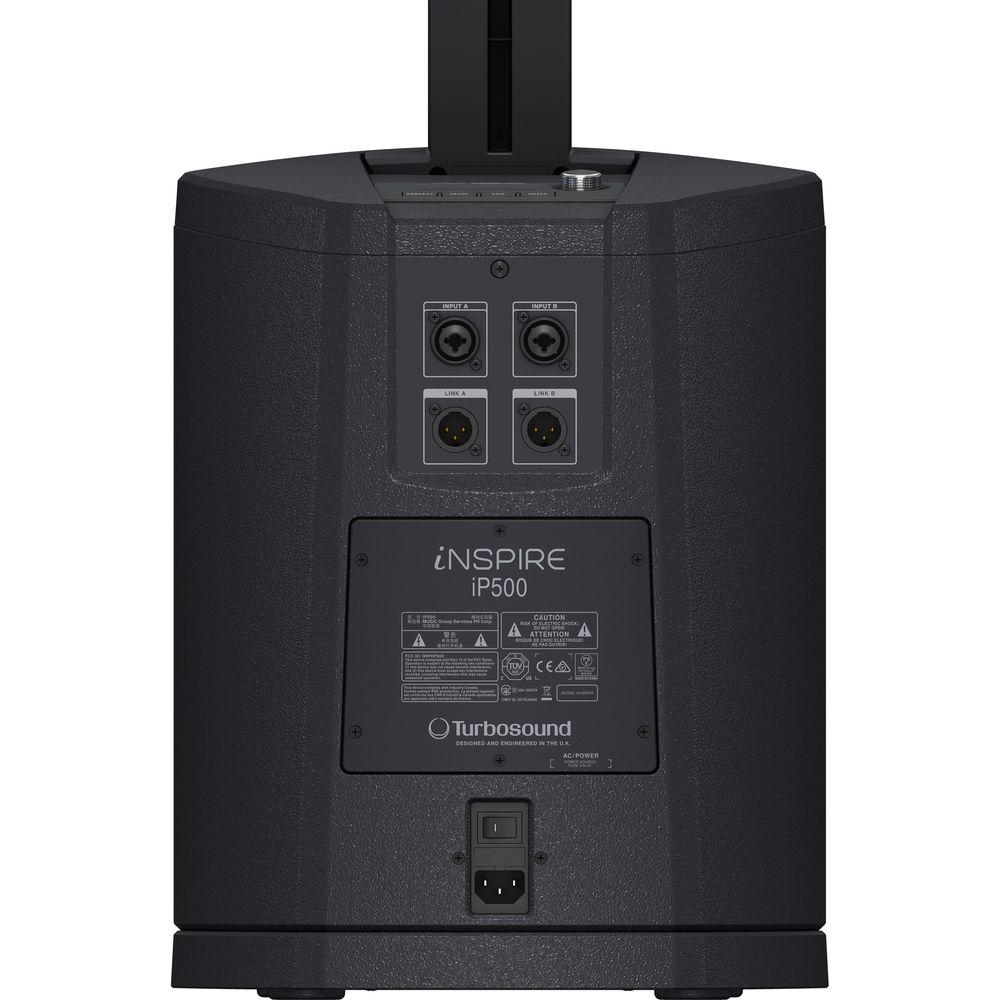

33 kOhms (Balanced) | | Protections | Open Circuit, Short Circuit, Thermal | | | | Audio I/O | 2 x Combo XLR / 1/4" Input
2 x XLR Output | | Bluetooth Version | 4.0 | | Bluetooth Profiles | A2DP 1.2 | | Wireless Range | 98.4' / 30 m | | | | Crossover | Active | | EQ | HF Shelf
MF Notch/Peak
LF Shelf | | Dynamic Processing | HF Limiter, LF Limiter | | | | AC Input Power | 100 to 120 VAC, 50 / 60 Hz (T 6.3 A H 250 V) | | AC Power Connector | 1 x IEC | | Power Consumption | 80 W (1/8 Power) | | | | Construction Material | ABS, Polypropylene | | Dimensions | 79.0 x 12.6 x 15.7" / 200.7 x 32.0 x 39.9 cm (Array and Base)
16.4 x 12.6 x 15.7" / 41.7 x 32.0 x 39.9 cm (Base)
36.1 x 5.2 x 2.8" / 91.7 x 13.2 x 7.1 cm (Array) | | Weight | 33.2 lb / 15.1 kg | | | | Package Weight | 11.3 lb | | Box Dimensions (LxWxH) | 40.0 x 11.5 x 8.0" |
