User Manual for Turbosound iNSPIRE iP82 2-Way 8" Full Range 600W Loudspeaker for Portable PA Applications Click to enlarge the picture
Contents of the user manual for the Turbosound iNSPIRE iP82 2-Way 8" Full
- Product category: PA Speakers Turbosound
- Brand: Turbosound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Turbosound PA Speakers
 |
User manual for the Turbosound iNSPIRE iP82 2-Way 8" Full contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Turbosound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Turbosound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Turbosound product will considerably shorten its lifespan!
|

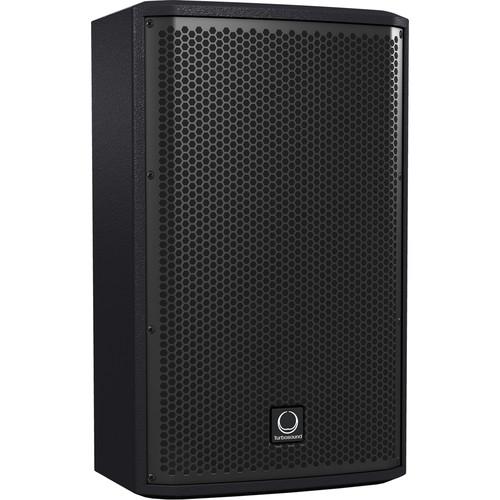

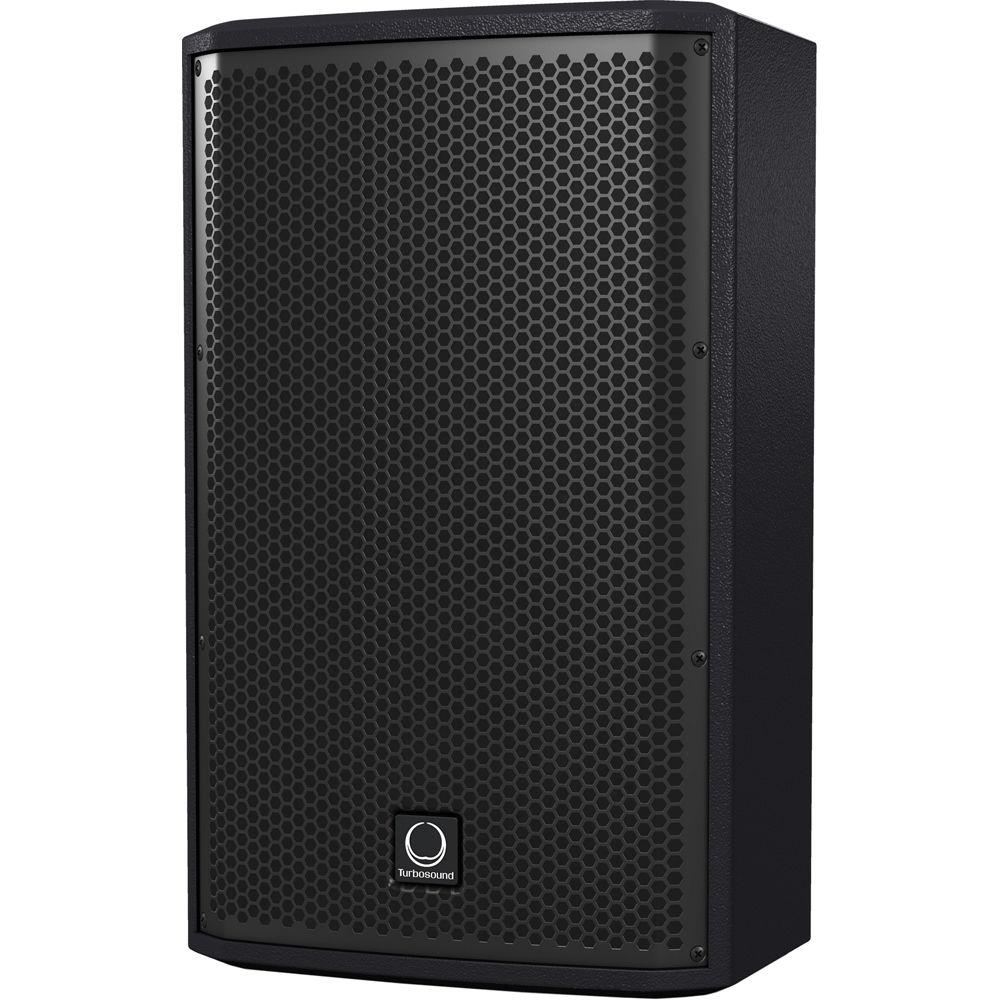

Product description The iNSPIRE iP82 2-Way 8" Full Range 600W Loudspeaker from Turbosound is a passive loudspeaker system ideally suited for a wide range of portable speech and music sound reinforcement applications. The iP82 Loudspeaker provides optimal performance as an FOH satellite speaker when used with the iP12B or iP15B Active Subwoofer (sold separately). It is also suitable for sidefill, stage lip, balcony, and delay line applications, as well as for small to medium-sized performance venues such as houses of worship, boardroom, nightclubs, and many more. - Custom-Engineered Drivers
-
- Engineered to perform in conjunction with every other element for professional results
- 2-way full range loudspeaker for portable PA applications
- Features an 8" low frequency driver with a low mass voice coil for improved transient response, and a high temperature dome 1" compression driver mounted on a low distortion 70° horizontal by 70° vertical dispersion waveguide
- All drivers are matched with an internal passive crossover network in a reflex-loaded enclosure, which ensures truly professional performance
- Solid Construction
-
- Finished in a highly durable semi matt black paint, the loudspeaker cabinet is constructed from 5⁄8" birch plywood
- Includes a rugged powder coated perforated steel mesh grille backed with reticulated foam
- Features a 35mm socket for pole mounting atop the iP15B / iP12B Active Subwoofer, or on industry-standard loudspeaker stands
- High Performance
-
- 150W continuous, 600W peak power
- Built rugged to withstand the rigors of the road
- Custom-designed transducer handles up to 600W of input power and is ideal for portable applications

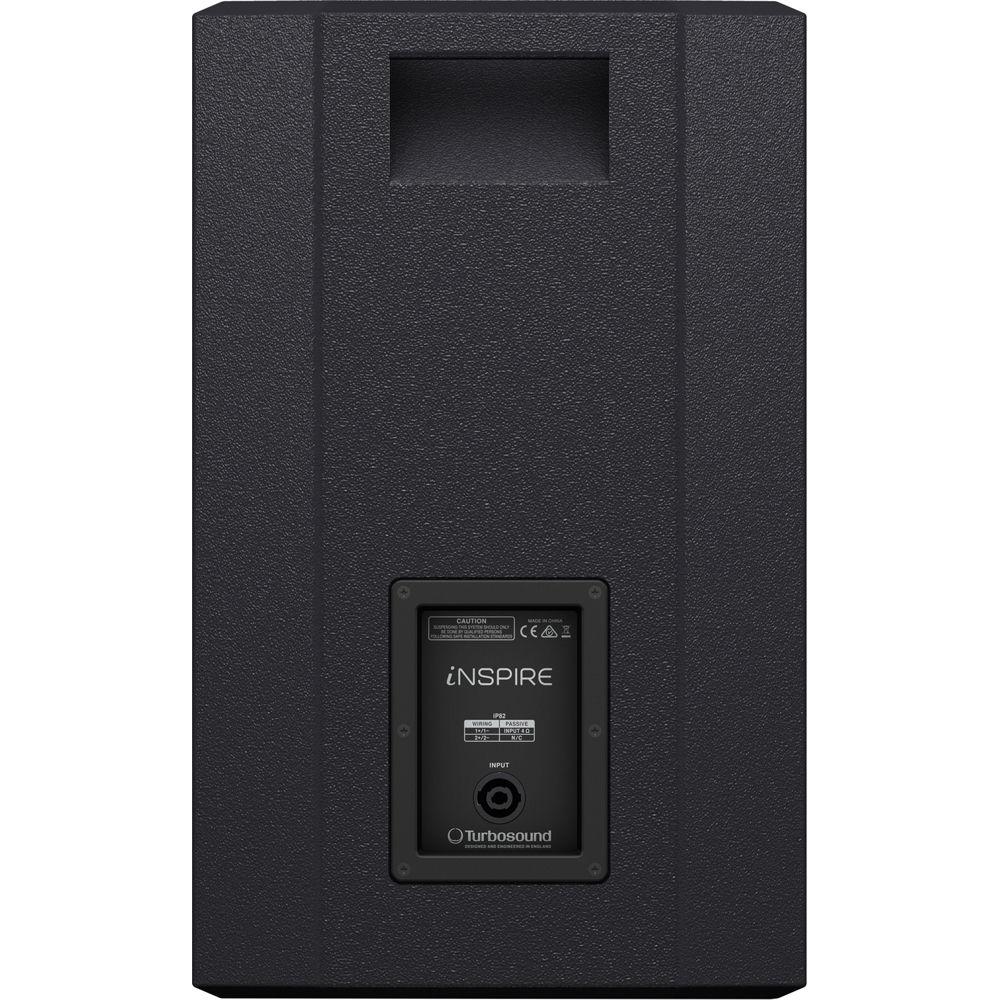

- Neutrik speakON NL4 connector for reliable long life operation
UPC: 748252159045 In the Box Turbosound iNSPIRE iP82 2-Way 8" Full Range 600W Loudspeaker for Portable PA Applications Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound iNSPIRE iP82 2-Way 8" Full Range 600W Loudspeaker for Portable PA Applications in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound iP82 Specs | Active or Passive | Passive | | Frequency Response | 70 Hz - 18 Hz ±3 dB
58 Hz - 20 Hz -10 dB | | Nominal Dispersion | 70° H x 70° V @ -6 dB points | | Power Capacity | 150 W continuous, 600 W peak | | Maximum Sound Pressure Level (SPL) | 113 dB continuous, 119 dB peak | | Nominal Sensitivity | 91 dB (1 W @ 1 m) | | Impedance | 4 Ohms | | Components | 1 x 8" (203 mm) LF driver
1 x 1" (25 mm) HF compression driver | | Wiring | Pins 1+ / 1- input, pins 2+ / 2- N/C | | Connectors | 1 x Neutrik speakON NL4 | | Construction | 5/8" (15 mm) birch plywood | | Dimensions | 17.9 x 11.0 x 9.3" (46 x 28 x 24 cm) | | Weight | 20.5 lb (9.3 kg) | | | | Package Weight | 25.1 lb | | Box Dimensions (LxWxH) | 19.3 x 14.3 x 12.5" |
