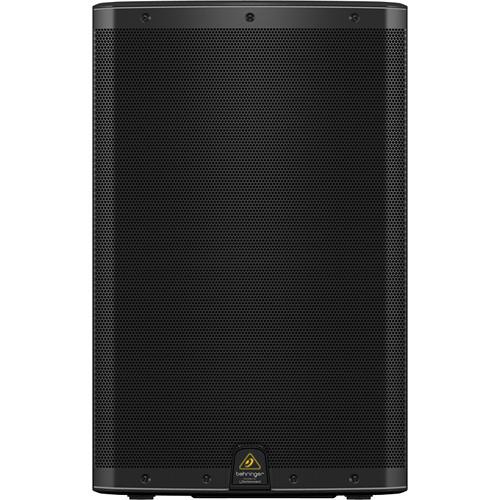

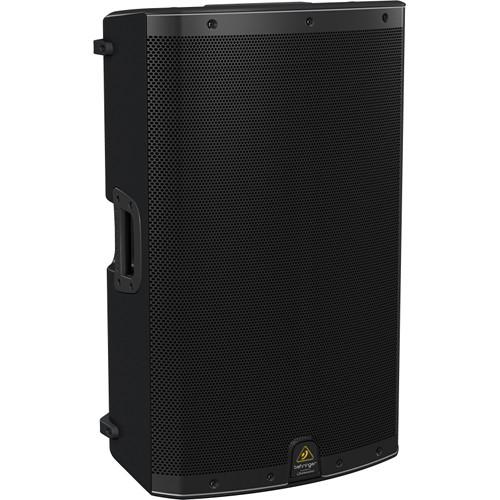

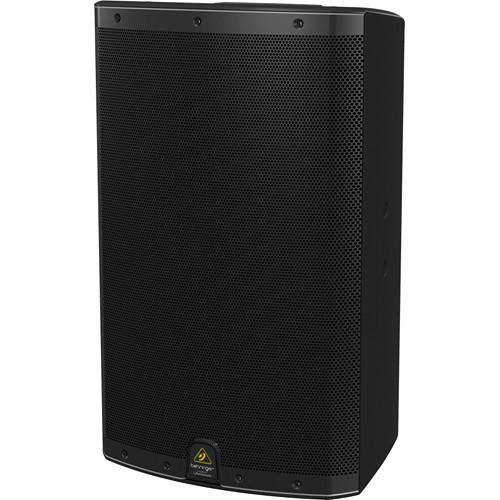

User Manual for Turbosound IQ-15 2500W 15" 2-Way Speaker System Click to enlarge the picture
Contents of the user manual for the Turbosound IQ-15 2500W 15" 2-Way Speaker
- Product category: PA Speakers Turbosound
- Brand: Turbosound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Turbosound PA Speakers
 |
User manual for the Turbosound IQ-15 2500W 15" 2-Way Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Turbosound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Turbosound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Turbosound product will considerably shorten its lifespan!
|
Product description The IQ-15 2500W 15" 2-Way Speaker System from Turbosound is an ULTRANET equipped digital loudspeaker, which is part of the Turbosound iQ Series. It can be used with ULTRANET-enabled products, such as digital mixers and personal monitor systems, and other iQ Series loudspeakers and subwoofers. The ULTRANET-enabled system is devoid of ground loops and interference problems, and you get pristine, crystal-clear audio via multi-channel and an all-digital signal distribution.

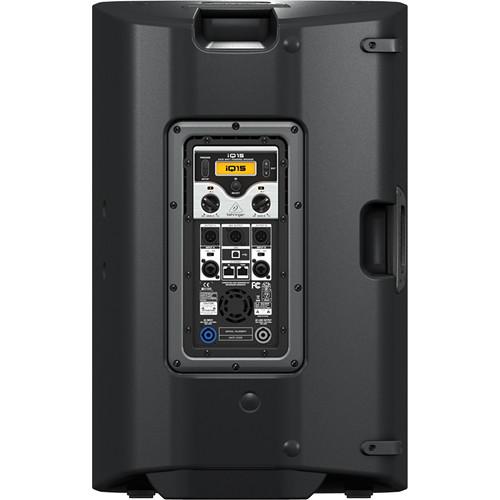

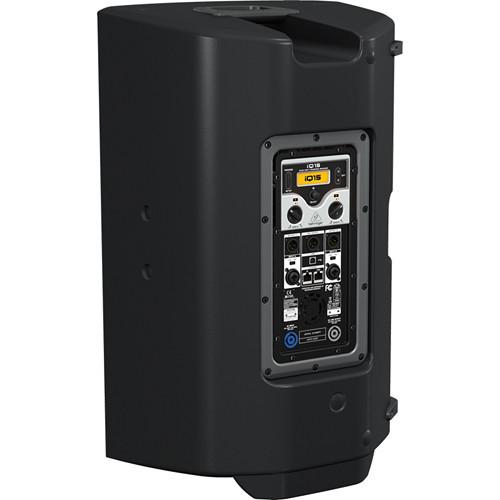

Featuring an onboard 2-channel mixer, USB-addressable DSP, 2,500W Class-D power amplifier, and Turbosound-designed low/high-frequency drivers, the IQ-15 speaker delivers sound that is smooth, crisp with punch, and has natural detail. It is equipped with KLARK TEKNIK DSP processing, which ensures total system control and driver protection, and features a phase/time-correction crossover, EQ, noise gate, automatic feedback eliminator, and much more to maintain optimal performance. The setup can be done directly at the rear panel LCD, or remotely using a PC and Turbosound's free software download. In addition to the two combination balanced XLR-1/4" jack inputs, balanced XLR outputs for each of the two independent channels, and a Mix Out XLR connector, the IQ-15 features a mic/line switch and level control with signal present LED on each channel.Built with integrated fly-points, the cabinet can be suspended via optional hardware or ground stacked on its subwoofers (sold separately) to suit any venue for permanent installation. Finally, lightweight and powerful, the IQ-15 speaker system is suitable for both speech and music applications. - Ultra-high power, 2-way sound reinforcement speaker system
- Lightweight and fiberglass reinforced composite enclosure provides excellent sound even at extreme sound pressure levels
- High-acceleration 15" low-frequency driver provides deep bass and acoustic power
- 1" titanium-diaphragm compression driver for exceptional high-frequency reproduction
- Advanced KLARK TEKNIK digital signal processor for ultimate system control and speaker modeling
- Digital crossover, EQ, phase and time correction, and Automatic Feedback Eliminator
- Direct-access LCD management and full USB remote control via PC or Mac computer
- ULTRANET digital audio network connects to mixers and other sources
- 2 XLR-1/4" Mic/Line inputs with individual volume controls and peak LEDs
- Mix output enables linking of additional speaker systems
- Versatile trapezoidal enclosure design allows different positioning - stand mounting with dual 35mm pole sockets; tilts on its side for use as a floor monitor; M10 fly points, pull backs and yoke-mount options
UPC: 748252143945 In the Box Turbosound IQ-15 2500W 15" 2-Way Speaker System Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound IQ-15 2500W 15" 2-Way Speaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound iQ-15 Specs | | | Configuration | 2-Way | | Total Power Capacity | 2500 W | | Amplifier Class | Class-D | | | | HF Driver | 1 x 1" / 51 mm Titanium Compression Driver | | LF Driver | 1 x 15" / 387 mm Woofer | | | | Audio I/O | 2 x Combo XLR / 1/4" Line/Mic | | USB | 1 x USB Type-B (Host Connection) | | | | AC Power Connector | 1 x powerCON Input
1 x powerCON Output | | | | Mounting | 2 x 1.38" / 35 mm Pole Socket | | | | Package Weight | 67.8 lb | | Box Dimensions (LxWxH) | 32.5 x 22.0 x 20.0" |
