User Manual for Turbosound IQ15B 15" Front-Loaded Powered Subwoofer Click to enlarge the picture
Contents of the user manual for the Turbosound IQ15B 15" Front-Loaded Powered Subwoofer
- Product category: PA Speakers Turbosound
- Brand: Turbosound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Turbosound PA Speakers
 |
User manual for the Turbosound IQ15B 15" Front-Loaded Powered Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Turbosound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Turbosound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Turbosound product will considerably shorten its lifespan!
|

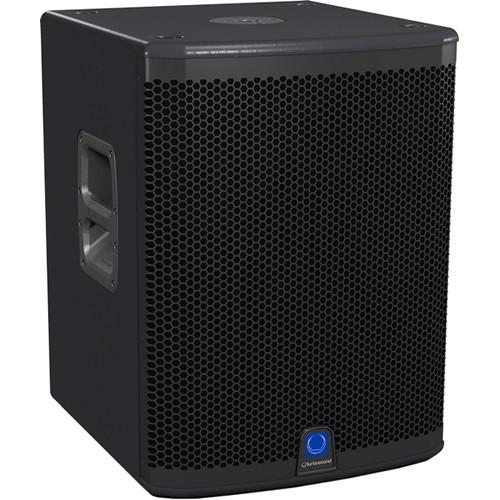

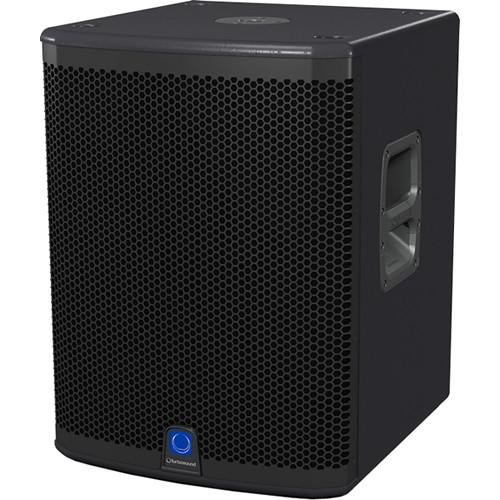

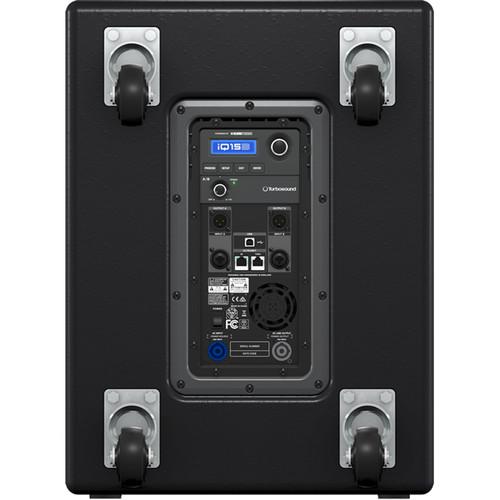

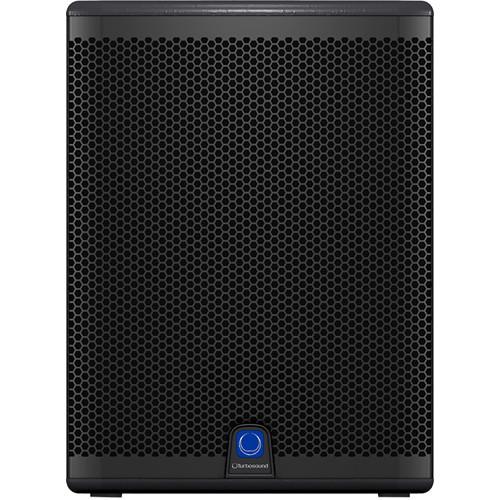

Product description The black IQ15B 15" Front-Loaded Powered Subwoofer from Turbosound is a 3000W high-performance 15" front-loaded subwoofer system designed for a wide range of speech and music sound-reinforcement applications. The high-excursion 15" low-frequency driver with double-suspension low-mass 4" voice coil provides fast and accurate transient response for virtually distortion-free operation.The birch-plywood enclosure is finished in a hard-wearing semi-matte black paint and fitted with a rugged powder-coated perforated steel-mesh grille, 35mm pole mount to support a satellite speaker, and plated steel castors with rubber tires. Mains-power input and link output is provided via Neutrik powerCON connectors. - Front-loaded powered subwoofer for portable PA and installation applications
- 3000W power featuring KLARK TEKNIK Class-D technology
- KLARK TEKNIK Digital Signal Processing for total system control
- Speaker modeling includes accurate models of industry-standard speakers
- ULTRANET digital-audio networking connects to mixers and other sources
- High-excursion 15" low-frequency driver with 4" voice coil and double suspension
- Fully featured user interface with LCD display for ease of navigation
- Birch-plywood enclosure with hard-wearing semi-matte black paint finish
- Rugged powder-coated perforated steel-mesh grille
- Plated steel castors with rubber tires
- Mains input and link output on Neutrik powerCON connectors
UPC: 748252144041 In the Box Turbosound IQ15B 15" Front-Loaded Powered Subwoofer (Black) Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound IQ15B 15" Front-Loaded Powered Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound IQ15B Specs | | | Frequency Response | 50 to 130 Hz ±3 dB
40 to 130 Hz -10 dB | | Nominal Dispersion | Half Space | | Maximum SPL | 130 dB peak | | Crossover Type | Active | | Driver | 1 x 15.0" (38.5 cm) LF driver | | Limiter | Peak and RMS | | | | Maximum Output Power | 3000 W | | Type | Class-D | | Protection | Short circuit, open circuit, thermal | | | | Input | A / B: 2 x combo XLR-1/4" | | Sensitivity | Line +4 dBu | | Input Impedance | Unbalanced: 20 kOhms
Balanced: 40 kOhms | | Maximum Input Level | +21 dBu | | Output | A / B: 2 x XLR linked to input | | Ultranet Input/Link | 2 x RJ45 | | Mains Supply | Neutrik powerCON input 20 A and link 15 A | | | | DSP | Rotary push-encoder
Buttons for PROCESS, SETUP, EXIT, ENTER | | Mixer Section | 1 x gain controls (channels A and B)
2 x line | | | | EQ Presets | Positioning, sound mode | | Display | LCD 128 x 32, blue backlit | | Delay | 0 to 300 ms | | Equalizer | High- and low-shelving EQ
2 x parametric EQ | | Limiter | Zero-attack input limiter | | Presets | 20 total presets, 19 user-definable | | Crossover | Low Pass L-R 24 dB / octave | | Protection | Lock-out function for all settings | | | | System | Signal: 16 channels
Latency: <0.9 ms | | Cabling | Shielded CAT5
Maximum Cable Length: 246.0' (75.0 meters) recommended | | | | Power Consumption | 200 W @ 1/8 maximum power | | Voltage | 120 V, 60 Hz (T: 15 A, H: 250 V) | | | | Construction | Birch plywood (screwed and glued) | | Grille | Powder-coated perforated steel | | Dimensions (W x H x D) | 23.7 x 17.5 x 19.5" (60.2 x 44.4 x 49.5 cm) | | Weight | 67.0 lb (30.4 kg) | | | | Package Weight | 82.5 lb | | Box Dimensions (LxWxH) | 30.0 x 25.0 x 23.0" |
