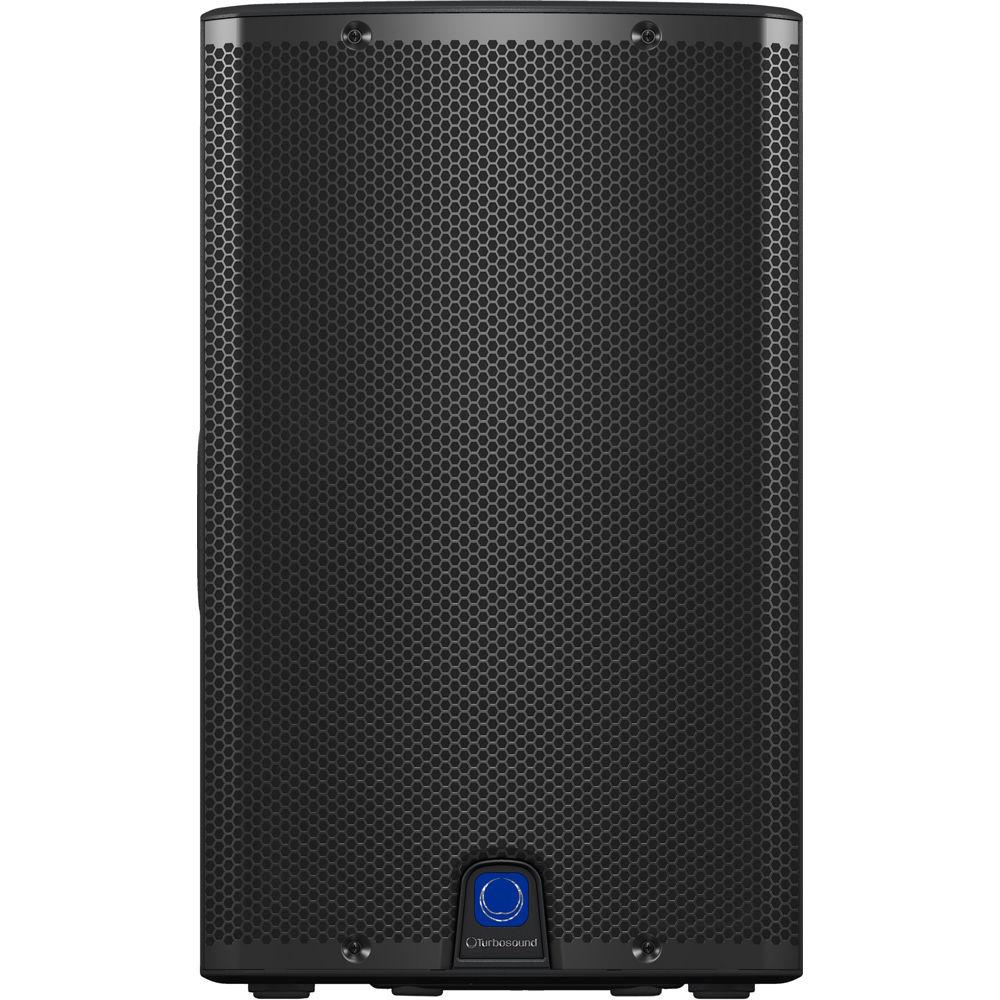

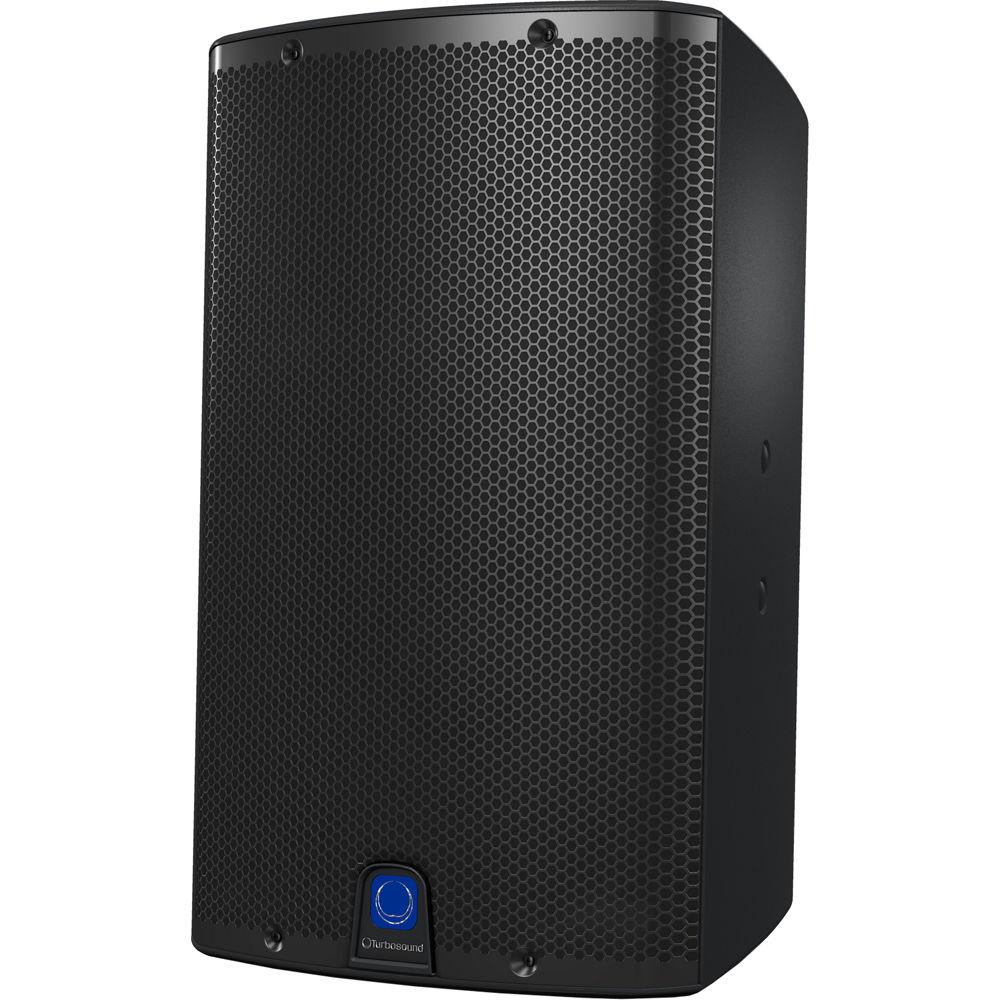

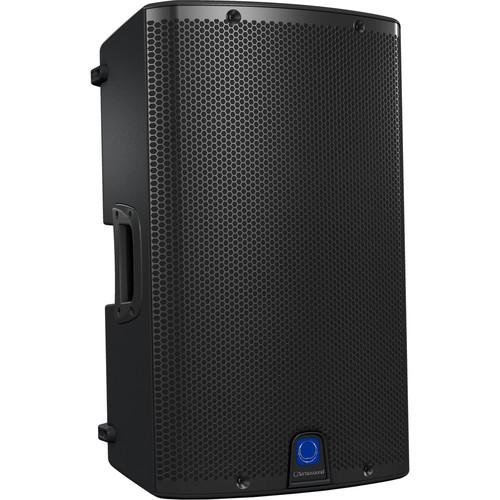

Product description The iX12 1000W Loudspeaker from Turbosound is a powered two-way 12" loudspeaker with Bluetooth audio streaming ideally suited for a wide range of portable and fixed music and speech sound reinforcement applications. The KLARK TEKNIK DSP controls the built-in 3-channel digital mixer via a single-knob user interface, as well as providing comprehensive wireless remote control via dedicated app for iPhone/iPad. The iX12's powerful 12" low frequency driver and 1" titanium dome compression driver ensures high-quality low end, extended high frequency reproduction and articulate midrange reproduction. The iX12 is fitted with a dual angle pole mount socket, allowing it to be pole mounted straight on, or raised higher and angled downwards to optimize audience coverage. The lightweight fiber glass reinforced composite enclosure is fitted with a rugged powder coated perforated steel mesh grille. - Class-D 1000W Amplifier
- Class-D amplification allows the speaker to eliminate heavy power supplies and massive heat sinks. The lightweight Switch Mode Power Supply, coupled with the KLARK TEKNIK Digital Signal Processing (DSP) module, provides dynamic equalization and sophisticated limiting functions, ensuring optimal performance and long-term reliability. An efficient and lightweight KLARK TEKNIK Class-D power amplifier provides the iX12's bi-amplified 1000W output.
- Bluetooth Ready
- The iX12 puts all your music at your fingertips via stereo Bluetooth. With a simple wave of your hand, you can stream music from any Bluetooth-equipped iOS device, such as your iPad, iPhone, or even your laptop computer.
- Comprehensive Remote Control
- This feature lets you adjust all settings from either the listening area or the stage. The iX12 Bluetooth app even allows the user to define one iX12 as the master, and the other as the slave, so the music stream is presented in true stereo. The dedicated apps are available free of charge at Turbosound's site and Apple App Store.
- Intuitive User Interface

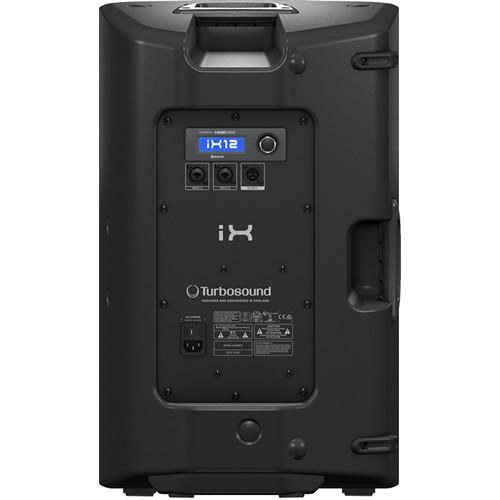

- On the rear panel amplifier module, you will find a fully featured user interface consisting of an LCD display and single rotary encoder for intuitive access to level, EQ, and frequency response presets for pole or stand-mounted front of house, or floor monitor scenarios. In addition to the two combination balanced XLR/jack inputs, an XLR Output is provided for daisy-chaining more active loudspeakers, or for use with an active subwoofer.
- Other Features
-
- Remote control 3-channel digital mixer with gain setting recall
- DSP presets for application type and speaker positioning
- 12" low frequency driver with low mass voice coil for improved transient response
- Titanium dome 1" compression driver for extended high frequency reproduction
- Intuitive single rotary control user interface with LCD display for ease of navigation
- Durable lightweight molded enclosure
- Rugged powder coated perforated steel mesh grille
- Dual angle pole mount for accurate audience coverage
- Designed in England
UPC: 748252153548 In the Box Turbosound iX12 2-Way 1000W 12" Powered Loudspeaker with KLARK TEKNIK DSP Technology, Remote Control via iPhone/iPad and Bluetooth Audio Streaming Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound iX12 2-Way 1000W 12" Powered Loudspeaker with KLARK TEKNIK DSP Technology, Remote Control via iPhone iPad and Bluetooth Audio Streaming in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound iX15 Specs | | | Frequency Response | 50 Hz to 20 kHz ±3 dB
42 Hz to 20 kHz -10 dB | | Nominal Dispersion | H x V: 80° x 60° @ -6 dB points | | Maximum SPL | 125 dB | | Crossover Type | Active | | Transducer | 1 x 12" (31 cm) LF driver
1 x 1.0" (2.5 cm) HF compression driver | | Limiter | Independent HF, LF | | | | Maximum Output Power | 1000 W | | Type | LF: Class-D
HF: Class AB | | Protection | Short circuit, open circuit, thermal | | | | Inputs | 2 x Combo XLR-1/4" jack
Sensitivity for Max Out with Volume Control at 0 dB: +4 dBu
Input Impedance: 16 kOhms unbalanced, 33 kOhms balanced
Maximum Input Level: +22 dBu | | Output | XLR, servo-balanced
Output Impedance: 220 Ohms unbalanced, 600 Ohms balanced | | Mains Supply | IEC mains connector with integrated power switch | | | | Hardware | Rotary push-encoder | | Software | iOS interface via Bluetooth | | | | Type | User DSP | | EQ Presets | Positioning, sound mode, phase | | Display | LCD 128 x 32, blue, backlit | | Equalization | Bass and treble controls | | Crossover | High pass L-R 24 dB/oct | | Protection | Lock-out function for all settings | | | | Frequency Range | 2402 to 2480 MHz | | Channel | 79 | | Version | 4.0 dual mode | | Output | 8 dBM | | Compatibility | Supports A2DP 1.2 profile, BLE | | Communication Range | Maximum 115' (35 m) without interference | | Connectivity | Master-Slave: Stereo pairing link | | | | Power Consumption | 80 W @ 1⁄8 max power | | Voltage | USA/Canada: 120 V, 60 Hz | | | | Construction | Injection-molded polypropylene enclosure | | Grille | Powder coated perforated steel | | Dimensions | 24.0 x 14.5 x 14.5" (60.9 x 37.0 x 37.0 cm) | | Weight | 42.8 lb (19.4 kg) | | | | Package Weight | 52.0 lb | | Box Dimensions (LxWxH) | 27.5 x 18.8 x 18.3" |
