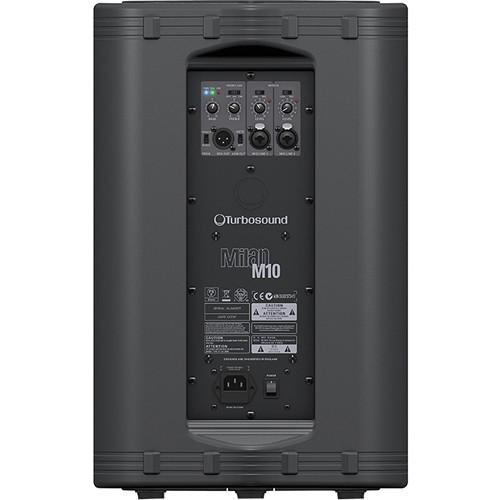

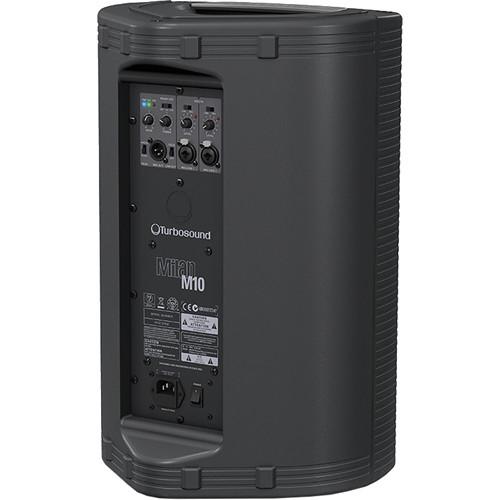

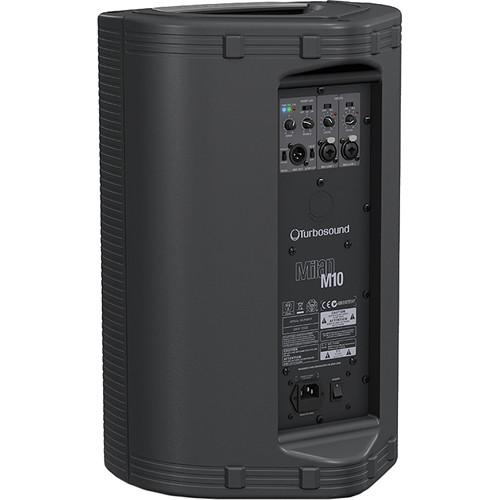

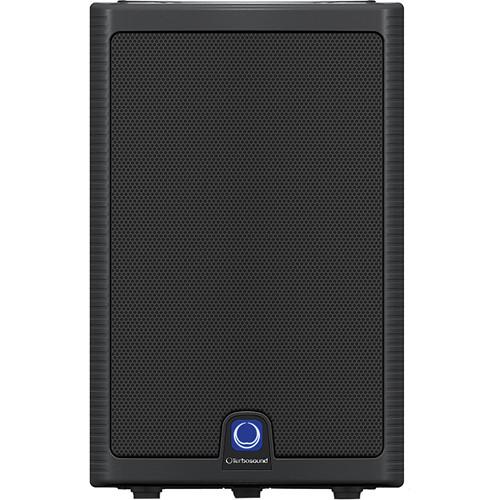

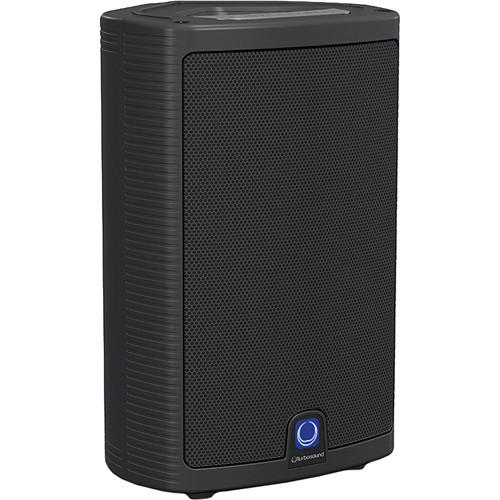

User Manual for Turbosound Milan M10 600-Watt 2-Way 10" Powered Loudspeaker Click to enlarge the picture
Contents of the user manual for the Turbosound Milan M10 600-Watt 2-Way 10"
- Product category: PA Speakers Turbosound
- Brand: Turbosound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Turbosound PA Speakers
 |
User manual for the Turbosound Milan M10 600-Watt 2-Way 10" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Turbosound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Turbosound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Turbosound product will considerably shorten its lifespan!
|
Product description The Milan M10 600-Watt 2-Way 10" Powered Loudspeaker from Turbosound is a Class-D powered speaker that can be used for a variety of PA applications in both portable and installed scenarios. It features 2 independent input channels with mic and line inputs as well as a 2-band EQ and intelligent limiting. A mix output connector allows you to connect to other Milan series loudspeakers.
Its processing is powered by the integrated Klark Teknik DSP and has an electronic crossover. A low-cut filter at 100 Hz allows you to use the M10 as a wedge monitor, but it can also be pole mounted or flown for a variety of placement options. Its trapezoidal enclosure is constructed from high density polypropylene and is designed to reduce resonances internally. It features a recessed handle for carrying. - 2-way full range powered loudspeaker for portable PA and installation applications
- 600 Watt power featuring Klark Teknik Class-D technology
- Klark Teknik Digital Signal Processing for total system control
- High excursion 10-inch low frequency driver with low mass voice coil for transient response
- 1-inch high temperature dome compression driver with extended high frequency reproduction
- Converging elliptical waveguide provides wide dispersion and excellent pattern control
- Speech/music switch featuring optimized equalization for voice or music applications
- Switchable 100 Hz high pass filter for subwoofer integration
- Lightweight composite enclosure with black finish
- Rugged powder coated perforated steel mesh grille
- Dual angle pole mount for accurate audience coverage
- Multiple internal rigging points for installation applications
UPC: 696859054167 In the Box Turbosound Milan M10 600-Watt 2-Way 10" Powered Loudspeaker Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound Milan M10 600-Watt 2-Way 10" Powered Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound M10 Specs | | | Configuration | Active 2-Way | | Total Power Capacity | 600 W | | Amplifier Power Rating | LF:
500 W Peak
HF:
100 W Peak | | Amplifier Class | Class-D | | | | HF Driver | 1 x 1" / 25 mm Compression Driver | | LF Driver | 1 x 10" / 25.4 cm Woofer | | | | Frequency Response | 55 Hz to 18 kHz ±3 dB
50 Hz to 20 kHz ±10 dB | | Maximum SPL | 126 dB (Peak) | | Coverage Angle | 90° H x 60° V At -6 dB | | Input Sensitivity | Mic Input:
-32 dBu
Line Input:
-2 dBu | | I/O Impedance | Line Input:
20 kOhms (Unbalanced)
40 kOhms (Balanced)
Mic Input:
560 Ohms (Unbalanced)
1 kOhms (Balanced) | | Protections | Open Circuit, Short Circuit, Thermal | | | | Audio I/O | Combo XLR / 1/4" TRS Line/Mic Input
XLR Male Mix Output | | | | EQ | LF Shelf:
±6 dB at 80 Hz
HF Shelf:
±6 dB at 12 kHz | | | | AC Input Power | 100 to 120 VAC, 50 / 60 Hz (T 6.3 A H 250 V)
220 to 240 VAC, 50 / 60 Hz (T 3.15 A H 250 V) | | AC Power Connector | 1 x IEC | | Power Consumption | 80 W (1/8 Power) | | | | Mounting | 6 x M10 | | Handles | 1 | | Construction Material | Polypropylene, Wire Mesh Grille | | Dimensions | 20.6 x 13.0 x 11.6" / 522.0 x 329.0 x 294.0 mm | | Weight | 29.3 lb / 13.3 kg | | | | Package Weight | 35.8 lb | | Box Dimensions (LxWxH) | 24.0 x 16.0 x 15.0" |
