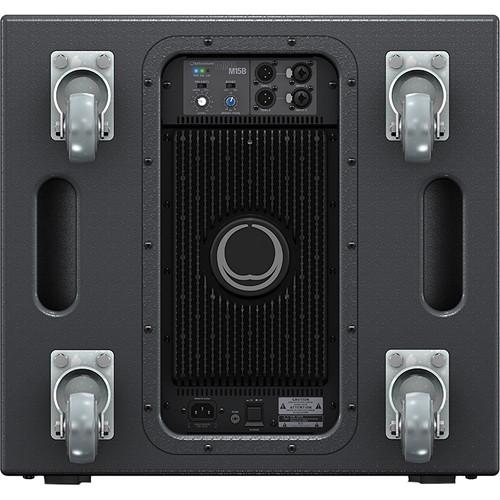

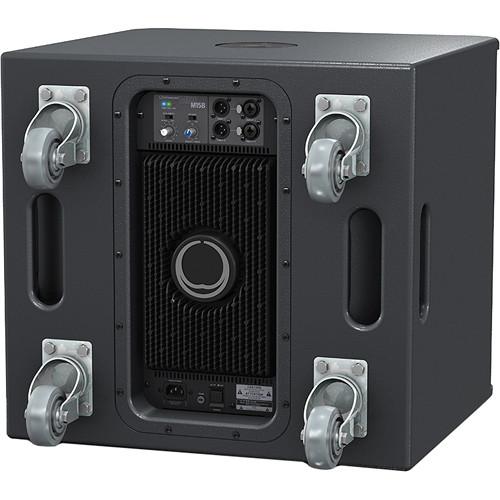

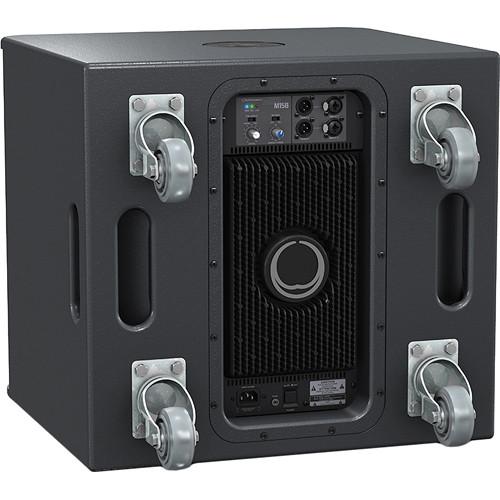

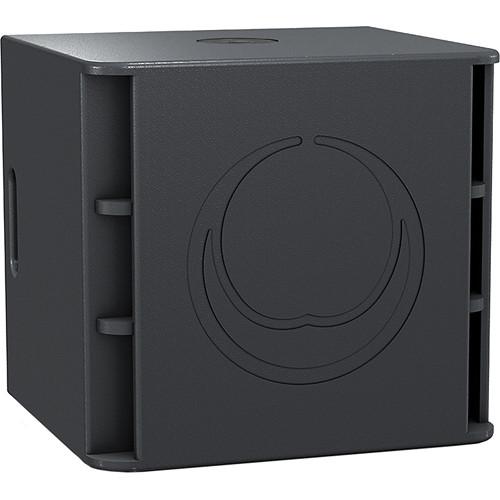

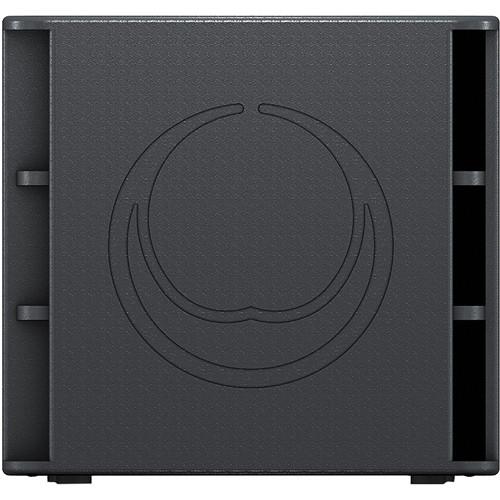

User Manual for Turbosound Milan M15B 2,200W Powered Bandpass Subwoofer Click to enlarge the picture
Contents of the user manual for the Turbosound Milan M15B 2,200W Powered Bandpass
- Product category: PA Speakers Turbosound
- Brand: Turbosound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Turbosound PA Speakers
 |
User manual for the Turbosound Milan M15B 2,200W Powered Bandpass contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Turbosound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Turbosound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Turbosound product will considerably shorten its lifespan!
|
Product description The Milan M15B 2,200W Powered Bandpass Subwoofer from Turbosound is a Class D powered subwoofer capable of up to 2,200 watts of output power for increased loudness and bass response of any Milan system. It features an 15-inch speaker with a 4-inch voice coil and integrated Klark Teknik DSP. The M15B's amplifier is designed to provide headroom for the long-excursion driver, allows the subwoofer to produce a wide dynamic range. A switchable 6dB boost allows you to increase the center frequency between 40 and 90Hz, providing an accentuated bass response. - Band pass powered subwoofer for portable PA and installation applications
- 2,200 Watt power featuring Klark Teknik Class-D technology
- High excursion 15" low frequency driver with 4" voice coil and double suspension
- Bass boost and polarity switch for low frequency system integration
- Birch plywood enclosure with hard wearing semi matt black paint finish
- Powder coated perforated steel mesh grille
- 36 mm pole mount to support satellite speaker
- Plated steel castors with rubber tires
UPC: 696859054198 In the Box Turbosound Milan M15B 2,200W Powered Bandpass Subwoofer Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound Milan M15B 2,200W Powered Bandpass Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound M15B Specs | | | Configuration | Active Subwoofer | | Total Power Capacity | 2200 W | | Amplifier Class | Class-D | | | | LF Driver | 1 x 15" / 38.1 cm Woofer | | | | Frequency Response | 45 Hz to 100 Hz ±3 dB
35 Hz to 150 Hz ±10 dB | | Maximum SPL | 134 dB (Peak, Half-Space) | | Input Sensitivity | +4 dBu Center position for full rated power. | | I/O Impedance | Input:
10 kOhms (Unbalanced)
20 kOhms (Balanced) | | Protections | Open Circuit, Short Circuit, Thermal | | | | Audio I/O | 2 x XLR Female Input
2 x XLR Male Thru/Output | | | | Semi-Parametric EQ | +6 dB at 40 Hz to 90 Hz, Q: 1 for Bass Boost | | | | AC Input Power | 100 to 120 VAC, 50 / 60 Hz (T 12 A H 250 V)
220 to 240 VAC, 50 / 60 Hz (T 6.3 A H 250 V) | | AC Power Connector | 1 x IEC | | Power Consumption | 280 W (1/8 Power) | | | | Construction Material | Plywood | | Dimensions | 19.5 x 20.9 x 18.9" / 495.0 x 530.0 x 480.0 mm | | Weight | 81.4 lb / 37 kg | | | | Package Weight | 91.4 lb | | Box Dimensions (LxWxH) | 26.0 x 24.0 x 24.0" |
