User Manual for Turbosound NuQ-6 2-Way 6.5" Full Range Loudspeaker Click to enlarge the picture
Contents of the user manual for the Turbosound NuQ-6 2-Way 6.5" Full Range
- Product category: PA Speakers Turbosound
- Brand: Turbosound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Turbosound PA Speakers
 |
User manual for the Turbosound NuQ-6 2-Way 6.5" Full Range contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Turbosound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Turbosound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Turbosound product will considerably shorten its lifespan!
|

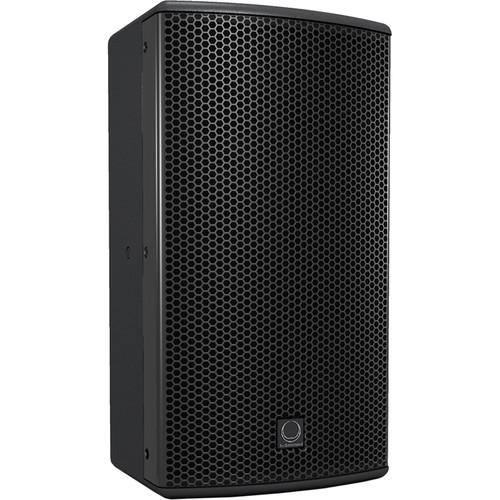

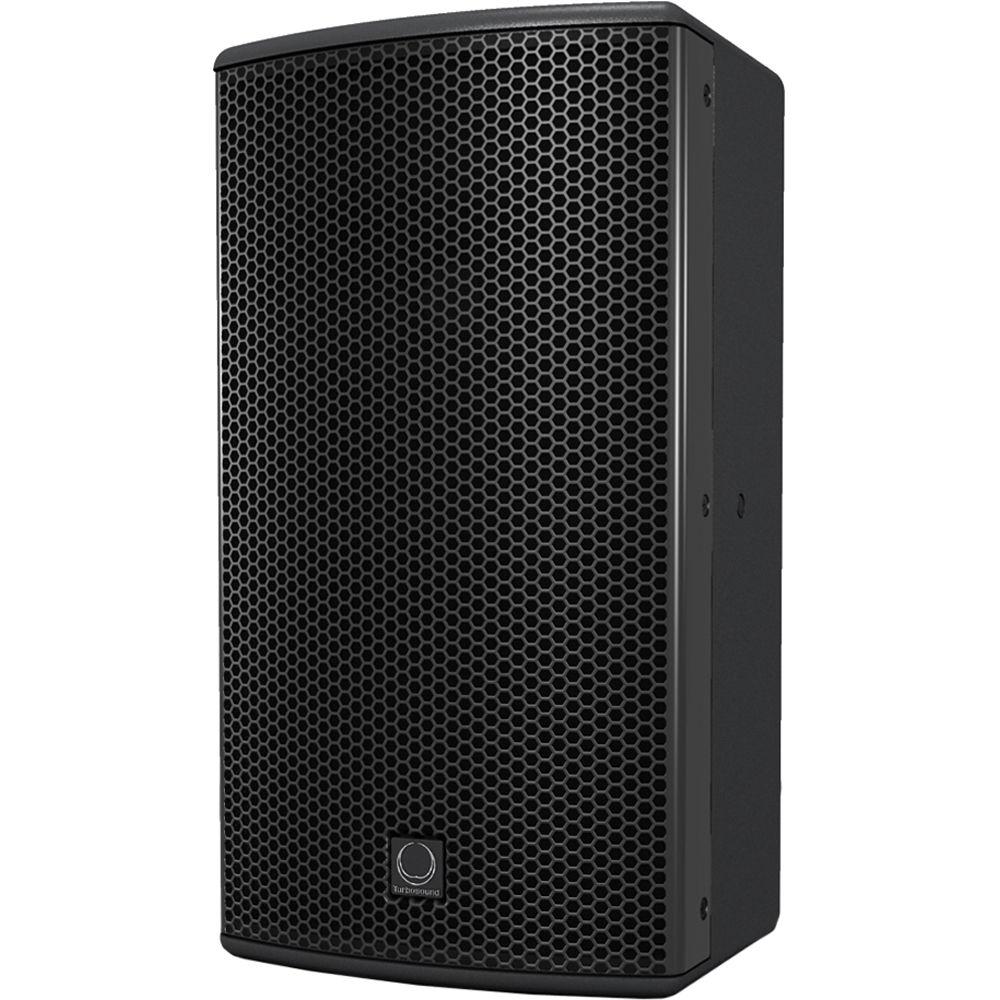

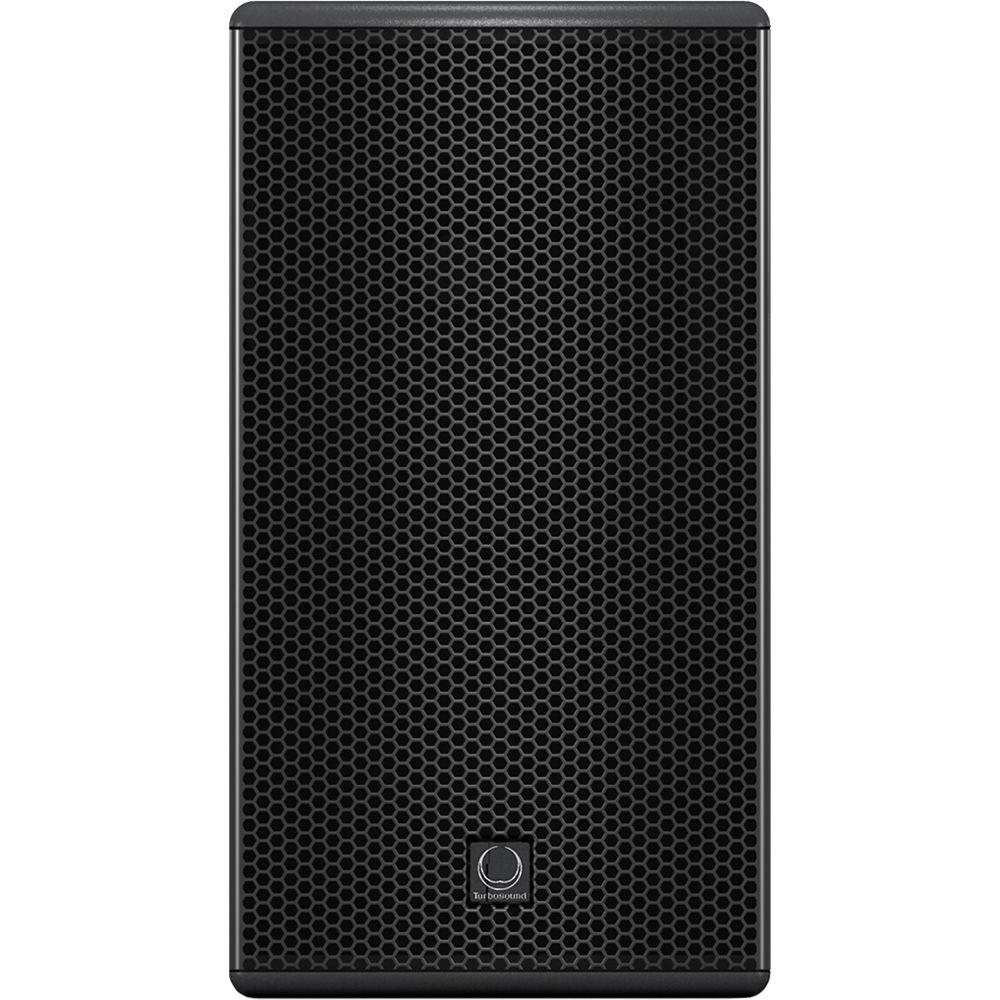

Product description The NuQ-6 2-Way 6.5" Full Range Loudspeaker from Turbosound is a passive full range two-way loudspeaker system designed to be used with Turbosound LMS series digital loudspeaker management systems. NuQ systems can be controlled over a BVNet network using TurboDrive control software.
The NuQ-6 consists of a front loaded 6.5" neodymium LF driver and a 1" neodymium HF compression driver on a rotatable 90° H x 60° V converging elliptical waveguide, matched with an internal passive crossover network in a reflex-loaded enclosure, giving excellent pattern control and allowing a swap of horizontal and vertical coverage patterns. The trapezoidal enclosure is uniquely formed out of pre-bent plywood, which entirely eliminates four cabinet joints and provides additional benefits of superior strength, low weight and reduced internal reflections. The symmetrical shape creates an additional role as mirrored left/right monitor wedges.

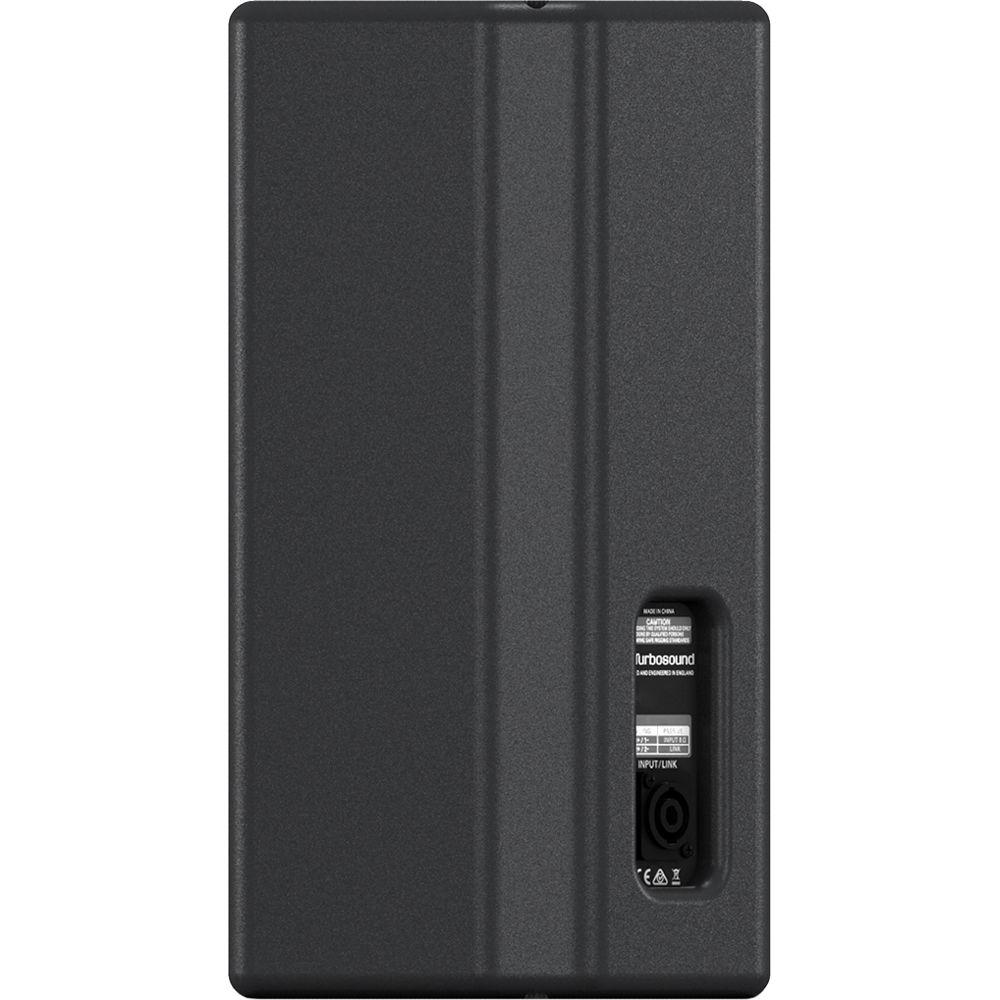

The cabinet includes a steel mesh grille backed with foam backing that is finished in black textured paint and includes rigging points for use with optional flying yokes and wall brackets. The rear panel connector plate carries two Neutrik speakON NL4 connectors for loop in and loop out connections to additional enclosures. - 2-way full range loudspeaker for portable PA applications
- 200 W continuous, 800 W peak power
- Ideal for FOH, side fill and monitor applications
- 6.5" low frequency driver with low mass voice coil for improved transient response
- Neodymium 1" HF compression driver
- Rotatable converging elliptical waveguide provides 90° H x 60° V dispersion
- 1/2" (12 mm) birch plywood enclosure with hard wearing semi matt black paint finish
- Powder coated perforated steel grille foam backing
- Multiple rigging points compatible with Turbosound and OmniMount brackets
In the Box Turbosound NuQ-6 2-Way 6.5" Full Range Loudspeaker Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound NuQ-6 2-Way 6.5" Full Range Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound NUQ6 Specs | Components | 1 x 6.5" (165 mm) LF driver, 1 x 1" (25 mm) HF driver on a converging elliptical waveguide | | Frequency Response | 80 Hz - 20 kHz ±3 dB; 65 Hz - 20 kHz ±10 dB | | Dispersion | 90° H x 60° V @ -6 dB points, rotatable waveguide allows swap of horizontal and vertical pattern | | Sensitivity | 92 dB (1 W @ 1 m) | | Power Handling | 200 W continuous, 800 W peak | | Maximum SPL | 115 dB continuous, 121 dB peak | | Nominal Impedance | 16 ohms | | Crossover | Internal passive crossover at 4 kHz | | Construction | 1/2" (12 mm) birch plywood, finished in black semi matt paint | | Grille | Powder coated perforated steel with foam backing | | Connectors | 3 x Neutrik speakON NL4 | | Rigging | M8 rigging points for swivel brackets, flying yokes
M8 shoulder eyebolts | | Dimensions (H x W x D) | 13.8 x 7.5 x 8.3" (350 x 190 x 210 mm) | | Weight | 12.5 lb (5.7 kg) |
