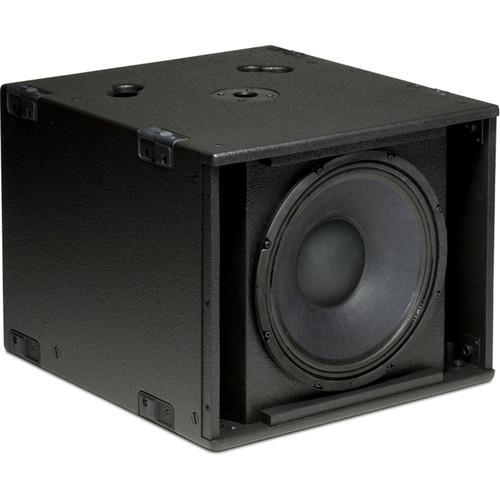

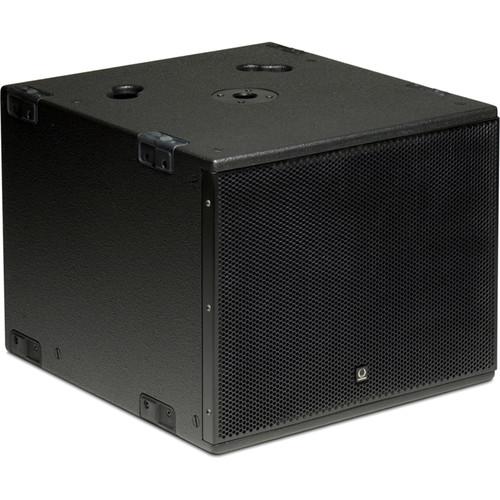

Product description The NuQ Series B15 Front-Loaded 15” Subwoofer from Turbosound is suitable for portable speech and music sound reinforcement applications for theaters, live music and DJs, corporate / industries, and houses of worship. It consists of a custom 15" neodymium low-frequency driver in a compact vented enclosure and is optimally tuned for extended low-frequency response.The unit can be used with a Turbosound loudspeaker management system and Turbosound T-series amplifiers. This combination provides the optimum performance from the system and offers considerable flexibility to readily adapt to varying venue requirements. NuQ systems can also be controlled over a BVNet network using TurboDrive control software.The cabinet is constructed from 18mm (3/4") birch plywood, screwed and glued together for maximum strength and rigidity. It is finished in durable semi-matte black textured paint. A perforated steel-mesh grille backed with reticulated foam protects the drive units. The cabinet features heavy-duty corner protectors and includes 3 recessed flush handles for easy lifting and carrying.An integral pole-mount socket is fitted to the top of the enclosure to allow two-way cabinets to be mounted at the correct height above the subwoofer. The rear-panel connector plate carries two Neutrik SpeakON NL4MP connectors for loop-in and loop-out connections to additional enclosures. The B15 subwoofer can be fitted with T-4 heavy-duty wheels (available separately) to aid transportation. In the Box Turbosound NuQ Series B15 Front-Loaded 15" Subwoofer (Black) Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound NuQ Series B15 Front-Loaded 15" Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound B15 Specs | Low Frequency Driver | 15" (381 mm) | | Frequency Response | 45 to 120 Hz @ ±4 dB | | Power Handling | 400 W continuous, 800 W program
Recommended amplifier 800 W @ 8 ohms | | Sensitivity | 100 dB 1 W @ 1 m | | Maximum SPL | 126 dB continuous, 132 dB peak | | Controllers | Turbosound LMS-D24, LMS-D26 (both are available separately) | | Nominal Impedance | 8 ohms | | Construction | 3/4" (18 mm) birch plywood; rebated, screwed and glued
Finished in black semi-matte textured paint
Three recessed carrying handles

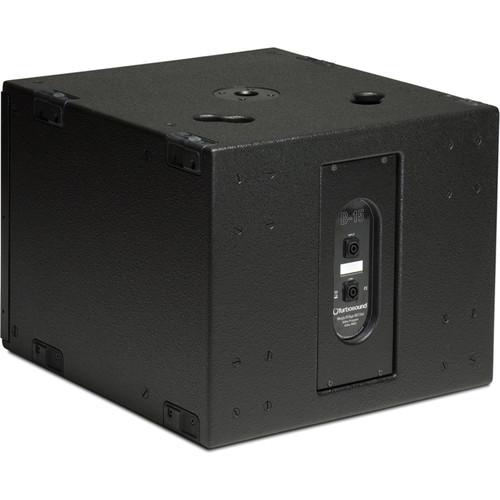

Integral pole-mount socket | | Grille | Powder-coated perforated steel with acoustically transparent reticulated foam | | Connectors | 2 x Neutrik Speakon NL4MP, wired pin1+: Positive, pin1-: Negative; pin2+ and pin2-: N/C | | Dimensions (H x W x D) | 18.3 x 22.6 x 24.4" (46.4 x 57.4 x 62.0 cm) | | Weight | 80.3 lb (36.5 kg) |
