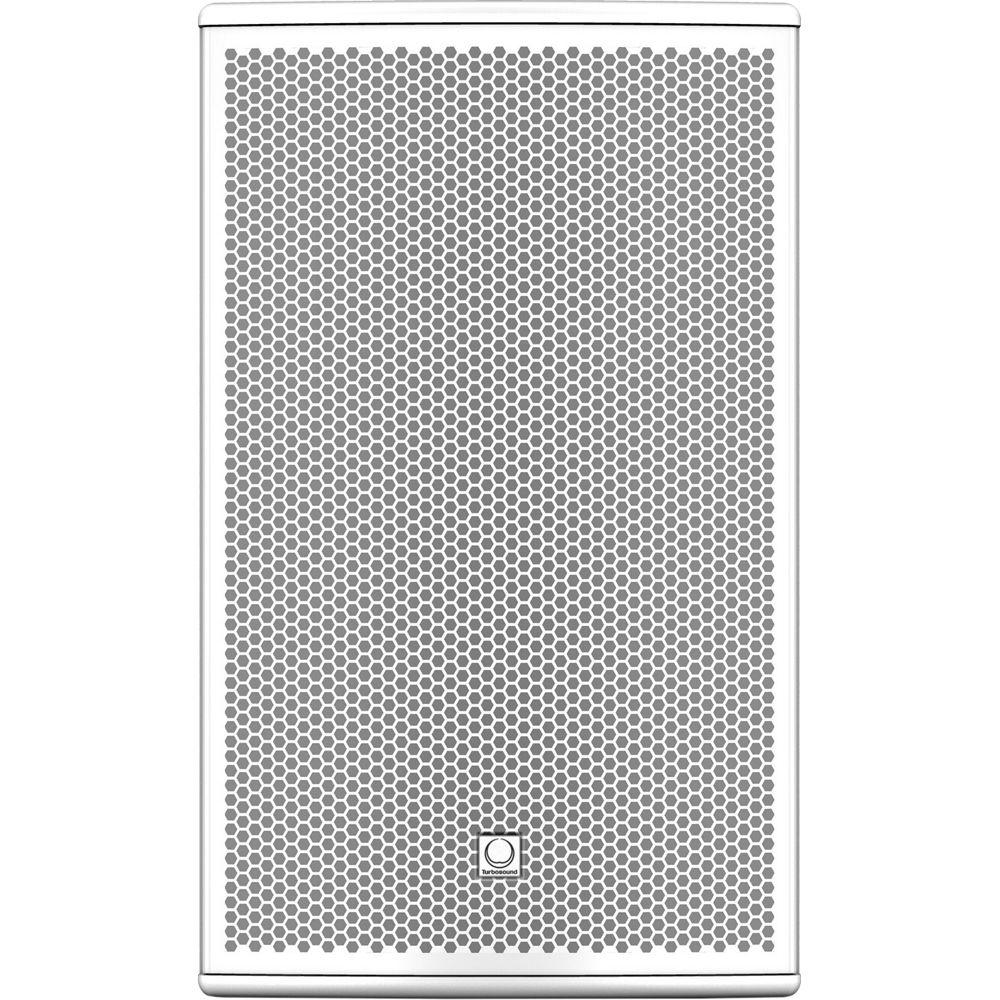

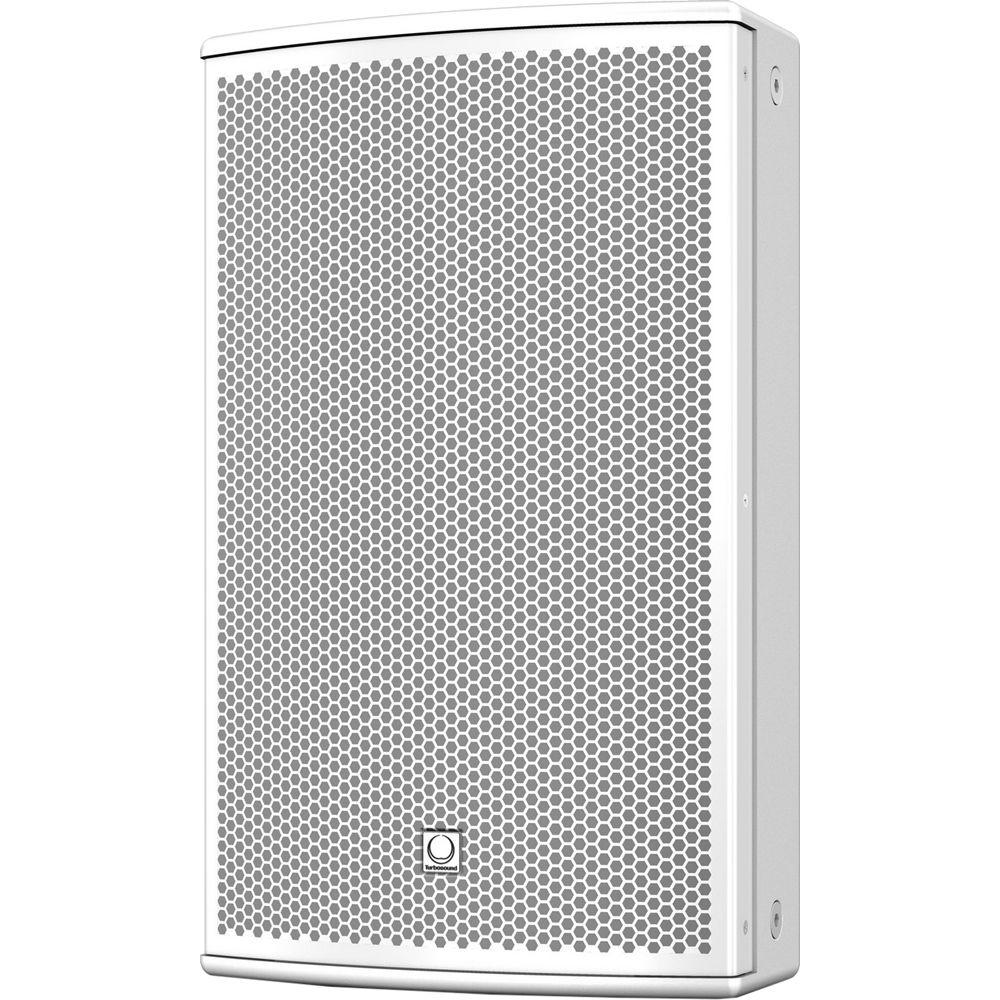

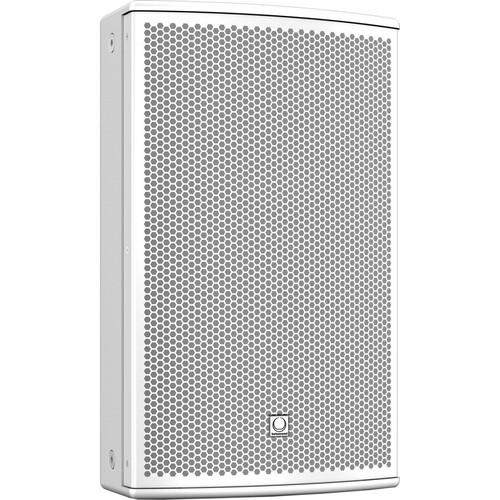

Product description The white NuQ102-AN-WH 600W 2-Way 10" Full-Range Powered Loudspeaker from Turbosound is ideally suited for a wide range of portable and fixed-installation speech-and-music sound-reinforcement applications. Designed to work individually without a controller, the NuQ102-AN-WH Loudspeaker provides optimal performance for FOH, sidefill, and delay-line loudspeakers, and is an ideal choice for wedge-monitoring applications. It also offers the flexibility to accommodate venue-specific requirements for install applications.The NuQ102-AN-WH Loudspeaker features a 10" low-frequency driver with a low-mass voice coil for improved transient response and an aluminum dome with 1" neodymium high-frequency compression driver, which is mounted on a rotatable 100 x 60° (horizontal x vertical) dispersion-converging elliptical waveguide. Output power for the NuQ102-AN-WH Loudspeaker is provided by means of an efficient and lightweight KLARK TEKNIK 600W Class-D power amplifier. An easy-to-use KLARK TEKNIK Digital Signal Processor (DSP) provides dynamic EQ for impressive full-range response at low-volume levels and transparent limiting for clarity at high-output levels as well as for long-term reliability.On the rear panel of the amplifier module, the user interface’s LCD display and single rotary encoder provide intuitive access to position compensation, user EQ control, subwoofer integration, and signal-routing features. In addition to the balanced XLR input, an XLR output is provided for daisy-chaining more active loudspeakers or for use with active subwoofers. An onboard USB port provides access for remote control of the NuQ102-AN-WH Loudspeaker via a Windows computer, as well as DSP firmware updates.ULTRANET connectivity is provided by two locking etherCON connectors. Up to 16 independent channels of 24-bit digital audio and control data are transmitted via a single Cat5 cable between compatible digital devices including mixers, input/output stage boxes, powered loudspeakers and personal monitoring systems. Simplified cable routing and ease of setup translate directly into significant time saved during installation.Finished in a highly durable semi-matte white paint, the trapezoidal cabinet is constructed from 12mm birch plywood, and includes a rugged powder-coated perforated-steel mesh grille. Multiple threaded rigging points are provided for suspension in any orientation. The NuQ102-AN-WH Loudspeaker also features a 35mm socket for standard pole mounting plus integrated handles for convenient transport. Mains-power input is provided via a Neutrik powerCON connector. - 2-way full-range powered loudspeaker for portable PA applications
- 600W power featuring KLARK TEKNIK Class-D technology for total system control
- ULTRANET digital-audio networking connects to mixers and other sources
- 10" low-frequency driver with low-mass voice coil for improved transient response
- Aluminum dome with 1" neodymium motor compression driver
- Rotatable converging-elliptical waveguide provides 100 x 60° (horizontal x vertical) dispersion
- Fully featured user interface with LCD display for ease of navigation
- PC remote-control software downloadable
- 12mm birch-plywood enclosure with hard-wearing semi-matte white paint finish
- Rugged powder-coated perforated-steel mesh grille
- Integral 35mm pole mount and handles
- Multiple internal rigging points allow bracket mount and suspension in any orientation
- Mains input on Neutrik powerCON connector
In the Box Turbosound NuQ102-AN-WH 600W 2-Way 10" Full-Range Powered Loudspeaker with KLARK TEKNIK DSP Technology and ULTRANET Networking (White) Installation Hardware Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound NuQ102-AN-WH 600W 2-Way 10" Full-Range Powered Loudspeaker with KLARK TEKNIK DSP Technology and ULTRANET Networking in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound NUQ102 Specs | | | Frequency Response | 55 Hz to 18 kHz (±3 dB)
50 Hz to 20 kHz (-10 dB) | | Nominal Dispersion | 100 x 60° (horizontal x vertical) @ -6 dB points, rotatable | | Maximum SPL | 122 dB peak | | Crossover Type | Active | | Transducer | 1 x 10" (261.5 mm) LF driver

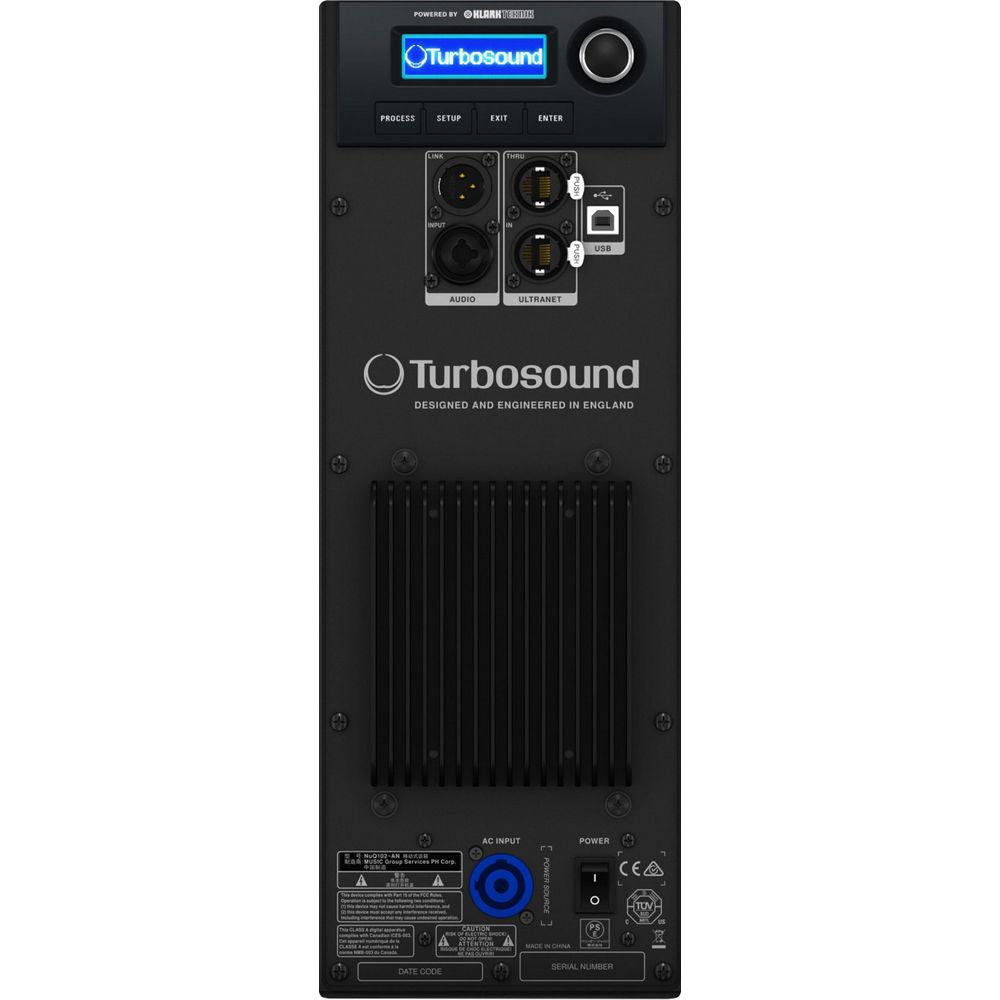

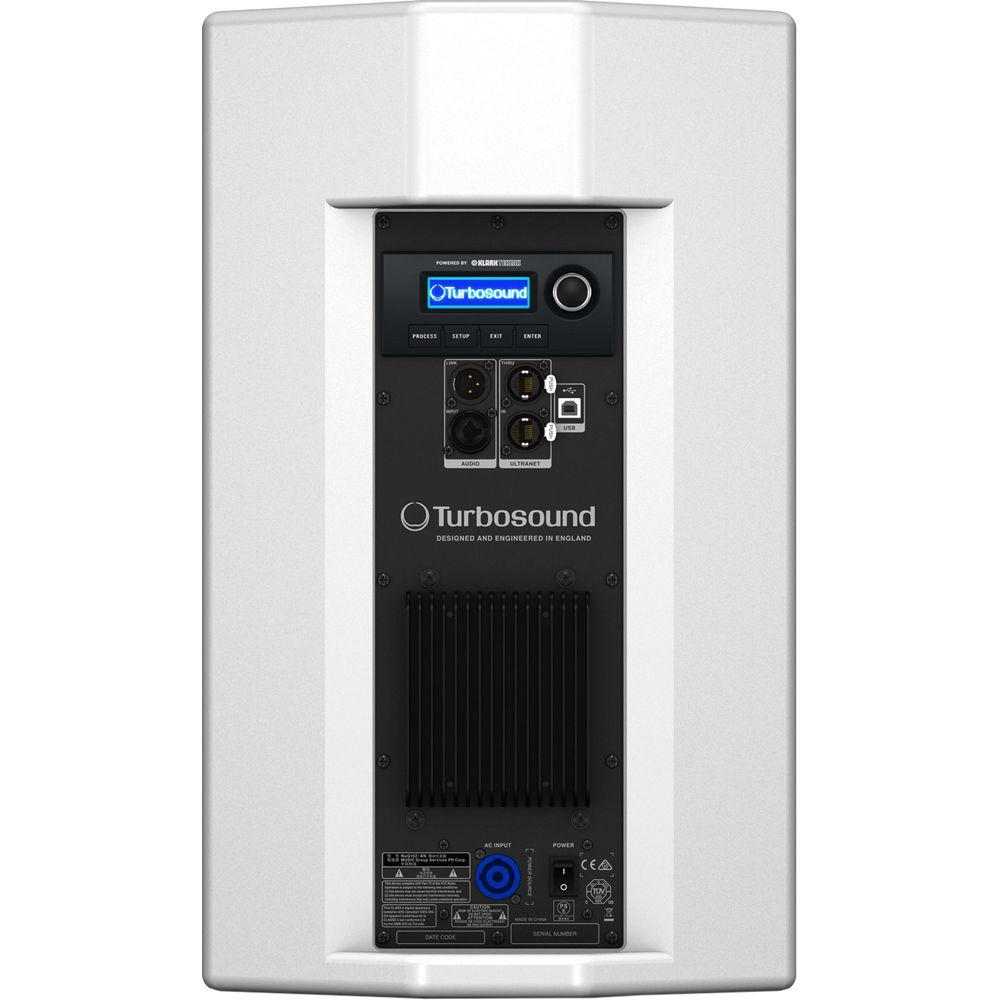

1 x 1" (25.4 mm) HF compression driver | | Limiter | Independent HF, LF, peak and rms | | | | Maximum Output Power | 600 W | | Type | Class-D | | Protection | Short circuit, thermal | | | | Input/Output | 1 x Combo Jack / XLR 1 x XLR | | Sensitivity | +4 dBu or +14 dBu software switchable | | Input Impedance | 40 kOhms balanced | | Maximum Input Level | +22 dBu | | Connectivity (RJ-45) | 2 x RJ45 | | Mains Supply | Neutrik powerCON 20 A† | | | | DSP | Rotary push-encoder and level control
Buttons for Process, Setup, Exit, Enter | | Display | LCD 128 x 32, blue, backlit | | Delay | 0 to 300 ms | | Equalization | High- and low-shelving EQ
2 x parametric EQ Presets: Positioning, Sound mode, FBQ | | Limiter | Zero-attack input limiter | | Presets | 20 total presets, 19 user-definable | | Crossover | High-Pass L-R 24 dB/oct | | Protection | Lock-out function for all settings | | | | Processing | 24-bit, 44.1/48 kHz sample rate (digital) | | Converter Type | 24-bit, delta-sigma | | System | Signal 16 channels
Latency < 0.9 ms
Frequency response 20 Hz to 20 kHz (+0 / -3 dB)
Dynamic range typical 92 dB | | Cabling | Shielded Cat5
Maximum 246' (75 m) (recommended) Cable not included | | | | Power Consumption | 80 W @ 1⁄8 maximum power | | Voltage | 120 V, 60 Hz (T 6.3 A H 250 V) | | Construction | 0.5" (12 mm) birch plywood | | Grille | Powder-coated perforated steel | | Dimensions (H x W x D) | 20.7 x 12.5 x 11.1" (52.5 x 31.8 x 28.1 cm) | | Weight | 30.2 lb (13.7 kg) |
