User Manual for Turbosound NuQ115B-WH 15" Front-Loaded 2000W Subwoofer Click to enlarge the picture
Contents of the user manual for the Turbosound NuQ115B-WH 15" Front-Loaded 2000W Subwoofer
- Product category: PA Speakers Turbosound
- Brand: Turbosound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Turbosound PA Speakers
 |
User manual for the Turbosound NuQ115B-WH 15" Front-Loaded 2000W Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Turbosound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Turbosound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Turbosound product will considerably shorten its lifespan!
|

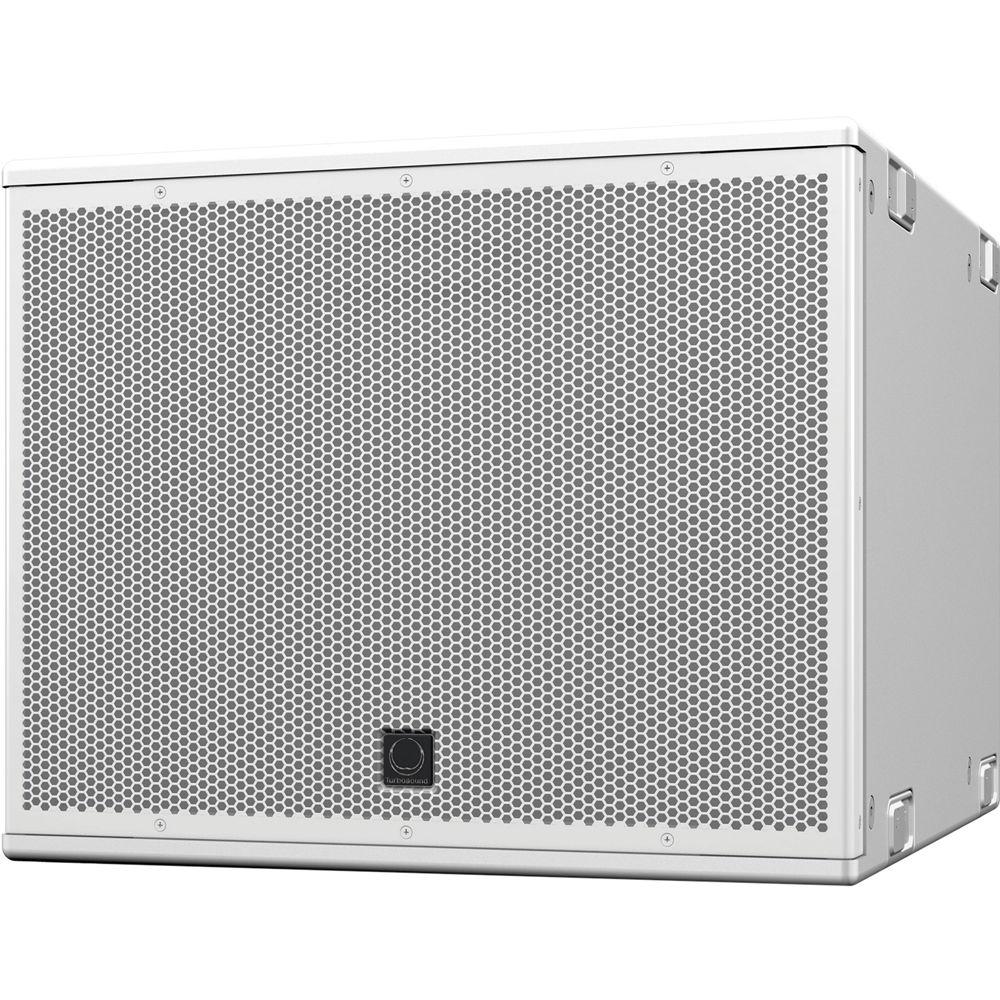

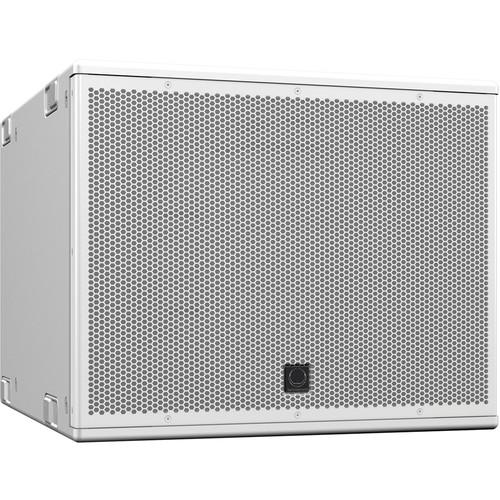

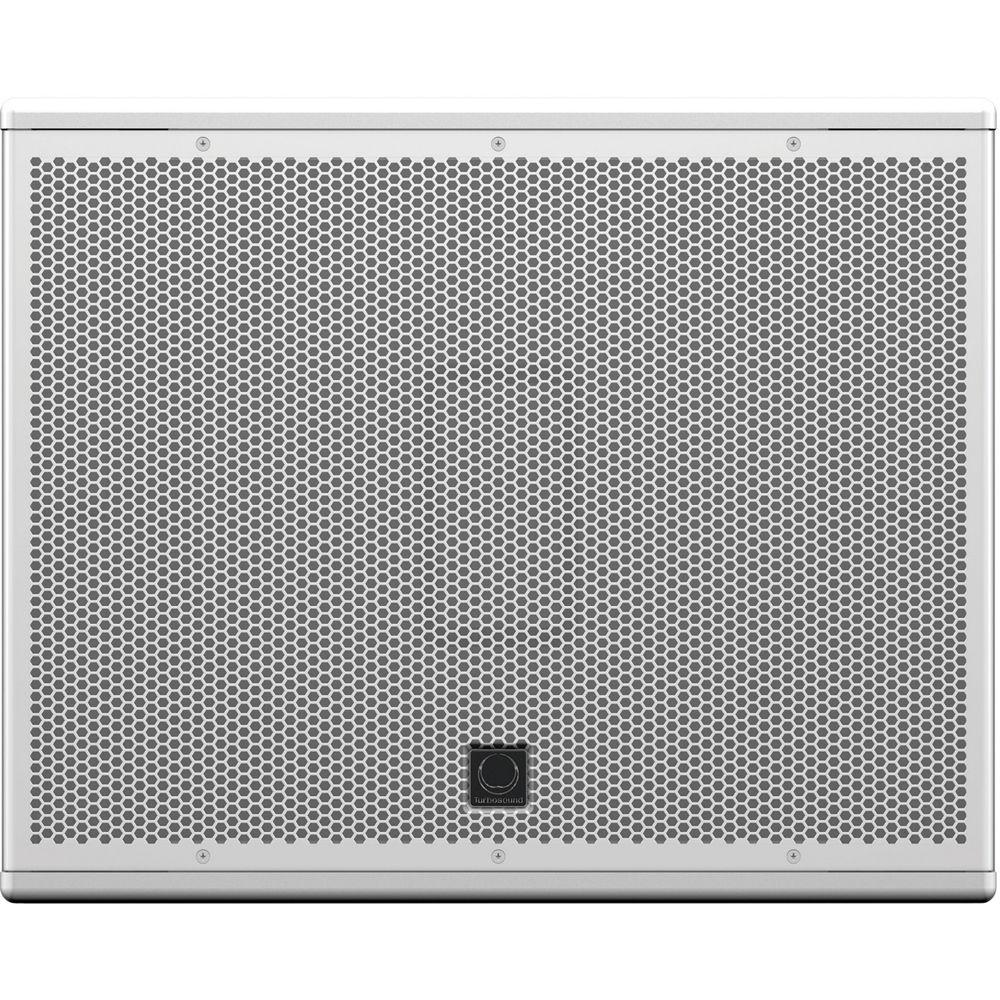

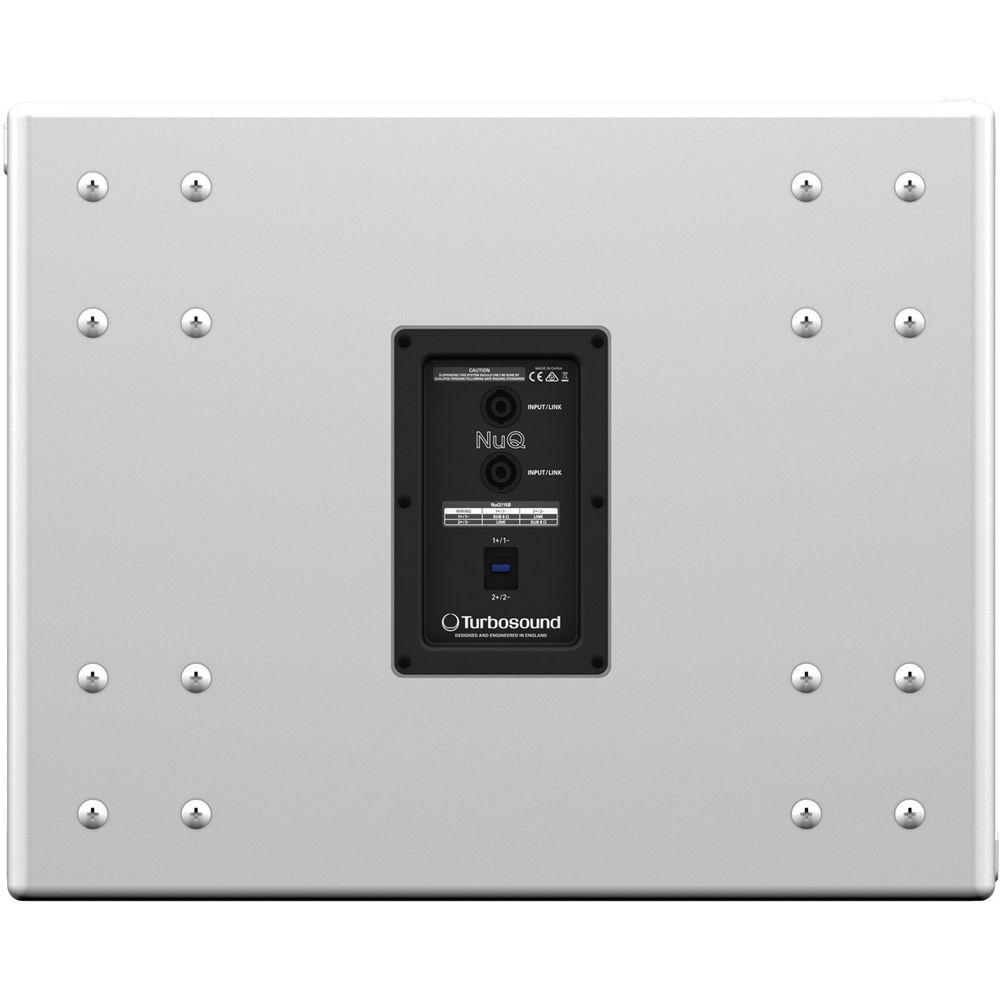

Product description The white NuQ115B-WH 15" Front-Loaded 2000W Subwoofer from Turbosound is ideally suited for a wide range of music and live sound-reinforcement applications. The NuQ115B-WH Subwoofer is engineered to provide optimal FOH performance, as well as exceptional drum- and side-fill monitoring applications. A bass-reflex port-design enclosure, the NuQ115B-WH Subwoofer features a high-power, double-suspension 15" low-frequency driver that utilizes a specialized inside/outside wound voice coil for higher magnetic density, better heat dissipation, high-power handling capacity, and improved efficiency.The NuQ115B-WH Subwoofer provides fast and accurate transient response for virtually distortion-free operation. Finished in a highly durable semi-matte white paint, the cabinet is constructed from 18mm birch plywood, and includes a rugged powder-coated perforated-steel mesh grille backed with reticulated foam. The 35mm pole socket, internal M10 rigging points, recessed carry handles, and high-impact interlocking corners ensure stability. The rear-panel connector plate carries Neutrik speakON NL4 connectors, with switchable input and link connections to accommodate standalone subwoofer applications, or subwoofer and satellite-speaker connectivity via 4-core speaker cabling. - Front-loaded subwoofer for portable PA applications
- 500W continuous, 2000W peak power
- Double-suspension 15" low-frequency driver with inside/outside wound coil
- Low-distortion bass-reflex port design
- 18mm birch-plywood enclosure with hard-wearing semi-matte white paint finish
- Integral M10 rigging points for ease of installation
- 35mm pole mount to support satellite speaker
- Neutrik speakON NL4 connectors for reliable long-life operation
In the Box Turbosound NuQ115B-WH 15" Front-Loaded 2000W Subwoofer (White) Installation Hardware Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound NuQ115B-WH 15" Front-Loaded 2000W Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound NUQ115B Specs | | | Frequency Response | 45 Hz to 150 Hz (± 3 dB)
38 Hz to 200 Hz (-10 dB) | | Nominal Dispersion | Half space | | Power Handling | 500 W continuous, 2000 W peak | | Sensitivity | 99 dB {1 W @ 3.3' (1 m)} | | Maximum SPL | 126 dB continuous, 132 dB peak | | Impedance | 8 ohms | | Components | 1 x 15" (39 cm) LF driver | | | | Connectors | 2 x Neutrik speakON NL4 | | Wiring | Switch position 1 Pins 1+ / 1- input, pins 2+ / 2- link
Switch position 2 Pins 1+ / 1- lf, pins 2+ / 2- input | | Construction | 0.75" (18 mm) birch plywood | | Grille | Powder-coated perforated steel | | Dimensions (H x W x D) | 20.4 x 22.8 x 24.4" (51.9 x 57.9 x 62.0 cm) | | Weight | 79.3 lb (36 kg) |
