User Manual for Turbosound NuQ118B 18" 2400W Band-Pass Subwoofer Click to enlarge the picture
Contents of the user manual for the Turbosound NuQ118B 18" 2400W Band-Pass Subwoofer
- Product category: PA Speakers Turbosound
- Brand: Turbosound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Turbosound PA Speakers
 |
User manual for the Turbosound NuQ118B 18" 2400W Band-Pass Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Turbosound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Turbosound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Turbosound product will considerably shorten its lifespan!
|

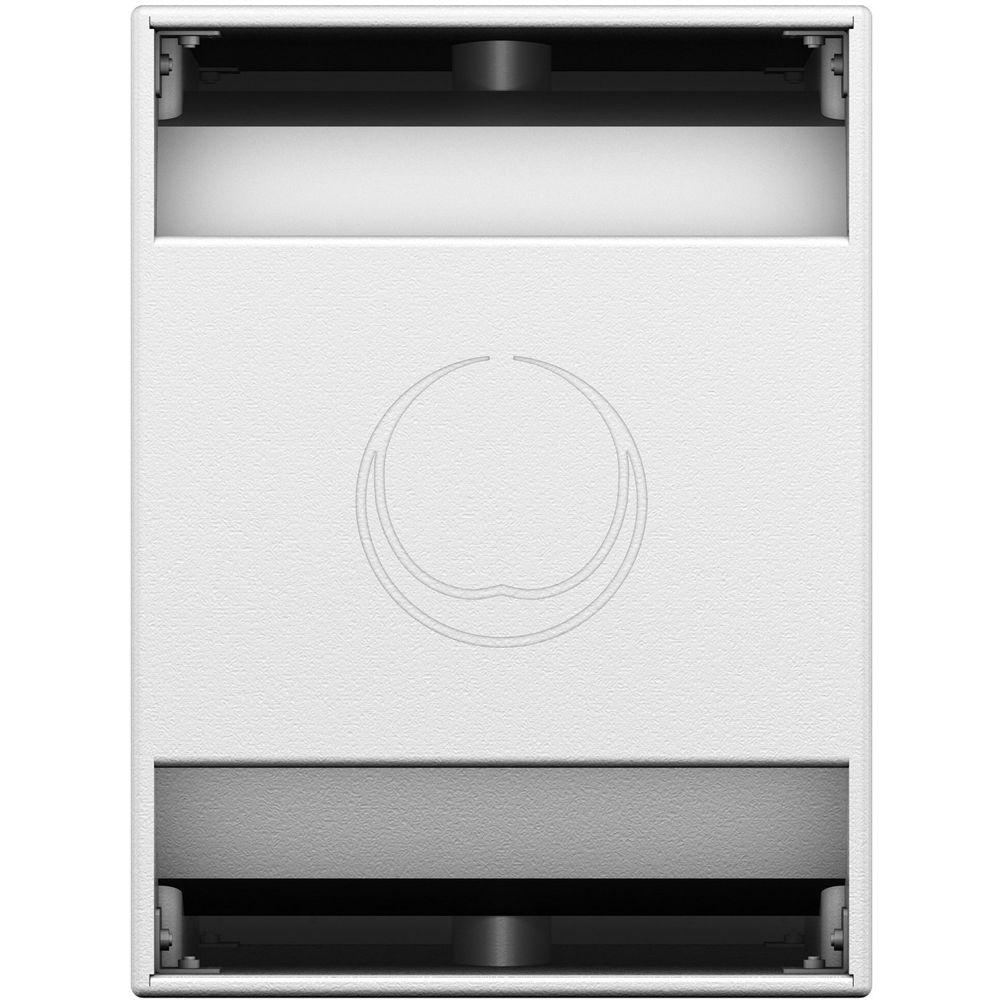

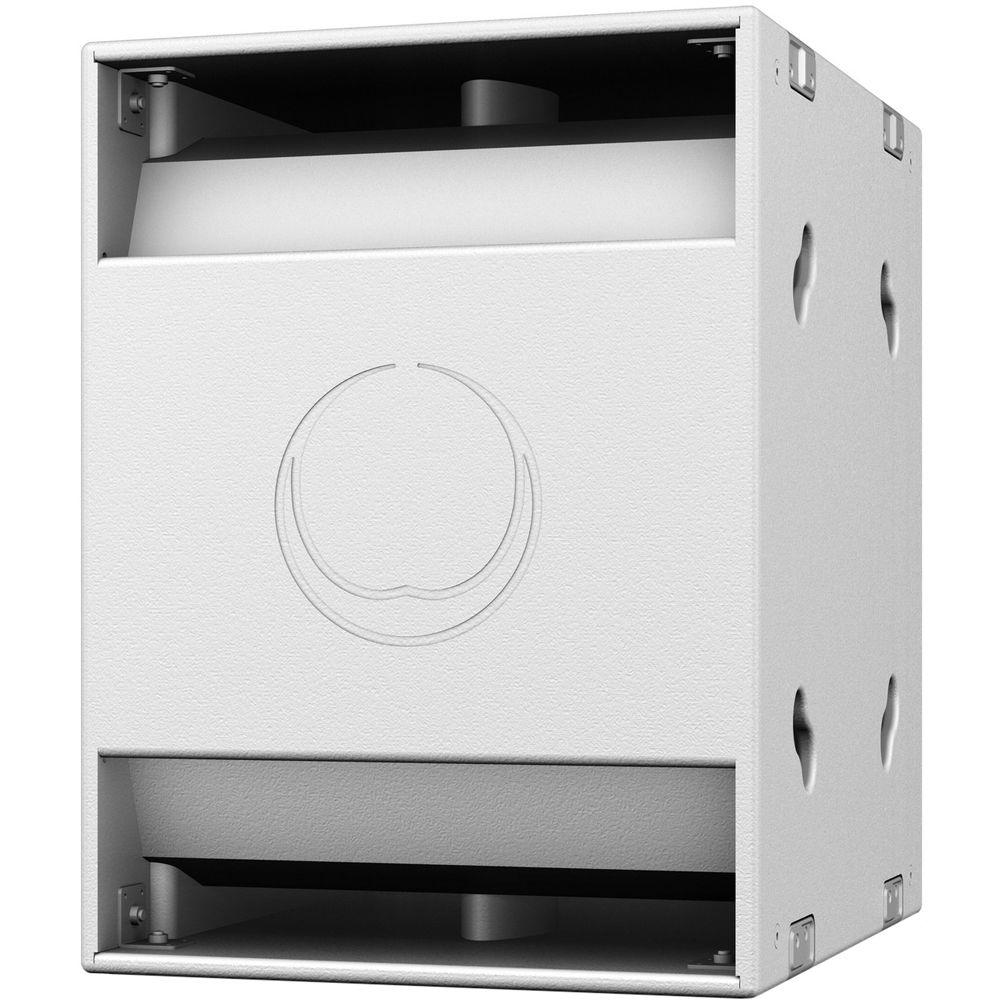

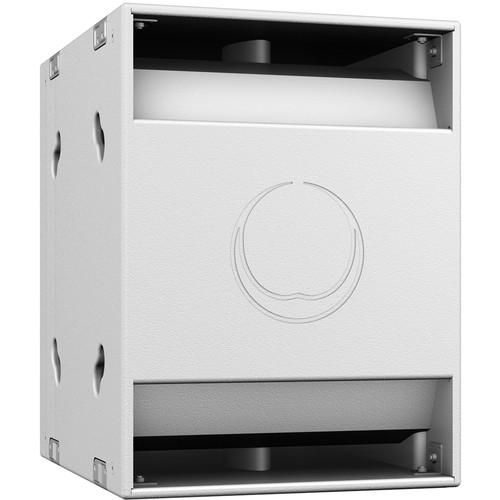

Product description The white NuQ118B 18" 2400W Band-Pass Subwoofer from Turbosound is a dual-ported band-pass enclosure optimally tuned for extended low-frequency response. Engineered to work in conjunction with Turbosound loudspeaker-management systems, the subwoofer offers high-output FOH performance and is ideally suited for a wide range of music and live sound-reinforcement applications.The subwoofer features a powerful, double-suspension 18" low-frequency driver that utilizes a specialized inside/outside wound voice coil for higher magnetic density, better heat dissipation, high power-handling capacity, and improved efficiency. For its size and operating bandwidth, the unit delivers high output that is virtually distortion free, even in the most demanding applications.Finished in a durable semi-matte white paint, the cabinet is constructed from 3/4" (18mm) birch plywood and includes: multiple threaded rigging points; a 35 mm pole socket; integrated carry handles for convenient transport – and high-impact interlocking corners for ground-stacking stability. The rear-panel connector plate carries Neutrik speakON NL4 connectors, with switchable input and link connections to accommodate stand-alone subwoofer applications, or subwoofer and satellite-speaker connectivity via 4-core speaker cabling. - 18" band-pass subwoofer for portable PA applications
- 600W continuous, 2400W peak power
- Double-suspension 18" low-frequency driver with inside/outside wound coil
- Low-distortion dual-port design for maximum sound-pressure level
- 3/4" (18mm) birch-plywood enclosure with hard-wearing semi-matte black paint finish
- Integral M10 rigging points for ease of installation
- 35mm pole mount to support satellite speaker

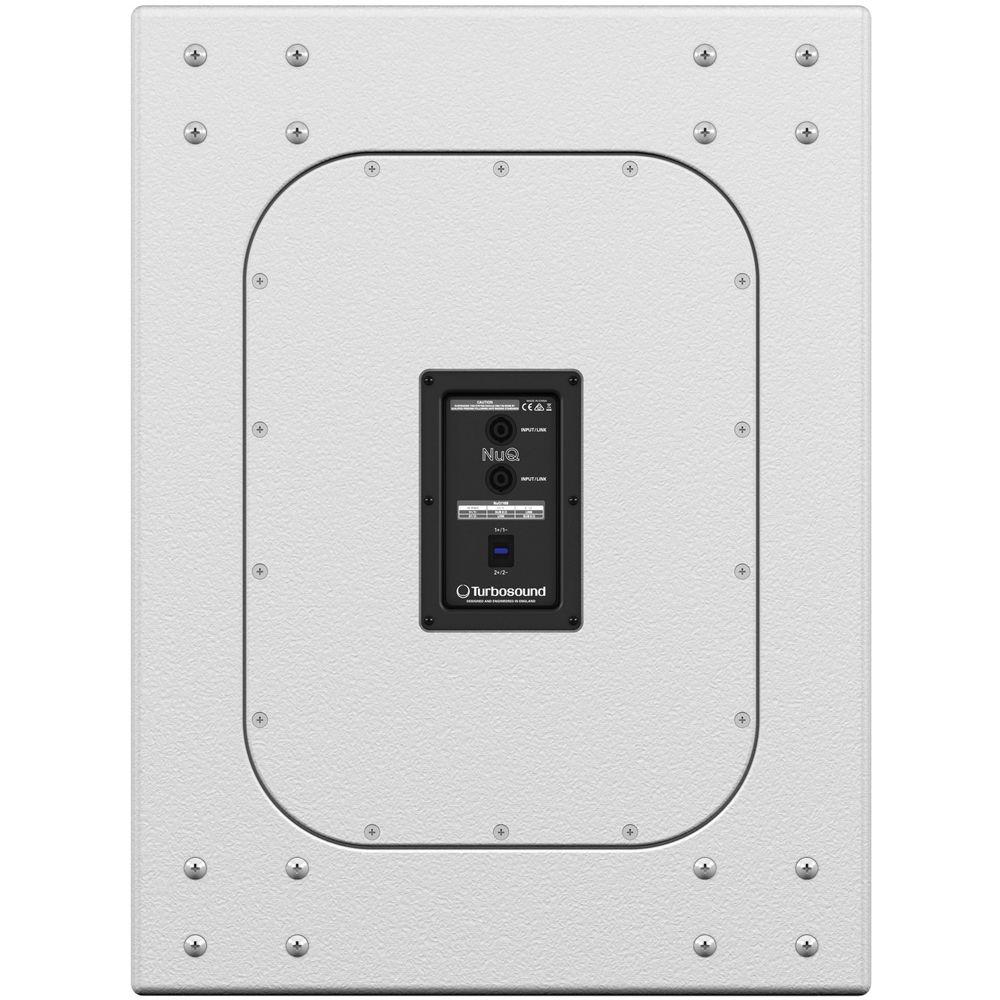

- Neutrik speakON NL4 connectors for reliable long-life operation
In the Box Turbosound NuQ118B 18" 2400W Band-Pass Subwoofer (White) Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Turbosound NuQ118B 18" 2400W Band-Pass Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTurbosound NUQ118B Specs | Frequency Response | 40 Hz to 150 Hz ± 3 dB
33 Hz to 150 Hz - 10 dB | | Nominal Dispersion | Half space | | Power Handling | 600 W continuous, 2400 W peak | | Sensitivity | 100 dB (1 W @ 1 m) | | Maximum SPL | 128 dB continuous, 134 dB peak | | Impedance | 8 ohms | | Components | 1 x 18" (460 mm) LF driver | | Connectors | 2 x Neutrik speakON, NL4 | | Wiring | Switch position 1: Pins 1+ / 1- input, pins 2+ / 2- link
Switch position 1: Pins 1+ / 1- link, pins 2+ / 2- input | | Construction | 3/4" (18 mm) birch plywood | | Finish | Semi-matte white paint | | Hardware | M10 x 16 points | | Dimensions (H x W x D) | 30.3 x 22.8 x 27.6" (77 x 58 x 70 cm) | | Weight | 124.6 lb (56.5 kg) |
